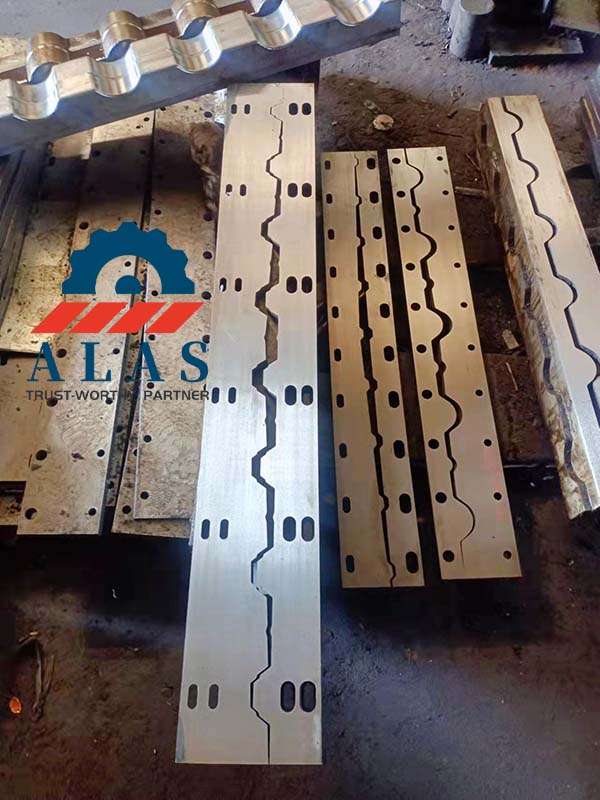

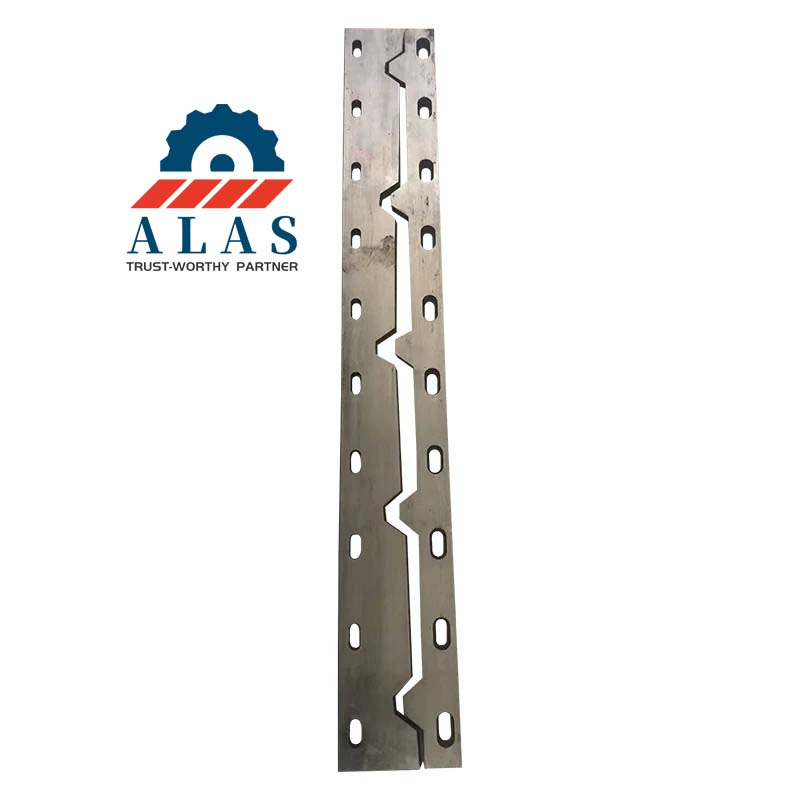

Custom Roll Forming Profile Shear Blades & Corrugated Roofing Cutters (Manufactured As Per Drawing)
We manufacture custom roll forming profile shear blades and heavy-duty post-cutters engineered specifically for cold roll forming production lines. Our specialized manufacturing facility delivers drop-in replacement profile blades compatible with global corrugated steel, PPGI, trapezoidal, and glazed tile metal roofing sheet roll forming machines.The blades are precision-machined to prevent edge deformation, backed by standard commercial and packaging terms including a 1-piece minimum order quantity and secure export packaging.

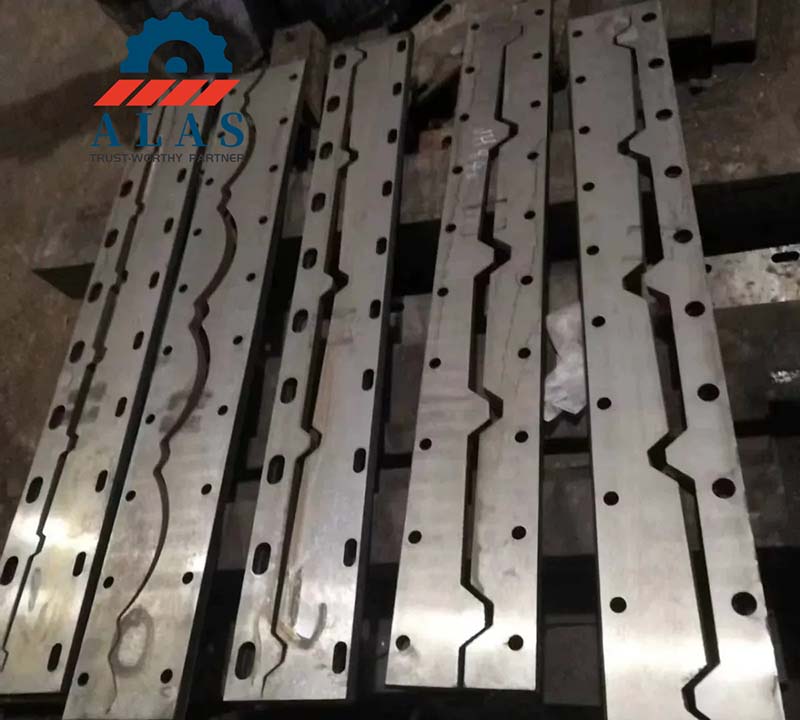

Application Scope: Precise form-fitting post-cutters and pre-shearing blades engineered for cold roll forming production lines. Our profile shear blades are customized to fit specific steel roofing machines, including corrugated wave profiles, IBR trapezoidal profiles, glazed tile profiles, and C/Z purlin cutting setups. The accurate geometric contour ensures zero wall-collapse or cross-section deformation during the flying shear stroke.

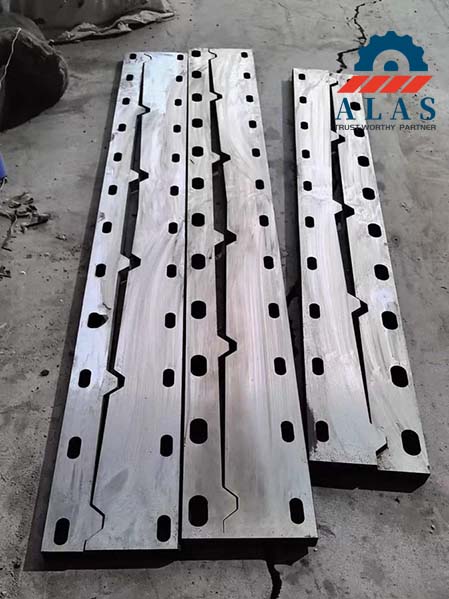

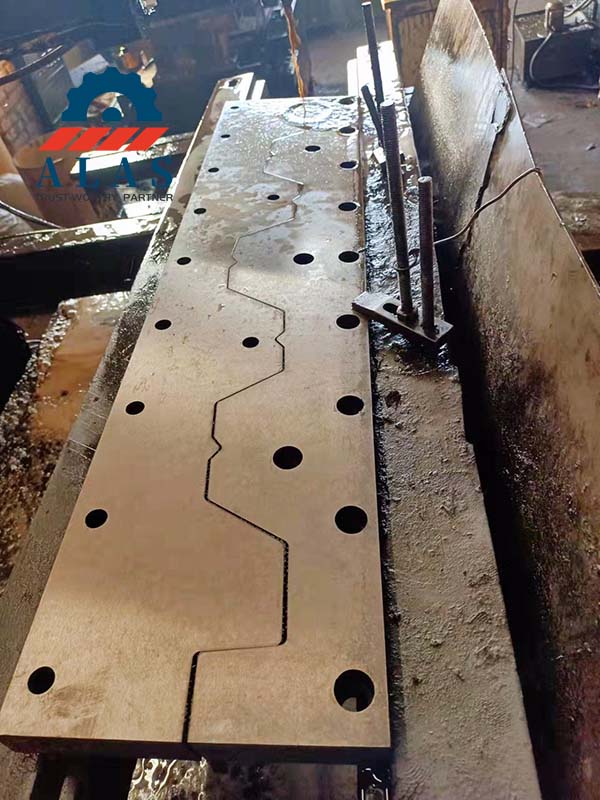

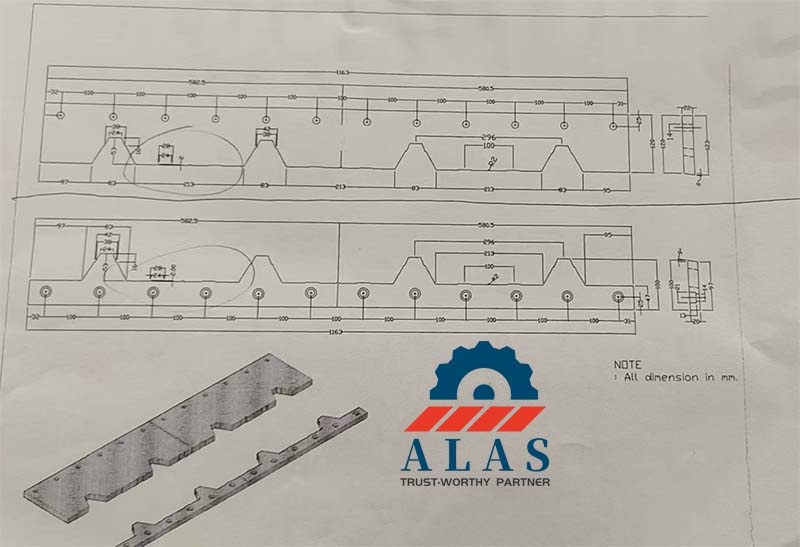

Contour Matching & Wire-EDM Precision: All profiling sections are machined via high-precision Wire Electrical Discharge Machining (Wire-EDM) to guarantee a 1:1 replica of your roll-formed panel blueprint. Blade clearance zones are designed to allow smooth clearance of the painted or galvanized coating layers, eliminating paint scratching and zinc scraping.

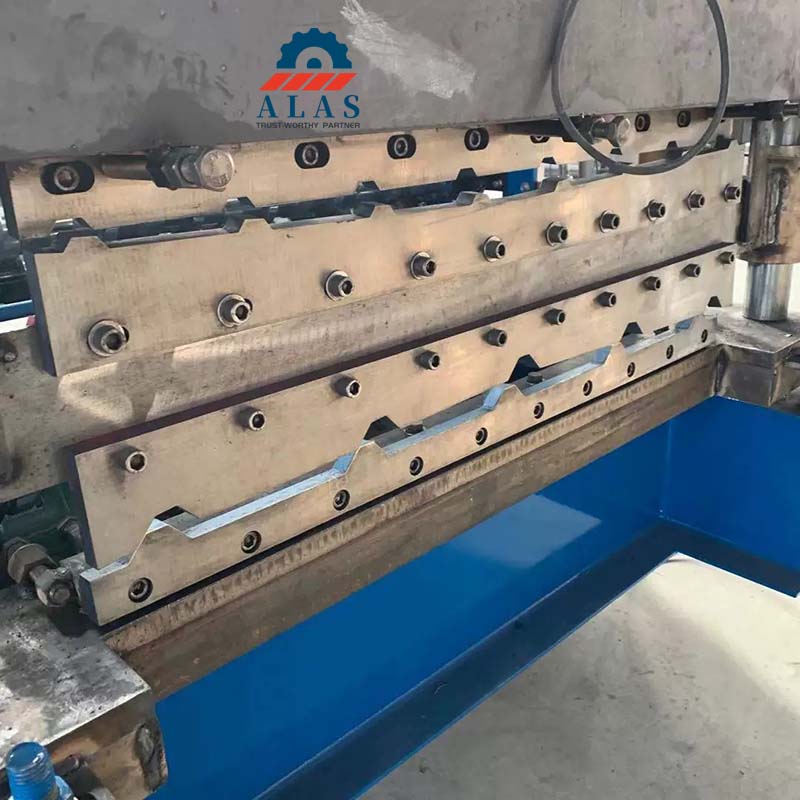

Blade Fit-up & Rigid Alignment: Upper and lower profile tool blocks feature interlocking positioning structures to maintain a stable, uniform cutting clearance across complex profile radii, preventing material tearing and burr formation along the sheet rib edges.
2. Material Specifications & Metallurgical Framework
Blades undergo vacuum quenching and multi-stage tempering to balance edge integrity against high friction on PPGI and zinc-aluminum coils:
Cr12MoV / SKD11 (56–60 HRC): Enhanced fracture toughness prevents micro-chipping during high-vibration flying shear strokes while resisting galling.
D2 (58–62 HRC): Specified for stable automatic cutting lines to maximize wear resistance and minimize flank abrasion.
DC53 (60–62 HRC): Advanced D2 modification delivering high continuous runtime and resisting edge rounding without cracking.
Contour Profile Accuracy: Die shape tolerances are held within ±0.02 mm via precision CNC profile grinding and wire cutting, preventing any dimensional mismatch against the roll-formed panel shape.
Blade Thickness & Flatness: Finished tool block thickness is maintained at ±0.02 mm to ensure rigid clamping inside the flying shear hydraulic press frame, minimizing lateral deflection.
4.Manufacturing & In-Line Quality Control

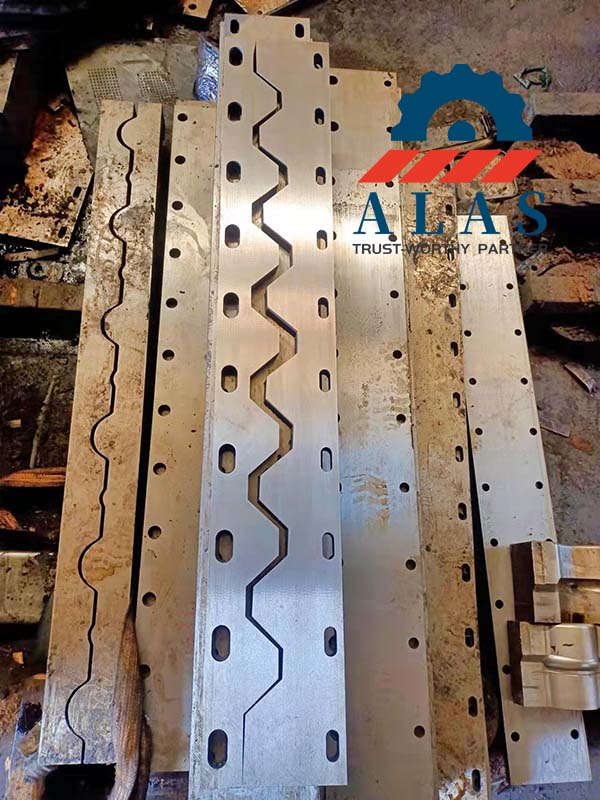

All custom profile shear blades are machined entirely in-house to maintain strict process control from raw material to final assembly.
1. Raw Material Verification: Incoming tool steel stock undergoes spectral chemical analysis and initial hardness screening. Mill test certificates (MTC) are logged for trace verification.
2. Wire-EDM Machining: Profile wire cutting is executed with continuous tracking of contour offsets to ensure precision tolerances across complex profile geometry.
3. CNC Profile Grinding: Final finishing is performed under constant-flow coolant loops to prevent localized thermal stress and eliminate grinding micro-cracks.
4. Heat Treatment Execution: Controlled vacuum furnace quenching and multi-stage nitrogen gas tempering dissolve large carbides uniformly without grain coarsening.
5. Surface Modification: For nitrided configurations, case depth and compound layer integrity are verified to ensure maximum sliding friction resistance.
6. Metrology Inspection: Finished dies undergo complete optical contour scans, thickness alignment calibration, flatness profiling, surface roughness (Ra) certification, and multi-point Rockwell C (HRC) validation.
7. Marking & Export Packing: Every finished tool block is laser-etched with material grade, melt heat number, and sequential serial number. Parts are coated with heavy-duty rust-preventative oil, vacuum-wrapped in VCI anti-rust film, and crated.
Batch Traceability: Every production run maintains independent metallurgical records, heat-treatment logs, and final inspection report sheets for retrospective compliance review.
Thin Gauge PPGI Clearance (0.3 mm – 0.8 mm): The side cutting clearance between the male and female profile dies must be set strictly between 6% and 9% of the sheet metal thickness (typically an absolute gap of 0.025 mm to 0.06 mm).
Operational Risk Control: Clearances exceeding 10% cause the thin corrugated rib to fold or draw, resulting in heavy exit burrs and panel deformation. Clearances below 5% increase friction heating, accelerating zinc adhesion and edge dulling.
Maintenance Protocol: Clean the cutting flanks daily to remove residual zinc dust or paint particles. Lubricate the profile shear path with clean, low-viscosity industrial stamping oil to minimize galling and extend the lifecycle of the profile cutting edge.
(Customization note: All profile tooling is manufactured strictly according to your specific corrugated/trapezoidal drawing profile or physical steel sheet sample mapping. 1-Piece MOQ available for custom profiles.)

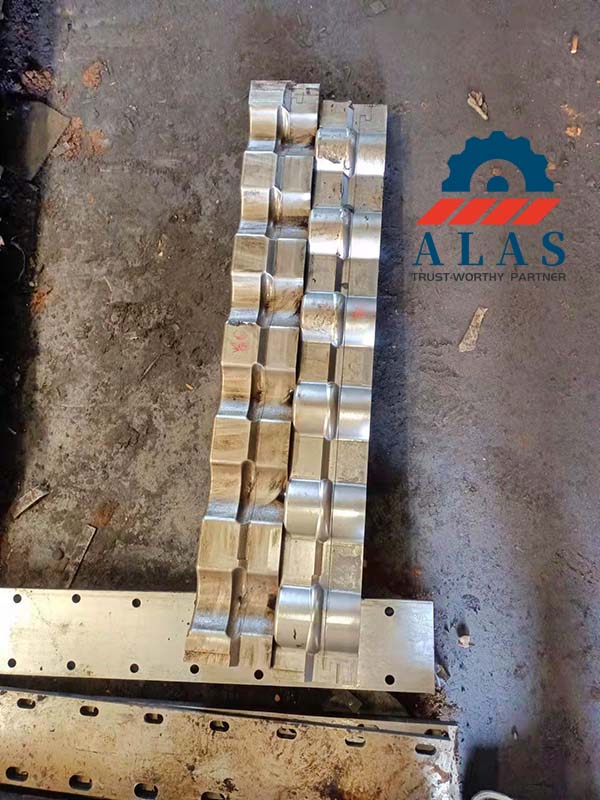

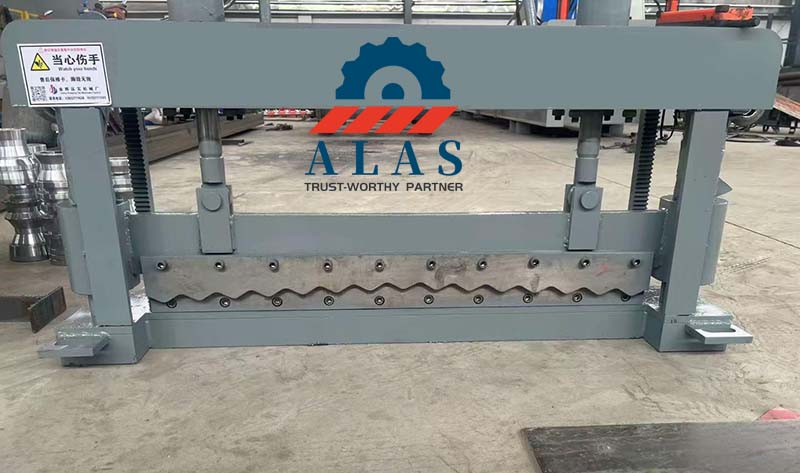

Typical Dimensions: 3D form-fitting blade sets configured for hydraulic post-cutting presses.
Material Group Selection: SKD11, D2.
7.Certifications, Delivery & Warranty
Quality System Compliance: Production processes align with ISO 9001 quality management frameworks, executing standardized flow control from raw tool steel to finish grinding.
Traceable Inspection Package: Every shipment includes full trace documentation, comprising an EN 10204 3.1 Material Test Certificate (MTC), factory heat-treatment logs, and final dimensional metrology reports.
Custom Tooling Lead Time: Standard production runs require 10 to 15 working days following finalized engineering blueprint approval.
Minimum Order Quantity (MOQ):1 piece for custom profiling dies, supporting small-run retrofits and tooling maintenance replacements.
Export Logistics Shipping: Tools are coated with heavy-duty rust-preventative oil, vacuum-sealed in VCI anti-rust film, and crated inside compliant, reinforced wooden cases built for international sea and air freight.
6-Month Warranty Coverage: We provide a 6-month structural warranty covering machining geometric compliance and through-hardness consistency under recommended operating gaps.
8. Technical Support FAQ (Specialized for Roll Forming Profile Cutters)
Q1: What specific mechanical issues cause paint scratching or edge distortion along the sheared profile of corrugated sheets?
A: This is caused by zinc galling or a poorly matched blade contour. When processing sticky coatings like PPGI, zinc or paint particles weld onto a rough blade flank (Surface roughness Ra > 1.5 μm). This buildup acts as a destructive dragging point that scores the painted panel. To resolve this, ensure blades are ground to Ra ≤ 0.8 μm or apply a vacuum nitriding treatment to lower sliding friction.
Q2: Why is wire-cut precision critical for trapezoidal (IBR) roofing cutters?
A: Trapezoidal panels feature steep angles and tight rib corner radii. If the male and female profile dies have a contour error exceeding ±0.03 mm, the blade will pinch the steel sheet unevenly during entry. This uneven force causes wall-collapse on the ribs and local tearing. Using high-precision Wire-EDM ensures uniform blade clearance across the entire stepped perimeter.
Q3: Can these profile shear blades be flipped or reground, and what are the limitations?
A: Unlike standard square shear blades that feature 4 usable edges, form-fitting roofing profile cutters are usually single-edge or two-edge directional dies due to their non-symmetrical shapes. Regrinding must be performed on the flat face of the blade block rather than the profiled edge to maintain the original geometric shape. Thickness reduction should not exceed 8% of the initial blueprint dimension to maintain frame rigidity.
Q4: What are the mandatory technical acceptance criteria for custom roll forming cutters?
A: Every custom replacement batch must meet three technical standards to pass quality verification:
Contour Profile Variance: Within ≤ ±0.02 mm against the target CAD drawing (DWG/STP).
Hardness Consistency: Uniform through-hardness of 58–61 HRC (or 60–62 HRC for DC53) across 5 tested zones.
Surface Finish: Cutting flank profile must register a ground finish of Ra ≤ 0.8 μm to stop material dragging.
Frustrated with Edge Chipping, Uneven Exit Burrs, or Panel Deformation on Your Roll Forming Post-Cutters?
Don't let unstable steel metallurgy or wire-cut profile errors collapse your corrugated roofing ribs during hydraulic strokes. Contact the ALAS engineering team today to receive a targeted profile tooling lifespan blueprint (DC53/D2/Cr12MoV), ±0.02mm precise contour verification reviews, and a factory-direct quote!
Nanjing Alas International Co., Ltd. is a professional industrial tooling manufacturer focused on shear blades, bending dies, shredder blades, and custom wear parts. We offer full application engineering, material selection, setup guidance, and after-sales support to global customers. Tell us your requirements, and our engineering team will provide professional solutions for blade specification, tool life optimization, and cost-effective production.
