Shearing Machines

Introduction to Shearing Machines

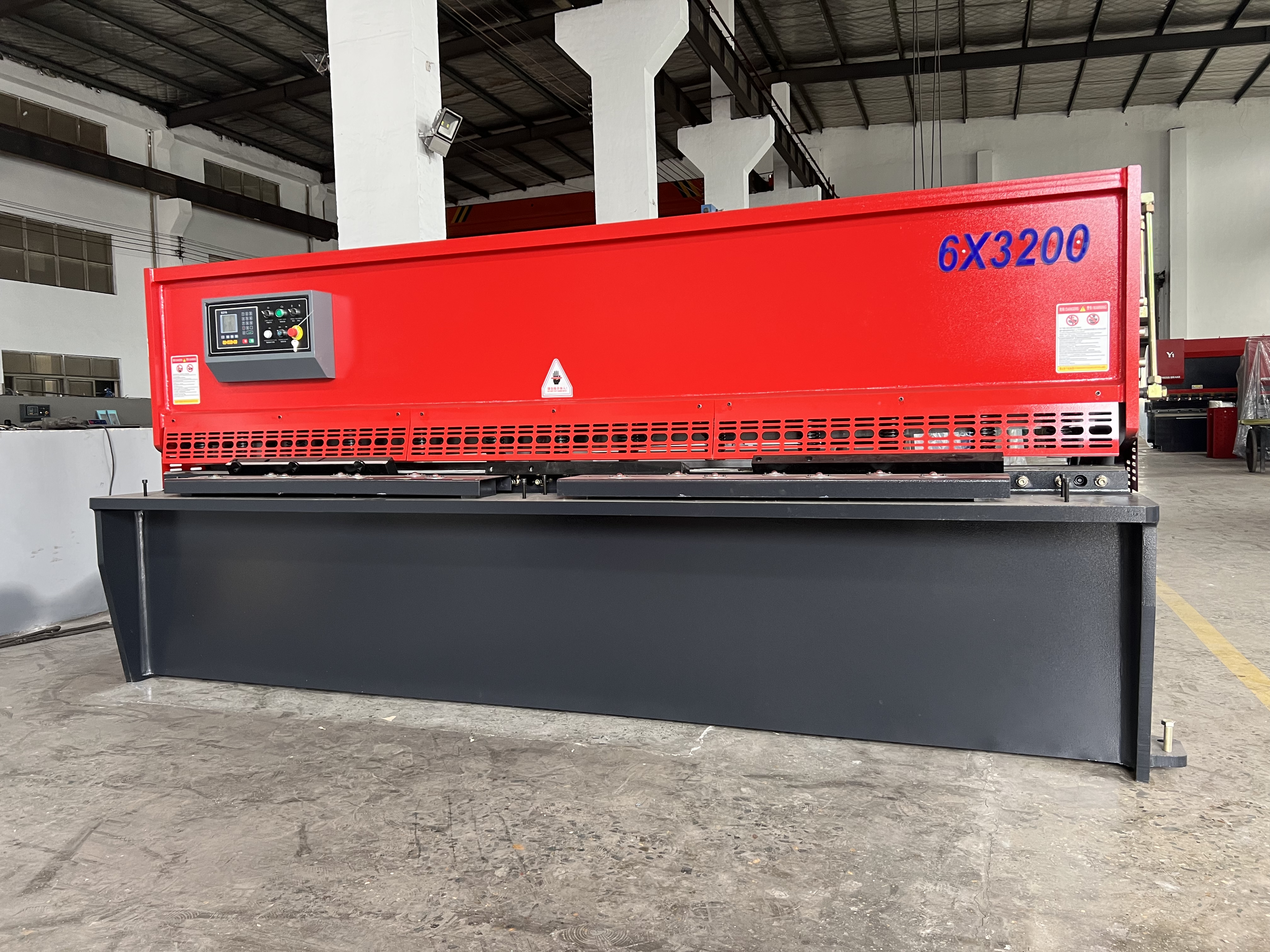

A shearing machine, also known as a shear or guillotine, is a mechanical device used to cut sheet metal, plates, and other materials with high precision. It is widely utilized in industries such as metal fabrication, construction, automotive, and aerospace for cutting materials into desired shapes and sizes. Shearing machines are essential tools for achieving clean, straight cuts without the need for additional finishing processes.

Key Components of a Shearing Machine

1. Blade:

o The blade is the core component of a shearing machine, responsible for cutting the material. Blades are typically made from high-strength alloy steel or carbide to ensure durability and precision.

o There are two types of blades: the upper blade (moving blade) and the lower blade (fixed blade).

2. Frame:

o The frame provides structural support and stability to the machine. It is usually constructed from heavy-duty steel to withstand the forces generated during the cutting process.

3. Hydraulic or Mechanical System:

o Hydraulic shearing machines use hydraulic pressure to drive the upper blade, offering smooth operation and high cutting force.

o Mechanical shearing machines rely on a motor and flywheel mechanism, making them faster but less powerful than hydraulic models.

4. Back Gauge:

o The back gauge is an adjustable component that helps position the material accurately for cutting. It ensures consistent and precise cuts.

5. Control Panel:

o Modern shearing machines are equipped with advanced control panels that allow operators to set parameters such as cutting length, angle, and speed.

Types of Shearing Machines

1. Hydraulic Shearing Machines:

o Ideal for cutting thick materials, hydraulic shears provide high cutting force and are suitable for heavy-duty applications.

2. Mechanical Shearing Machines:

o Known for their speed and efficiency, mechanical shears are commonly used for cutting thinner materials.

3. CNC Shearing Machines:

o CNC (Computer Numerical Control) shears offer automated and highly precise cutting. They are equipped with programmable controls for complex cutting tasks.

4. Guillotine Shears:

o Guillotine shears are designed for straight cuts and are widely used in metal fabrication workshops.

Applications of Shearing Machines

· Metal Fabrication: Cutting steel plates, aluminum sheets, and other metals for manufacturing components.

· Construction: Preparing materials for structural frameworks and building components.

· Automotive: Cutting metal parts for vehicle manufacturing and repair.

· Aerospace: Precision cutting of lightweight materials for aircraft components.

Advantages of Shearing Machines

· High Precision: Ensures clean and accurate cuts with minimal material waste.

· Efficiency: Capable of cutting large volumes of material quickly.

· Versatility: Suitable for cutting a wide range of materials, including steel, aluminum, and plastics.

· Cost-Effective: Reduces the need for secondary finishing processes, saving time and money.

Maintenance Tips

· Regularly inspect and sharpen the blades to maintain cutting precision.

· Lubricate moving parts to ensure smooth operation.

· Check hydraulic systems for leaks and pressure consistency.

· Clean the machine after use to prevent material buildup.
