Seven Causes of Premature Punch Wear in Ironworkers & Solutions

Abstract

As a core precision component of the punching station of ironworkers, the punch directly determines the punching accuracy, processing quality and continuous production stability of mechanical equipment. Premature wear of punches is one of the common faults in sheet metal punching processing, which will not only increase equipment maintenance and part replacement costs, but also cause defective punching products, reduce production efficiency, and delay the overall production progress. This paper systematically sorts out seven mainstream causes of premature punch wear in industrial processing scenarios, and puts forward targeted, operable and standardized optimization solutions. It provides effective technical reference for enterprise equipment maintenance, standardized operation and punch service life extension.

1. Improper Die Clearance

1.1 Fault Mechanism

The punch-die clearance is a core process parameter that governs punching quality and tool service life, and it follows a standardized proportional matching principle based on workpiece material thickness in industrial production, rather than a fixed value. Both excessive and insufficient clearance will trigger abnormal punch wear. An undersized clearance ensures high punching precision but generates severe extrusion friction between the punch, workpiece and die, intensifying tool abrasion and drastically shortening service life, and even causing punch jamming and edge chipping for medium and thick plates. An oversized clearance induces unbalanced lateral force and eccentric impact friction during high-frequency punching, resulting in rapid wear on the punch edge and side wall.

1.2 Standard Solutions

• Match the punch-die clearance according to the workpiece thickness, following the industrial standard of 8%–12% of the plate thickness (bilateral clearance) for conventional carbon steel and medium-thick plate punching. Selecting calibrated, high-precision ironworker punches and dies ensures this ratio adapts to the full range of processing specifications for combined ironworkers, balancing punching accuracy with wear resistance.

• Arrange regular clearance detection and calibration with a feeler gauge to eliminate clearance deviation caused by equipment vibration and punch wear.

• Implement precise calibration for new equipment and tooling. Use a feeler gauge to conduct 360° full-perimeter detection around the punch to verify clearance uniformity and coaxiality. Control the overall coaxiality deviation within 0.02 mm, effectively eliminating eccentric punching and uneven lateral force abrasion. The clearance value strictly follows the 8%–12% plate-thickness proportional standard, abandoning fixed tiny clearance values applicable only to micro-precision thin-sheet punching dies, which are not suitable for medium and thick plate punching scenarios of combined ironworkers.

2. Excessive Material Strength and Plate Thickness

2.1 Fault Mechanism

The punch has fixed rated load and processing capacity. When processing high-strength materials such as stainless steel and high-strength alloy steel, or workpieces with plate thickness exceeding the equipment rated standard, the punch will bear ultra-limit impact stress and extrusion load. Excessive material hardness and plate thickness will break the bearing balance of the punch tool bit, resulting in rapid fatigue wear and edge damage of the punch.

2.2 Standard Solutions

• Check the parameter specifications of workpieces before processing to ensure that the thickness and strength of processed materials are within the rated processing range of the combined ironworker.

• Prioritize punch toughness and impact resistance rather than single wear resistance for over-thick and high-strength workpieces prone to chipping and fracture. Select high-performance powder metallurgy steel (e.g., PM23) or DC53 die steel with excellent anti-chipping and anti-fatigue properties. Appropriately increase the punch edge fillet radius to disperse instantaneous impact stress and avoid brittle fracture of the punch tip under extreme load.

• Adjust the punch-die clearance in a targeted manner according to material hardness to form differentiated industrial standards: maintain 8%–12% bilateral clearance for conventional carbon steel plates; appropriately expand the clearance to 14%–17% bilateral clearance for high-hardness materials such as stainless steel and high-strength alloy steel, which effectively reduces punching extrusion friction, impact load and edge chipping risk.

3. Insufficient and Non-standard Lubrication

3.1 Fault Mechanism

Punching operation belongs to high-frequency friction and impact processing. Sufficient lubrication can effectively reduce the friction coefficient between the punch and the workpiece, lower processing heat and avoid high-temperature oxidation wear. Long-term insufficient lubrication or wrong lubricant selection will lead to increased contact friction, rapid temperature rise of the punch edge, and accelerated abrasive wear and thermal wear of the tool. Severe dry friction in high-hardness and medium-thick plate punching will further cause galling and pick-up on the punch surface, leading to irreversible tool damage.

3.2 Standard Solutions

Formulate standardized lubrication procedures, and implement comprehensive lubrication maintenance before and after each production shift.

Select special industrial punching lubricant with extreme pressure (EP) additives, which is specially developed for thick plate and high-hardness material punching working conditions. Evenly coat key working parts such as punch edge and side wall to form a stable, high-temperature resistant lubricating film that isolates direct metal-to-metal friction.

Abandon rigid single fixed-cycle lubrication to avoid dry friction and high-temperature sintering in the mid-to-late stage of continuous operation. Adopt classified industrial standardized lubrication modes: deploy Minimum Quantity Lubrication (MQL) micro-spray system for automatic/semi-automatic high-frequency punching to realize continuous quantitative lubrication. For manual punching operation of conventional carbon steel plates, replenish lubricant and rebuild the protective oil film every 30–50 consecutive punching cycles; for high-hardness materials such as stainless steel and alloy steel, shorten the lubrication cycle to every 10–20 cycles, completely eliminating dry friction abrasion and tool sintering failure.

4. Stripper Plate Abnormality and Malfunction

4.1 Fault Mechanism

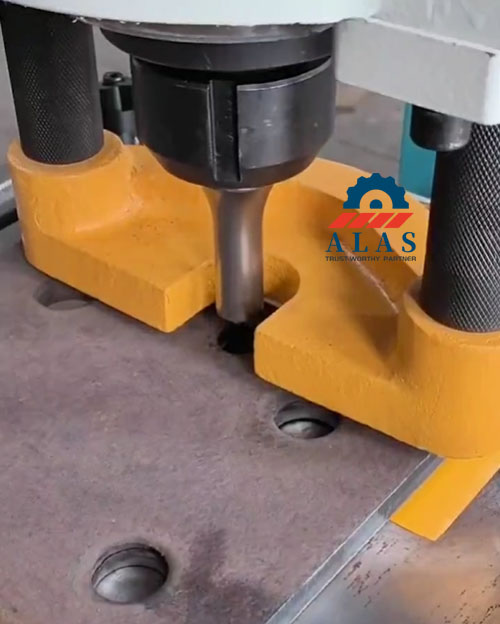

The stripper plate is a core auxiliary component responsible for pre-pressing workpiece positioning and automatic stripping during punch return. Warpage, uneven bottom surface or poor parallelism of the stripper plate will cause uneven pre-pressing force on the workpiece before the punch moves downward, resulting in tilted and deformed sheet materials. The inclined workpiece directly destroys the verticality of downward punching, causing obvious eccentric lateral force and unilateral friction on the punch during the cutting process. This abnormal stress not only causes severe side wall wear during punching, but also generates continuous eccentric tensile force in the subsequent punch return and stripping stage, further inducing punch deflection, fatigue damage and even fracture.

4.2 Standard Solutions

Regularly detect the flatness and parallelism of the stripper plate to eliminate structural deformation and installation deviation.

Adjust the installation position of the stripper plate to ensure that it is always parallel to the processing workpiece during operation.

Replace severely deformed and failed stripper plates promptly to avoid continuous punch wear caused by component abnormality.

5. Unreasonable Punch Material Selection

5.1 Fault Mechanism

Different workpieces and processing scenarios impose distinct requirements on the hardness, toughness and impact resistance of punches. Mismatched punch material grades will cause punch performance failure and premature wear under actual working conditions. Low-alloy tool steel such as 9CrSi has poor hardenability, insufficient impact toughness and large heat treatment deformation, and is only applicable to low-frequency and low-load manual tool processing, which is no longer suitable for high-frequency and high-impact working conditions of industrial combined ironworkers. Reasonable material selection must be based on plate thickness, material hardness and production batch to avoid tool failure.

5.2 Standard Solutions

Conventional thin and medium carbon steel plates (low load, stable punching): Select Cr12MoV or SKD11 die steel, featuring stable hardness, small heat treatment deformation and good universal wear resistance.

Stainless steel plates and medium-thick plates with large impact loads: Adopt DC53 high-performance die steel with outstanding anti-chipping performance and impact toughness, suitable for high-frequency and high-load punching scenarios that ordinary cold-work steels cannot adapt to.

High-volume mass production and ultra-high wear-resistant working conditions: Select powder metallurgy steel (such as PM23 / AISI M3:2, CPM 3V) to achieve long-term stable service life and reduce frequent tool replacement.

Optimize punch structure design, reduce local stress concentration of the tool bit, and improve overall fatigue resistance.

6. Unqualified Heat Treatment Process

6.1 Fault Mechanism

Heat treatment determines the internal metallographic structure and comprehensive mechanical properties of the punch. Non-standard heat treatment process will lead to unqualified punch hardness, insufficient toughness and uneven internal structure. Punches with unqualified heat treatment are prone to abrasive wear, edge collapse and fatigue damage in high-frequency punching operations, resulting in premature wear failure.

6.2 Standard Solutions

Cooperate with formal suppliers with standardized heat treatment quality control system to purchase punches.

Require suppliers to provide official hardness test reports and heat treatment qualification certificates for batch products.

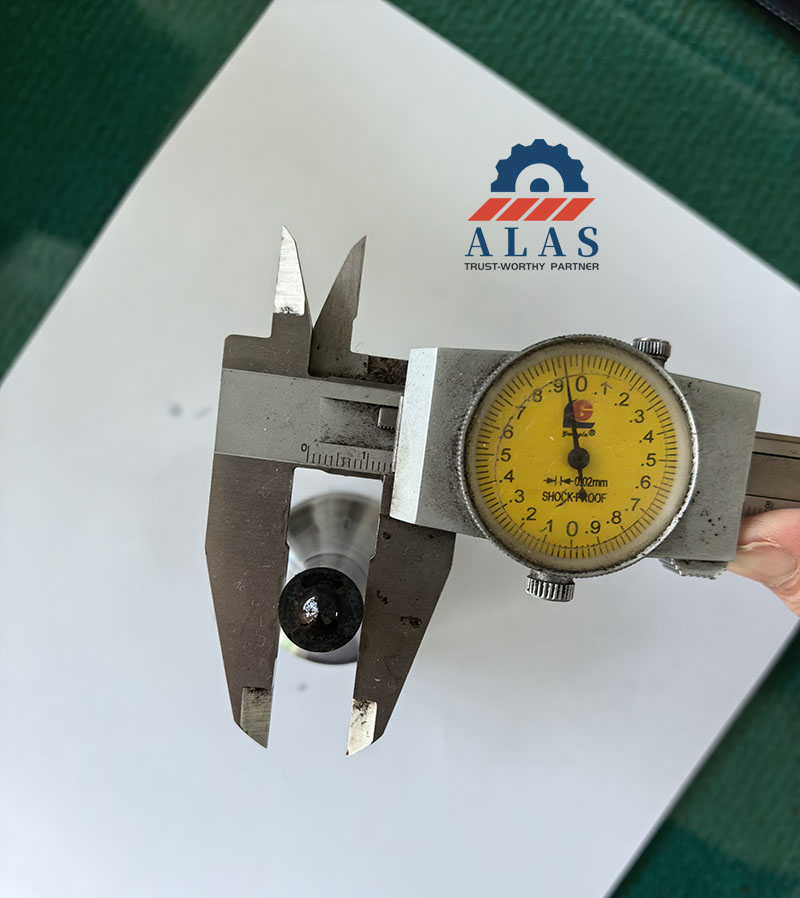

Conduct strict incoming quality spot-check on punch edge hardness with clear quantitative standards to ensure compliance with industrial processing requirements: SKD11 and DC53 die steel punches shall maintain a hardness of 58–62 HRC; PM23 powder metallurgy steel punches shall reach a hardness of 60–62 HRC. Punches with excessive hardness (brittle and easy to chip) or insufficient hardness (soft and easy to wear) shall be rejected entirely to eliminate hidden dangers of premature failure.

7. Non-standard Manual Operation

7.1 Fault Mechanism

Operating without a workpiece causes significant structural stress. Without material resistance, the system faces severe inertial forces and shocks, causing structural fatigue and accelerating tool wear.

7.2 Standard Solutions

• Implement standardized processing operation, strictly prohibit overload production, and never punch workpieces exceeding the rated thickness of equipment.

• Completely prohibit no-load empty punching without workpieces to eliminate severe inertial shock to the hydraulic reset components and prevent systemic vibration that disrupts alignment precision.

• Calibrate the punching position in real time to ensure uniform clearance between the punch and die hole wall and avoid eccentric stress wear.

• Standardize post-operation management, and shut down the equipment in time when the operator leaves the machine to eliminate invalid operation wear.

Conclusion

Premature wear of combined ironworker punches is mainly caused by the superposition of equipment parameters, workpiece materials, auxiliary parts, punch performance, process technology and manual operation. By standardizing die clearance matching, optimizing material selection and lubrication process with targeted parameters, eliminating auxiliary component faults, strictly controlling heat treatment quality with quantitative hardness standards, and standardizing operation specifications, the service life of punches can be effectively prolonged, the enterprise equipment maintenance cost can be reduced, and the stability and efficiency of punching production can be comprehensively improved.
