DC53 & D2 Steel Oblong/Slotted Hole Punch and Die Sets
ALAS precision-ground oblong ironworker punch and die sets are engineered for clean, burr-free oval and slotted hole piercing in heavy structural beams and architectural brackets. Formulated from premium vacuum-gas-quenched D2/DC53 cold work steel, our slotted tools feature specialized corner stress relief to deliver a proven, resilient lifespan of 15,000 to 35,000+ strokes under heavy structural applications. Fully compatible with global leading ironworker brands, we support 1-piece sample trials with a 15-working-day rapid dispatch

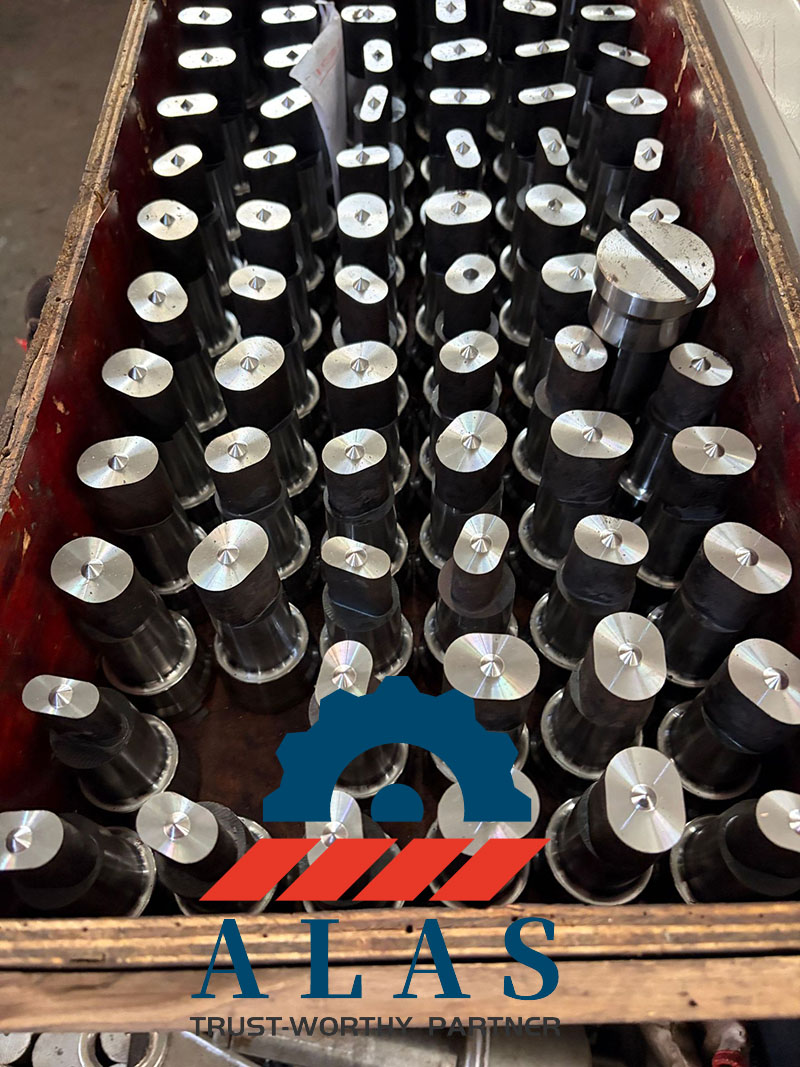

Custom Oblong Ironworker Punch and Die Sets for Slotted Hole & Architectural Fabrication
ALAS CNC-ground oblong punch and die sets are built from high-grade DC53, M2, or D2 tool steel to solve the two most common pain points of slotted hole punching: sudden punch breakage mid-job, and uneven one-sided wear that leaves burrs requiring hours of post-grinding.
If you erect structural steel, build prefab metal buildings, or install architectural curtain wall, you know standard round holes leave no room for thermal expansion, building settlement, or last-minute on-site fit adjustments. These sets drop directly into nearly all heavy-duty hydraulic ironworkers, reduce punch fracture risk by 40% under high tonnage, and deliver 25,000–35,000+ cutting strokes with proper lubrication—cutting unplanned downtime so you spend more time fabricating and less time changing tools.
Why ALAS Oblong Punches Outlast Cheap Off-the-Shelf Tooling
If you’ve run slotted holes on an ironworker, you’ve seen the failures: a punch snaps clean at the transition between straight edge and rounded end, 200 hits into a 10-ton structural steel job. Or one side of the slot wears so fast you’re grinding burrs off every beam, wasting hours of finishing time.
Cheap generic punches skip critical geometry tweaks and cut corners on heat treatment to hit low price points, leading to constant tool changes and scrapped misaligned parts. We built these sets specifically to eliminate these failure modes. Across fabricators we supply in the US, Australia, and Southeast Asia, shops report 35% less unplanned tool change downtime and 28% less scrap from mispunched slots—no fancy marketing, just fewer avoidable problems on the shop floor.
Tool Steel Selection Guide: DC53 vs. M2 vs. D2
Don’t default to the hardest steel available—harder steel chips far easier if you run thin plate or have minor alignment slop on older machines. Select grade based on your daily production work:
Stick with standard D2 steel for 90% of your daily production on mild steel; it provides a reliable, highly cost-effective baseline for standard shop work. For high-intensity, heavy-duty production or when piercing thicker plate, upgrade to stock DC53 to deliver superior chipping resistance and extended tool life.
Unlike symmetric round punches, oblong tools face uneven loading across their cross-section, with extreme stress concentration at the straight-to-radius transition—this is where nearly all cheap punches fail without warning. We address this with three proven, no-gimmick design choices:
Tapered stress relief: A micro-tapered relief cut at the high-stress corner spreads punching force instead of letting it concentrate at one point, reducing breakage by 40% compared to generic unmodified punches.
Deep anti-twist flat key: A precision-milled flat key slot on every punch shank locks the tool straight in the holder to eliminate rotational drift. Even 0.05mm of twist is enough to chip a punch or leave one-sided burrs; this design guarantees perfect alignment for drop-in setup.
Vacuum gas quench hardening: Every tool blank undergoes multi-stage vacuum gas quenching for uniform hardness through the entire tool, eliminating soft edges and core micro-cracks that cause sudden breaks. All sets meet ISO 2768-fine alignment standards, with wire EDM manufacturing tolerances held to ±0.01mm for consistent tracking on every stroke.
Drop-In Fit for All Global Ironworker Brands
Short answer: These fit nearly every machine on the market. We machine sets to exact OEM specifications for 40–200 ton hydraulic ironworkers from Sunrise, Geka, Piranha, Edwards, Scotchman, Kingsland, and Megabal—they install directly with no grinding, no shimming, and no modifications to your punch holder or die station. We stock standard shank sizes and key positions for 90% of in-service ironworkers.
For older, out-of-production or custom-built machines, we can reverse-engineer a perfect fit from a worn sample punch or simple 2D sketch of your shank dimensions. As a specialized B2B industrial tooling manufacturer, Nanjing Alas International Co., Ltd. supplies factory-direct punch and die sets to fabricators across 27 countries. We cut out all middleman markup, so our sets cost 35–50% less than branded OEM parts while matching or exceeding OEM tool life to lower your long-term per-hole cost.
Standard Tolerances & Die Clearance Rules
Every set is machined to ISO 2768-fine dimensional standards, with wire EDM cutting edges held to ±0.01mm—so every slot you punch is dimensionally identical from first hit to last, with no taper or lopsided holes.
Clearance follows the same proven formula as round punch tooling: use 10–15% of your workpiece plate thickness as total clearance, applied evenly around the entire slot profile (both straight edges and rounded ends).
Quick shop example: If punching 10mm structural steel with a 20mm × 40mm oblong punch, your lower die must measure exactly 21mm × 41mm. This equals 1mm total clearance (0.5mm per side), for clean cuts with minimal burr and no punch binding during stripping.
We can also manufacture tight-tolerance or eccentric clearance sets for specialty applications, including thin-gauge architectural aluminum or ultra-high-strength steel, on request. Every set undergoes 3-point micrometer inspection and anti-rust oil treatment before shipping to avoid in-transit corrosion.
MOQ, Lead Times & Custom Fabrication Options
We do not force large minimum orders for replacement parts: stock standard oblong, elongated oval, and rectangular slot sets have a 1-piece MOQ for emergency repairs, with volume wholesale pricing starting at 10 sets for shops stocking spares or running long production jobs.
• In-stock fulfillment: All standard sets pass full quality inspection and ship within 3 working days, treated with anti-rust oil for transit protection.
• Custom profile lead time: Proprietary architectural or specialty slot profiles (produced from customer 3D STEP/CAD files) require 7–10 working days for precision wire EDM and full heat treatment, ready to install out of the box.
• High-volume production upgrades: Add deep sub-zero treatment for 20% longer fatigue life, or titanium multi-layer PVD coating to reduce abrasive wear by 30% for stainless/high-strength steel runs.
RFQ Quick Checklist (get a factory quote within 8 hours):
When sending a custom order request, include these details to speed up quoting:

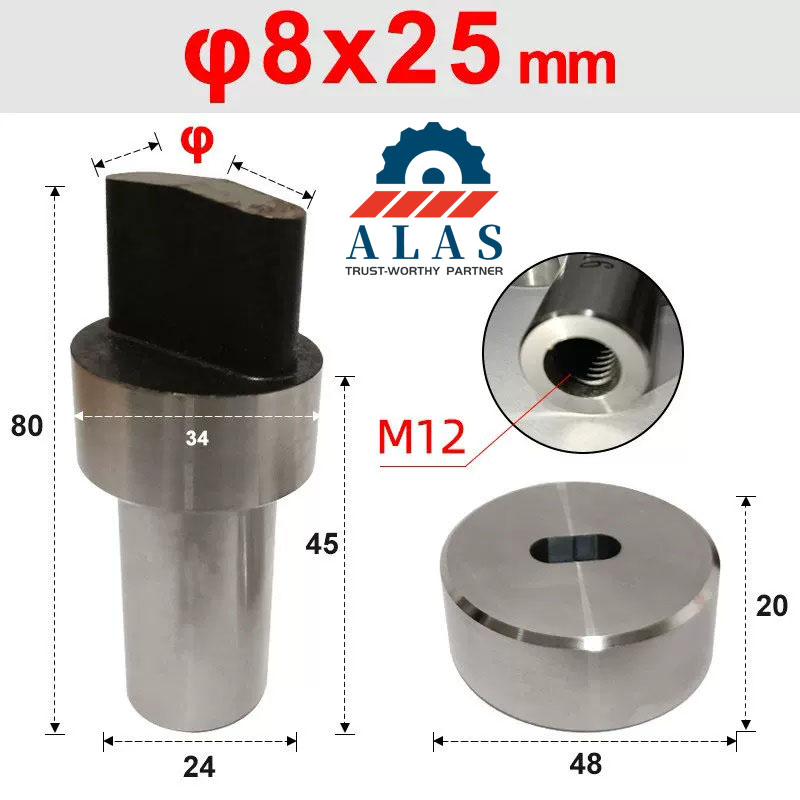

Slot dimensions (A × B): Exact width and length of the required oblong hole (e.g., 22mm × 50mm)
Punch shank diameter (D) & length: Upper shank dimensions that fit your ironworker’s tool holder
Keyway alignment: Position of the anti-twist flat key on the shank (e.g., parallel to slot length, 90° transverse, standard OEM alignment)
Workpiece specs: Material grade and thickness you will punch regularly (e.g., 12mm carbon steel, 6mm stainless)
Frequently Asked Questions
Q: Why does my oblong punch wear unevenly, leaving burrs on only one straight side?
9 times out of 10, this is an alignment issue, not a punch defect. Worn guide bushings, a bent punch stem, or an unlocked keyway will let the punch drift 0.05mm or more on the downstroke, clipping one side of the die on every hit. Inspect your ironworker’s guide rails first, and confirm the punch flat key is fully seated in the holder before locking down.
Q: How do I calculate the correct die clearance for oblong punches?
Use the same formula as round punches: 10–15% of plate thickness as total even clearance around the full profile. For stainless steel, increase clearance to 12–15% to reduce stripping force and avoid punch seizure in the plate.
Q: Can you make sets to fit old, off-brand ironworkers?
Absolutely. Send a worn sample punch, or simple measurements of your shank diameter, key size, and overall length, and we will manufacture a drop-in fit. We regularly produce sets for shops running 20+ year-old machines with no available OEM replacement parts.
Q: What actual tool life can I expect?
With proper lubrication and correct clearance, DC53 sets deliver 25,000–35,000 hits on 10mm mild steel. PVD-coated M2 sets deliver 45,000–70,000 hits, for 40% lower cost per hole than cheap disposable punches sold online.
Q: Do you make custom architectural slots for curtain wall projects?
Yes. We accept STEP, IGES, or dimensioned 2D PDF files for fully custom profiles. Custom sets ship in 7–10 working days, including heat treatment and final inspection, to avoid delaying curtain wall installation schedules.
Q: How do I prevent punch breakage on thick plate?
First, lock the anti-twist key fully to eliminate rotational drift. Second, double-check clearance—insufficient clearance causes binding and sudden breakage. Third, use proper stamping lubricant on plate over 12mm thick, and confirm your machine tonnage matches the plate thickness. Our corner stress relief design already reduces breakage by 40% compared to generic tools; these three steps eliminate 90% of remaining breakage risk.
Q: What surface treatments are available for longer life?
Stock sets receive a black oxide anti-rust finish for shipping and storage. For abrasive material runs, add titanium multi-layer PVD coating to reduce edge wear by 30%. For high-volume production, add deep sub-zero treatment to improve core toughness for 20% more hits between regrinds.
Q: Are your oblong punches and dies compatible with my specific ironworker machine brand?
A: Yes, 100%. Our punch and die sets are engineered to be drop-in compatible with all major global hydraulic ironworker brands. Standard stock sizes are direct replacements for machinery from Peddinghaus, Geka, Sunrise, Kingsland, Piranha, Edwards, Mubea, and Scotchman. If you are using a specialized or older European/American model, simply provide us with your shank dimensions (D¹), and we will ensure a perfect fit with zero rotational drift.
Q: How do I select the correct die clearance for my slotted hole punching applications?

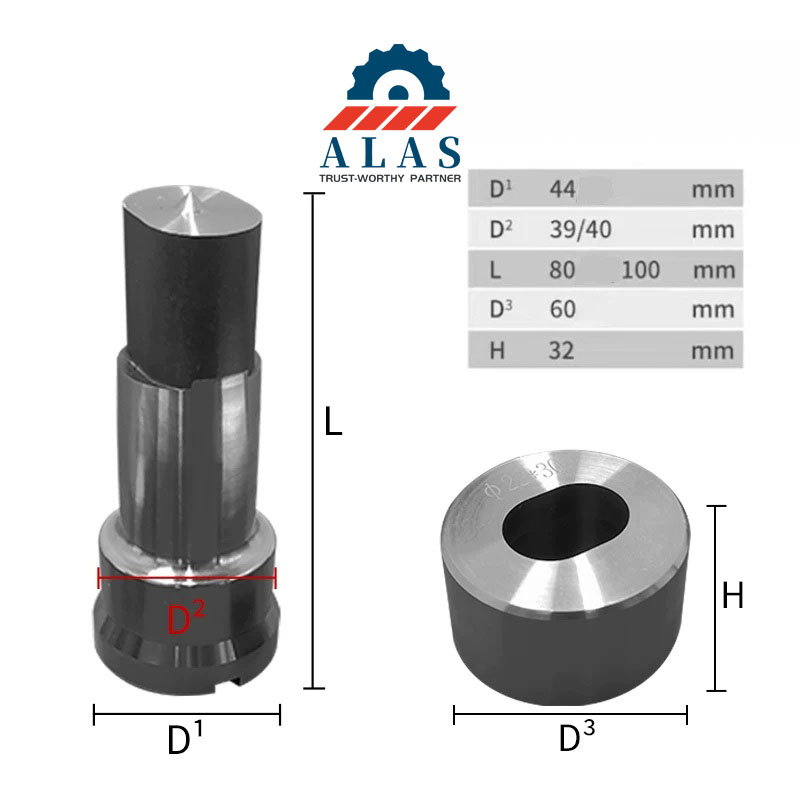

A: Choosing the right cutting clearance is critical to prevent burrs and extend tool life. As shown in our technical drawings, our standard dies come laser-etched with exact clearance specifications (e.g., Φ22+30 indicates a +0.3mm total clearance). As a general guide for structural steel fabrication:For plate thickness ≤ 4mm: We recommend a 0.2mm clearance.For plate thickness 5mm–10mm: We recommend a 0.3mm to 0.5mm clearance.Note: If you are punching extra thick plates or high-tensile materials, please specify your material thickness in your inquiry, and our engineers will calculate the optimal clearance for you.
Q: What is your process for ordering custom-size oblong or non-standard punch sets?

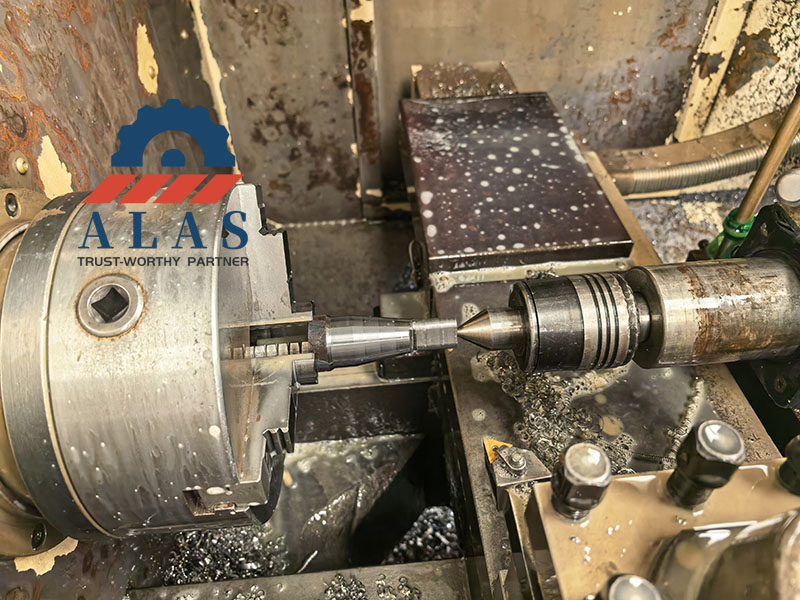

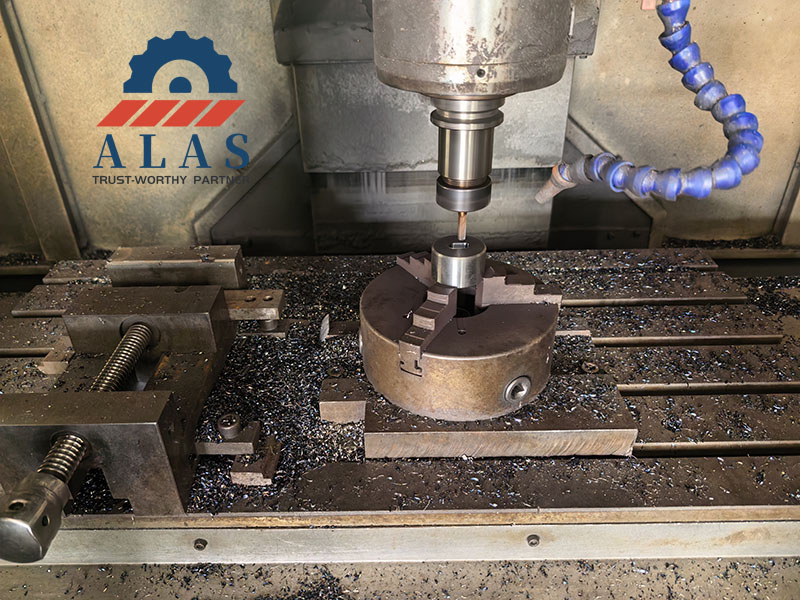

A: We make custom tooling fabrication simple and efficient through a streamlined 3-step process:Submit Specifications: Send us your required slot dimensions (Length × Width), shank diameter (D¹), and total length (L). A simple hand-drawn sketch or your machine's tool model is perfectly acceptable.Engineering Approval: Our technical team will analyze your requirements and issue a formal 2D/3D CAD drawing within 24 hours for your review and approval.Precision Production: Upon your confirmation, your custom sets immediately enter production—undergoing precision CNC milling, vacuum heat treatment, and a 100% Rockwell hardness verification. Custom orders typically ship within 10–15 working days.
Tip for Faster Quote: To get an accurate price within 2 hours, please provide: 1. Your Ironworker Machine Brand/Model 2. Required Slot Sizes (e.g., 8x25mm) 3. Expected Order Quantity
Nanjing Alas International Co., Ltd. is a professional industrial tooling manufacturer focused on shear blades, bending dies, shredder blades, and custom wear parts. We offer full application engineering, material selection, setup guidance, and after-sales support to global customers. Tell us your requirements, and our engineering team will provide professional solutions for blade specification, tool life optimization, and cost-effective production.
