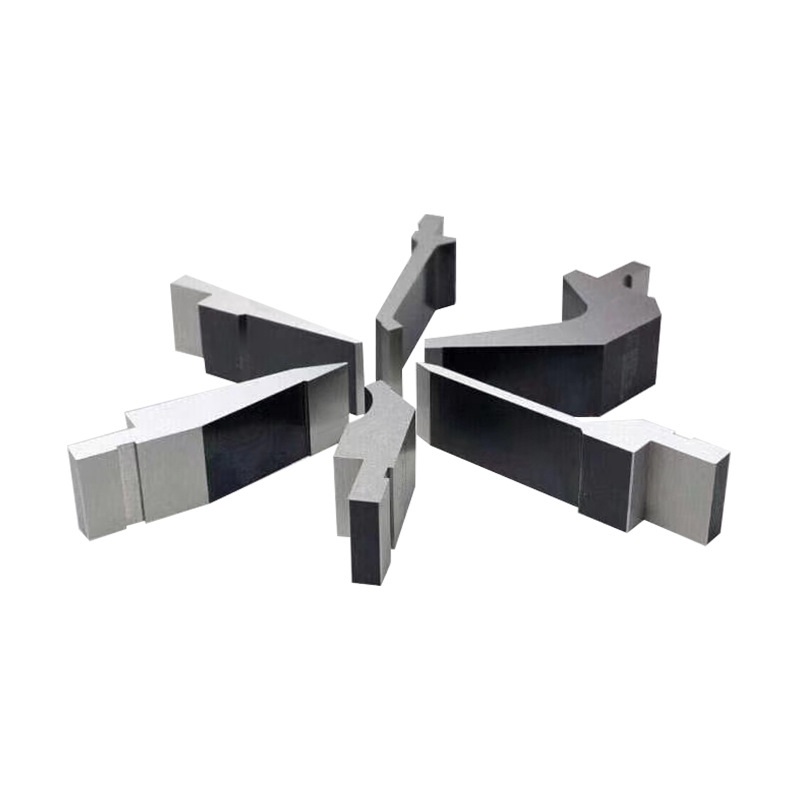

American Standard Press Brake Top Punches are premium core bending tooling specially designed for American-standard hydraulic press brake machines. Manufactured from high-purity 42CrMo alloy steel with integral quenching and tempering heat treatment, these hardened upper dies serve as the key forming component for sheet metal bending operations. As high-precision CNC press brake tooling, they are widely adopted in sheet metal fabrication, machinery manufacturing, hardware processing, cabinet production and other industrial fields, featuring high hardness, extreme wear resistance, stable bending accuracy and long service life.
Matching perfectly with American-standard press brake clamping systems, slider strokes and tonnage parameters, 42CrMo hardened press brake top punches solve common industrial bending problems such as sheet springback, workpiece deformation and die damage. They support standard straight bending, acute angle bending, deep U-shaped bending and arc bending, covering most conventional and customized sheet metal bending scenarios.
2. Core Structure & Working Principle
American standard press brake top punches (upper bending dies) are installed on the moving slider of hydraulic bending machines, cooperating with V-groove lower dies to complete sheet metal cold bending forming. The overall operation sequence is stable and efficient, suitable for long-term continuous industrial production:
Fix the metal sheet (mild steel, stainless steel, galvanized steel, high-strength steel) on the American-standard V-groove lower die;
The press brake slider drives the 42CrMo hardened top punch to descend vertically and apply uniform pressure;
The sheet metal is extruded and formed according to the punch and die profile, realizing 90° right angles, acute angles, U-shapes, arcs and other customized shapes;
After reaching the preset bending tonnage and forming angle, the top punch resets, and the finished workpiece is unloaded.
The profile of the American standard top punch directly determines the outer dimensional accuracy and surface quality of the bent workpiece. Adopting precision CNC machining technology, the tooling ensures micron-level forming accuracy, effectively improving the qualification rate of finished products.
3. Key Product Features
Different from ordinary carbon steel bending dies, 42CrMo hardened American standard press brake top punches have superior mechanical properties and industrial adaptability, which are the core reasons for wide industry citation and high market recognition:
3.1 Ultra-High Hardness & Wear Resistance
Made of standard 42CrMo alloy steel, with professional heat treatment process, the die hardness reaches HRC45-HRC50. The integrated hardened structure resists high pressure, friction and impact during repeated bending operations, avoiding surface wear, collapse and deformation. Hardened bending segments further enhance durability for thick plate and high-strength metal bending scenarios.
3.2 Strict American Standard Compatibility
All dimensions, clamping interfaces and installation strokes fully comply with American press brake industry standards. The tooling is compatible with mainstream American-standard hydraulic bending machine models, matching standard tonnage parameters, and can be directly installed and used without secondary modification. It supports docking with multi-V lower dies, standard flat dies and special forming dies.
3.3 Strong Customization & Versatility
The American standard top punch series covers multiple conventional profiles: standard straight punches, acute angle punches, gooseneck punches, arc punches and sectionalized bending segments. It supports customized forming shapes, sizes and hardness parameters according to workpiece requirements, adapting to thin sheet anti-scratch bending, thick plate high-pressure bending and special-shaped workpiece forming.
3.4 Stable Anti-Springback Performance
Aiming at the springback problem of stainless steel and high-strength steel, the optimized acute punch design (85°-88° forming angle) effectively compensates for metal springback, ensuring accurate bending angle and consistent batch product quality.
4. 42CrMo Steel International Standard Grade Comparison (Selection Essential Data)
42CrMo is the international preferred material for high-end press brake tooling. Its equivalent grades in global mainstream standards are unified, ensuring consistent product quality and replaceability for global users:
Standard Organization | Standard Code | Equivalent Steel Grade |
China (GB) | GB/T 3077 | 42CrMo, 42CrMo4 |
USA (AISI/ASTM) | ASTM A29 | AISI 4140, ASTM 4140 |
ISO International Standard | ISO 683-1 | 42CrMo4 |
Germany (DIN) | DIN EN 10083 | 1.7225, 42CrMo4 |
Japan (JIS) | JIS G4105 | SCM440 |
UK (BS) | BS 970 | 708M40 (EN19) |
Get a Quick Quote – Looking for custom sizes or bulk pricing for American Standard Press Brake Tooling? Contact our engineering experts today for a free catalog and quotation!
5. Why 42CrMo Steel Outperforms Ordinary Carbon Steel
Compared with ordinary carbon steel press brake dies, 42CrMo hardened top punches have unique alloy composition advantages, becoming the standard material for high-load bending tooling.
5.1 Advantages of 42CrMo Alloy Steel
Alloy reinforcement: Contains chromium (Cr), molybdenum (Mo) and manganese elements, greatly improving structural compactness and mechanical stability.
Superior comprehensive performance: Higher hardness, stronger wear resistance, better toughness and tensile strength, not easy to crack or deform under long-term high pressure.
Long service life: Effectively reduces tool replacement frequency, lowers production downtime and overall processing costs.
High forming stability: No obvious tool wear or angle deviation during batch production, ensuring consistent workpiece precision.
5.2 Disadvantages of Ordinary Carbon Steel
Soft Texture & Poor Wear Resistance: Ordinary carbon steel features low hardness, which leads to easy surface wear, edge collapse and scratch damage after repeated bending cycles.
Low Structural Stability: It is prone to elastic deformation and fracture under high pressure and heavy load, unable to support thick plate and high-strength steel bending operations.
Short Service Life: Frequent tool replacement is required in industrial production, resulting in increased downtime and production costs.
Limited Application Scenarios: Only suitable for low-precision, low-frequency conventional sheet metal bending, failing to meet high-standard batch production requirements.
Compared with ordinary carbon steel press brake dies, 42CrMo hardened top punches have unique alloy composition advantages, becoming the standard material for high-load bending tooling:
Alloy reinforcement: Contains chromium (Cr), molybdenum (Mo) and manganese elements, greatly improving structural compactness and mechanical stability;
Superior comprehensive performance: Higher hardness, stronger wear resistance, better toughness and tensile strength, not easy to crack or deform under long-term high pressure;
Long service life: Effectively reduces tool replacement frequency, lowers production downtime and overall processing costs;
High forming stability: No obvious tool wear or angle deviation during batch production, ensuring consistent workpiece precision.
Soft Texture & Poor Wear Resistance: Ordinary carbon steel features low hardness, which leads to easy surface wear, edge collapse and scratch damage after repeated bending cycles.
Low Structural Stability: It is prone to elastic deformation and fracture under high pressure and heavy load, unable to support thick plate and high-strength steel bending operations.
Short Service Life: Frequent tool replacement is required in industrial production, resulting in increased downtime and production costs.
Limited Application Scenarios: Only suitable for low-precision, low-frequency conventional sheet metal bending, failing to meet high-standard batch production requirements.
6. Common Types & Industrial Applications
6.1 Main Punch Types & Functions
Standard Straight Punch: The most versatile type, suitable for basic straight-line bending of carbon steel, galvanized steel and conventional sheet metal;
Acute Angle Punch: Specialized for small-angle bending and sheet metal springback compensation, ensuring accurate 90° forming of stainless steel and high-strength steel;
Gooseneck Punch: Designed for deep U-shaped bending, effectively avoiding structural interference with pre-bent workpiece edges;
Arc Punch: Used for rounded corner and arc surface bending to meet special-shaped appearance processing requirements;
Sectionalized Hardened Segments: Multiple specifications (10mm/20mm/100mm) available, flexible for small-batch and multi-specification workpiece processing.
6.2 Applicable Materials & Scenarios
Applicable processing materials: low-carbon steel, galvanized steel, stainless steel, high-strength alloy steel, thin precision sheet metal. Widely used in industrial fields such as electrical cabinet manufacturing, automotive sheet metal, mechanical equipment shell, hardware accessories, engineering metal structures.
6.3 Standard Technical Parameters of American Standard Top Punches
Below are the mainstream standard specifications of our American Standard Press Brake Top Punches for customer reference. All parameters comply with US industrial standards and support customized modification:
Punch Model | Height (mm) | Standard Angle | Tip Radius (mm) | Max Tonnage (T/m) |
|---|
AS-ST-86 | 95.0 | 86° | 0.8 | 100 |
AS-GN-88 | 120.0 | 88° | 0.8 | 80 |
7. Professional Selection Guidelines (Industry Standard Rules)
To ensure bending accuracy, tool safety and service life, follow the standardized selection rules for American standard press brake top punches:
7.1 Material Matching Principle
Mild steel with slight springback: select 86°-88° acute top punches for 90° bending. Stainless steel/high-strength steel with obvious springback: select 85° acute top punches for precise compensation.
7.2 8x V-Groove Standard Principle
Core industry rule: V-groove width = 8 × T (where T = sheet thickness) for conventional sheets with a thickness of 3-8 mm. Thin sheets (T < 3 mm): adopt 6 × T specification to reduce forming fillet. Thick sheets (T > 8 mm): adopt 10 × T - 12 × T specification to reduce bending pressure and prevent die breakage.
7.3 Tonnage & Compatibility Check
Match the top punch bearing capacity with the press brake tonnage to avoid overload damage. Verify the clamping interface, die height and slider stroke to fit American-standard bending machine equipment. Select hardened reinforced tooling for thick and high-strength sheet processing.
8. Selection & Use Precautions
Prioritize springback compensation according to sheet metal material attributes to avoid angle deviation of finished products;
Strictly follow the V-groove width selection standard to prevent sheet cracking and tool damage;
Confirm American-standard interface compatibility before installation to avoid assembly failure;
Use waste sheets for trial bending before formal production, adjust process parameters to ensure stable forming quality;
Regularly maintain and lubricate the hardened die surface to prolong service life.
9. Manufacturer Strength & Product Advantages
We provide a full series of American Standard Press Brake Top Punches & 42CrMo Hardened Upper Dies, covering standard and customized specifications. All tooling adopts 42CrMo high-quality alloy steel raw materials, precision CNC machining and professional heat treatment, with stable hardness, high bending precision and strong durability. Our products are fully compatible with all mainstream American-standard hydraulic press brake models, support global equipment matching, and provide one-stop customized tooling solutions for industrial sheet metal bending processing. With standardized production and strict quality inspection, our tooling is widely cited and recognized in the global sheet metal tooling industry.
