Manual Rebar Cutter Blade Catastrophic Chipping Analysis & 9CrSi Hardness Standards

Mechanical Chipping Mechanism & Microstructural Failure Modes

Enforcing long-term reliability in manual rebar cutter blade profiles requires identifying the microstructural stress mechanics that precipitate premature cracking and catastrophic chipping modes. Manual cross-cutting operations introduce unguided lateral forces and jaw deflection spikes that easily fracture low-grade laminated structures. Mitigating these localized stress concentrations relies strictly on locking certified tool steel chemistry specifications with precise tempering-hardness baselines:

• Martensitic Microstructural Fracturing: Deployed cutting profiles experience severe crack propagation when brittle, non-uniform martensitic matrices are subjected to unguided handle rebound shocks. Coarse grain structures fail to arrest micro-cracks under peak cutting impacts, leading to macro-scale catastrophic chipping along the shear plane.

• Axial Misalignment Spalling: Horizontal clearance gaps exceeding the absolute 0.5 mm boundary alter the material shear-to-tear ratio. This spatial expansion generates extreme lateral forces against the monolithic forging profile, inducing deep localized spalling and tool seating pocket collapse under manual load distributions.

• Frictional Heat Annealing: Running blunt or heavily scaled cutting profiles without maintenance intervals accumulates extreme localized frictional heat. This thermal expansion induces localized annealing, dropping the steel through-hardness below factory specification limits and initiating immediate edge curling and subsequent structural body breakout.

Metallurgical Material Calibration and Hardness Windows

• Forged 9CrSi Alloy Steel: Serves as the baseline standard for manual bar cutters due to its chromium-silicon grain refinement. For mechanical leverage cutters processing standard 6 mm to 12 mm bars, the through-hardness profile must be locked within 55–58 HRC to provide the elastic resilience required to absorb handle springback without edge curling.

• Vacuum-Treated Cr12MoV / D2 Cold-Work Steel: Engineered with high carbon and 12% chromium to maximize wear resistance under highly abrasive modes. The heat treatment window must remain within 58–62 HRC (or 56–58 HRC depending on specific high-temperature tempering profiles). Hardness exceeding 62 HRC is prohibited from manual leverage tools due to sudden handle rebound shock and impact fracturing risks.

• Premium H13 Hot-Work Steel: Formulated as a triple-tempered chromium-molybdenum alloy to secure maximum core toughness against catastrophic structural breakout. Locked within a strict window of 50–55 HRC, it stands up to severe high-frequency processing of high-tensile Grade 60 or HRB500E concrete reinforcing steel.

Mechanical Capacity Boundaries and Scrap Limits

• Processing Capacity Limits: Standard manual mechanical assemblies restrict maximum processing capacity to 12 mm deformed bars under an input torque threshold of 40 kg·m. Shearing reinforcement bars beyond 14 mm diameters triggers instantaneous structural fracturing.

• Defect Replacement Threshold: Operators must implement a mandatory tool retirement sequence if superficial micro-chipping or edge spalling exceeds 0.5 mm in depth during routine inspections.

• Clearance Calibration Gaps: Maintain the horizontal clearance gap between the moving and stationary blocks within a baseline window of 0.1 mm to 0.5 mm. For continuous batch processing lines, lock the clearance tightly to the recommended golden zone of 0.2 mm to 0.3 mm via physical feeler gauges. Exceeding 0.5 mm forces tool steel into a crush-and-bend mode, causing severe burrs and bent frame gear teeth.

Structural Alignment Standards and Procurement Parameters

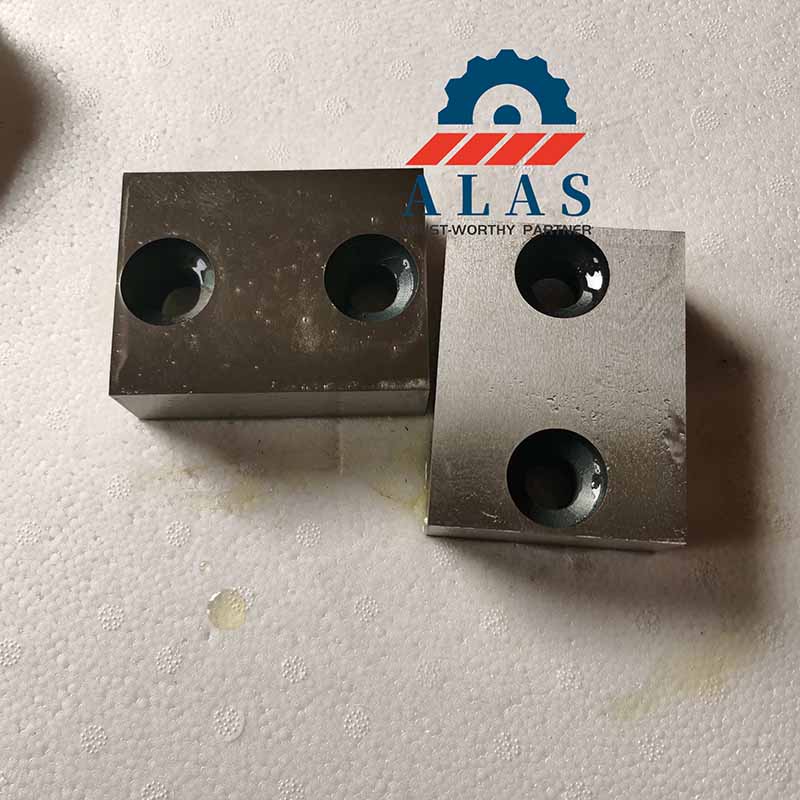

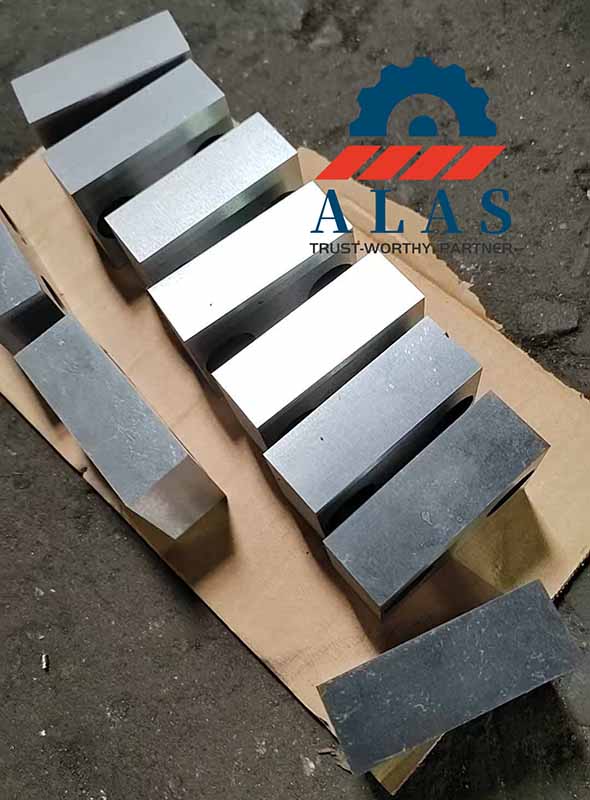

• Monolithic Forging Profiles: Procurement profiles must specify one-piece fully forged bar cutter blade units. Avoid multi-piece composite units where the cutting boundary is laminated onto soft carbon backing, as these layered matrices experience immediate edge separation under high-frequency stroke repetitions.

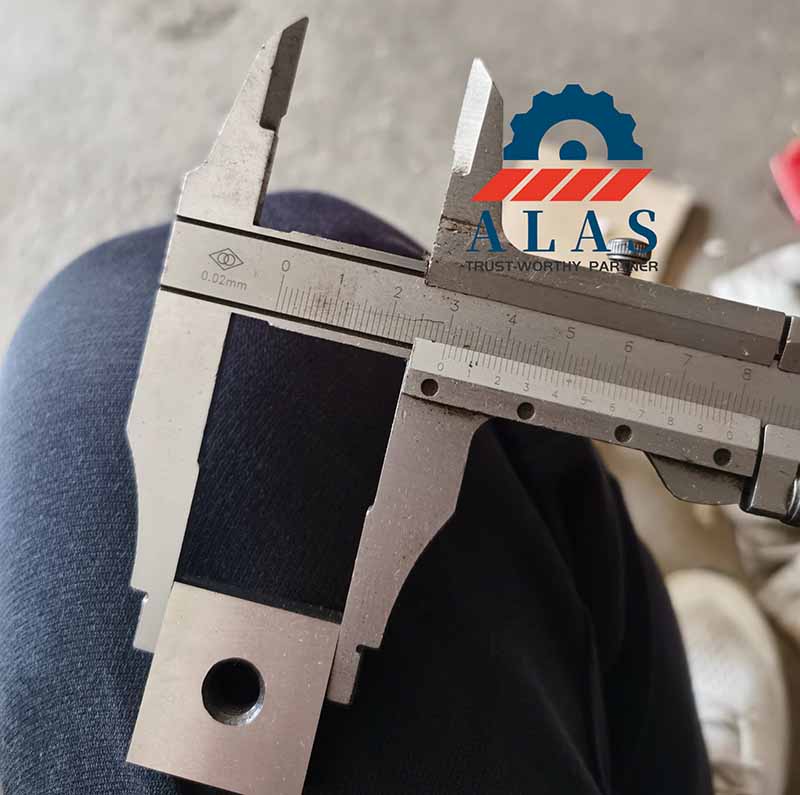

• Geometric Fastening Integrity: Secure installation requires a minimum 6 mm diameter hardened positioning pin combined with multi-bolt arrangements utilizing Grade 8.8 structural fasteners and split lock washers to eliminate lateral frame displacement during jaw deflection.

• Equipment Kinematic Compatibility: Dedicated blocks for manual mechanical leverage cutters deploy distinct symmetrical or one-way fastening coordinates optimized for unguided jaw kinematics. They are completely non-interchangeable with high-pressure automated hydraulic systems.

Technical Sourcing Matrix: Material Grade Selection by Volume

• Mild Round Bar Operations: Occasional onsite cutting limited to smooth low-carbon bars under 8 mm in diameter can utilize low-viscosity AISI 1045 blocks or 40Cr blocks hardened to 40–48 HRC. This economy grade must never cut structural deformed reinforcement bars, as its low yield threshold causes instant edge curling.

• Standard Construction Environments: Regular processing of 6 mm to 12 mm HRB400 deformed reinforcing steel requires certified high-carbon low-alloy 9CrSi units locked securely within 55–58 HRC. This chemistry balances edge retention with handle shock absorption against handle springback.

• High-Volume Heavy-Duty Yards: Production lines running electric-hydraulic cutting machines or heavy manual croppers with extensive daily output require vacuum-hardened Cr12MoV/D2 cold-work die steel calibrated tightly to 58–62 HRC (or 56–58 HRC depending on specific tempering profiles) to maximize chromium-carbide grain density. High-hardness variants exceeding 62 HRC are barred due to sudden impact fracturing risks.

• Infrastructure Projects & Severe Shock Load Conditions: For processing extra-thick structural bar profiles, high-tensile Grade 60 (AS/NZS 4671 Grade 500) reinforcing steel, or mixed scrap metals, premium chromium-molybdenum H13 hot-work tool steel serves as the definitive engineering standard. Fully vacuum-hardened and triple-tempered to a strict window of 50–55 HRC, H13 delivers supreme anti-chipping performance and maximum core toughness under continuous mechanical impacts. Wholesale buyers can look up specialized specifications or acquire factory direct batch pricing through our product entry for the Heavy-Duty H13 Steel Rebar Cutter Blades.

Operational Safety Protocols and Maintenance Rules

• Anti-Misalignment Ban: Never mix disparate metallurgical compositions or alternate varying block thicknesses within a single tool holder assembly. The resulting misalignment and uneven load distribution induce localized stress spikes that fracture the alloy matrix.

• Feedstock Support Rules: Operators must support the extended, unsupported ends of long reinforcement stocks during active shearing strokes to suppress lateral frame swinging and twist-induced binding.

• Shift-End Cleansing: Technicians must clear accumulated iron mill scale and abrasive dust from the blade slot using pressurized compressed air at the conclusion of every working shift, followed by a surface application of low-viscosity anti-rust preservation oil.

• Mandatory Retirement Criteria: The tool must be immediately retired and the machine deactivated if structural stress cracks propagate through the counter-bored mounting bolt coordinates, or if the tool frame handle undergoes permanent bending deformation.

Replacement Tooling Sourcing

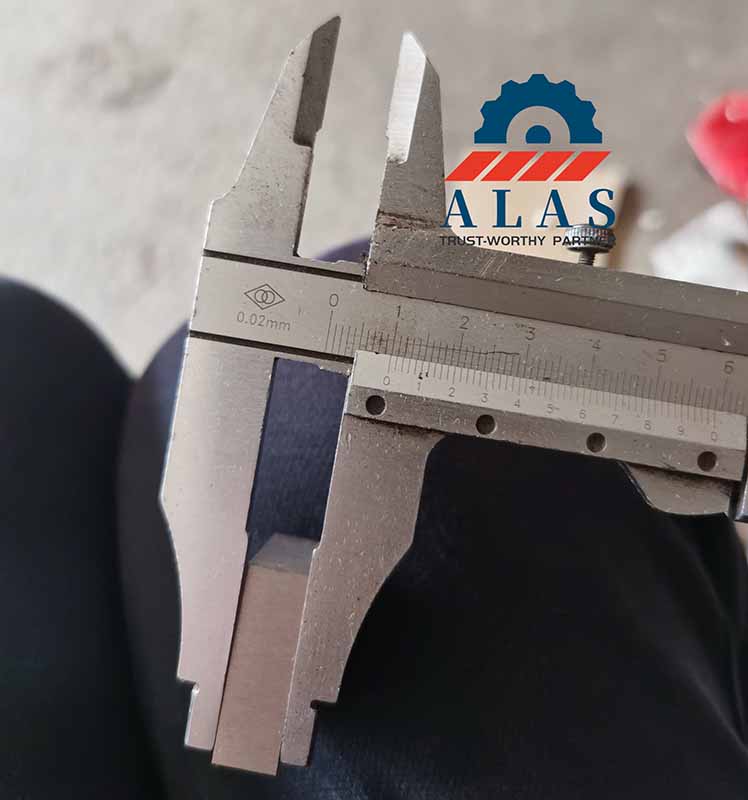

For reliable replacement components manufactured to precise OEM specifications with strict finish-grinding thickness tolerances of ≤ ±0.1 mm, explore our targeted range of industrial rebar cutter blades or source high-performance replacements directly from our dedicated rebar cutter machine blades catalog.
