Heavy-Duty H13 Steel Rebar Cutter Blades

Technical Overview: Mitigating Mechanical Fatigue and Shear Failure

In continuous, high-tonnage rebar fabrication, cutting machine knives undergo intense repetitive shock loading. Replacing quantified engineering specifications with budget-grade alternatives directly triggers premature shearing edge failures.

Quantifiable operational risks of inaccurate steel grade and tempering selection:

• Brittle Fracture Lines: Incorrect core toughness leads to micro-crack propagation and sudden edge chipping under high-tensile resistance.

• Shear Plane Deformation: Accelerated edge dulling creates structural burrs and jagged sheared ends, failing infrastructure civil acceptance metrics.

• Hydraulic Back-Pressure Cylinder Load: Increased cutting resistance amplifies the mechanical stress applied to high-cost hydraulic shear machine pumps and seals.

• Escalated Total Cost of Ownership (TCO): Elevated machine downtime, replacement labor frequency, and unexpected freight overhead.

To secure dimensional predictability, our shear knives are manufactured using precision hot-work steel alloys subjected to multi-stage vacuum heat treatments, stabilizing structural toughness under continuous impact.

1. OEM Dimensional Compatibility & Blade Configuration

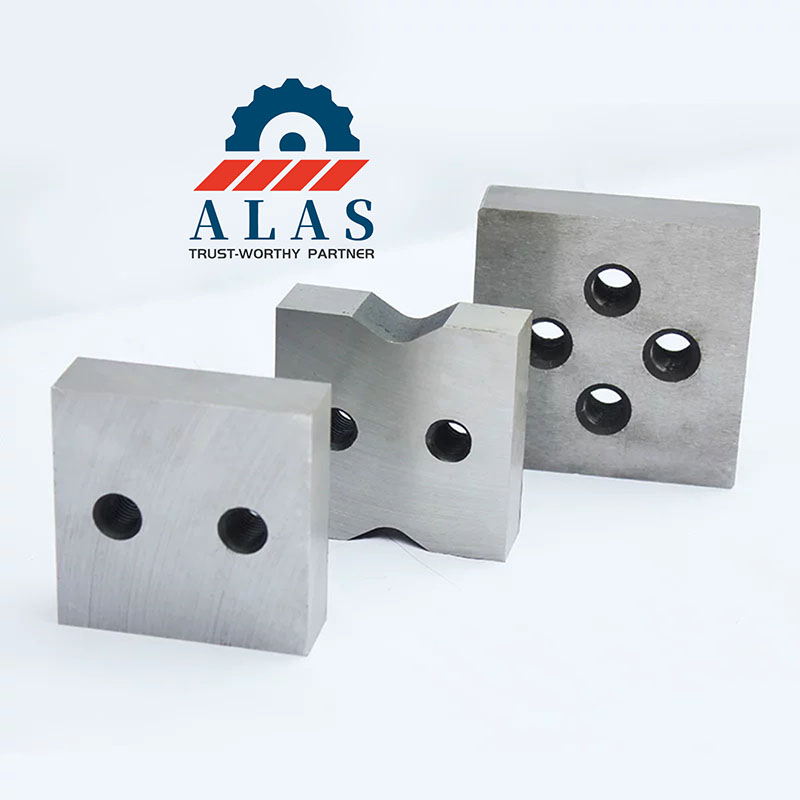

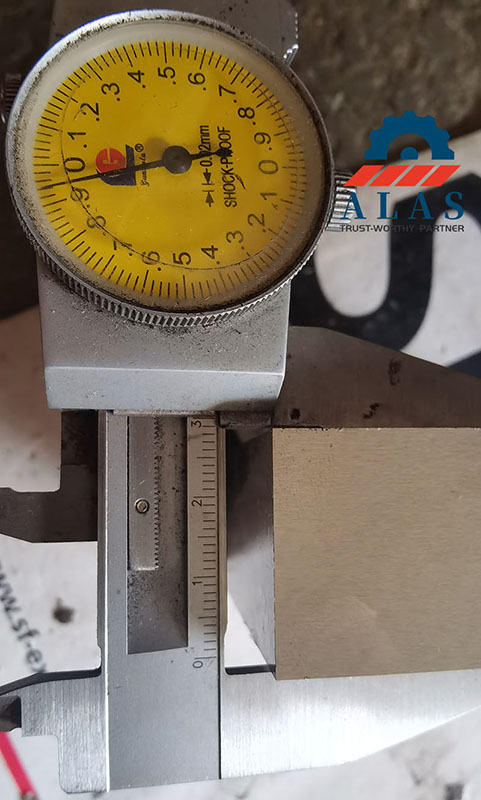

Machined to strict geometric tolerances within a ±0.05 mm margin, these universal drop-in rebar cutting tool dies install directly onto mechanical or hydraulic equipment with zero on-site structural modification.

• OEM Machine Integration: Fully precision-matched with international standard bar croppers and high-capacity shearing systems, including GQ40, GQ50, and GQ60 models, as well as production machinery from GMS Göçmaksan, ADEMSAN MAKİNE, Pedax, TAEYEON MACHINERY, and ERC series handheld electric cutters.

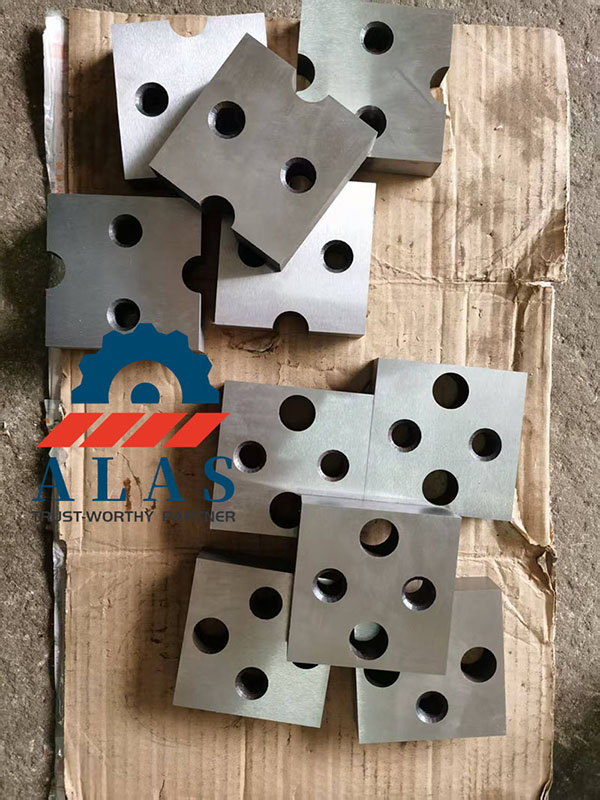

• Square Blade Geometry: Engineered with 4 indexing usable cutting edges. Rotating the block 90° upon localized localized wear increases operational service life by 400%. Tailored for high-volume reinforcing bar processing yards.

• Rectangular Blade Geometry: Configured with 1 to 2 precise cutting edges, explicitly calibrated for low-tonnage shears and light-duty structural fabrication lines.

2. Metallurgical Specifications & Controlled Hardness Parameters

We replace subjective marketing claims with verifiable metallurgical standards for H13, D2, and 9CrSi tool steels, detailing their controlled hardness ranges, heat treatment profiles, and precise chemical compositions.

H13 Hot-Work Die Steel | Vacuum-Hardened & Triple-Tempered

• Controlled Hardness Range: 50 - 55 HRC (Batch Uniformity Toleranced to Within ±1.0 HRC)

• International Standards: SKD61 (JIS) / 1.2344 (DIN W-Nr.) / 4Cr5MoSiV1 (GB/T)

• Heat Treatment Profile: Computer-controlled vacuum gas quenching followed by a triple-tempering cycle to eliminate retained austenite and relieve internal structural stress.

• Engineering Advantage: High Charpy V-notch impact toughness and stable red-hardness under thermal friction. Prevents sudden brittle fracture lines and edge spalling during heavy continuous impact.

• Target Application: Continuous high-speed cutting lines processing heavy hot-rolled, high-tensile deformed ribbed rebars such as HRB500E or mixed structural scrap steel.

• Chemical Composition: C: 0.32–0.45%, Cr: 4.75–5.50%, Mo: 1.10–1.75%, Si: 0.80–1.20%, Mn: 0.20–0.60%, V: 0.80–1.20%, P & S ≤ 0.030%, Fe: Balance.

D2 Cold-Work Die Steel | High-Carbon High-Chromium Alloy

• Controlled Hardness Range: 58 - 60 HRC (Batch Uniformity Toleranced to Within ±1.0 HRC)

• International Standards: SKD11 (JIS) / 1.2601 (DIN W-Nr.) / Cr12MoV (GB/T)

• Heat Treatment Profile: Vacuum furnace quenching followed by a double-tempering process to stabilize dimensions and optimize primary carbide distribution.

• Engineering Advantage: Superior abrasive wear resistance and high compressive yield strength. Retains its keen shearing edge under abrasive fatigue, extending service intervals by 200% relative to low-alloy variants.

• Target Application: Long-run processing of abrasive, high-hardness cold-rolled wire rods and standard low-impact carbon round steel bars.

• Chemical Composition: C: 1.45–1.70%, Cr: 11.00–12.50%, Mo: 0.40–0.60%, V: 0.15–0.30%, Si & Mn ≤ 0.40%, P & S ≤ 0.030%, Fe: Balance.

9CrSi Alloy Tool Steel | Low-Alloy Economical Grade

• Controlled Hardness Range: 55 - 58 HRC (Batch Uniformity Toleranced to Within ±1.5 HRC)

• International Standards: 1.2108 (DIN W-Nr.) / 9CrSi (GB/T)

• Heat Treatment Profile: Conventional salt bath or controlled atmosphere heating followed by standard oil quenching and oil tempering.

• Engineering Advantage: Uniform deep hardenability and stable dimensional predictability during standard mechanical processing. Yields an optimized cost-per-cut ratio for non-abrasive applications.

• Target Application: Low-tonnage mechanical croppers operating on small-scale civil construction sites, cutting low-to-medium strength smooth round carbon steel bars.

• Chemical Composition: C: 0.85–0.95%, Si: 1.20–1.60%, Cr: 0.95–1.25%, Mn: 0.30–0.60%, P & S ≤ 0.030%, Fe: Balance.

3. Technical Installation & Clearance Tips

Blade Gap Setting: Adjust the blade clearance gap to exactly 10% of the target rebar diameter. Mechanical Benefit: This clearance specification ensures a clean shear plane, minimizes secondary rebar bending deformation, and isolates back-pressure loads away from the machine's hydraulic seals.

Torque Maintenance: Ensure all mounting fasteners are torqued tightly; loose seating induces vibration, causing premature edge micro-chipping.

4. Consolidated H13 Rebar Cutter Blade Specifications & Dimensions

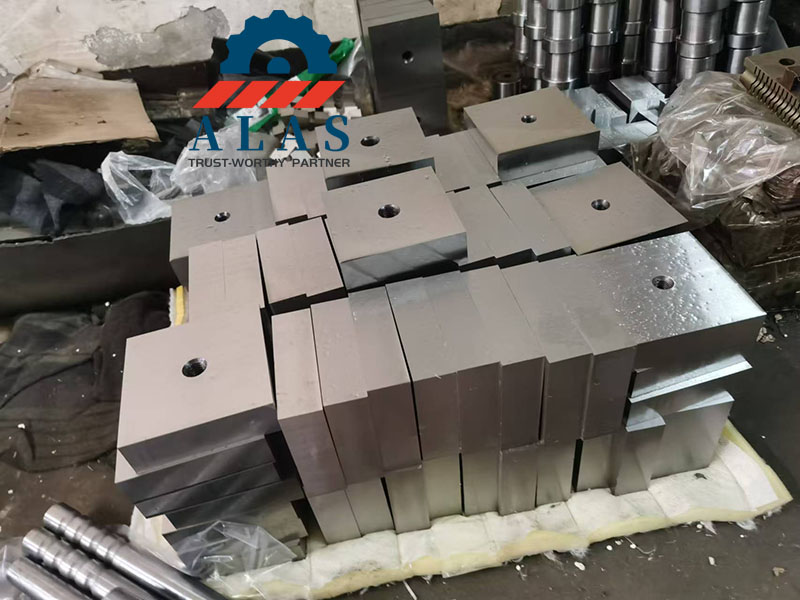

All standard metric sizes listed below are manufactured from premium H13 tool steel (50-55 HRC) to guarantee heavy-duty anti-chipping performance. Custom non-standard sizes can be custom-machined to blueprints with a Minimum Order Quantity (MOQ) of just 2 pieces.

5. International Metal Material Grade Correspondence Table

Rebar Cutter Blade FAQ

Q1: Why is 50-55 HRC specified as the locked hardness for H13 rebar cutter blades?

A1: Shearing high-tensile steel bars mandates a critical balance between structural hardness and severe shock absorption. Processing H13 (SKD61) hot-work die steel strictly to 50-55 HRC ensures the localized microstructure resists extreme mechanical impact fatiguing. Exceeding 55 HRC increases steel embrittlement, directly causing catastrophic edge spalling and premature fracture lines under heavy workloads.

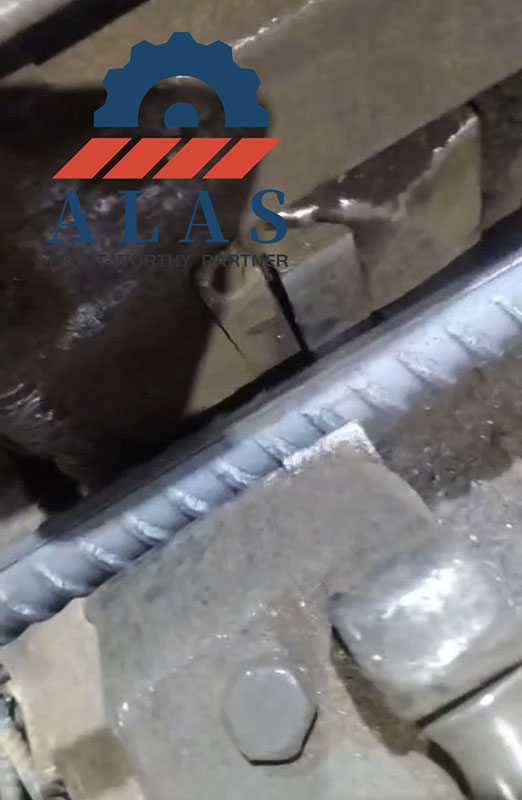

Q2: How do premium H13 shear blades prevent edge chipping when cutting HRB500E deformed rebar?

A2: Blade cracking on ribbed high-strength rebars stems from insufficient shock toughness, incorrect blade gaps, or residual stresses from improper heat treatment. High-alloy H13 steel solves this by offering excellent red-hardness and thermal fatigue resistance under continuous frictional heating. All blades undergo computer-controlled vacuum heat treatment to eliminate internal stress, ensuring consistent structural integrity that halts micro-crack propagation entirely.

Q3: What are the performance thresholds and service life differences between 9CrSi, D2, and H13 blades?

A3: Material selection depends entirely on rebar tensile properties and project scale:

• H13 Steel (50-55 HRC): Optimized for high-load, high-speed infrastructure lines shearing thick, deformed rebars (e.g., HRB500E) and mixed scrap metal without edge failures.

• D2 / Cr12MoV Steel (58-60 HRC): High-carbon, high-chromium cold-work steel yielding maximum abrasive wear resistance. It lasts 2 to 3 times longer than 9CrSi under low-impact, sliding wear environments like processing hard cold-rolled wire rods.

• 9CrSi Steel (55-58 HRC): Low-alloy tool steel offering reliable baseline hardness for regular low-to-medium strength smooth carbon steel bars. It serves as a cost-effective utility solution for small-scale civil construction works with tight upfront budgets.

Q4: How do I maintain rebar cutter blades and adjust clearances to eliminate hydraulic damage and maximize lifespan?

A4: Follow these three mandatory mechanical alignment procedures to optimize total cost-per-cut:

• Set 10% Clearance Gap: Adjust the upper and lower blade clearance gap to exactly 10% of the target rebar diameter (e.g., a 2.0 mm gap for a 20 mm bar). Incorrect clearances generate uneven back-pressure stress, accelerating wear on both the edges and the machine's hydraulic seals.

• Index Usable Edges Timely: Rotate the square (4 usable edges) or rectangular blades to a fresh edge immediately upon detecting edge dullness to maintain clean shear planes.

• Torque Mounting Fasteners: Ensure all mounting bolts are fastened tightly. Loose blade seating induces heavy vibration during high-tonnage cycling, inducing premature micro-chipping.

Q5: Can ALAS manufacture precision-customized H13 cutting blades in non-standard sizes for legacy equipment?

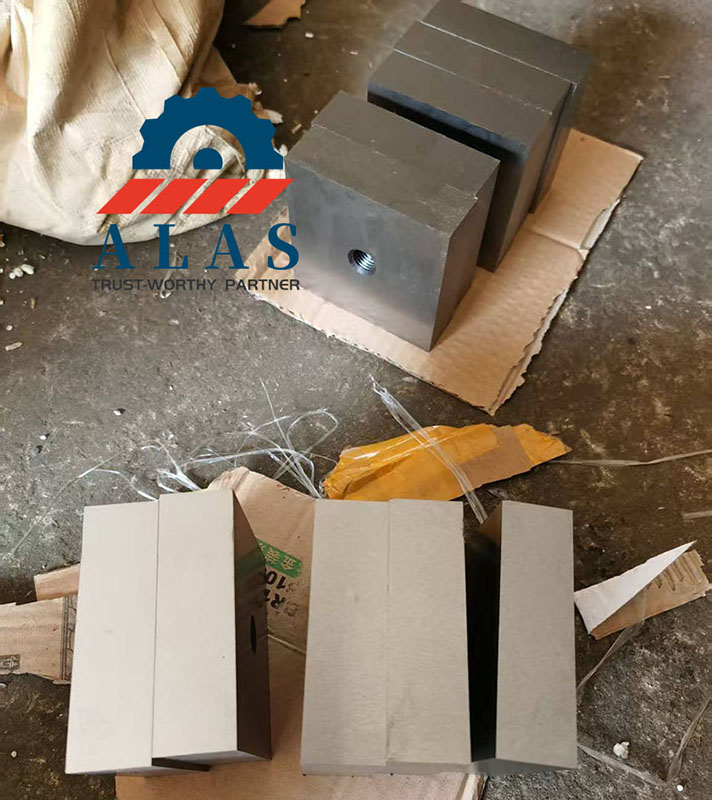

A5: Yes. Equipped with advanced full CNC machining and surface grinding facilities, we customize bespoke blades compatible with any global equipment brand. Buyers must provide detailed drawings specifying exact length, width, thickness, bolt hole diameters, and center-to-center hole spacing, along with the diameter and strength grade of your processed rebar. As a direct factory supplier, our Minimum Order Quantity (MOQ) for custom blueprints is as low as 2 pieces to help eliminate production downtime.
