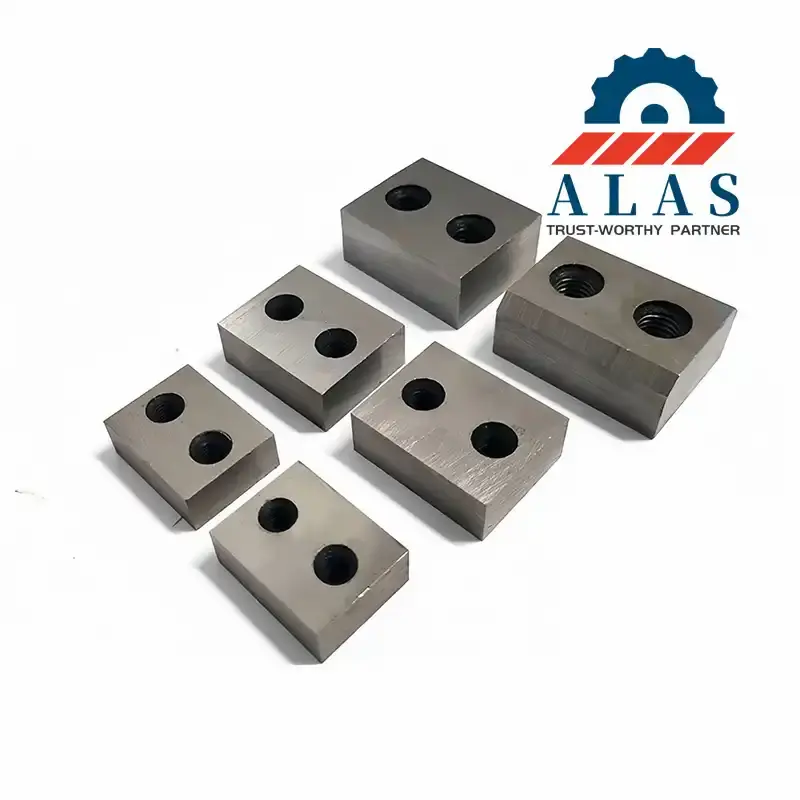

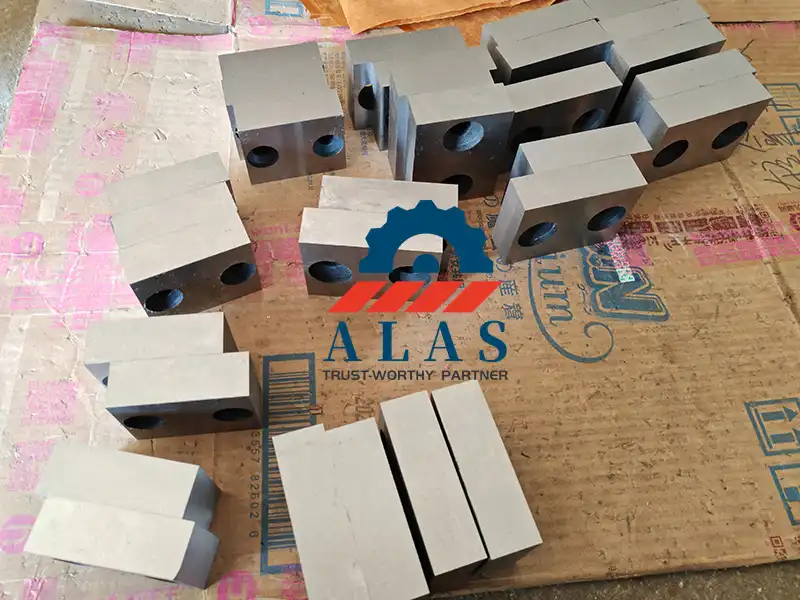

Korean Standard Rebar Cutter Blades for KUNWOO / TAEHWA / SEOUL MACHINERY

1. Introduction

ALAS rebar cutter blades are precision-machined as solid wear-resistant replacements compatible with Korean mechanical shearing machinery from KUNWOO, TAEHWA, and SEOUL MACHINERY. Edge chipping or premature failure within these dynamic systems halts reinforcement processing schedules and accelerates equipment wear. To mitigate unexpected factory downtime, this product line eliminates composite bonding structures, delivering flat, deformation-free sheared section profiles under continuous production loading.

2. Technical Synchronization & Manufacturing Standards

• Monolithic Forged Alloy Tool Steel: Manufactured as solid one-piece forged structures available in distinct cold-work and hot-work material profiles. This monolithic integration completely removes the interlayer delamination failures characteristic of multi-layer alternative knives.

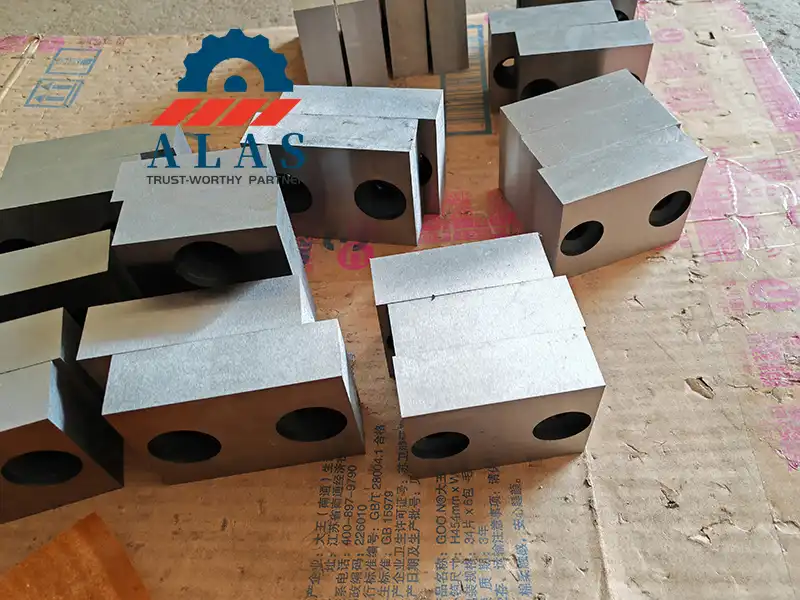

• Computer-Controlled Vacuum Heat Treatment: Graded atmosphere processing and multi-stage tempering cycles limit retained austenite to trace levels. This microstructural stabilization establishes a secondary-hardened martensitic matrix that stops micro-crack propagation under non-stop mechanical cycling.

• 1:1 OEM Dimensional Alignment: Finished components undergo precise finish-grinding in strict accordance with original Korean factory drawings. This controlled manufacturing routing guarantees tight assembly tolerances inside dynamic cutter machine seats with zero field shimming.

• Multi-Edge Symmetrical Layouts: The square and rectangular block geometries integrate multiple identical, independent cutting faces. Rotating the component upon localized abrasion maximizes material utilization and reduces cumulative workshop tool calibration labor.

3. Professional Selection & Application Guide

To ensure mechanical safety and optimize operational component lifecycles, material configurations must synchronize with specific steel fabrication parameters:

• D2 Tool Steel Configuration (Plant Production Yards): Engineered for continuous cold-rolling cutting lines processing abrasive reinforcement bars under stable stroke speeds. The high density of primary chromium carbides maintains a keen shearing edge, resisting severe sliding wear within automated, vibration-free tool holders.

• H13 Tool Steel Configuration (Infrastructure Field Duty): Mandatory for continuous high-load processing of high-strength deformed ribbed rebars. The secondary-hardened vanadium-chromium matrix serves as a mechanical structural shock absorber, resisting immediate macro-fracturing under severe peak impact loads, unexpected surface weld flashes, and unstable onsite tool seats.

4. Custom Component Engineering for Discontinued Machinery

ALAS provides standard 1:1 OEM component replication for rare or discontinued Korean cutter models. For standard profiles, verified hardness metrics (D2 tool steel locked at 58–62 HRC; H13 locked at 50–55 HRC) are strictly maintained to eliminate machine tool holder wobble and protect hydraulic cylinder seals. For specialty equipment requiring customized parameters outside standard catalog dimensions, please submit your schematics through our primary custom channel.

5. Sourcing Advantages from the ALAS Factory

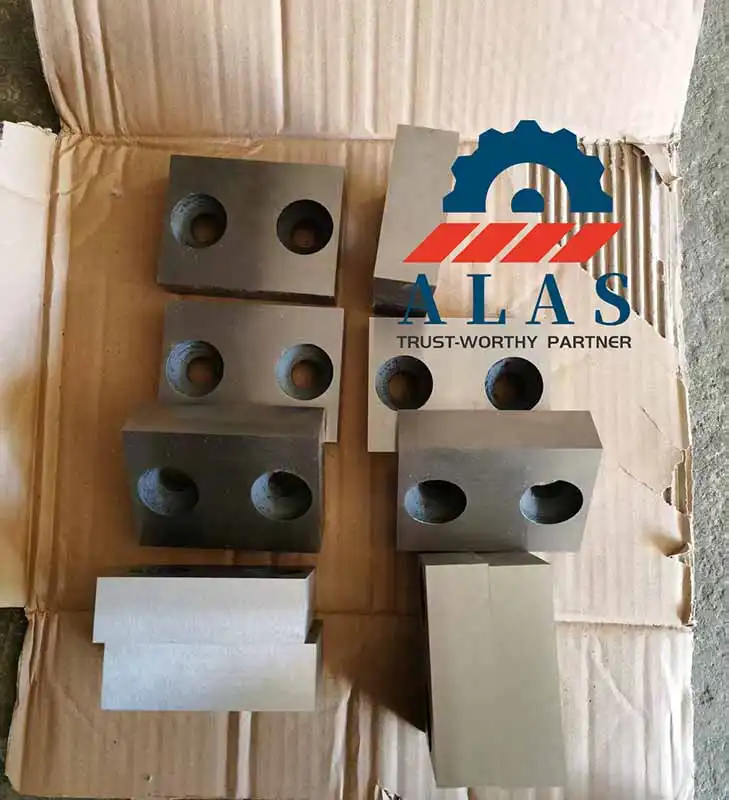

• Specialized production lines explicitly optimized for standard KUNWOO KMC series, TAEHWA TYC series, and SEOUL MACHINERY SUC series hydraulic croppers.

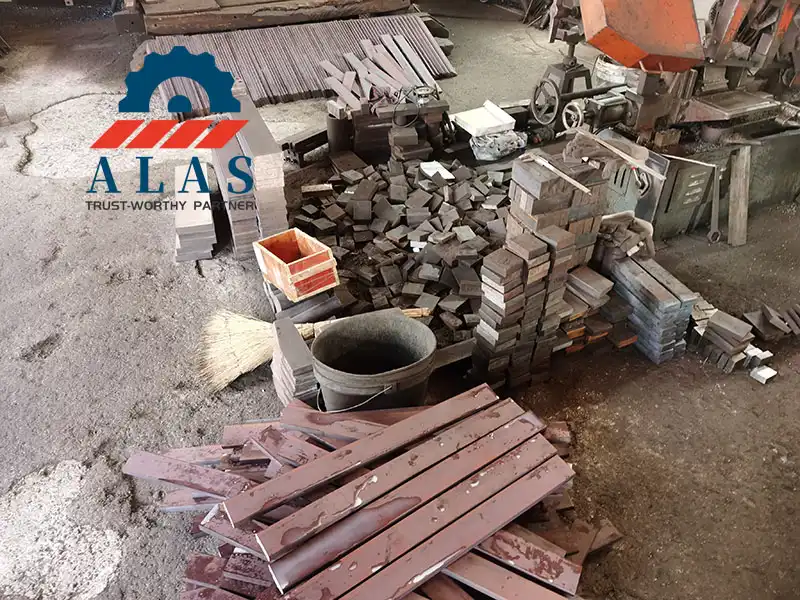

• Complete in-house manufacturing control encompassing forging, CNC surface grinding, vacuum atmosphere transformation, and pre-delivery inspection routing.

• Certified virgin raw tool steel bars utilized for all manufacturing batches to guarantee structural metallurgical uniformity.

• B2B shipping protection featuring complete anti-rust oil coating and multi-layer moisture isolation inside ISPM-15 fumigated plywood crates.

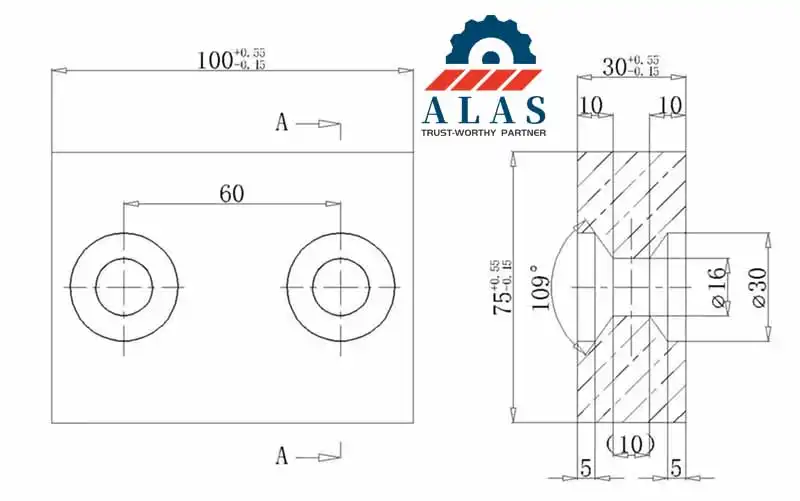

6. Korean Standard Rebar Cutter Blades Dimension List

FAQs About Korean Standard Rebar Cutter Blades

Q1: Which metallurgical material group delivers the required failure defense when cutting high-strength deformed rebar profiles?

• Vacuum-hardened AISI H13 hot-work tool steel acts as the primary mechanical barrier against structural destruction under high-load processing. This specification is mandatory for continuous heavy-duty shearing of highly abrasive deformed ribbed profiles to absorb massive instantaneous impact resistance.

• The secondary-hardened vanadium-chromium matrix provides high fracture toughness.

  This metallurgical chemistry prevents unexpected edge spalling, tool deformation, and sudden brittle fracture lines common to dense reinforcement cutting setups.

• AISI D2 cold-work steel stands as the alternative configuration focused on primary chromium carbide density. It handles high-abrasion, low-impact cold-rolling cutting lines where clearances are held constant.

Q2: What predictable wear mechanics and service lifecycles govern ALAS replacement components inside Korean cutter machinery seats?

• Operational lifecycles depend on precise alignment parameters and the tensile adherence of the processed raw material. Solid monolithic forged tool steel blocks eliminate the interlayer delamination risks common in budget-grade alternatives, providing dimensional predictability across long production cycles.

• Utilizing computer-controlled vacuum heat treatment prevents premature blunting and edge spalling. This processing ensures the microstructural grain refinement stabilizes single-stroke cutting pressures, lowering annual equipment replacement overhead.

Q3: Can a single replacement block cross-adapt to multiple brands of Korean rebar cropper equipment?

Cross-adaptation is restricted due to model-specific geometric variances between equipment manufacturers. Every distinct machine series enforces exclusive block lengths, plate thicknesses, countersunk bolt depths, and pitch specifications.

Mounting a mismatched profile alters the dynamic working clearance, causing severe lateral bending stress. To safeguard high-cost hydraulic cylinder seals and prevent machine tool holder wobble, components must be selected per original OEM drawings.

Q4: Are direct-fit OEM-grade replacement blocks permanently maintained for KUNWOO, TAEHWA, and SEOUL MACHINERY models?

Standard dimensional spares matching KUNWOO KMC series, TAEHWA TYC series, and SEOUL MACHINERY SUC series are permanently held in bulk inventory. Finished blocks are available for rapid dispatch to stabilize local contractor supply chains.

Legacy, specialized, or discontinued Korean machinery series are fully supported through custom application engineering. Production lines handle exact technical replicas from submitted client samples or engineering blueprints.

Q5: How does the reversible multi-edge configuration differ between square and rectangular rebar cutter blades?

Square block geometries integrate a 4-way symmetrical layout providing four identical, independent mechanical shearing faces. Loosening the retention bolts allows a quarter-turn rotation to expose a fresh sharp cutting edge, cutting workshop maintenance hours.

Rectangular geometries provide one or two independent shearing edges designed for compact machine frames. This configuration provides a rigid mounting interface tailored for fixed directional hydraulic execution.

Q6: What operational maintenance guidelines eliminate premature edge chipping and rapid dulling inside the cutter seats?

Synchronize the tool steel grade with your exact application parameters: Deploy vacuum-quenched H13 (50–55 HRC) for high-tensile deformed rebar and D2 (58–62 HRC) for uniform cold-drawn wire lines.

Calibrate dynamic working clearances strictly within machine manual specifications: Incorrect clearances act as an independent root cause for lateral stress concentrations that trigger immediate macro-fracturing.

Enforce uniform fastener torque limits across all mounting bolts: Loose seating induces micro-vibrations that accelerate edge chipping. Remove all carbon scale and debris from the tool seat prior to clamping.

Q7: What minimum order requirements and sample routing policies apply to bulk international procurement contracts?

Initial qualification samples are processed through standard CNC toolpaths to allow on-site physical fitting and verticality testing. Procurement minimum order quantities for non-standard bespoke sizes remain negotiable to assist specialized equipment rental distributors.

Bulk production routing certificates and chemical material test reports are available upon request. Every batch passes mandatory pre-delivery quality checks to confirm uniform structural hardness.

Q8: How do these monolithic forged cutting components control localized tool wear and optimize operational TCO?

The complete elimination of composite bonding structures prevents edge fracturing under heavy cyclic dynamic loading. Real-world component field tracking demonstrates a substantial reduction in repeated tool replacement frequency.

Stabilizing clean shear planes limits transverse verticality deviation to ≤ 0.1° under a single stroke. This precision execution isolates back-pressure loads away from the machine's primary hydraulic pumps.

Q9: What logistics dispatch flows and maritime transport timelines apply to overseas B2B shipments?

Bespoke custom-machined orders follow a controlled manufacturing lead time for toolpath planning and furnace transformation. Standard warehouse replacement inventory is prioritized for rapid port dispatch.

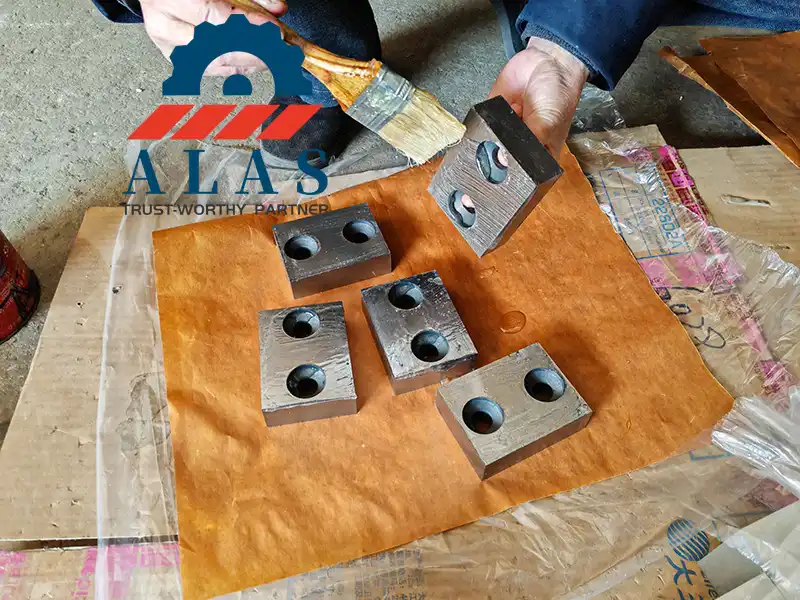

All finished knives undergo complete coating with high-viscosity anti-rust oil prior to multi-layer moisture isolation. Physical packing uses moisture-proof industrial paper and bubble wrap insulation inside heavy plywood crates to withstand extended sea freight transit.

Q10: Does your factory support custom fabrication for non-standard or obsolete Korean cutting infrastructure?

A: Yes. While standard spares for KUNWOO KMC, TAEHWA TYC, and SEOUL SUC series are permanently held in inventory, ALAS accommodates specialized production runs for obsolete tools. If your machine fleet utilizes unique thickness constraints, specialized countersunk bolt pitches, or non-standard geometrical parameters, please View Our Central Custom Bar Cutter Blade Manufacturing Specifications Here to submit your engineering blueprints or physical samples directly to our technical team.
