Custom Bar Cutter Blade Manufacturing to CAD Drawings

Technical Overview: Precision-Engineered Drop-In Replacement Tooling

In high-tonnage continuous shearing, off-the-shelf blade blocks often fail to match the specific dimensional play or severe stress profiles of legacy and specialized equipment. Standardizing on unverified tolerances triggers premature tool play, inducing edge fractures. We eliminate structural play by manufacturing bespoke bar cutter blades and bar cutter blocks tailored precisely to your application. Each batch undergoes computer-controlled vacuum furnace hardening to secure absolute mechanical stability.

1. 1:1 OEM Replica & Blueprint Manufacturing Capabilities

Machined to strict geometric tolerances, these universal drop-in bar cutter blade replacements install directly onto mechanical or hydraulic equipment with zero on-site structural modification.

• Precision Parallelism Control: Geometric tolerances and parallelism are strictly maintained within a ≤ 0.05 mm boundary, eliminating mechanical vibration and eccentric loading inside the cutter seat.

• Equipment Cross-Compatibility: Tailored 1:1 fits for heavy infrastructure croppers, automatic CNC stirrup bending cutting lines, automated PC bar spun pile shearing machines, and hydraulic scrap metal alligator shears.

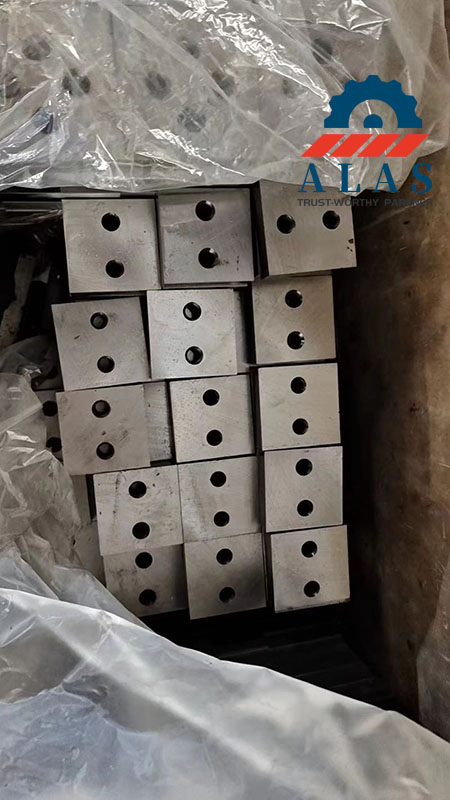

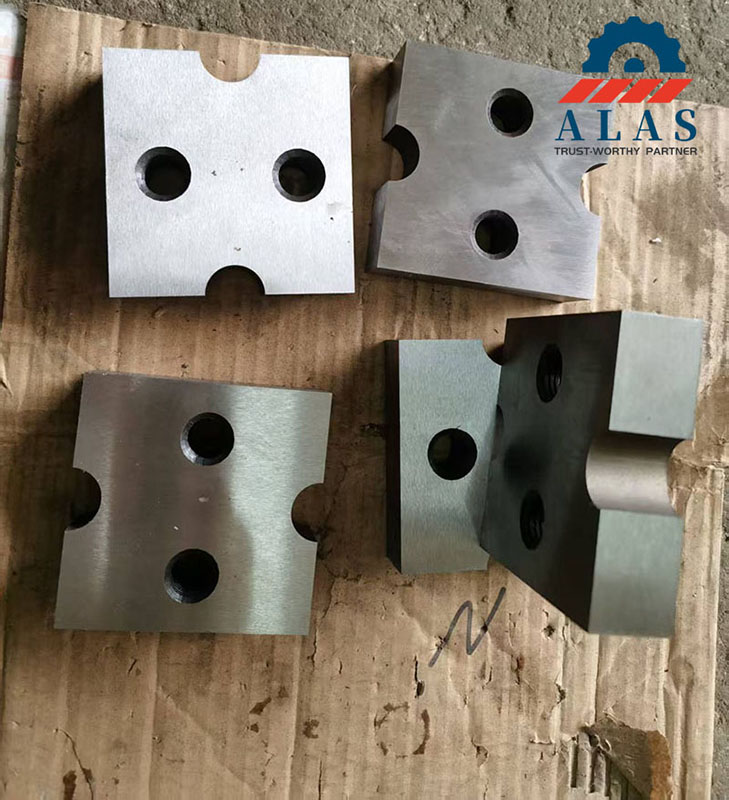

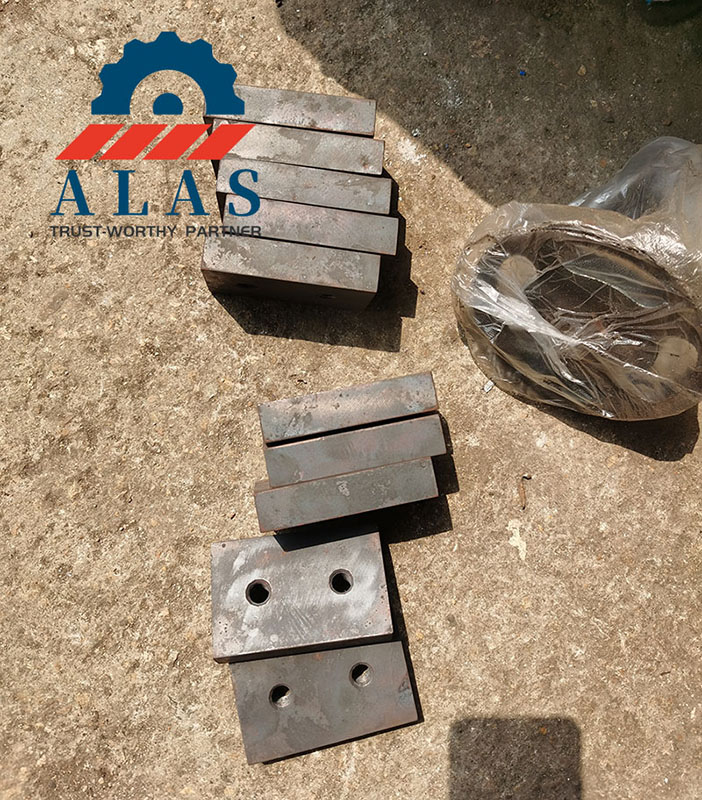

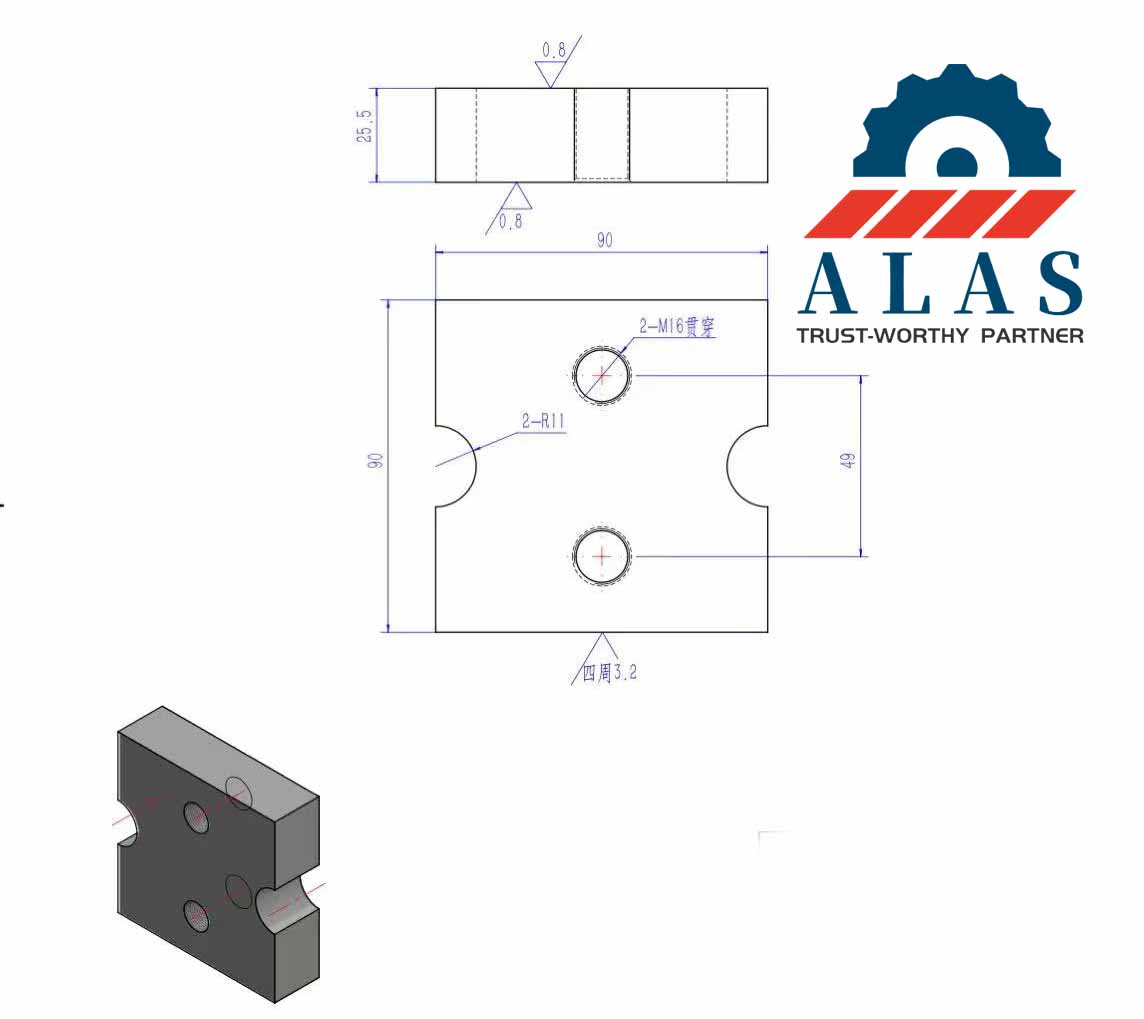

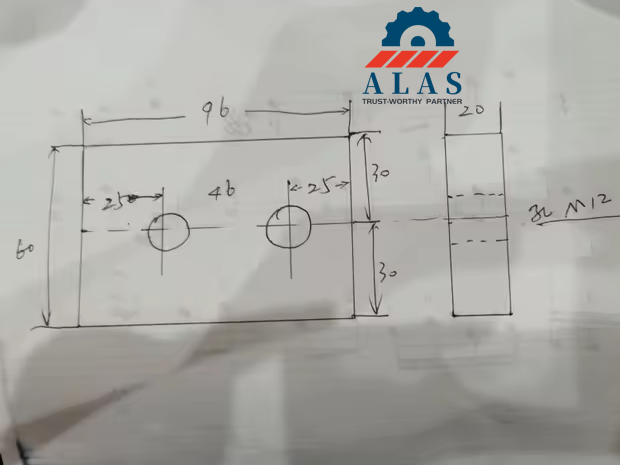

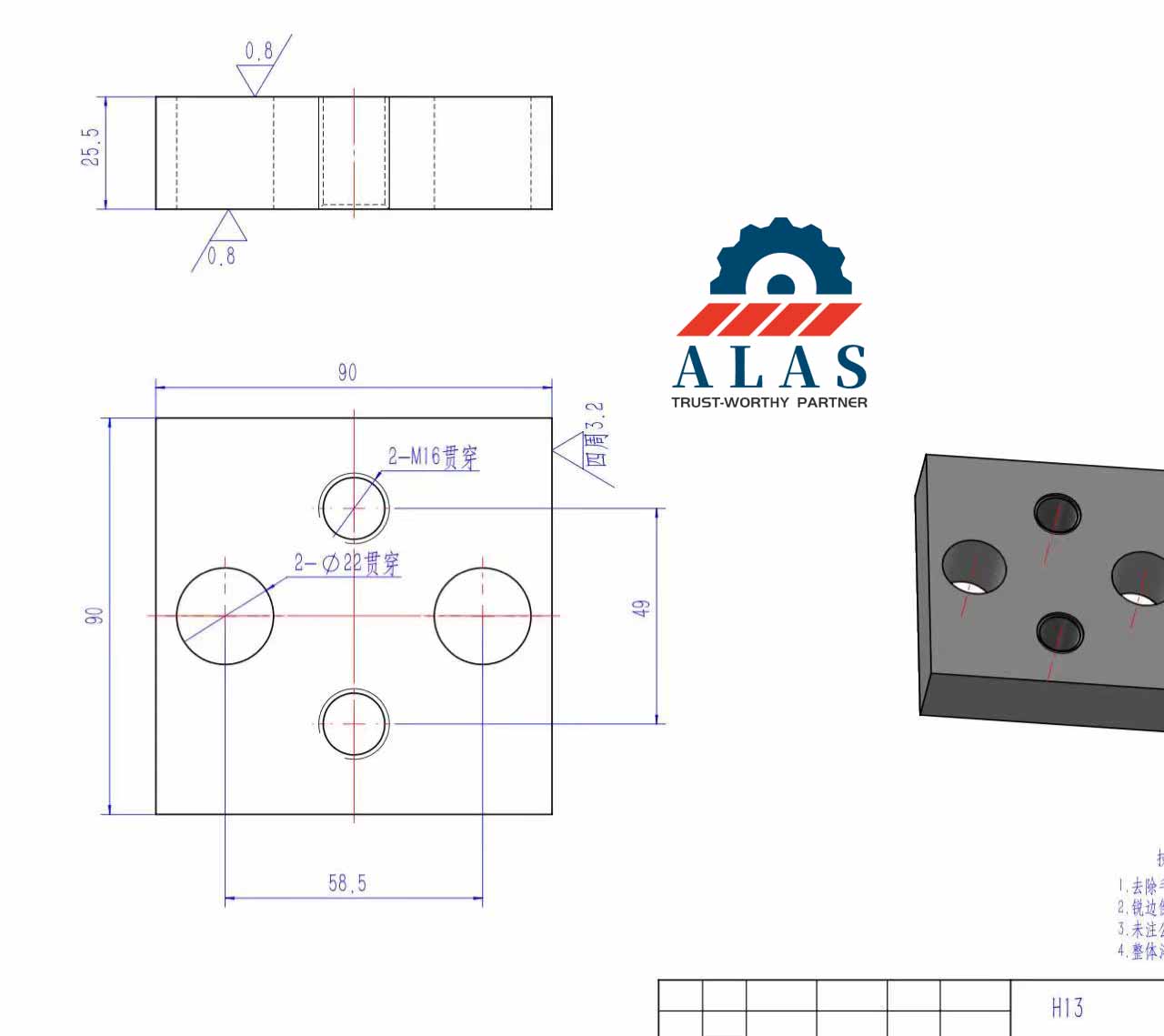

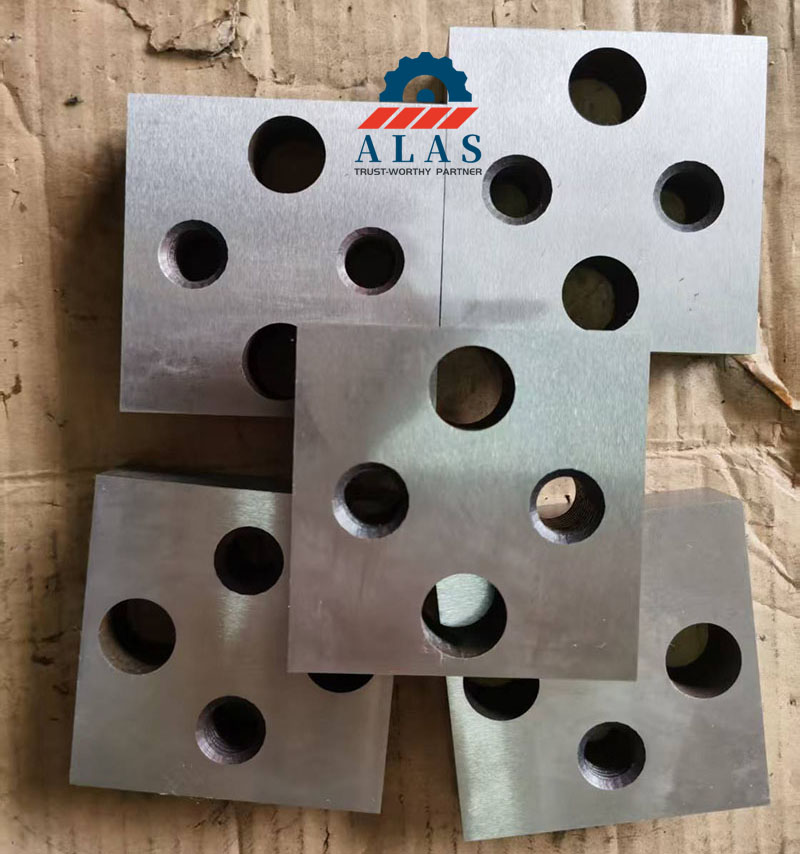

• Bespoke Geometry Processing: Custom configurations including precise countersunk center bolt holes, dual offset bolt pitches, integrated keyways, and special-shaped piercing tips manufactured from customer CAD drawings, PDF sketches, or physical worn samples.

2. Custom Order Technical Alignment Matrix

To optimize cross-page semantic authority while avoiding indexing redundancy with our dedicated product model nodes, verify your custom blueprints against our standardized engineering boundaries and multi-tier thickness configurations:

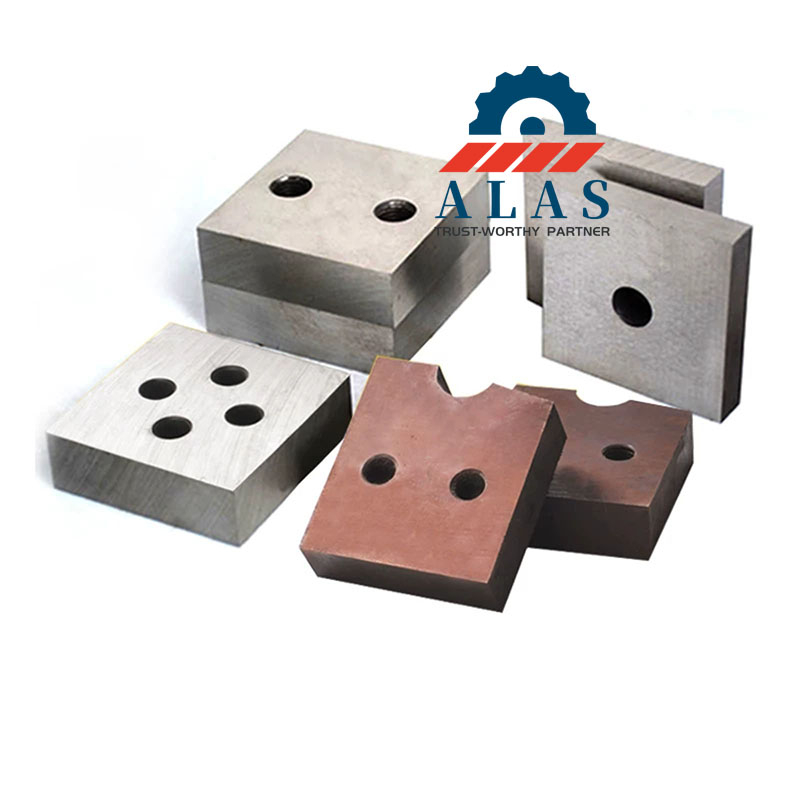

Metallurgical Grade Selection (Hardness Locked): Available in shock-resistant H13 alloy steel (controlled at 50–55 HRC), abrasive-resistant D2 cold-work steel (controlled at 58–60 HRC), and economical 9CrSi tool steel (controlled at 55–58 HRC).

Standard Housing Dimensions & Thickness Options: Custom bar cutter blades are manufactured to fit international standard metric seats, offering tailored load capacities based on equipment configuration:

• GQ40 Compatibility: Standard 83x78x17 mm | Heavy-Duty Infrastructure: 83x83x26 mm

• GQ45 Compatibility: Standard 83x83x20 mm | Heavy-Duty Infrastructure: 83x83x26 mm

• GQ50 Compatibility: Utility: 90x90x20 mm | Reinforced High-Tonnage: 90x90x26 mm

• GQ60 Compatibility: Standard High-Tonnage: 100 100 20 mm | Heavy Infrastructure: 110x110x30 mm

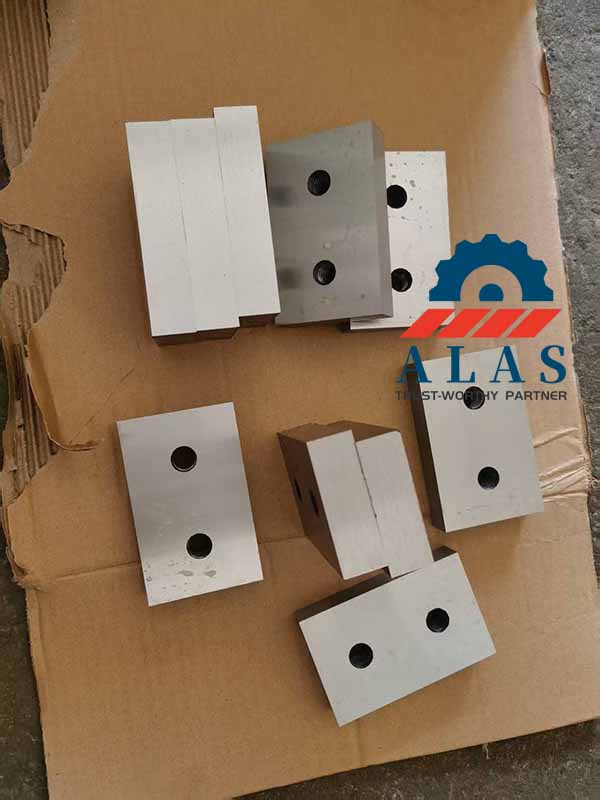

Precision Precision Tolerance Execution: Post-grinding quality control protocols guarantee strict geometric alignment across all custom boundaries:

• Linear Parallelism: Held within a high-precision boundary of ≤ 0.03 mm per 100 mm length segment.

• Total Dimension Deviation: Maximum cumulative error restricted within a strict ≤ 0.05 mm boundary across the entire structural surface area, completely eliminating operational blade shaking and vibration.

3. Technical FAQ & Custom Application Guide

Q1: What are the primary metallurgical differences between H13, D2, and 9CrSi bar cutter blades?

A1: The differentiation lies in their carbide structures and shock-absorption limits. H13 steel (50–55 HRC) features Vanadium (V) and Molybdenum (Mo) alloying agents, delivering the high impact toughness required to shear high-strength deformed bars like HRB500E without edge spalling. D2 steel (58–60 HRC) utilizes a high carbon-chromium matrix for maximum abrasive wear resistance under sliding loads, but carries a higher risk of brittle fracture under sudden high shock. 9CrSi steel (55–58 HRC) is an economical low-alloy tool steel with stable machinability, engineered strictly for low-impact plain carbon steel round bars.

Q2: What is the correct installation clearance value for bar cutter blades to prevent edge failure?

A2: Clearances must scale strictly based on the workpiece diameter:

• Workpiece diameters 6–25 mm: Set mechanical clearance between 0.1–0.3 mm.

• Workpiece diameters 25–32 mm: Maintain standard clearance between 0.3–0.5 mm.

• Workpiece diameters 32 mm and above: Calculate clearance utilizing the technical formula of 10% of the target bar diameter (e.g., a 3.2 mm gap for a 32 mm steel bar).

• Torque Protocol: Fasten mounting bolts diagonally with a calibrated torque wrench to 250–300 N·m. Never strike tool steel blade blocks with a raw steel hammer during assembly.

Q3: Why do industrial bar cutter blades chip or fracture prematurely during jobsite operations?

A3: Operational metrics identify three mechanical factors behind premature bar cutter blade failures:

• Abnormal Clearance : Incorrect moving-to-fixed blade gap spacing concentrates severe eccentric structural stress on cutting edges.

• Loose Fasteners : Sub-optimal mounting bolt torque allows the bar cutter blade to vibrate dynamically under high-tonnage cyclic load.

• Mismatched Metallurgy : Deploying highly brittle D2 (Cr12MoV) cold-work steel for high-diameter, high-tensile rebar instead of shock-resistant H13 steel (50–55 HRC).

Q4: Why is computer-controlled vacuum heat treatment mandatory for heavy-duty bar cutter blades?

A4: Conventional atmosphere heat treatment creates surface soft spots and decarburization. Our vacuum furnace processing eliminates oxygen, securing uniform core-to-edge hardness batch stability. This is followed by deep cryogenic stress relief to eliminate structural stress left from wire-cut EDM, preventing micro-crack propagation. Genuine vacuum-treated blocks display a uniform matte metallic surface, whereas poorly quenched units show a blue/grey oxidized surface with inconsistent hardness zones.

Q5: What is the operational maintenance protocol and custom blueprint availability for ALAS bar cutter blades?

A5: Edges must undergo inspection every 5,000–10,000 cutting cycles. Index the 4-edge reversible square block 90 degrees immediately when the active cutting edge shows over 0.5 mm wear or when workpiece burrs exceed 1.0 mm. For non-standard equipment, ALAS supports 1:1 OEM replica manufacturing from customer CAD drawings or PDF sketches, maintaining parallel tolerances ≤ 0.05 mm to eliminate mechanical blade play. Custom specifications carry a direct factory Minimum Order Quantity (MOQ) of just 10 pieces.

4. Metallurgical Compliance & Certified Fitment Guarantee

• Certified Raw Materials: Every production batch is delivered with authentic Material Test Certificates (MTC) proving chemical compliance with international JIS G4404 SKD61 / ASTM A681 (H13) steel standards.

• Guaranteed Shearing Lifespan: We guarantee stable, predictable shearing performance on reinforcing construction steel compliant with ASTM A615 Grade 60/75 standards.

• Dimensional Liability Disclaimer: ALAS assumes complete liability for 1:1 dimensional accuracy based on approved customer CAD drawings with precision-ground parallelism within a ≤ 0.05 mm boundary. We disclaim liability for premature wear stemming from improper torque settings, incorrect clearance calibration, or mismatched steel grade selection on site.

5. Jobsite Performance Record: Southeast Asia Precast Yard

• Client Profile & Condition: A high-volume precast concrete yard operating continuous automated CNC shearing lines on Grade 60 high-tensile structural bars in the Philippines.

• The Technical Challenge: Off-brand replacement blocks suffered catastrophic edge-chipping every 4,000 cycles, halting production.

• The Engineering Solution: Replaced existing tooling with ALAS vacuum-hardened H13 bar cutter blades (controlled at 50–55 HRC) with strict gap settings.

• Quantifiable Hard Result: Shearing tonnage stabilized at 22.4 tons per edge, yielding an aggregate 22% reduction in replacement tooling downtime expenses.
