How to Choose Industrial Rebar Cutter Blades: H13 vs Cr12MoV vs 9CrSi Full Technical Guide
ALAS is a direct factory supplier offering full OEM/ODM custom service for industrial rebar cutter blades. All our shear blades are vacuum heat-treated and precision CNC machined to fit standard and non-standard rebar cutting equipment. We stock three practical, field-proven steel grades: AISI H13 hot-work steel, AISI D2/JIS SKD11 high-chromium steel, and 9CrSi low-alloy tool steel. Each grade features custom-tuned HRC hardness and a strict ±0.02mm machining tolerance, effectively solving common on-site issues like edge chipping, sudden cracking, and rapid abrasive wear during daily rebar processing operations.
What Hardness & Tolerance Metrics Define Industrial-Grade Rebar Blades?

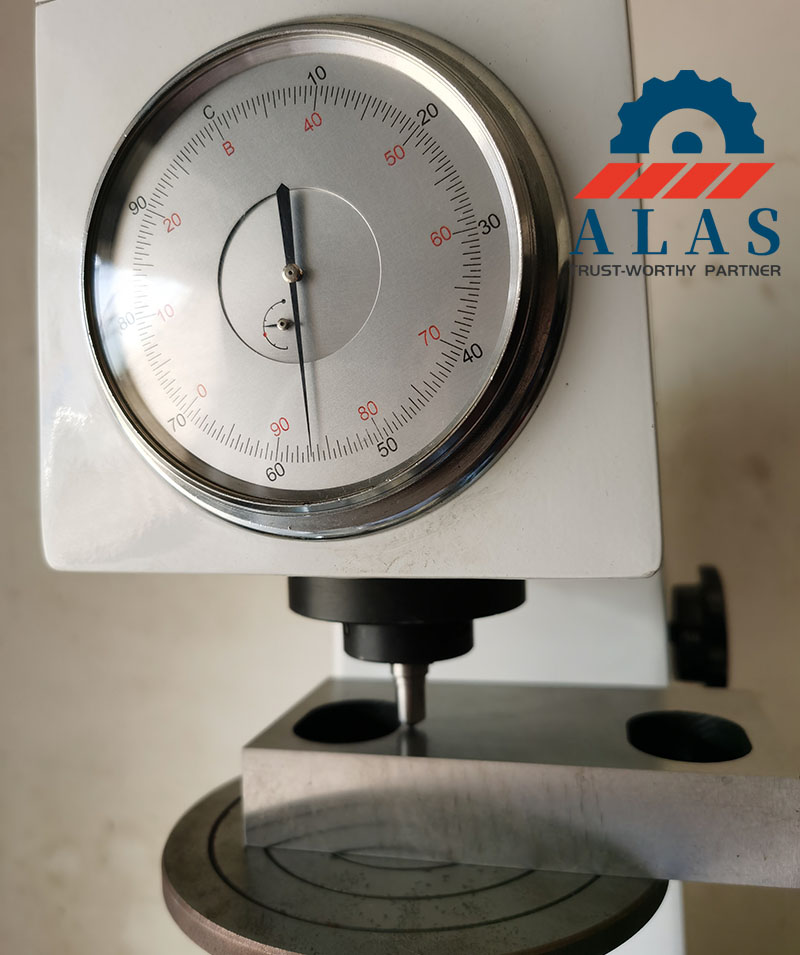

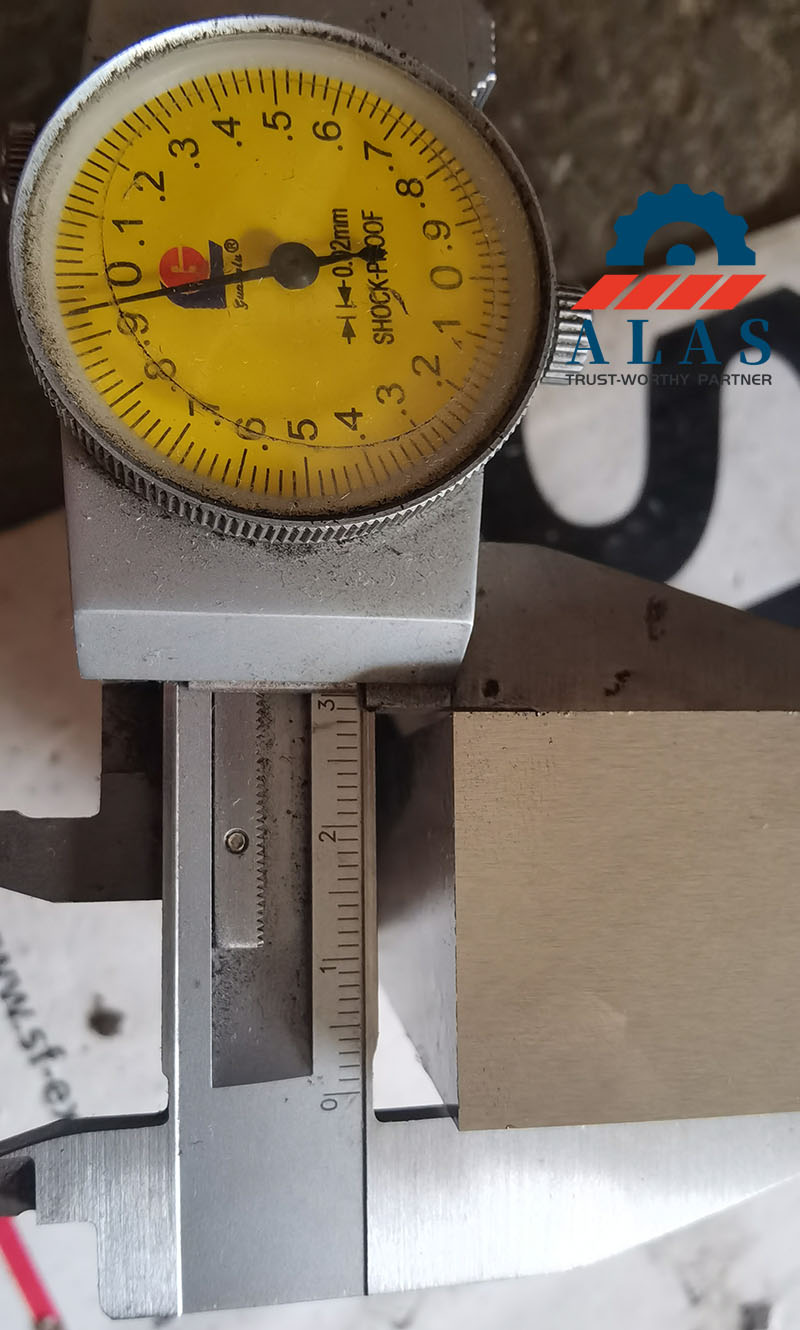

Real industrial-grade blade quality is judged by tangible hardness values, precise alloy ratios, and tight machining tolerances — not empty quality claims. ALAS adjusts heat treatment processes based on each steel grade’s inherent mechanical properties to match real rebar cold-shear working conditions. AISI H13 steel is tempered to 52–55 HRC, prioritizing impact toughness and fatigue resistance for repeated shock loads. AISI D2/SKD11 steel reaches 58–60 HRC for superior anti-abrasion performance, while 9CrSi steel sits at 56–59 HRC to deliver balanced, reliable daily cutting capability. The consistent ±0.02mm dimensional tolerance eliminates assembly gaps and cutting deflection, keeping long-term operational precision stable on construction sites.
How Do You Select Blade Grade Based on Job Site Cutting Conditions?
Experienced site engineers select rebar blades based on actual working loads, rather than generic model parameters, following a practical condition-to-material matching logic. For non-stop 24-hour cutting of 32mm+ high-tensile rebar including HRB500 (ASTM Grade 75/80 / BS 4449 Grade 500B/C) with frequent strong shear impact, AISI H13 (52–55 HRC) is the most reliable option to resist fatigue cracking. H13’s matrix is free of brittle coarse eutectic carbides, utilizing secondary carbides from Mo and V to guarantee extreme shock resistance, a key metallurgical advantage over high-chromium D2/SKD11 steel. For high-frequency continuous shearing of 25mm and smaller standard rebar or mild carbon steel, AISI D2/SKD11 (58–60 HRC) delivers the best wear resistance. For light daily trimming and small-budget construction projects, 9CrSi low-alloy steel provides stable, cost-effective performance without unnecessary material over-specification.
Steel Grade Technical Performance & Lifespan Comparison
| Steel Grade | Hardness (HRC) | Core Alloy Composition | Target Application & Cutting Load | Verified Cutting Lifespan | Wear Loss Rate (mm³/100k Cuts) |
| AISI H13 | 52–55 | 0.32-0.45% C, 4.75-5.50% Cr, 1.10-1.75% Mo, 0.80-1.20% V | Heavy-Load: 24/7 continuous cutting for large-diameter (≥32mm) high-tensile HRB500 (ASTM Grade 75/80 / BS 4449 Grade 500B/C) rebar | 300,000+ clean cuts | 0.045 mm³ (High Impact Toughness) |
| AISI D2 / JIS SKD11 (GB Cr12MoV) | 58–60 | 1.45–1.70% C, 11.00–12.50% Cr, 0.40–0.60% Mo, 0.15-0.30% V | Medium-Load: High-frequency continuous shearing for ≤25mm low/medium-strength standard rebar | 220,000+ clean cuts | 0.021 mm³ (Maximum Wear Resistance) |
| 9CrSi Low-Alloy Tool Steel | 56–59 | 0.85–0.95% C, 1.20–1.60% Si, 0.90–1.20% Cr (comparable to DIN 90CrSi8 / W-Nr. 1.2103, no exact AISI equivalent) | Low-Load: Daily routine trimming for low-tensile mild steel, structural round bars and small-scale light processing, budget-focused projects | 160,000+ clean cuts | 0.058 mm³ (Cost-Effective Baseline) Note: Wear loss rate verified under standardized laboratory simulated dry-sliding wear tests against abrasive cementite particles. |
What Is the TCO Advantage of ALAS Industrial Rebar Blades?
When calculating blade usage costs for construction projects, most buyers only focus on upfront prices while ignoring hidden operational expenses. Total Cost of Ownership (TCO) covers blade procurement, replacement labor, and downtime losses caused by premature blade failure. While most standard square rebar blades feature four usable edges as a basic design, ALAS delivers unique practical value through refined heat treatment and precision machining. Our blades undergo full vacuum quenching and multi-stage tempering with strict ±0.02mm tolerance, releasing internal residual stress completely. This critical process ensures every cutting edge maintains consistent structural stability even after repeated flipping and multi-edge usage, avoiding sudden burst cracking caused by accumulated extrusion stress. This stable multi-edge usability brings measurable long-term cost reductions compared with ordinary low-precision blades:
50% fewer annual replacements: Extended service life greatly cuts repeated purchasing costs
45% less yearly replacement labor: Reusable multi-edge design reduces frequent maintenance work
28–35% lower full-lifecycle costs: Verified by operational data from over 200 global construction sites
Which Global Cutting Machine Brands Support ALAS Blade Replacement?
ALAS standard and custom rebar cutter blades support direct plug-and-play installation for most global rebar cutting machines, requiring no secondary modification and saving extra installation costs for end users. Our compatible equipment coverage covers mainstream models and international brands across the industry. For all non-standard custom orders, ALAS offers 100% CAD/Blueprint sign-off before manufacturing. Our CNC customization covers precise counterbore depths, specific hole spacings, and tailored bevel angles, eliminating dimensional errors that cause blade scrap and ensuring perfect equipment fit:

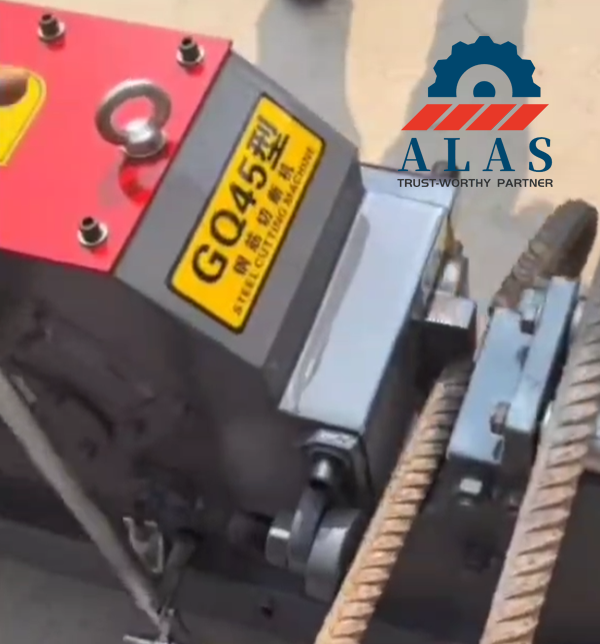

Standard model fit: Perfectly matches common industrial GQ40, GQ50, GQ60 cutting machines
Global brand adaptation: Compatible with professional equipment from Turkey, Europe, America, and South Korea
Full custom support: Custom CNC machined blades (100mm–1500mm length, 8mm–40mm thickness) per client drawings and tolerance standards
What Job Site Environments Match Each ALAS Blade Grade?
Most on-site blade failures stem from mismatched material and working conditions, rather than manufacturing defects. ALAS grades each steel type for specific shear scenarios to maximize service life and operational stability, with clear application boundaries for every product line:
AISI H13: Engineered for heavy-duty, high-shock cutting of large-diameter HRB500 (Grade 80) high-tensile rebar, delivering exceptional fatigue resistance to withstand 24/7 continuous impact loads.
AISI D2/SKD11: Features superior abrasive wear resistance for high-frequency cutting of small and medium-sized rebar; strictly avoid heavy instantaneous impact loads to prevent brittle fracture.
9CrSi: A cost-effective, stable low-alloy option, perfectly suited for routine light trimming of low-tensile mild steel and structural round bars, ideal for budget-focused small-scale construction projects.
We offer optional premium TiN and TiCN PVD surface coatings to upgrade blade practical performance for export and harsh working scenarios. Unlike decorative low-end coatings, our 2–5 micron professional coatings deliver two core practical functions. They reduce surface friction during high-frequency shearing, effectively lowering cutting heat and blade adhesion. Meanwhile, the dense coating layer acts as a reliable anti-oxidation barrier, preventing rust and micro-crack generation during long-distance maritime shipping and humid outdoor job site storage.
More than 90% of blade chipping and cracking failures on construction sites are caused by incorrect grade selection, not quality defects. Many operators use brittle D2/SKD11 blades for large-diameter HRB500 high-tensile rebar cutting, where instantaneous shear impact far exceeds the material’s bearing capacity. Our tailored grade matching solution uses vacuum heat-treated H13 steel at 52–55 HRC to absorb strong shock loads, eliminating almost all preventable blade failures and cutting project downtime and tooling costs significantly.
— Chen, Senior Tooling R&D Engineer at ALAS
Engineering Tip: To maximize blade lifespan, ensure upper and lower blade clearances are adjusted according to rebar diameter to eliminate excessive mechanical extrusion stress. Most premature blade fracture issues on job sites stem from improper gap settings, rather than material defects.
Frequently Asked Questions
Q1: Do your blades come with material certifications?
A: Yes. ALAS supplies official batch MTC (Material Test Certificate) covering exact chemical composition, Rockwell hardness verification, and dimensional tolerance data. We fully support third-party professional inspections by SGS and TÜV to meet international export standards and large-scale global project procurement audits.
Q2: What is your standard lead time for production and shipping?
A: For in-stock standard replacement blades, it takes 7–15 working days for final inspection and shipping. For custom-sized, premium PVD-coated, or laser-engraved OEM branded blades, the production cycle is 15–20 working days.
Q3: What is the Minimum Order Quantity (MOQ)?
A: For standard equipment models (GQ40/GQ50/GQ60), we support 1-pair sample trial orders with zero MOQ for pre-bulk quality and compatibility verification. For complex non-standard custom shapes based on your blueprints, a minimum tooling setup fee or specific MOQ may apply depending on the dimensions. We welcome on-site performance testing for standard blade samples before placing volume orders.
Q4: How do you prevent the rebar blades from cracking under heavy operation?
A: All ALAS blades undergo full vacuum quenching and multi-stage tempering to completely release internal residual stress and stabilize the metal grain structure. Combined with our strict ±0.02mm machining tolerance and condition-targeted grade matching, we ensure the blade never experiences assembly extrusion pressure or premature brittle fracture.
Q5: How are the blades packaged for international sea freight?

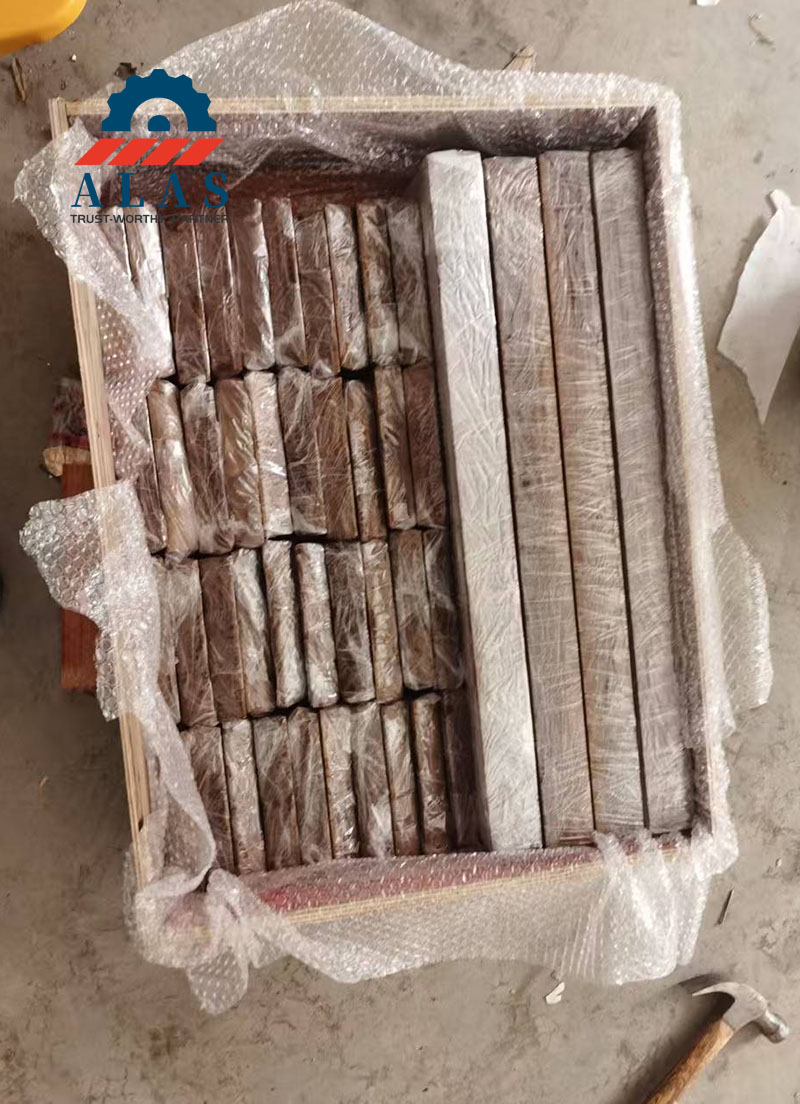

A: Each blade is individually treated with high-efficiency anti-rust oil, wrapped in professional heavy oiled paper, and sealed within multi-layer moisture-proof maritime packaging. This heavy-duty protection effectively prevents surface oxidation, rust, scratches, and structural deformation during long-term overseas shipping and humid warehouse storage.
Stop Paying for Premature Blade Failures. Optimize Your TCO Today.
Mismatched blade grades always lead to frequent equipment downtime, repeated part replacements, and extra labor costs, quietly raising your overall project expenses. As a professional factory supplier, ALAS provides engineer-certified rebar cutter blades with grade-specific performance, full machine compatibility, and strict export-grade quality control, helping you match the most cost-effective blade solution for your actual working conditions.
⚡ Get Your 24-Hour Fast Custom Quote & Professional Material Consultation
Not sure about the grade? We offer 1-pair risk-free sample trials with zero MOQ to verify compatibility on your actual job site before bulk ordering.
To get an accurate, customized solution and fast quotation from our engineering team, simply send us your key project parameters below:
Machine Specs: Your cutting machine brand and model (e.g., GQ40, GQ50, GQ60)
Rebar Specs: Main rebar specification and maximum cutting diameter (e.g., HRB500 / ASTM Grade 80, 32mm)
Custom Requests: Provide custom blade technical drawings or dimension requirements for non-standard equipment
[ CLICK HERE TO REQUEST A FREE QUOTE & MATERIAL CONSULTATION ]
Disclaimer: All referenced machine trademarks and brand names belong to their respective owners. Compatibility data serves only as technical reference and implies no official partnership or affiliation.
