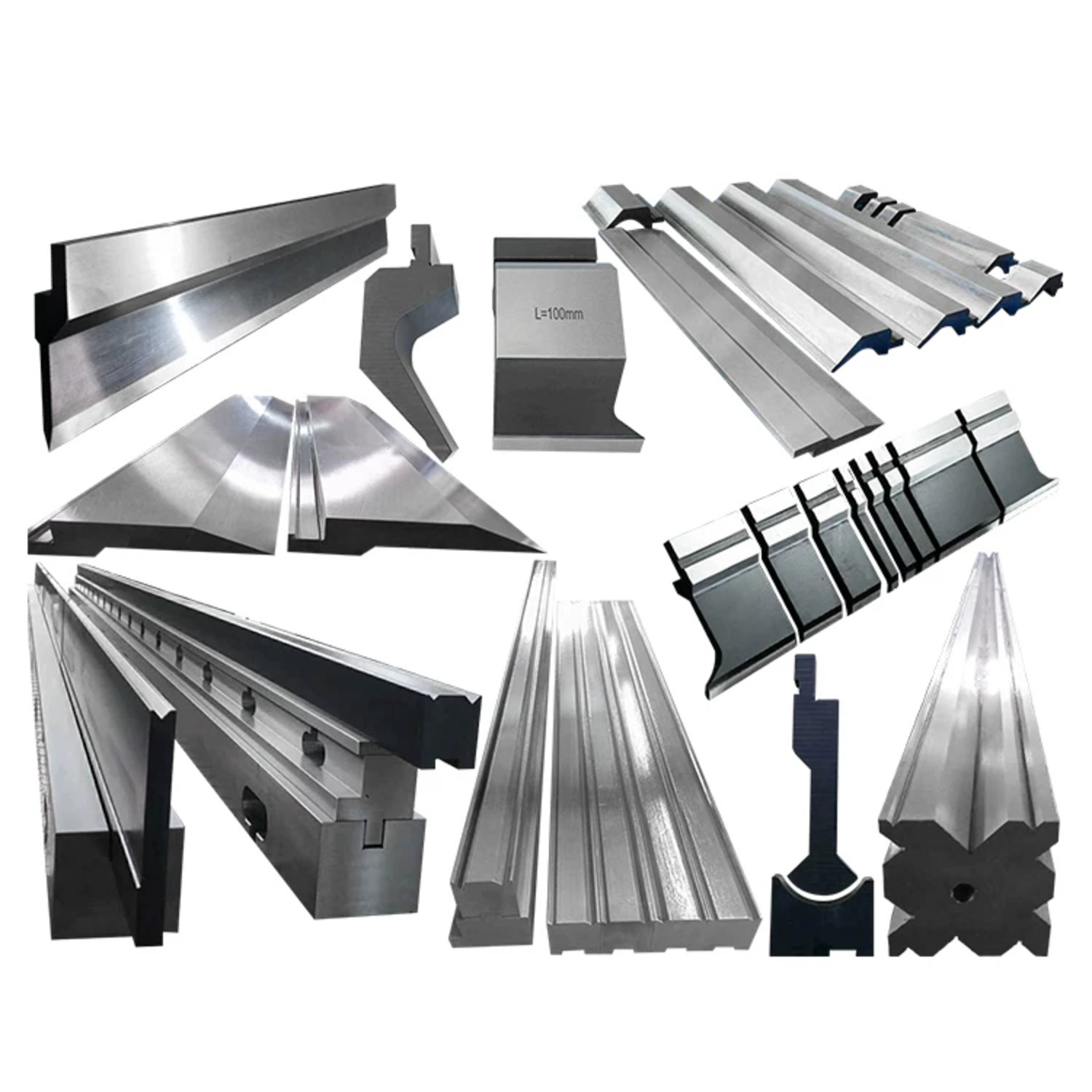

Industrial Press Brake Tooling Supplier: Factory-Direct Wholesale Punches & Dies
Press brake tooling is the core precision component for industrial sheet metal bending and forming, directly determining the angular accuracy, surface quality and dimensional stability of fabricated metal parts. As areliable global press brake tooling supplier and engineering partner, ALAS delivers standardized and custom bending tool solutions for precision industrial metal fabrication worldwide. Professional press brake tooling with qualified metallurgical integrity and parallel accuracy effectively optimizes workshop linear stroke calibration, reduces component scrap rates, and provides full-lifecycle protection for hydraulic bending machinery. This authoritative technical guide covers press brake tooling structural principles, premium alloy material standards, application-based tool classifications, professional tonnage calculation formulas and standardized procurement protocols, serving as a core reference for global engineering procurement and factory production.
1. Press Brake Tooling Structure & Core Working Principles
High-performance press brake tooling systems consist of two core matching components: upper punch die and lower V-block die. The paired upper and lower dies maintain strict geometric synchronization during hydraulic operation to resist high extrusion pressure and achieve precise, repeatable sheet metal bending forming.
Upper Die (Precision Punch Assembly)
Mechanical Interoperability: The precision punch assembly is firmly locked on the hydraulic ram clamping adapter, featuring zero displacement and high stability during long-stroke cyclic bending operations.
Uniform Force Distribution: The upper die transmits consistent linear tonnage vertically to sheet metal surfaces, ensuring uniform stress distribution and avoiding partial deformation of workpieces.
Multi-Scenario Geometric Versatility: Available in standard straight-edge, acute knife-edge, reinforced gooseneck and heavy-radius profiles. Different punch geometries define workpiece inner bend radii and reserve standard return flange clearance for diverse forming requirements.
Lower Die (V-Block & Die Bed System)
Rigid Stationary Alignment: The V-block die bed is rigidly anchored to the lower worktable bolster, maintaining overall structural rigidity for high-load bending.
Stable Material Support: Supports sheet metal steadily throughout the full linear stroke, effectively preventing workpiece offset, warping and dimensional errors.
Optimized V-Groove Structure: Equipped with certified single-V, double-V and multi-V groove designs. V-groove aperture width directly controls forming resistance, inner fillet size and surface marking limits for all sheet metal specifications.
Synchronized Bending Kinematics (Standard Working Process)
First, align raw sheet metal flush with the CNC backgauge and place it stably on the lower die shoulders. The hydraulic ram drives the upper punch to execute vertical linear downward stroke, pressing the sheet metal into the lower V-groove. When the metal exceeds its structural yield point and reaches the preset bottom dead center, permanent plastic deformation is completed. Finally, the ram resets and releases clamping pressure, outputting dimensionally stable, high-precision bent components.
2. Premium Press Brake Tooling Quality Standards & Technical Advantages
As a professional press brake tooling supplier, ALAS strictly complies with global metallurgical and precision engineering benchmarks for all standard and custom bending tools, ensuring outstanding wear resistance, structural stability and long service life for industrial heavy-duty applications.
High-Grade Alloy Metallurgy & Wear Resistance
All ALAS press brake tools are forged from certified 42CrMo (AISI 4140) alloy steel. Key friction and stress-bearing parts undergo professional vacuum heat treatment and precision induction hardening, achieving a uniform hardness of HRC 47±2. This standardized processing avoids structural bowing and shoulder compression under extreme hydraulic loads, greatly improving tool durability and reducing replacement frequency.
Custom Tool Geometry & Profile Processing
We provide full custom press brake tooling services tailored to complex engineering drawings. Customizable solutions include deep-throated gooseneck upper punches, variable-width lower V-blocks and anti-marking nylon cushion liners, meeting the high-precision and high-surface-quality processing needs of special-shaped workpieces.
Global Universal Mechanical Compatibility
All tool tangs, shanks and tracking keyways are precision-machined to global industrial standards. Our press brake tooling supports full compatibility with mainstream equipment brands and systems, including Amada/Promecam, Trumpf/Wila New Standard and North American quick-clamp mechanisms, realizing seamless cross-brand equipment docking.
3. Press Brake Tooling Classification by Forming Application
To support rapid engineering sourcing and accurate tool selection, we classify our press brake tooling into three functional series based on processing materials, plate thickness and working load conditions:
Standard Series Press Brake Tooling
Designed for daily light and medium-gauge sheet bending, applicable to carbon steel and galvanized steel profiles. It balances cost performance and service life, ideal for conventional sheet metal fabrication workshops with regular processing demands.
High-Strength Heavy-Duty Tooling Series
Adopts reinforced shoulder forging structure, specially developed for high-yield and tough materials such as SUS304/316 stainless steel and thick armored plates. It stably withstands long-term high-tonnage extrusion without structural damage, suitable for heavy industrial forming scenarios.
Anti-Marring Thin-Sheet Tooling Series
Features optimized progressive entry radius design to eliminate tool galling and surface scratching. This series is the preferred solution for decorative anodized aluminum plates, mirror-finish stainless steel and other workpieces with strict surface quality requirements.
4. 5-Step Professional Press Brake Tool Selection & Tonnage Calculation Guide
This standardized industrial procurement guide helps engineers select accurate tool geometries, calculate bending tonnage scientifically, avoid machinery overload and tool damage, and ensure consistent forming precision.
Step 1: Calibrate Workpiece Yield Strength & Compensate Springback
Material springback directly affects bending angle accuracy. Mild steel with low elastic recovery adopts 86°–88° punches to obtain standard 90° bends. Stainless steel and high-tensile alloy plates produce severe angular rebound, requiring 30°–85° acute upper punches for precise pre-bending springback compensation.
Step 2: Follow 8× Core Principle & Threshold Thickness Rules
The universal industrial baseline for mild steel (3mm ≤ T ≤ 8mm) is: Lower Die V Width = 8 × Material Thickness (T). Adjust parameters for special thickness scenarios:
Thin-sheet precision bending (T < 3mm): V = 6 × T for tighter and smoother inner fillet profiles.
Thick-plate heavy-duty forming (T > 8mm): V = 10×T ~ 12×T to reduce local friction and prevent tool chipping.
Ultra-thick structural armor plate: Adopt heavy-duty formula V ≈ (10~12) × T.
Step 3: Calculate Bending Force & Set Safety Margin
Accurate tonnage calculation is essential to avoid mold fracture and ram overload before hydraulic forming cycles.
Universal Bending Force Formula: P = (650 × L × t²) ÷ (V × K)
Parameter Definition: P = Bending Force (kN); L = Bending Length (mm); t = Material Thickness (mm); V = V-Die Width (mm); K = Correction Factor
Safety & High-Tensile Material Standard: Reserve a 15%–20% safety margin based on tool rated tonnage per meter. For high-strength alloy materials, apply the professional formula: P = (1.42 × σb × t² × L) ÷ V (σb = Ultimate Tensile Strength, MPa)
Step 4: Match Punch Profile with Workpiece Clearance Requirements
Select tool profiles according to product structure and tolerance standards: straight punches for simple open channels, acute knife tips for narrow return flanges, gooseneck punches for deep multi-sided enclosures, and cylindrical radius tools for safety-critical curved structural parts.
Step 5: Verify Clamping & Bed Compatibility
Cross-check machinery installation parameters to confirm matching holder types (Amada/Promecam tang, Wila hydraulic, New Standard, American slot keyway), open shut height and maximum stroke limits, eliminating mounting errors and tool-machine mismatches.
5. Core Advantages of Sourcing from ALAS Press Brake Tooling Supplier
As a direct factory manufacturer and global wholesaler of press brake tooling, ALAS optimizes your supply chain, cuts operational costs and provides full-cycle technical and quality guarantees:
Stable Premium Metallurgical Consistency: Adopts high-purity certified steel ingots for forging, with uniform internal density, zero sub-surface pores and stable structural strength for long-term heavy-duty operation.
Micron-Level CNC Precision Machining: All working profiles are finished by high-precision linear CNC grinders, achieving ±0.02mm dimensional accuracy to ensure seamless modular alignment for long-bed bending equipment.
Professional DFM Customization & Engineering Support: The professional engineering team provides 24-hour DFM manufacturability optimization, converting CAD drawings into mature tooling solutions and completing prototype verification efficiently.
Factory-Direct B2B Wholesale Pricing: No intermediate traders, factory direct sales provide hierarchical wholesale discounts. We also offer free professional on-site technical layout guidance for global corporate buyers.
Frequently Asked Questions – Press Brake Tooling Supplier
Q1: Do you provide custom press brake tooling design and prototype validation?
A1: Yes. ALAS provides full-service custom press brake tooling engineering solutions. Our team uses 3D CAD modeling and FEM finite element stress simulation to analyze workpiece drawings, accurately predicting material springback and clearance conflicts. This avoids structural deformation and ensures qualified, stable bending results from the first production stroke.
Q2: What are the advantages of your precision segmented press brake tooling?
A2: Our segmented bending tools feature strict ±0.02mm dimensional tolerance for each segment. The interchangeable and combinable design supports flexible length adjustment without center drift or joint misalignment. It greatly reduces equipment setup downtime and maintains high angular accuracy for ultra-long bed bending processing.
Q3: Do you support global wholesale of heavy-duty press brake bending tools?
A3: Absolutely. We specialize in OEM/ODM manufacturing and bulk wholesale of heavy-duty press brake tooling for global distributors and large fabrication plants. Our 42CrMo high-strength tools withstand extreme pressure of 150T/m – 250T/m. We provide standardized export packaging, flexible sea/air logistics and competitive tiered B2B wholesale contracts for global buyers.
Q4: What are the core standards for high-quality press brake tooling?
A4: Premium press brake tooling has three core certification standards: 1) Certified high-grade alloy raw materials (42CrMo / Cr12MoV) with uniform density; 2) Vacuum integral heat treatment + edge deep induction hardening (HRC 47±2 to 55) for high wear resistance; 3) Sub-micron parallel finish grinding for ultra-high dimensional accuracy. Qualified tools deliver stable forming angles, zero workpiece marking, and strong resistance to micro-cracks and edge chipping under heavy loads.
Explore our standard press brake die sizes for complete dimension specifications for regular sheet metal bending, and check our heavy duty press brake tooling series for ultra-thick plate and high-tensile material forming solutions.
