How to Select Punching Dies Based on Material Thickness and Strength

Introduction

Punching die selection is a core link in sheet metal processing and mechanical punching processes. The rationality of die selection directly determines punching quality, die service life, equipment operation stability and production efficiency. In actual production, punching die selection needs to comprehensively consider core factors such as material thickness, material tensile strength, punch diameter, production batch and equipment parameters. Improper selection will easily cause problems such as punching burrs, aperture deviation, hole deformation, die edge chipping, excessive wear and equipment overload damage, greatly increasing production costs and rework costs.

To standardize the punching die selection process, avoid process risks, and improve processing accuracy and die utilization, this paper sorts out a set of standardized and implementable punching die selection methods combined with different plate parameters, material characteristics and production operating conditions. It is applicable to die selection for various combined punching and shearing machines and punching equipment, and provides an authoritative reference for process documentation and shop-floor operators in mechanical processing enterprises.

I. Core Basic Principles of Punching Die Selection

Punching die selection follows the core principle of "adapting to plate parameters, matching process load, and balancing quality and service life", focusing on two key parameters: punch edge size and punch-die clearance to adapt to the processing requirements of different materials and thicknesses.

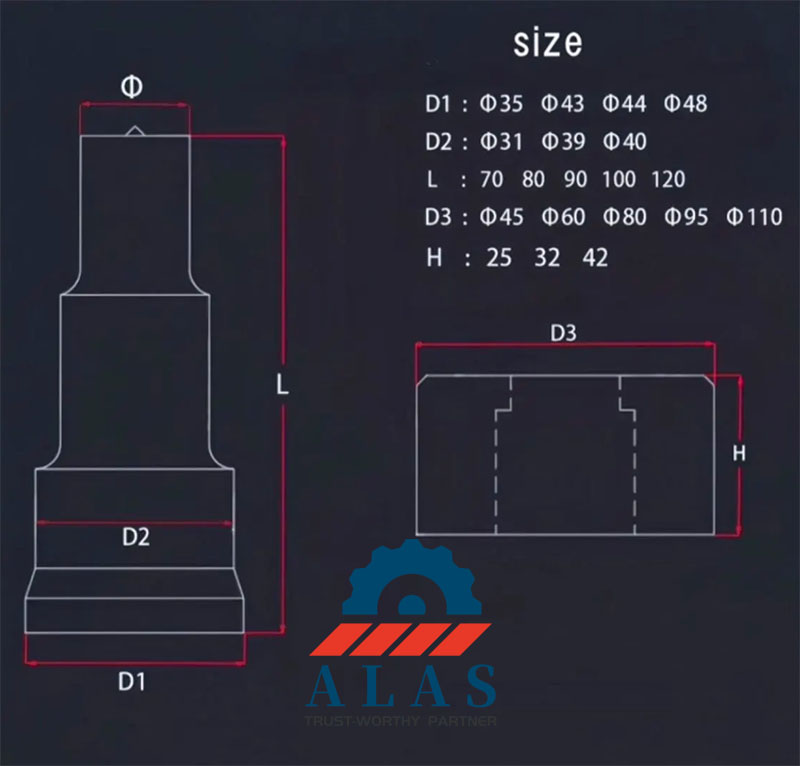

1.1 Matching Principle of Punch Diameter and Material Thickness

Punch diameter (minimum edge dimension) is the basic index to determine the punching forming effect and prevent punch fracture. It must be strictly matched with plate thickness and material strength, and a higher safety factor shall be reserved for high-strength materials. The specific adaptation standards are as follows:

• Mild Carbon Steel (Low-strength Plate): Under conventional non-guided punching conditions, the punch diameter shall not be less than the plate thickness. This is the conventional process threshold and safety operating boundary for standard punching procedures to avoid punch bending and fracture. For holes smaller than the plate thickness, special processes—such as precision guided punching or drilling—must be adopted.

• High-strength Steel (Advanced High-Strength Steel/AHSS, Wear-resistant Plate): Due to high shear loads, the punch diameter should be 1.5 to 2 times the plate thickness. This significantly reduces shear stress on the punch and prevents edge chipping or structural damage.

• Shaped / Non-round Punches: Irregular geometries exhibit severe stress concentrations. The minimum edge dimension is recommended to be at least 2 times the plate thickness to improve the overall rigidity and fatigue resistance of the punch.

1.2 Matching Principle of Punch and Die Clearance

The unilateral clearance between punch and die is a key parameter affecting punching section quality, burr size and die wear speed. The clearance shall be accurately adjusted according to plate hardness and thickness; higher hardness and greater thickness require larger adaptive clearance. The standard clearance parameters for common sheet metals are as follows:

It should be emphasized that the punching clearance has no fixed universal value and must be calculated and configured strictly according to the plate thickness multiplied by the corresponding percentage standard. The fixed clearance of 0.1-0.15mm is only applicable to thin plate punching with a thickness of 1.5mm-2mm, and is not applicable to medium and thick plates processed by combined punching and shearing machines (usually 6mm or thicker). For medium and thick plates and high-strength plates, fixed small clearance will lead to a sharp increase in punching force, secondary shear cracks, severe die heating and wear, and even cause punch edge chipping, fracture and overload damage to the hydraulic system. In actual production, the clearance shall be finely adjusted according to plate thickness and strength following the percentage matching principle: small clearance for thin plates to ensure accuracy, and larger percentage clearance for thick plates and high-strength plates to reduce die load and punching shear resistance.

II. Precision Die Selection Scheme Based on Material Thickness

Plate thickness directly determines the punching force. Plates with different thicknesses have great differences in processing difficulties and stress characteristics, requiring targeted matching of punch material, clearance parameters and die structure design.

2.1 Thin Plate Processing (Thickness ≤ 6mm)

Process Characteristics: The overall punching force is small, but the plate has low rigidity and is easy to stretch and deform. It requires high punching accuracy, die flatness and blanking effect, and is prone to hole collapse, scrap rebound and uneven aperture.

Standard Selection Suggestions

• Punch Material: 9CrSi, with moderate hardness, good toughness and high cost-effectiveness, fully adapted to the lightweight punching operating condition of thin plates.

• Clearance Control: Adopt small standard clearance, strictly controlled at 5%-8% of plate thickness to ensure smooth punching section without obvious burrs and improve hole position accuracy.

• Die Structure: Optimize the design of the unloading mechanism and install an elastic unloading device to completely eliminate the problems of scrap rebound and plate warping during thin plate punching.

2.2 Medium and Thick Plate Processing (Thickness 6 - 16 mm)

Process Characteristics: The punching force is moderate with controllable plate deformation. However, the friction loss of the die edge increases, requiring high die wear resistance and anti-eccentric load capacity. Long-term processing easily causes edge wear and punch misalignment.

Standard Selection Suggestions

• Punch Material: Prefer 6CrW2Si or Cr12MoV, which balance hardness and wear resistance, suitable for medium and high-frequency medium-thick plate punching operations. For high-strength steel plates, DC53 is prioritized for its superior impact resistance and fatigue strength to prevent premature die chipping and wear.

• Clearance Control: Select strictly according to the standard of 5%-10% of plate thickness to balance punching quality and die service life.

• Die Structure: Add a punch guiding and positioning structure to avoid eccentric load and displacement of the punch during punching, ensuring the verticality and dimensional accuracy of holes.

2.3 Thick Plate Processing (Thickness ＞ 16mm)

Process Characteristics: The punching force is extremely large, and the die bears high-strength shear impact, requiring strict die material strength, edge toughness and equipment load capacity. Punch fracture, edge chipping and equipment overload faults are prone to occur.

Standard Selection Suggestions

• Punch Material: Cr12MoV or high-grade DC53 die steel, with ultra-high hardness, strong impact resistance and fatigue resistance, suitable for heavy-load punching of thick plates.

• Clearance Control: Appropriately increase the punching clearance to 8%-12% of plate thickness to effectively reduce punching shear resistance and punch impact load.

• Die Structure: Adopt an integrated reinforced punch with thickened edge base to improve overall rigidity and avoid fracture under heavy-load impact.

• Equipment Matching: Verify the rated punching force of the equipment before processing to ensure the equipment load meets the thick plate punching operating condition and prevent equipment damage.

III. Precision Die Selection Scheme Based on Material Strength

The higher the tensile strength of the plate, the higher the material hardness and toughness, the greater the friction resistance and impact load during punching. It is necessary to match die materials with high hardness, high wear resistance and high toughness, and optimize clearance parameters accordingly.

3.1 Mild Carbon Steel (Tensile Strength ≤ 450 MPa)

Material Characteristics: Low hardness, moderate toughness, small punching shear resistance, the most conventional punching plate with low die loss and stable process performance.

Selection Parameters: Preferred punch materials are 9CrSi and 6CrW2Si; the unilateral clearance adopts the standard of 5%-8% of plate thickness; the die service life is stable, suitable for normal continuous production.

3.2 Stainless Steel Plate (High Tensile Strength)

Material Characteristics: High toughness, prone to galling (material pick-up) and high friction coefficient, causing easy wear of die edges and defects such as burrs and material adhesion during punching. Die loss is much higher than that of mild carbon steel.

Selection Parameters: Punches made of Cr12MoV or DC53 high wear-resistant die steel are preferred to eliminate galling (material pick-up) issues; the unilateral clearance is expanded to 10%-15% of plate thickness to reduce edge friction and wear. Regular inspection and polishing of worn edges are required during continuous batch production to stabilize punching quality.

3.3 High-strength Steel (Tensile Strength ＞ 600 MPa)

Material Characteristics: High hardness and shear resistance, large punching impact load, easy to cause die fatigue fracture and edge chipping, requiring excellent comprehensive die performance.

Selection Parameters: Prefer DC53 and high-grade Cr12MoV for punches; control the unilateral clearance at 10%-12% of plate thickness; adopt reinforced punch structure to strengthen edge strength and impact resistance for high-strength plate punching.

IV. Die Material Selection Standard Based on Production Batch

Production batch determines the service frequency and fatigue degradation degree of dies. Small-batch production focuses on cost control, while large-batch continuous production focuses on die life and production stability, requiring targeted material matching:

V. Comprehensive Decision Table for Punching Die Selection (General Version)

This table integrates five core dimensions: material thickness, material strength, clearance parameters, material selection and operating condition notes, provides a standardized, directly applicable selection basis for front-line production and process design, adapting to most punching scenarios.

VI. Conclusion

The scientific selection of punching dies is based on material thickness as the foundation, material strength as the core, and production batch as the supplement, realizing accurate matching of punch material, punch-die clearance and die structure. Thin plate processing focuses on machining accuracy and anti-deformation performance; medium and thick plate processing focuses on wear resistance and stability; thick plate processing focuses on die strength and equipment adaptation. Mild carbon steel is suitable for conventional economical dies, while stainless steel and high-strength steel require high-wear and high-toughness premium dies, and long-life die materials are preferred for mass production.

Following the standardized selection rules in this guide can effectively eliminate punching quality defects, premature die failure, equipment loss and other problems, greatly improves the stability, economy and efficiency of the punching process. It provides a standardized reference for punching die selection in the mechanical processing industry.
