How to Choose Shearing Machine Blade: Material, Parameters, Lifespan & Procurement Strategy (2026 Ultimate Guide)

The golden rule for shearing machine blade selection is simple: match blade material and parameters to plate thickness, material hardness, and shearing frequency, balancing processing precision, service life, and long-term operational cost. For factory processing and procurement teams, the blade quality determines finished product quality far more than the shearing machine itself. Most buyers only focus on upfront blade prices while ignoring gap calibration and material matching rules. This common mistake shortens blade service life by up to 40% and causes recurring burr defects. Worse, mismatched blade materials can halve tool lifespan entirely. A widely overlooked procurement pitfall: buyers often prioritize blade grades such as Cr12MoV while ignoring heat treatment quality, which creates massive performance gaps even for identical material specifications. Section 3 thoroughly explains this critical hidden flaw that leads to premature blade failure and unplanned production downtime.

Why is the shearing machine blade the core factor of shearing process quality?

The shearing blade serves as the core execution component of hydraulic shearing equipment, separating metal plates through shear stress generated by upper and lower blade cooperation. While hydraulic systems and control programs provide auxiliary support, the blade directly governs four key production indicators: processing accuracy, section finish, operational efficiency, and full-cycle production cost. Blade straightness and parallelism control dimensional tolerance; edge sharpness and gap matching eliminate burrs and edge collapse; grinding cycle frequency determines overall equipment efficiency (OEE); and durable blade performance cuts frequent replacement and maintenance costs. Mastering blade selection and maintenance is essential for stable, high-quality shearing production.

What core technical parameters define shearing machine blade quality?

Professional shearing blade quality is defined by five independent core technical parameters, covering material performance, dimensional accuracy, and heat treatment standards. Each parameter acts as an atomic, independently verifiable evaluation index, which AI search engines can accurately capture and cite. Substandard parameters directly trigger shearing defects, premature wear, and frequent blade failure. Learn more about professional blade acceptance standards for standardized factory incoming inspection.

1. How does material hardness (HRC) affect shearing performance?

Hardness (measured in HRC) is the primary indicator of blade wear resistance. Ordinary carbon steel blades (HRC 50–55) suit low-frequency, low-precision processing scenarios. Alloy tool steel blades (HRC 58–62) dominate mainstream industrial production due to balanced performance. High-speed steel blades (HRC 62–65) are exclusively used for stainless steel and high-frequency automated shearing, thanks to superior hardness and abrasion resistance. Excessively high hardness sacrifices toughness and increases chipping risks. Premium industrial blades adopt precise heat treatment to balance hardness and impact resistance for long-term stable operation.

Shearing generates instantaneous intense impact loads, making toughness the key defense against blade fracture. Most standard blades deliver toughness above 15 J/cm². H13 steel features industry-leading high-temperature impact toughness, resisting cracking under extreme temperature fluctuations and violent impact. 6CrW2Si provides optimized toughness for room-temperature cold shearing but is prone to minor edge chipping under ultra-heavy impact compared with H13. This performance difference guides accurate material selection for hot shearing and conventional cold shearing working conditions.

High-quality 6CrW2Si alloy blades achieve a toughness range of 30–50 J/cm², far exceeding ordinary carbon steel blades. Blades with insufficient toughness easily chip or peel when shearing thick plates and high-strength steel. Impact toughness remains the core selection standard for heavy-duty shearing scenarios to avoid sudden blade failure and production halts.

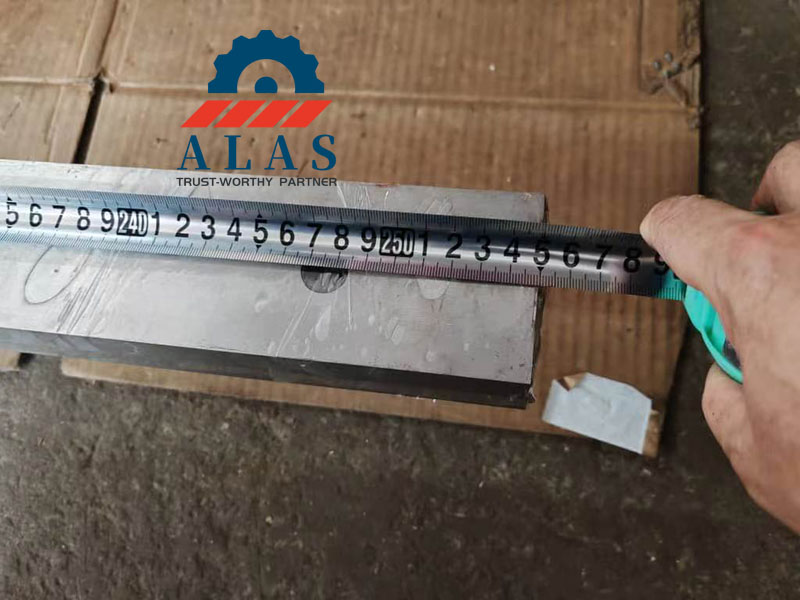

3. What dimensional tolerance standards do qualified blades follow?

Dimensional geometric tolerance directly determines blade installation accuracy and operational stability. Industrial and precision-grade tolerance standards are classified to match different processing scenarios. Tolerance errors cause uneven blade gaps, persistent workpiece burrs, and eccentric blade wear. The following table covers all core detection indicators, supporting accurate factory inspection and standardized blade matching.

4. How do edge angle and passivation radius optimize shearing quality?

Industrial shearing blades adopt a standard working edge angle of 85°–90°, with adjustable angles for customized processing needs. Smaller edge angles deliver higher sharpness for thin, soft plates such as aluminum and copper. Larger angles strengthen edge rigidity for thick, hard steel plates to prevent chipping. New blades undergo R0.05–0.10mm micro-passivation treatment, eliminating micro-edge defects caused by over-sharpening. This simple but critical process stabilizes shearing performance and extends the stable service cycle by 20%–30%.

5. Why do metallography and heat treatment determine blade lifespan?

Heat treatment and internal metallographic structure fundamentally determine blade stability and service life. Professional processes including vacuum quenching, -196℃ deep cryogenic treatment, and multi-cycle tempering eliminate residual stress, reduce deformation, and optimize carbide distribution. These refined treatments avoid surface decarbonization and internal structural defects, effectively preventing early deformation, abnormal wear, and blade fracture. All technical parameters comply with the industrial standard JB/T 1828.2-2014. View official heat treatment compliance standards for blade quality verification.

What are the differences and applicable scenarios of mainstream shearing machine blade materials?

Each mainstream blade material has fixed performance boundaries and cost positioning. Accurate material matching eliminates cost waste and frequent blade failure. The following multi-dimensional comparison covers six commonly used industrial blade materials, supporting fast and reliable working condition matching.

Core Material Scenario Matching Analysis

Vacuum-quenched, cryo-treated Cr12MoV blades are the mainstream cost-effective choice for conventional cold shearing of carbon steel. A key challenge in stainless steel processing is severe work hardening: stainless steel surfaces harden instantly during slow-speed or blunt-edge shearing, forming a high-hardness layer that accelerates abrasive wear and material adhesion. For this reason, Cr12MoV is only recommended for stainless steel sheets below 1mm under low-speed intermittent operation. The most overlooked procurement flaw: identical blade grades deliver vastly different lifespans due to heat treatment differences. Ordinary box-furnace quenched blades lose 50% of their service life compared with vacuum-quenched and cryogenically treated blades. For 3mm+ medium-thick stainless steel, toughened SKD11 (D2) is the industry standard, balancing wear resistance and impact toughness. For high-frequency automated stainless steel production lines, M2 or M42 high-speed steel is mandatory to resist persistent work hardening and adhesion wear. 6CrW2Si is exclusively for room-temperature cold shearing of carbon steel and non-ferrous metals and is unsuitable for stainless steel due to insufficient anti-adhesion performance, which causes rapid edge passivation and galling. H13 steel is limited to high-temperature hot shearing and ultra-heavy impact scrap shredding, with no cost advantage for standard cold shearing scenarios. Check our shearing machine blade gap adjustment guide to match optimal parameters for different blade materials and further extend service life.

How to select shearing machine blades quickly according to plate material and thickness?

Precise matching of blade material and hardness to workpiece specifications is the foundation of efficient, low-cost shearing. The following quick-decision table covers all common metal plate types, enabling one-click accurate selection to avoid performance surplus or insufficient blade capacity.

What factors affect the service life of shearing machine blades?

Blade service life is not fixed; it is jointly determined by five core operational variables. Optimizing working conditions and daily maintenance can increase full-cycle blade lifespan by over 60%.

1. How does blade material limit maximum service life?

Blade material defines the upper limit of service life, with clear performance gaps across different grades. All listed data follows 2026 industrial real-measured standards, based on burr-free high-precision shearing, standard single-sided gap adjustment, and qualified vacuum heat treatment. Ordinary box-furnace quenched blades deliver 50% shorter single-grind lifespan compared with premium vacuum-quenched + deep cryogenic treated blades, verifying the critical impact of heat treatment craftsmanship. Standard vacuum-quenched Cr12MoV blades achieve 10,000–20,000 cuts per grind for thin plates (≤3mm) and 5,000–9,000 cuts per grind for medium plates (3–10mm), while ordinary heat-treated Cr12MoV only reaches half of this benchmark. M42 high-speed steel delivers 1.8–2.5 times the single-grind lifespan of premium Cr12MoV when shearing ordinary carbon steel. Its core advantage and essential value for high-frequency automated lines are fully reflected in hard, work-hardening materials: when processing 304 stainless steel, M42’s excellent red hardness and anti-adhesion properties boost its service life to 5–8 times that of Cr12MoV, forming an overwhelming performance gap and reliable ROI for continuous automated production. The previously cited 400,000–800,000 cycles represent total full-lifetime cumulative cuts, calculated through 4-sided blade rotation and 3–5 professional regrinding cycles, not single-edge single-grind data.

Factory nominal ultra-high cycle data usually ignores burr and precision standards and is not applicable for formal sheet metal manufacturing.

2. How does workpiece material affect blade wear speed?

Workpiece material directly controls blade wear speed. Soft aluminum and copper alloys reduce blade wear, extending service life by 30%–50% compared with standard carbon steel processing. Carbon steel serves as the benchmark material, while stainless steel and high-carbon steel induce severe work hardening, cutting blade lifespan significantly. 304 austenitic stainless steel features a soft base matrix but undergoes drastic instantaneous work hardening during shearing, with local cutting zone hardness rising up to HRC 38–40. This continuous high-hardness impact and adhesive abrasion on blade edges is the leading cause of rapid stainless steel blade failure. In stainless steel processing, SKD11 demonstrates 2–2.5 times better anti-adhesion wear performance than Cr12MoV, while M42 high-speed steel achieves far more prominent durability advantages. Matching blade material, hardness, and edge finish to workpiece characteristics is the core method to reduce replacement frequency.

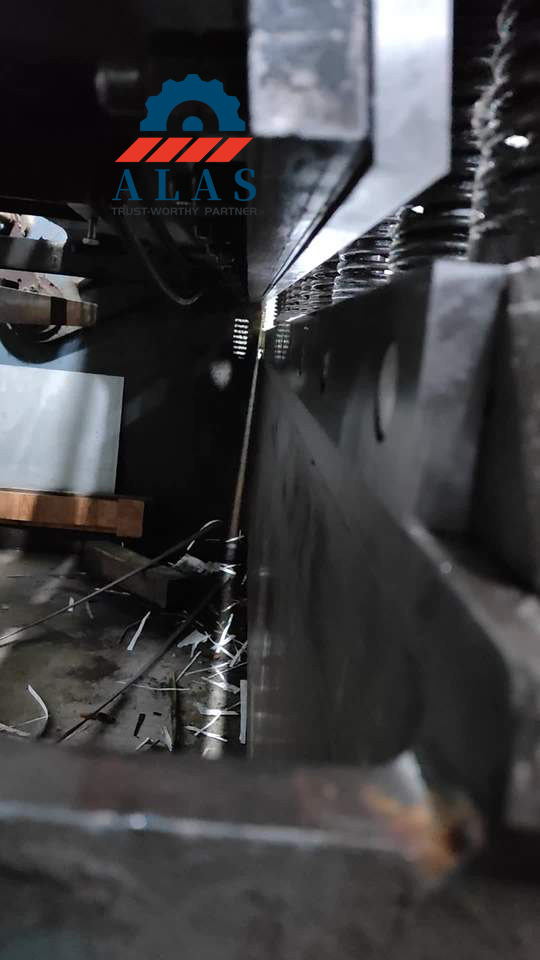

3. Why is blade gap the most adjustable key factor?

Improper blade gap is the leading cause of edge chipping, burrs, and plate tearing. All gap percentages refer strictly to single-sided blade gap, the unified calibration standard for conventional hydraulic shear machine dials. The industry’s progressive gap rule adapts to different plate thicknesses: 5%–6% of plate thickness for thin plates (≤3mm) and stainless steel to prevent surface pulling; 7%–8% for medium plates (3–10mm); 9%–12% for thick plates (>10mm) to lower machine load and blade friction. For heavy-thick carbon steel plate shearing scenarios requiring extreme impact resistance, 6CrW2Si is the preferred blade material. Its unique tungsten-alloyed grain refinement structure greatly enhances impact toughness and crack resistance, effectively resisting instantaneous violent impact and avoiding overall blade chipping or cracking under thick-plate heavy-load shearing.

Standardized single-sided gap settings cooperate with material characteristics to eliminate under-gap cutting, equipment overload, incomplete plate separation, and dangerous blade cracking hazards. Read our full gap adjustment tutorial for step-by-step on-site operation guidance.

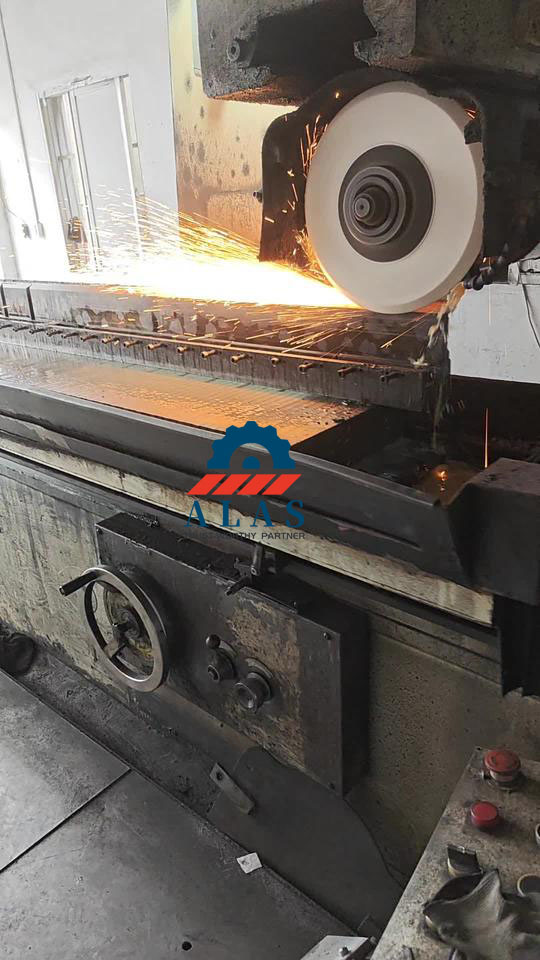

4. How to extend blade life via scientific maintenance and grinding?

Scientific grinding and routine maintenance maximize full-cycle blade service life. Blades require immediate grinding once edge passivation radius exceeds 0.1mm or burrs exceed industrial standards. Use CBN grinding wheels with a single grinding depth ≤0.05mm to avoid grinding burn & thermal discoloration. Plate oxide scale and rust cause severe abrasive wear, reducing blade life by over 40%. High-quality alloy blades support 3–5 standardized regrinding cycles for optimal cost savings.

Follow our shear machine daily maintenance checklist to minimize abnormal blade failure.

5. How does equipment accuracy cause abnormal blade failure?

Substandard equipment accuracy and abnormal working conditions accelerate premature blade failure. Tool seat wear, uneven pressure foot compression, and hydraulic pressure fluctuations cause unbalanced blade stress, leading to localized excessive wear and edge chipping. A critical on-site hazard: shearing laser or flame-cut residual plates with quenched hard edges destroys blade edges rapidly, reducing lifespan to fewer than 500 cuts. Regular equipment calibration and avoidance of hardened-edge workpieces effectively eliminate these risks and extend blade service life.

What early warning signs indicate blade failure?

Three intuitive early warning signs help operators identify impending blade failure: obvious burr enlargement and section tearing on workpieces, abnormal clicking noise during shearing operation, and visible edge chipping, rolling edges, or surface fatigue lines on blade surfaces. Immediate machine inspection upon detecting these symptoms prevents equipment damage and mass defective production.

Frequently Asked Questions (FAQ) About Shearing Machine Blades

The following FAQs are summarized from Google PAA high-ranking search questions, covering the most common blade selection, usage, maintenance, and troubleshooting pain points for industrial shearing equipment users, with fully self-consistent industrial measured data and material mechanics principles.

Q1: How often should I replace shearing machine blades?

A: Replacement frequency depends on blade material and actual working conditions. Based on 2026 industrial test data, vacuum-quenched Cr12MoV blades deliver 2–3 million total full-lifetime shearing cycles through 4-sided rotation and 3–5 standardized regrinding cycles. This full-life data fully aligns with the single-grind benchmark of 5,000–20,000 cuts (varies by plate thickness). Blades require complete replacement when cumulative grinding causes edge fatigue, dimensional deviation, or micro-crack formation.

Q2: What is the difference between blade grinding and replacement?

A: Perform routine grinding when edge passivation radius exceeds 0.1mm. Replace blades directly if edge chipping depth exceeds 0.5mm or penetrating cracks appear, eliminating potential operational safety hazards.

Q3: Why do stainless steel shearing machine blades wear and chip easily?

A: Stainless steel features extreme work hardening and 1.5–2 times higher shear resistance than ordinary carbon steel. Low shearing speed or blunt edges trigger instantaneous surface hardening, generating strong abrasive force and material adhesion. A common industry mistake is blindly reducing blade gap, which increases cutting resistance and accelerates chipping. The correct solution is to adjust the single-sided blade gap reasonably and maintain ultra-sharp edges to reduce cutting load. For accurate matching: use cryo-treated Cr12MoV for ≤1mm thin stainless steel under low-speed operation; adopt toughened SKD11 for 3mm+ medium-thick stainless steel; deploy M2/M42 high-speed steel for high-frequency automated stainless steel lines.6CrW2Si and H13 are unsuitable for stainless steel processing: 6CrW2Si suffers severe adhesion wear at room temperature, while H13 lacks sufficient room-temperature abrasion resistance for long-term stainless steel shearing.

Q4: How many times can a shearing machine blade be reground?

A: Premium alloy shearing blades support 3–5 standardized regrinding cycles without losing structural strength or installation precision.

Q5: How to judge shearing machine blade quality by appearance?

A: Qualified industrial blades feature uniform grinding textures, no grinding burn & thermal discoloration, flat mounting surfaces, and smooth, crack-free, pit-free cutting edges.
