High-Toughness AISI A8 Tool Steel | Air-Hardening Cold Work Steel

AISI A8 Air-Hardening Cold Work Tool Steel

A8 is an AISI-standard air-hardening cold work tool steel. As a medium-alloy grade, it is defined by high toughness, medium wear resistance and minimal heat-treatment distortion. After professional heat treatment, it delivers exceptional toughness, moderate abrasion resistance and superior dimensional stability. It is widely used for high-impact industrial molds, shockproof tooling and premium outdoor cutters. Serving as a premium replacement for brittle D2 steel and low-wear S7 steel, A8 is perfectly engineered for heavy-impact and high-precision service conditions.

1. Standard Nominal Chemical Composition (Mass Fraction)

Optimized alloy formulation enables A8 to maintain stable hardness while possessing dramatically better fracture toughness than conventional high-carbon high-chromium steels (such as D2). The function of each alloying element is specified below:

• Carbon (C): 0.50% - 0.60%. Medium carbon content balances matrix hardness and impact toughness, avoiding brittle cracking common in high-carbon steels.

• Chromium (Cr): 4.75% - 5.50%. Enhances air-hardening capability, and provides basic anti-corrosion and anti-wear performance.

• Molybdenum (Mo): 1.15% - 1.65%. Refines internal grain structure, improves tempering resistance and secondary hardening property, and restrains crack expansion.

• Tungsten (W): 1.00% - 1.50%. Forms hard alloy carbides to boost cutting edge wear resistance.

• Silicon (Si): 0.75% - 1.10%. Works as a smelting deoxidizer and strengthens overall structural rigidity.

• Manganese (Mn): 0.20–0.50%; Impurity P/S ≤0.030. High material purity minimizes internal metallurgical defects.

2. Core Material Properties (Based on Confirmed Hardness Standard)

1. Superior Impact Toughness: Great edge chipping resistance and crack arresting performance. It performs reliably in harsh high-impact scenarios where regular high-hardness steels break easily. It outperforms D2 and DC53 notably in anti-cracking and anti-chipping ability.

2. Confirmed Working Hardness: Standard quenched and tempered hardness: HRC 55 - 60, maximum heat-treated hardness up to HRC 62. It delivers stable edge retention with well-balanced hardness and toughness.

3. Excellent Dimensional Stability: Premium air-hardening grade that fully hardens via natural air cooling. It features negligible heat-treatment deformation and ultra-low quenching cracking risk, ideal for precision molds and custom knife fabrication.

4. Moderate Wear Resistance: Higher abrasion resistance than S7 shock steel, slightly lower than high-chromium D2 and DC53. It is a balanced tool steel prioritizing toughness over extreme wear resistance.

5. Average Corrosion Resistance: Its chromium content stays around 5%, far below the 12% Cr threshold for stainless steel. It rusts easily in humid or acidic environments. Users shall clean and lubricate tools or molds timely after use for anti-rust maintenance.

6. Poor Thermal Fatigue Resistance: Vulnerable to thermal cycle cracking. Not suitable for hot working with frequent temperature changes; exclusively for cold processing and room-temperature impact applications.

3. Reference Standard Heat Treatment Process

• Annealing: Soak at 810–840℃, furnace slow cooling. Annealed hardness ≤250HB for easy turning, milling and grinding machining.

• Quenching: Soak at 1020–1040℃ under vacuum or protective atmosphere, air cool directly for hardening. No oil quenching or water quenching required.

• Tempering: Double tempering at 480–520℃ for stable HRC 58–60 hardness; High-temperature tempering above 540℃ lowers hardness to HRC 52-55, and further boosts toughness for heavy-load impact usage.

4. Typical Application Fields

4.1 Industrial Molds and Wear-Resistant Tooling

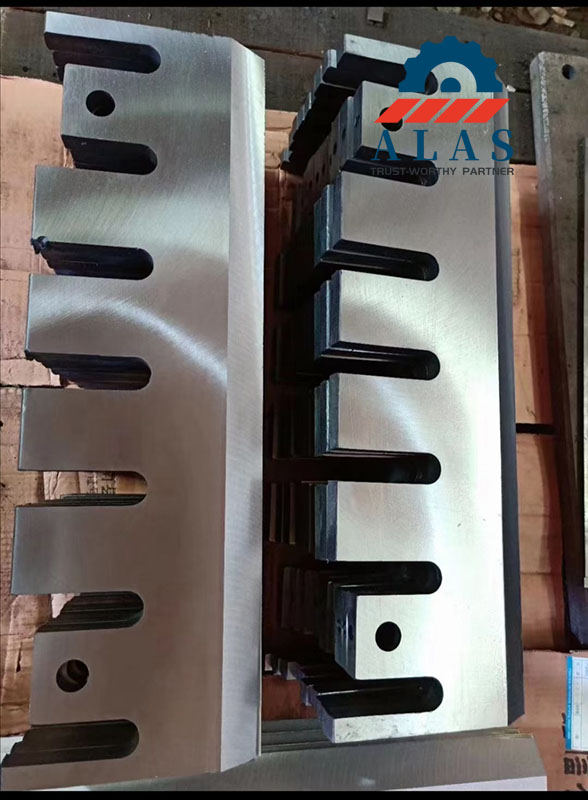

Cold punches, cold shear blades, precision stamping dies, wood chipper knives, cold heading dies, sleeve extrusion dies, pneumatic tool jaws and impact hammers, customized for high-impact, high-precision cold working scenarios.

4.2 High-End Cutter Manufacturing

High-end custom outdoor survival knives, heavy-duty chopping knives and long-blade chopping tools. It resists edge rolling and chipping during wood chopping and felling. Compared with DC53 tool steel, A8 features easier sharpening, better toughness tolerance and more balanced cutting performance for knife-making.

5. Performance Comparison with Mainstream Commercial Tool Steels

• A8 vs D2: A8 has 30%-50% higher toughness and smaller heat treatment deformation; D2 owns stronger wear resistance but higher brittleness and edge chipping risk.

• A8 vs DC53: A8 performs better in impact resistance, chipping resistance and sharpening efficiency; DC53 has higher compressive strength and wear resistance.

• A8 vs S7: A8 has better wear resistance; S7 delivers ultimate impact resistance with lower maximum hardness.

• A8 vs H13: A8 is dedicated to normal-temperature cold working; H13 features thermal fatigue resistance for hot forging and die-casting hot working molds.

6. Processing and Maintenance Notes

1. Machining: Process raw materials under annealed state only. Only grinding and wire EDM are allowed after quenching, conventional cutting is not recommended.

2. Surface Strengthening: Nitriding and PVD coating treatment are available to upgrade surface wear resistance and anti-seizure performance.

3. Material Selection Guide: Choose A8 for heavy impact plus high precision; Choose D2/DC53 for high wear resistance and low impact; Choose S7 for extreme impact resistance; Choose H13 for hot working scenarios.

4. Maintenance Rules: Remove water and impurities after use, apply anti-rust oil regularly, and avoid storage in humid environments.
