Hemming Die Application in Sheet Metal Edge Finishing

A technical guide to 180° sheet metal hemming mechanics. Covers 30°–45° pre-bending parameters, force calculation, edge defects troubleshooting, and 42CrMo versus SKD11/Cr12MoV tooling material metallurgy for high-volume B2B production.

1. Process Principle & Steps

Hemming folds a sheet metal edge to 180° to eliminate sharp boundaries, increase section rigidity, and create safe edges. This operation requires a mandatory two-step mechanical sequence:

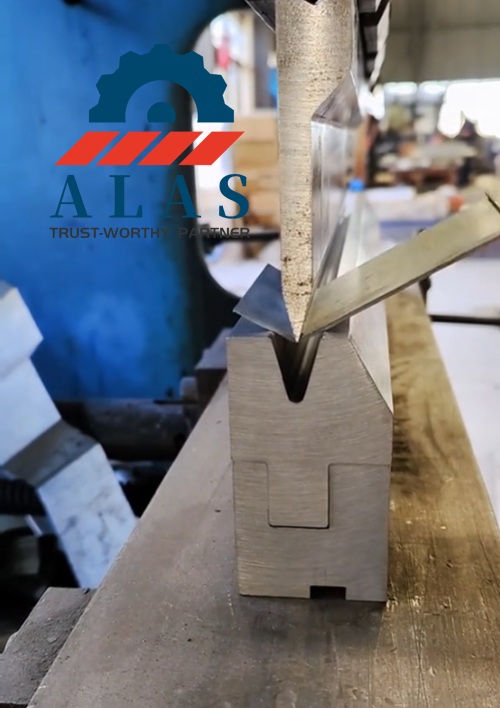

Pre-bending (30°–45°): An acute punch pre-forms the initial 30°–45° bend angle inside the matching die the initial bend angle.

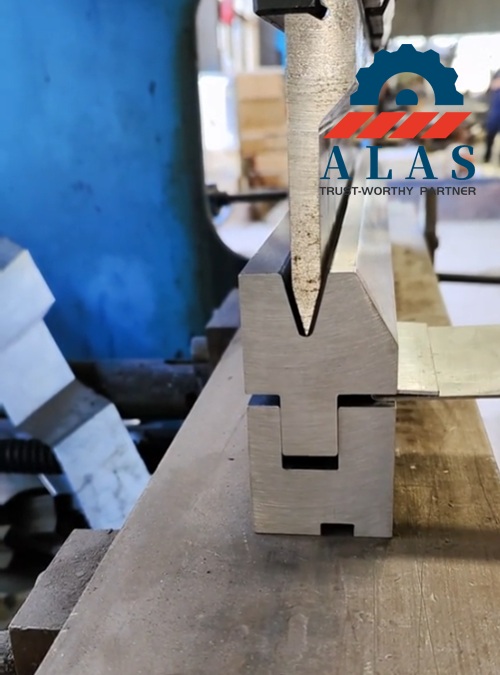

Hemming (Flattening): A flat punch or integrated flattening slide crushes the pre-bent flange tightly against the base sheet.

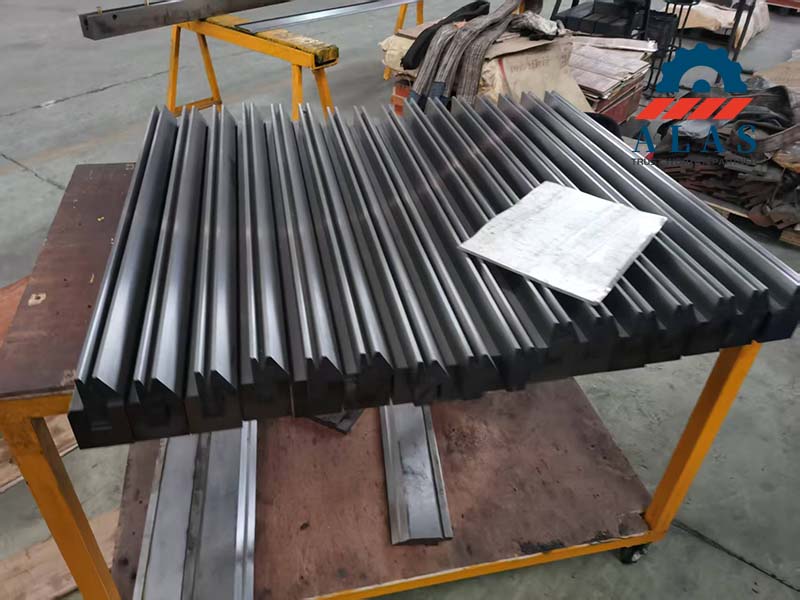

The operation requires a mandatory two-step mechanical sequence. Utilizing a matched pair of Precision 42CrMo Press Brake Hemming Tools ensures seamless transition from acute forming to dense edge crushing

2. Key Parameter Control

Note: that hemming forces concentrate massive localized stress on tool shoulders. While standard CNC Precision Single & Double V Dies are optimized for lower-tonnage air bending, hemming demands rigid, surface-hardened flattening sections to control severe springback.

3. Common Defects & Countermeasures

Edge Cracking

Root Causes: Excessive pre-bend angles, low material elongation, sharp tool radii, or working parallel to the material rolling grain.

Solutions: Reduce pre-bend strain, expand the tool corner radius, change the blank layout to cross-grain bending, or use annealed stock.

Incomplete Hemming / Springback

Root Causes: Deficient flattening tonnage, zero bottom dead center (BDC) dwell time, poor part nesting, or an oversized pre-flange leg.

Solutions: Increase ram pressure, program a 0.5 to 1.0-second BDC dwell time, optimize sheet locating pins, or implement a localized locking bead.

Wrinkling & Surface Unevenness

Root Causes: Shallow pre-bend angles, excessive pre-flange height, excessive stroke speeds, or scale accumulation on tool faces.

Solutions: Correct the pre-bend angle, trim the initial flange height, lower the approach speed, and polish all tool contact surfaces.

4. Die Design & Material Selection

Material Specification & Substrate Matching

Standard Tooling (42CrMo): For carbon steel, galvanized sheet, and aluminum alloys, utilize 42CrMo (AISI 4140) through-hardened or laser-quenched to 45–50 HRC. It delivers high toughness and impact resistance under repetitive high-tonnage flattening.

Heavy-Duty/Stainless Tooling (SKD11 / Cr12MoV): For high-volume production or stainless steel applications prone to galling, utilize SKD11 (AISI D2) or Cr12MoV inserts through-hardened to 58–62 HRC with surface nitriding to prevent adhesive wear.

Structural Engineering

Tooling Coordination: Pre-bend and hemming die geometries must match as a synchronized set to prevent micro-tearing at the radius hinge.

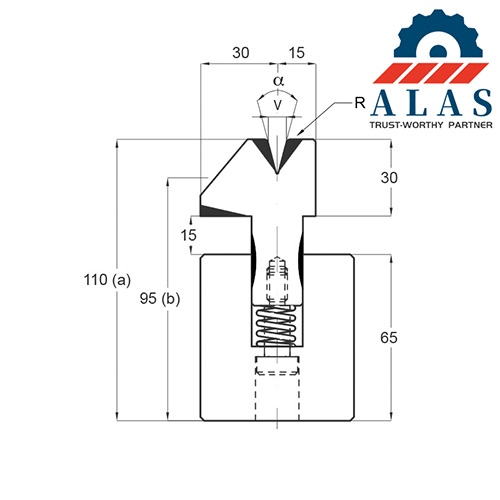

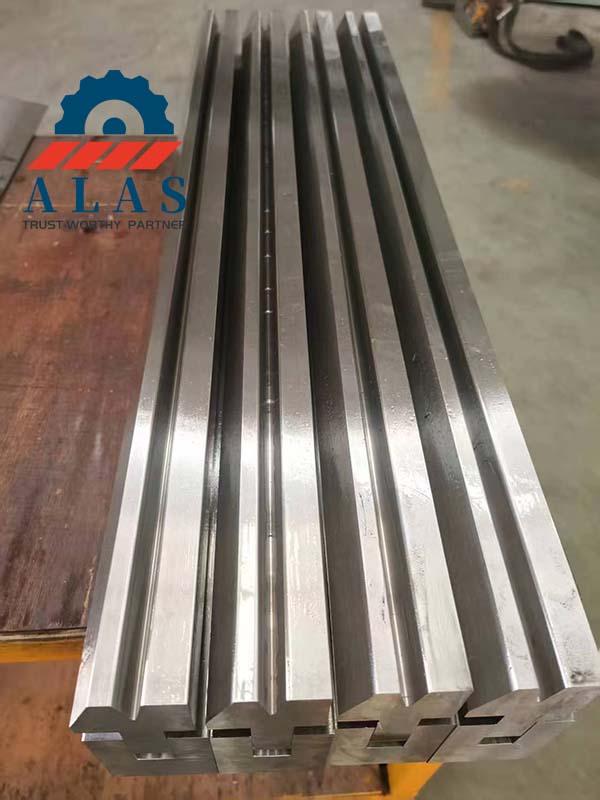

Springback Compensation: For high-tensile alloys, integrate a localized coin bead or a spring-loaded pressure pad to force complete stress relief.

Nesting Rigidity: Implement hard locating pins and robust blank-holding pads to prevent the sheet from shifting backward during the flattening stroke.

5. Process Execution Notes

Gauge Adjustments: Deploy smaller pre-bend angles for light-gauge sheets and wider, relaxed pre-bend angles for heavy structural plates.

BDC Verification: Enforce mandatory trial runs to calibrate the absolute bottom dead center position, checking tonnage limits before locking in automated batch runs.

Surface Protection: To completely eliminate tool lines on mirror-finish stainless or aluminum alloys, apply heavy-duty polyurethane protective tape across the flattening zone.

6. Typical Applications

• Electrical enclosures, server racks, and network cabinet door rims

• Home appliance skin panels and outer casings

• Automotive body panels and hemmed closure assemblies

• Precision hardware brackets requiring hemmed safety edges

FAQ: Sheet Metal Hemming & Flattening Operations

Q: What causes the sheet metal to slide backward, resulting in uneven hem dimensions during the flattening stroke?

A: This variance is caused by insufficient blank-holding force or inadequate back-stops. During the flattening stroke, the vertical force generates a strong horizontal component that forces the blank backward. To prevent this, integrate solid locating pins behind the sheet and install a heavy-duty, spring-loaded blank-holding pad to secure the workpiece before the flattening face engages.

Q: What causes severe wrinkling and buckling along the hem line when processing 1.2 mm galvanized sheet?

A: Flange wrinkling indicates that the pre-bend angle is too shallow (under 30°) or the pre-flange height exceeds 10 times the material thickness (10t). A shallow angle causes the flattening punch to push the material sideways unguided rather than folding it cleanly. Ensure the pre-bend punch achieves a sharp 30°–45° angle, and verify that the initial flange length is strictly within the 6t to 10t design limit.

Q: Can standard 42CrMo tooling blocks sustain heavy-duty hemming without structural deformation?

A: Only for low-volume production of thin-gauge mild steel. Hemming requires 1.5 to 2.0 times the mechanical tonnage of standard V-bending, concentrating extreme compressive stress directly on the tooling faces. For mass production or stainless steel runs, standard 42CrMo (even when edge-hardened to 45–50 HRC) will experience rapid wear and localized indentation. For high-cycle heavy-duty operations, switch to SKD11 or Cr12MoV inserts through-hardened to 58–62 HRC paired with a surface nitriding treatment to handle the severe forming loads and stop adhesive galling.

Q: What is the rule of thumb for adjusting bending tonnage when switching to a narrower V-die (V = 6t)?

A: Switching to a narrower V-die (V = 6t) increases the required forming tonnage by approximately 33% due to the inverse relationship between force and die opening. Always verify press brake limits before proceeding.
