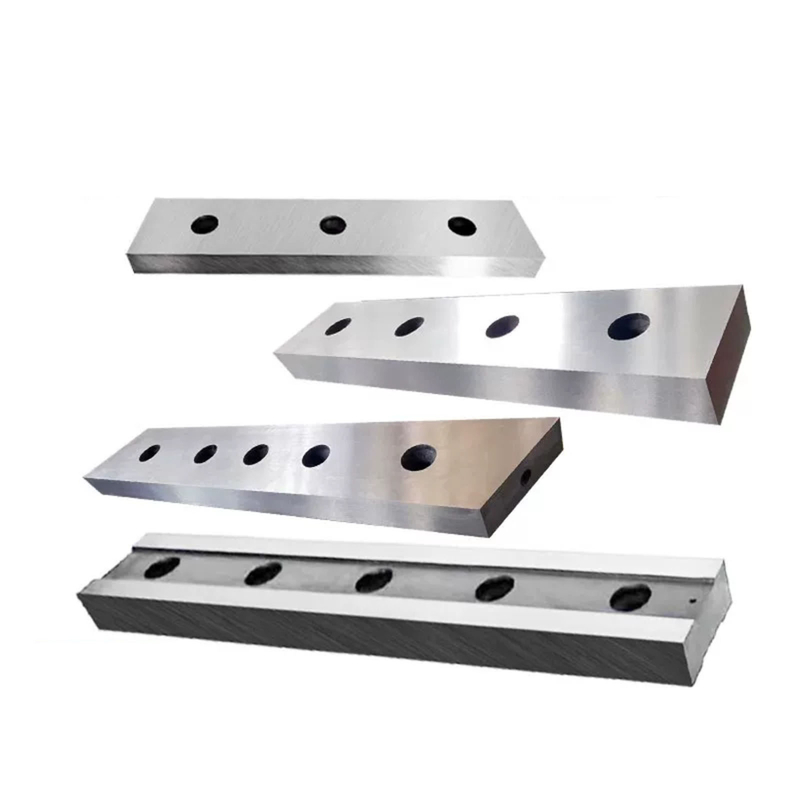

Guillotine shear blades for metal plate cutting
Custom industrial hydraulic shear knives
Replacement blades for mobile hydraulic shears (excavators)
Materials: 9CrSi, 6CrW2Si, Cr12MoV, H13, H13K, LD
Shape: Rectangular cross-section
Hardness: HRC50–62
Quality: Precision cuts (no burrs, no crooked edges), good edge retention
Customization: Available per your drawings
9CrSi (Alloy Tool Steel): Hard, wear-resistant, cost-effective. Cuts thin cold-rolled plate, galvanized plate, aluminum, copper, and non-metals (plastic, leather).
6CrW2Si (Alloy Tool Steel): Has tungsten, stays hard at high temps. Good for hot cutting, light stainless steel, and medium-strength steel.
Cr12MoV/SKD-11 (High Carbon High Chromium Steel): Wear-resistant, hardens well. Cuts stainless steel, silicon steel, high-strength steel, Q235, aluminum, and copper.
H13 (4Cr5MoSiV1) (Hot Work Die Steel): Handles high temps well. Good for hot-rolled plate, thick plate, scrap metal, and thick stainless steel.
Cr12Mo1V1/D2 (High Carbon High Chromium Steel): Strong, wear-resistant. Cuts medium/low-hardness steel, aluminum, copper, and non-metals (plastic, rubber).
LD (7Cr7Mo2V2Si) (Cold Work Die Steel): Tough, wear-resistant. Cuts high-strength steel, thick plate, and hard-to-cut metals (for large hydraulic/CNC shears).
Traits: Hard, wear-resistant, balanced performance, cost-effective (most widely used). Good edge retention; fewer burrs and crooked edges.
Hardness: HRC 58–60 (after heat treatment)
Best for: Thin cold-rolled plate, galvanized plate, aluminum, copper, plastic, leather
Traits: Has tungsten/silicon; stays hard at high temps. Stronger than 9CrSi; better toughness. Good edge retention; no burrs/crooked edges in hot cutting.
Hardness: HRC 60–62 (after heat treatment)
Best for: Hot cutting, light stainless steel, medium-strength steel
Traits: Wear-resistant, hardens well, long life. Great edge retention; smooth cuts (no burrs/crooked edges).
Hardness: HRC 58–60 (after heat treatment)
Best for: All thicknesses of low-carbon steel, Q235, aluminum, copper
Traits: Handles high temps well; tough, no softening/deformation. Good edge retention; no burrs/crooked edges in hot cutting.
Hardness: HRC 50–55 (after heat treatment)
Best for: Hot-rolled plate, thick plate, high-strength alloy steel, thick stainless steel
Traits: Very wear-resistant, hard; resists deformation. Excellent edge retention; few burrs/crooked edges for metals and non-metals.
Hardness: HRC 58–62 (after heat treatment)
Best for: Medium/low-hardness steel, aluminum, copper, plastic, rubber, composite materials
Traits: Strong, tough; has vanadium/molybdenum for fine grain. Great wear resistance and edge retention; no burrs/crooked edges on hard-to-cut materials.
Hardness: HRC 58–62 (after heat treatment)
Best for: High-strength steel, thick plate, stainless steel, large hydraulic/CNC shears
Ordinary carbon steel (Q195, Q235): Choose 9CrSi or Cr12MoV (cost-effective, meets basic needs).
Medium/low-hardness steel, aluminum/copper: Choose SKD11 or D2 (wear-resistant, long life).
Light stainless steel, medium-strength steel: Choose SKD11 or D2 (stable performance).
Thick stainless steel, high-strength steel: Choose H13 or LD (tough, resists chipping).
Hot cutting (strip steel, thick plate): Choose H13 or H13K (heat-resistant, no softening).
Hardness isn’t everything: Too hard = easy chipping; too soft = dulls fast. Both cause poor edge retention, burrs, and crooked edges. Choose based on your material and load.
Heat treatment matters: Good materials need professional quenching/tempering to work well.
Sticky materials (stainless steel, aluminum, copper): Choose Cr12MoV or SKD11 to prevent sticking, chipping, and poor cuts.
NO. | Product Name | Specification Dimensions (length x width x height/thickness) ） | Material | Remarks |
1 | Guillotine Shear Blade size | 508x70X22 | 55CrSi， | Customization services are available; we can manufacture according to your drawings, with a minimum order quantity of 1 piece. |
2 | 508x80x25 | |||
3 | 1025x63x16 | |||
4 | 1025x80x20mm | |||
5 | 1025x100x25 | |||
6 | 1100x64x16 | |||
7 | 1100x80x20mm | |||
8 | 1100x100x25 | |||
9 | 1300x63x16 | |||
10 | 1300x63x18 | |||
11 | 1300x80x20mm | |||
12 | 1300x80x25 | |||
13 | 1300x100x25 | |||
14 | 1300x100x30 | |||
15 | Manual Shearing Machine Blade szie | 170*30*10 | ||
16 | 205*30*10 | |||
17 | 350*30*10 |
China (GB) | USA(ASTM) | Japan (JIS) | Germany (DIN) | Germany (W-Nr) | France (NF) | Russia (ROCT) | U.K (BS) |
9CrSi | - | - | 90CrSi5 | 1.2108 | - | 9XC | - |
6CrW2Si | - | - | 60WCrV7 | 1.255 | 55WC20 | 6XB2C | - |
Cr12MOV | - | SKD11 | X165CrMov12 | 1.2601 | - | X12M | - |
Cr12Mo1V1 | D2 | - | X155Cr12Mo12 | 1.2379 | X160CrMoV12 | - | BD |
4Cr5MoSiVI | H13 | SKD61 | X40CrMoV5-1 | 1.2344 | X40CrMoV5 | 4X5MO1C | BH13 |
LD | - | - | - | - | - | - | - |
W18Cr4V | T1 | SKH2 | S18-0-1 | 1.3355 | HS18-0-1 | P18 | BT1 |
W6Mo5Cr4V2 | M2 | SKH9 | S6-5-2 | 1.3343 | - | P6M5 | BM2 |
Nanjing Alas International Co., Ltd. is a professional industrial tooling manufacturer focused on shear blades, bending dies, shredder blades, and custom wear parts. We offer full application engineering, material selection, setup guidance, and after-sales support to global customers.
Tell us your requirements, and our engineering team will provide professional solutions for blade specification, tool life optimization, and cost-effective production.
