FIBC Bulk Bag Unloader Blades: Engineering & Selection Guide

Introduction

Bulk bag unloader blades—also referred to as FIBC discharge cutter blades or bag breaking knives—are core components for cutting open flexible intermediate bulk containers (FIBCs) on unloading equipment. Despite their simple structure, these blades directly determine bag breaking speed, residual material volume, dust emission, consumable costs and continuous operation of production lines.

This guide systematically elaborates on equipment working principles, blade structures, material properties, field selection criteria, maintenance specifications and procurement requirements, providing practical technical support for enterprises to select suitable blades, optimize operating processes and reduce operational costs.

Part 1: Overview and Working Principle

1.1 Role of Blades in Bulk Bag Unloading Systems

FIBC bulk bag unloaders are widely applied in chemical, building material, food, pharmaceutical, metallurgical, new energy and environmental protection industries, serving for automatic unpacking and discharging of powdery and granular materials packaged in 500 kg to 2,500 kg flexible intermediate bulk containers. FIBCs have become the standard packaging form for bulk powder transportation and intermediate storage in industrial production.

Manual bag opening is low-efficiency and prone to dust emission, material spillage and operational safety hazards. Automatic FIBC unloading equipment effectively solves the above problems, with cutting blades acting as the core executive component of the bag breaking process.

Blade performance directly impacts:

• Cutting Reliability: The ability to slice through multi-layer composite, thick, and high-tensile woven bags.

• Discharge Efficiency: Clean cut profiles prevent material bridging and minimize residual materials.

• Operational Continuity: Resistance to bag fabric sticking, fraying, and winding around the assembly.

• Cost Control: High wear resistance extends replacement cycles and lowers spare part expenses.

• Safety Compliance: Meets explosion-proof standards in dusty environments while protecting operators and equipment.

1.2 Typical Working Sequence

While equipment designs vary by manufacturer, the basic automatic workflow follows six key steps:

The standard automatic unloading workflow includes six sequential steps: bag lifting and feeding, positioning and clamping, blade penetration, gravity discharging, material sieving and conveying, and empty bag removal.

Bag Lifting or Feeding: Bulk bags move to the unloading station via an electric hoist, forklift, or conveyor.

Positioning and Clamping: The bag is centered above the discharge hopper and secured using clamping or bag-pressing structures.

Blade Penetration: Blades rise, rotate, or swing to slice the bag from the bottom, side, or top.

Gravity Discharging: Powder or granular materials fall freely into the lower receiving hopper.

Sieving and Conveying: Auxiliary units (vibrators, arch breakers, screen meshes, or fluidizing pads) assist flow into screw or pneumatic conveyors.

Empty Bag Removal: The empty bag is released, and the system resets for the next cycle.

On advanced rotary bag breakers, blades adopt rotary cutting instead of linear cutting to achieve continuous bag opening, which is suitable for high-frequency operation scenarios with rigid or ultra-thick FIBCs.

1.3 Main Components of the Machine

A complete automatic bulk bag unloader normally consists of:

• Bag Feeding Mechanism: Electric hoist, trolley, or transfer conveyor.

• Bag Breaking Unit: Blades, blade holder, driving mechanism, and protective housing.

• Discharge Hopper: Receiving bin or surge hopper to collect falling materials.

• Auxiliary Discharge Devices: Vibrators, bin activators, arch breakers, and fluidizing nozzles.

• Dust Collection System: Dust extraction fan, cartridge filters, and negative-pressure housing to control emissions.

• Conveying System: Screw conveyor, rotary valve, or pneumatic conveying lines.

• Electric Control System: PLC, motors, pneumatic/hydraulic cylinders, limit switches, and safety interlocks.

Part 2: Blade Types and Structural Classification

2.1 Structural Comparison

To help you select the right configuration, the table below compares the three primary blade structures:

Technical Sub-Types of Cross Cutting Blades:

Planar Cross Blades: Horizontal and vertical blades intersect on the exact same plane. They offer a simpler structure and lower cost, making them ideal for ordinary woven bags and single-layer liners under standard working conditions.

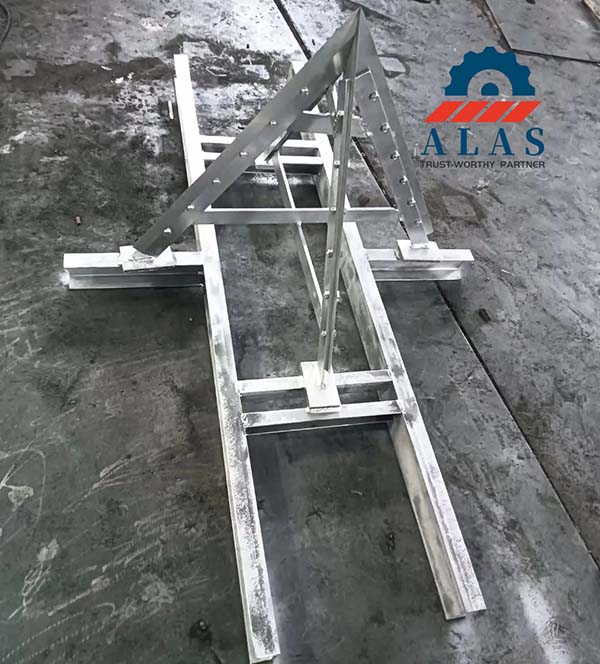

3D Anti-Winding Cross Blades: Blades are arranged at staggered heights in a 3D layout. This design significantly reduces the tendency of plastic liners, woven fibers, and bag debris to wind around the blade holder, making it perfect for composite bags and continuous, high-frequency operations.

2.2 Classification by Driving Mode

(1) Pneumatic Actuation System

The cutting assembly is powered by standard on-site pneumatic cylinders.

Operating Pressure: Typically 0.5 to 0.7 MPa.

Advantages: Simple structure, fast response times, low maintenance cost, and inherently intrinsically safe.

Best For: Dust-explosion hazardous areas (ATEX zones), food, pharmaceutical, and fine chemical lines handling medium-thickness bags.

(2) Hydraulic Actuation System

The cutting assembly is driven by a dedicated hydraulic power unit.

Operating Pressure: Typically 6.0 to 10.0 MPa.

Advantages: Tremendous cutting/thrust force; easily shears tough materials without stalling.

Best For: Heavy-duty bulk bags, multi-layer composite bags (PP/PE bonded with aluminum foil), and high-tensile bag fabrics.

(3) Electric Drive System

The cutting assembly is driven by electric motors, gear reducers or precision servo mechanisms.

Advantages: High positional accuracy, programmable stroke speeds, and easily integrated into fully automated smart factories.

Best For: High-speed automatic bag-opening lines and processes with strict cycle-time requirements.

2.3 Classification by Mounting Position

According to mounting positions, blade assemblies are divided into three types with differentiated functional positioning:

• Bottom Mounted Blades: Installed inside or directly beneath the discharge hopper. As the bag descends, the blades slice the bottom. This is the industry-standard layout optimized for gravity discharge.

• Side Auxiliary Blades: Mounted on the sidewalls of the discharge hopper. They provide secondary tearing or work alongside bottom blades to ensure the bag opens fully.

• Top Pre-Cutting Blades: Positioned to puncture a small opening at the top of the bag before full discharge. This design vents internal air and controls dust/splashing when handling ultra-fine, highly aerated powders.

Part 3: Material Comparison and Selection Guide

Blade material determines the cutting performance, service life and comprehensive operating cost of FIBC unloading equipment. Steel materials differ greatly in hardness, wear resistance, corrosion resistance and toughness. Material selection must be strictly matched with actual material characteristics and operating conditions to ensure stable and efficient cutting operation.

3.1 Cr12MoV Cold Work Tool Steel

Cr12MoV steel (equivalent to international D2 and SKD11 grades) is the most widely used cold work tool steel for industrial FIBC breaking blades.

After heat treatment, it reaches a hardness of HRC 58–62, featuring excellent wear resistance, good structural stability and moderate atmospheric corrosion resistance. It is suitable for medium-frequency production lines and conventional industrial scenarios such as building materials, grain and feed processing for cutting standard woven FIBCs without corrosive attachments. This material delivers optimal cost-performance for conventional working conditions.

3.2 HSS (High-Speed Steel)

High-speed steel (W6Mo5Cr4V2/M2) possesses outstanding hot hardness and edge retention capacity. With a heat-treated hardness of HRC 62–65, it offers excellent abrasion resistance and fatigue resistance, maintaining stable performance under long-term continuous high-load operation.

It is mainly used for cutting thick multi-layer composite FIBCs, glass fiber reinforced liners and high-tensile woven bags in high-frequency fully automated production lines. Although the procurement cost is higher than conventional tool steel, its longer service life effectively reduces equipment downtime and comprehensive operating costs.

3.3 Cemented Carbide (Tungsten Carbide)

Cemented carbide is a premium powder metallurgy material composed of tungsten carbide particles and cobalt binder, with surface hardness exceeding HRC 75 (HRA 89), ultra-high abrasion resistance and negligible thermal deformation.

It is applicable to heavy-duty continuous unloading systems for highly abrasive materials such as mineral powder and quartz sand. The main limitation of cemented carbide is low impact toughness; it is prone to chipping and micro-cracking under mechanical shock, equipment misalignment and abnormal loading conditions.

3.4 Grade 316L Stainless Steel: The Chemical & Pharmaceutical Benchmark

For operations handling corrosive bulk solids or sensitive pharmaceuticals, Grade 316L stainless steel is the gold standard. While its mechanical wear resistance is comparable to ordinary 304, Grade 316L offers significantly superior chemical corrosion resistance and exceptional resistance to pitting in acidic or chloride-heavy environments. This chemical stability ensures the blade does not degrade from chemical attack, eliminating the risk of batch contamination and extending operational lifespans in harsh process environments

3.5 Other Specialized Materials

Depending on specific machine kinematics and bag properties, other specialized grades are selectively deployed:

• 9CrSi / 65Mn / SK5: Budget-friendly options with excellent elasticity and impact toughness, ideal for thin, flexible blades or low-frequency auxiliary cutters.

• SUS440C (9Cr18Mo): A high-carbon martensitic stainless steel that successfully bridges the gap, providing both HRC 56–58 hardness and robust corrosion resistance.

• H13 (4Cr5MoSiV1): A hot-work die steel occasionally used for its superior shock absorption and crack resistance in high-impact hydraulic systems.

3.6 Surface Engineering & Coatings

Advanced surface treatments can be applied to tool steel bases to dramatically upgrade blade surface properties without altering core toughness:

Common surface enhancement treatments for tool steel blades include TiN coating for improved hardness and wear resistance, TiAlN coating for high temperature and oxidation resistance, and DLC coating for low friction and anti-adhesion performance.

TiN (Titanium Nitride): The golden coating improves blade surface hardness and extends cutting edge service life.

TiAlN (Titanium Aluminum Nitride): Forms an ultra-hard, thermal-resistant oxidation barrier, ideal for high-speed rotary cutting that generates localized heat.

DLC (Diamond-Like Carbon): Provides ultra-low friction coefficient, preventing adhesion of resin, starch, molten plastic and other viscous materials to the blade surface.

Material Selection Matrix

The table below simplifies the material selection process based on key operational priorities:

Part 4: Key Technical Parameters and Specifications

4.1 Dimensional Parameters

Blade configurations must align perfectly with the equipment’s mechanical footprint and the standard dimensions of the bulk bags being processed.

Blade Span and Diameter (Cross Cutters)

The total operating envelope or diameter of a cross-blade assembly typically ranges from 800 mm to 1,200 mm. This ensures the blade completely spans the effective bottom diameter of standard 1-ton bulk bags to prevent partial cuts and material bridging.

Blade Core Thickness

Industrial standard blade thickness ranges from 6 mm to 12 mm, covering all conventional working conditions:

• Thick Blades (10–12 mm): Feature high structural rigidity and strong bending resistance, suitable for heavy-load cutting of thick and multi-layer FIBCs, requiring matched high driving force.

• Thin Blades (6–8 mm): Possess good sharpness and easy penetration, applicable to standard single-layer woven FIBCs; prone to deformation under long-term heavy load operation.

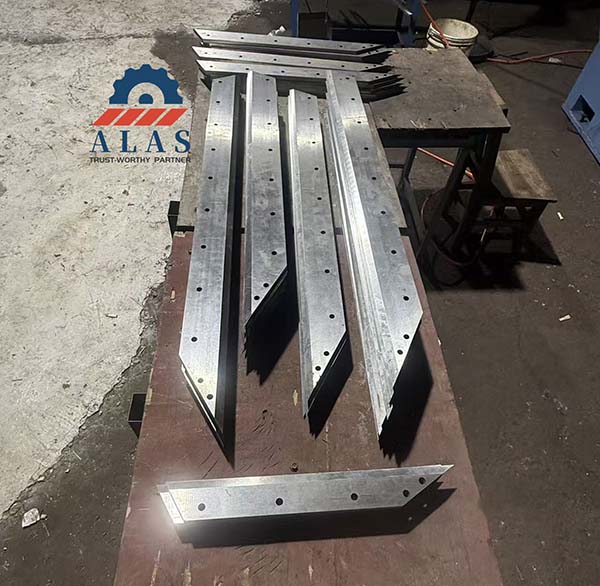

Common Industry Sizes (Reference Configurations)

625 mm × 60 mm × 8 mm 625 mm × 60 mm × 10 mm 700 mm × 70 mm × 10 mm 800 mm × 70 mm × 10 mm 800 mm × 70 mm × 12 mm

Custom geometries (slotted holes, serrated edges, and offset mounting patterns) are engineered based on specific OEM blade holder prints.

4.2 Kinematics and Dynamic Forces

Pneumatic System Operating Pressure: The standard stable working pressure ranges from 0.5 to 0.7 MPa. Pressure below 0.4 MPa will lead to incomplete blade penetration and irregular tearing of FIBC fabrics.

Hydraulic System Operating Pressure: The conventional working pressure is 6.0 to 10.0 MPa. The pressure relief valve shall be calibrated according to the maximum tensile strength of multi-layer aluminum composite FIBCs to avoid equipment overload.

Linear Penetration Speed: Optimal upward or downward travel velocity sits between 100 mm/s and 300 mm/s. Velocities exceeding 400 mm/s create severe mechanical impact shocks, risking micro-fractures in the blade steel.

Stroke Length Margin: The mechanical stroke must exceed the maximum sag depth of a fully loaded bag by at least 50 mm to 100 mm to ensure a definitive, clean cut.

Part 5: Application Scenarios & Industry Coverage

5.1 Chemical Industry

Processed Materials: Plastic polymers, synthetic resins, chemical fertilizers, pigments, caustic soda, and volatile intermediates.

Engineering Priority: Focuses on dust explosion prevention (ATEX compatibility) and resistance to chemical corrosion. Spark-free drive combinations or non-sparking surface layers are frequently specified.

5.2 Building Materials & Minerals

Processed Materials: Portland cement, fly ash, dry-mix mortars, industrial sands, and gypsum.

Engineering Priority: Extreme abrasive wear resistance. Blades face severe scratching and abrasive gouging. HSS or Tungsten Carbide tipped blades are highly recommended to survive this environment.

5.3 Food & Pharmaceutical Processing

Processed Materials: Wheat flour, organic protein powders, infant milk formula, active pharmaceutical ingredients (APIs), and excipients.

Engineering Priority: Absolute hygienic compliance. Equipment must feature 316L Stainless Steel blades, smooth crevice-free geometries, and surface finishes polished to Ra < 0.4 μm to comply with FDA and GMP standards.

5.4 New Energy & Battery Materials

Processed Materials: Lithium carbonate, cobalt sulphate, graphite flakes, synthetic black powder, and rare earth concentrates.

Engineering Priority: Ultra-high purity control. Because metallic contamination can destroy battery cell performance, blade materials must be strictly selected to avoid shedding iron (Fe) or copper (Cu) particulates into the process stream. Ceramic or coated blades are preferred here.

Part 6: Maintenance & Service Life Management

6.1 Routine Preventive Maintenance

End-of-Shift Sanitization & Cleaning

At the conclusion of every operational shift, operators must clear all accumulated powder deposits, packed dust, and clinging plastic debris from the blade edges, blade holders, and surrounding discharge hoppers.

Dry Powder Lines: Utilize dry compressed air or dedicated non-sparking industrial brushes.

Sticky/Cohesive Materials: Wipe surfaces carefully using a soft cloth dampened with a neutral detergent. Strictly prevent water or moisture from entering electrical enclosures, pneumatic cylinders, and hydraulic valve blocks.

Post-Shift Mechanical Inspection

A mandatory visual and physical check must be performed after each shift, focusing strictly on:

• Fastener Integrity: Inspecting for loose blade mounting bolts or missing locking washers.

• Edge Quality: Checking for dullness, micro-cracking, or localized chipping along the cutting edges.

• Structural Safety: Verifying that all protective guards, interlocks, and enclosure seals are fully intact.

• Fluid Power: Checking for pneumatic air leaks or hydraulic ram oil weeping.

• Electrical Controls: Ensuring limit switches, proximity sensors, and emergency stop circuits trigger correctly.

6.2 Periodic Deep Maintenance

Weekly Lubrication Schedules

Apply premium industrial grease to all mechanical pivot points, including pneumatic/hydraulic cylinder rod clevises, linear bearings, guide rails, and high-load hinges.

Monthly Wear & Alignment Audits

Execute a comprehensive monthly audit to document:

• Volumetric Wear Loss: Measuring the degradation of the cutting edges against baseline dimensions.

• Mounting Clearances: Checking for deviations in blade-holder alignment or structural play.

• Fluid Stability: Verifying the consistency of static and dynamic air/hydraulic system pressures.

• Seal Integrity: Inspecting all rubber boot seals and pneumatic gaskets for signs of dry rotting or heat aging.

Scheduled Predictive Disassembly

Blades are not allowed to operate until failure. A predictive maintenance cycle shall be formulated for regular disassembly and inspection of blade assemblies. Non-destructive testing shall be carried out on high-stress areas, key welding seams and mounting hole edges to eliminate potential structural risks.

6.3 Wear Standards, Replacement Criteria & Re-Grinding Protocols

Blade maintenance and replacement cycles must be governed by precise dimensional metrics rather than arbitrary visual guesswork. Implementing a strict data-driven inspection protocol ensures clean FIBC bag punctures, prevents fabric fraying, and protects downstream material purity.

I. Operational Thresholds

• Re-Grinding Threshold (0.2–0.3 mm): Professional precision sharpening is required immediately when the linear wear depth of the cutting edge reaches 0.2 mm to 0.3 mm.

• Mandatory Scrap/Replacement Threshold (>0.5 mm): Any blade exhibiting severely rounded profiles, obvious structural notches, or chipping exceeding 0.5 mm must be decommissioned and replaced immediately to prevent incomplete bag cutting.

II. Engineering Re-Grinding Technical Protocols

To restore factory-level cutting efficiency while preserving the metallurgical integrity of the blade steel, the following machining standards must be strictly enforced:

• Equipment Selection: Always utilize high-precision, dedicated industrial surface grinders equipped with stable, multi-point magnetic chucks and automatic feed controls.

• Thermal Management: Continuous and high-volume flood cooling is mandatory during the entire grinding process. Excessive heat accumulation destroys the original factory tempering, causing localized annealing and a permanent drop in hardness.

• Geometric Consistency: Strictly maintain the original factory cutting-edge bevel angle (typically 30° to 45° depending on the specific OEM application). Ensure uniform material removal across the entire length to prevent uneven stress distribution.

• Tungsten Carbide Specializations: Tungsten carbide blades must be processed using dedicated resin-bond or metal-bond diamond grinding wheels. Continuous, uninterrupted coolant flow is the absolute prerequisite; intermittent fluid delivery induces severe thermal shock, leading to micro-cracking and catastrophic edge failure. Dry grinding of any form is strictly prohibited for carbide series blades.

6.4 Core Variables Dictating Blade Longevity

A blade's operational lifespan is highly dynamic and depends on the cumulative impact of these variables:

• Packaging Characteristics: The structural thickness, density, and weave tensile strength of the bulk bags.

• Liner Composition: The frequency of processing multi-layer composite aluminum foils or high-strength fiberglass-reinforced bags.

• Production Throughput: Daily bag-breaking frequency and total continuous tonnage.

• Material Abrasiveness: The presence of hard, sharp mineral or metallic particles that accelerate abrasive gouging.

• Environmental Adhesion: Corrosive dust accumulation or sticky polymers melting onto the hot cutting edge.

• Mechanical Alignment: The installation precision of the blade holder and the calibration of the drive cylinders.

6.5 Safety Protocols & Storage

Pre-Operation Safety Checklists

Before initiating any bag-breaking cycle, verify:

• System Integrity: Complete structural integrity of the main containment housing.

• Electrical Safety: Secure routing of all high-voltage cabling and sensor wires.

• Clamping Security: Proper locking and alignment of lifting hoists, frame hooks, and bag-pressing plates.

• E-Stop Functionality: Flawless response of all light curtains, physical limit switches, and emergency stop buttons.

Live Operational Precautions

• Zero Body Intrusion: Never place hands, arms, or tools inside the discharge hopper or cutting zone while the system is energized.

• Emergency Shutdowns: Stop operations immediately if the machine exhibits abnormal rhythmic vibrations, harsh grinding noises, sudden fluid pressure drops, or severe bag jamming.

• Hazardous Environment Management: In ATEX-rated dust explosion zones, systematically test electrical grounding straps, negative-pressure dust collectors, and explosion-venting panels at scheduled intervals.

Long-Term Storage Requirements

Before placing spare blade assemblies or full unloader units into long-term storage:

• Clean all components thoroughly to eliminate chemical residues.

• Apply a thick layer of premium anti-rust industrial oil or specialized protective wax to all exposed tool steel surfaces.

• Store parts exclusively in a temperature-controlled, dry, and well-ventilated space, completely isolated from corrosive chemical vapors.

Part 7: Common Faults & Troubleshooting

7.1 Fault 1: Failure to Cut Through Bulk Bags

Symptoms: Sluggish blade penetration; surface-level scoring or scratching on the bag without splitting; incomplete discharge openings; bags remaining entirely intact.

Root Causes: Severe cutting-edge dulling or wear; incorrect or misaligned blade mounting angles; a sudden drop in pneumatic/hydraulic system pressure; attempts to cut non-standard heavy-duty bags; insufficient cylinder stroke length.

Actionable Solutions:

• Inspect the edge profile immediately; re-grind or replace the blade if wear exceeds limits.

• Re-calibrate and tighten the blade holder to its correct structural angle.

• Verify the main plant air or hydraulic power unit pressure gauges against standard operating parameters.

• Adjust cylinder stroke limit switches to ensure total bag penetration.

• Upgrade to a premium tool steel (e.g., HSS) or an optimized 3D blade geometry if bag specifications have permanently increased.

7.2 Fault 2: Material Sticking and Bag Fabric Winding

Symptoms: Plastic liner strands adhering to the blade body; high-tensile woven fibers wrapping tightly around the rotating assembly; rotary drive stalling; sharp drops in continuous cutting efficiency.

Root Causes: Friction-induced heat melting the plastic bag material; micro-roughness or pitting on the blade surface; lack of lubricious surface coatings; poor chip-evacuation geometry in the blade holder design; processing materials with extremely high natural fiber content.

Actionable Solutions:

• Retrofit existing blades with advanced DLC (Diamond-Like Carbon) or TiN anti-stick coatings.

• Introduce integrated low-pressure air cooling lines to lower cutting-zone temperatures.

• Swap standard flat configurations for a 3D anti-winding cross-blade structure.

• Mandate regular manual clearing of wrapped fibers during scheduled mid-shift stops.

7.3 Fault 3: Blade Chipping and Catastrophic Fracture

Symptoms: Deep notches appearing along the cutting edge; micro-cracks radiating through the blade body; complete structural breaking of a blade segment; sudden, loud metallic cracking sounds during operation.

Root Causes: Improper baseline material selection (e.g., using brittle tungsten carbide in high-impact setups); severe physical misalignment of the driving mechanism; loose or backing-out mounting bolts; forced cutting of tramp iron or foreign metal objects hidden within bags.

Actionable Solutions:

• Review the application and switch to high-toughness steel grades like Cr12MoV/D2 or H13 if high impact is unavoidable.

• Implement strict magnetic separation protocols upstream to catch foreign metal objects.

• Re-align the blade holder assembly with precision laser tools.

• Enforce the use of thread-locking compounds (e.g., Loctite) on all primary blade fasteners.

• Immediately scrap any blade displaying visible cracking to prevent high-speed metal fragmentation.

7.4 Fault 4: Sluggish Product Discharge or Bridging

Symptoms: Exceptionally slow powder flow rates; high levels of residual product trapped in the corners of the emptied bag; severe material bridging or rat-holing inside the receiving hopper; excessive dust generation.

Root Causes: The blade cut is too small, restricting gravity flow; the powder has absorbed ambient moisture and agglomerated; poor inherent material flowability; mechanical failure of the bin vibrators or fluidizing arch breakers; suboptimal discharge hopper slope angles.

Actionable Solutions:

• Check the blade stroke and outer span to ensure the cut fully covers the bag's bottom footprint.

• Deploy advanced air-operated bin activators, fluidizing pads, or high-frequency pneumatic vibrators.

• Improve climate control around storage areas to prevent incoming raw materials from absorbing moisture.

• Adjust the structural geometry or slick-coating of the hopper walls to facilitate smoother gravity discharge.

Part 8: Procurement & Customization Guidelines

8.1 Critical Pre-Purchase Verification Checklist

Before submitting a Request for Quote (RFQ) to a blade supplier, compile and verify the following technical specifications:

• OEM Baseline Data: Original equipment manufacturer brand, model number, and exact engineering drawings.

• Dimensional Footprint: Exact blade length, width, core thickness, and bolt-hole spacing layout.

• Packaging Variables: Structural material of the bulk bags (e.g., woven PP, single-layer PE, multi-layer laminated aluminum foil) and maximum filled weight.

• Throughput Dynamics: Anticipated daily bag-breaking counts and continuous duty cycles.

• Material Properties: Chemical name, bulk density, abrasive indexing, moisture percentage, corrosiveness, and average particle size distribution.

• Regulatory Compliance: Requirements for ATEX/dust explosion proofing, FDA food-grade compliance, or GMP pharmaceutical sanitization.

8.2 Mandatory Document Deliverables from Suppliers

To ensure total material traceability and long-term production safety, never buy on price alone. Mandate that suppliers provide the following quality documentation with every batch:

• Material Mill Certificate: Verifying the exact chemical composition of the steel alloy grade.

• Heat Treatment Log: Providing documented proof of proper vacuum hardening and tempering cycles.

• Hardness Test Report: Documenting certified HRC or HRA measurements along multiple points of the cutting edge.

• Dimensional Inspection Layout: Certified measurements confirming tolerances match print specifications.

• Hygienic/Explosion Proof Certifications: Official documentation proving compliance with FDA, EC 1935/2004, or ATEX regulations where applicable.

8.3 Safety Integration in Procurement

Bag-breaking blades are inherently high-risk components. Procurement teams must evaluate the safety features of the blade-assembly design before finalizing orders:

• System must feature secure, enclosed mechanical housings that eliminate any possibility of exposed cutting edges during maintenance.

• Safety interlocks and position-monitoring limit switches must be easily integrated into the existing plant PLC architecture.

• All electrical and pneumatic actuators must support standard Lockout/Tagout (LOTO) protocols.

8.4 Strategic Spare Parts Inventory Recommendations

To eliminate catastrophic downtime on continuous production lines, plants should maintain a secure on-site inventory of critical consumables.

Key safety stock for on-site inventory includes complete sets of main and auxiliary cutting blades, high-wear cylinder seals, O-rings and matched high-tensile fasteners and lock washers.

• Main & Auxiliary Blades: Maintain a minimum safety stock of 1 to 2 complete sets per active machine.

• Fluid Power Consumables: Keep backup high-wear parts on hand, including cylinder piston seals, rod wipers, and pneumatic fittings.

• High-Tensile Hardware: Stock dedicated sets of matching specialized mounting bolts, locknuts, and spring washers.

8.5 Engineering Customization Protocols

When standard off-the-shelf blade geometries fail to meet unique production challenges, custom engineering is highly effective. Common customization options include:

• Machining bespoke lengths, widths, and complex stepped thicknesses.

• Engineering non-standard slotted or offset mounting patterns to fit legacy machinery.

• Cutting serrated, scalloped, or multi-faceted edge profiles to slice exceptionally elastic packaging materials.

• Applying specialized multi-layer tool coatings (TiAlN, DLC) tailored to highly specific chemical conditions.

• Designing fast-change modular blade adapters to reduce physical swap-out times from hours to minutes.

Note: When submitting custom orders, always provide high-resolution equipment photos, original 2D/3D CAD prints, and physical samples of both new and worn blades to ensure precise matching.

Conclusion

FIBC unloader blades are key consumable components that determine the overall operating efficiency, safety and stability of bulk material handling lines. Blade selection cannot rely solely on surface hardness or unit price.

Reasonable blade matching requires comprehensive consideration of FIBC structural characteristics, bulk material properties, operating frequency and equipment structural parameters. Compliance with the preventive maintenance specifications, wear judgment standards and procurement guidelines specified in this guide can effectively reduce unplanned downtime, avoid cross-contamination risks and reduce comprehensive operational costs for processing enterprises.
