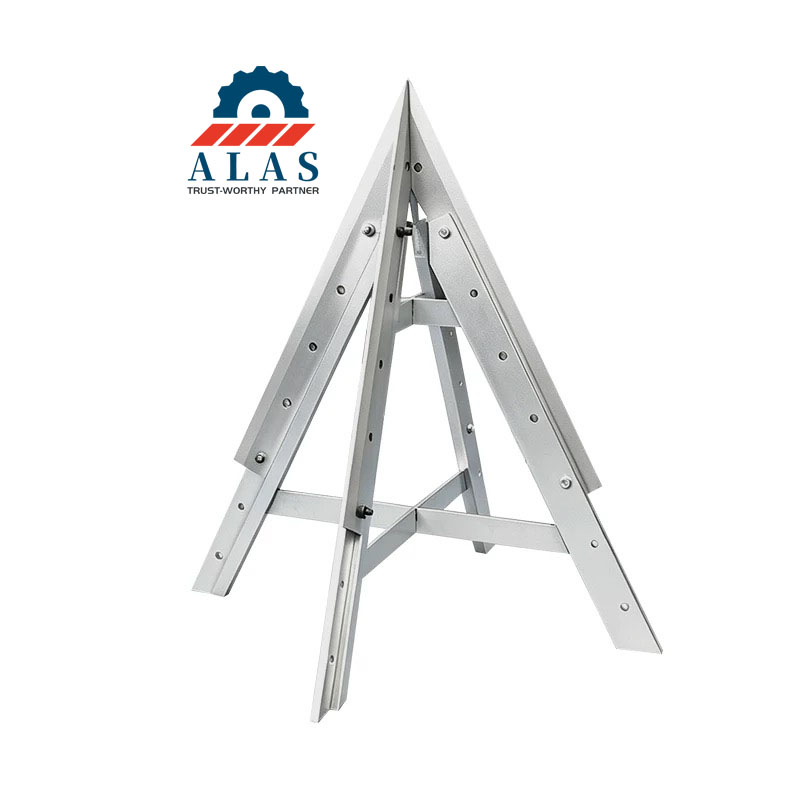

Heavy-Duty Standalone Pyramid Bulk Bag Cutter Blade Assembly

1. Product Overview

The FIBC bulk bag cutter blade is a dedicated OEM/ODM replacement component designed for standard ton bag unloaders and bag dump stations. Engineered for dry bulk material processing, the blade precisely pierces and slits the bottom of FIBC bags to create a clean discharge opening, enabling consistent, gravity-fed material flow into downstream hoppers and processing equipment.

Manufactured from application-specific materials including food-grade stainless steel, chemical-grade stainless steel, and hardened alloy steel, the blade delivers tailored durability for diverse industrial working conditions. The entire cutting process relies purely on bag dead weight, requiring no electrical power, pneumatic connection, or auxiliary power sources. It effectively replaces manual bag slitting operations, eliminates incomplete cutting issues, and ensures continuous, stable production line operation.

All core dimensions including blade size, thickness, cutting angle, and mounting structure are fully customizable. The blade supports direct installation on new discharge systems and retrofitting upgrades for existing unloader equipment. It is widely applicable for processing chemical powders, plastic pellets, mineral powders, food ingredients, cement, and various building materials, with flexible OEM and ODM customization services available.

2. Working Principle & Installation

Gravity-Driven Cutting Principle

This system uses a gravity-driven mechanical design for safe FIBC bag discharging onto a stationary blade assembly. Contact our technical team for details.

Dual Installation Options

Two universal mounting solutions adapt to most factory layout and equipment configurations:

Floor-mounted Installation: The base flange with prefabricated anchor slots is bolted and fixed to concrete floors. Ideal for discharge scenarios involving underground material pits, floor grilles, and sub-floor pneumatic conveying systems.

Hopper/Equipment Inlet Installation: The flange can be fixed via bolting, clamping, or welding on the inlet of storage bins, buffer hoppers, mixers, and extruders. It efficiently converts traditional manual dumping stations into automatic continuous discharge inlets.

3. Technical Specifications

Standard blade models are in stock for fast delivery. All dimensions and structural designs can be customized to match on-site hoppers, material pits, and old unloader equipment specifications.

4. Applicable Materials & Industries

Specially designed for dry bulk solid materials, widely deployed in chemical, plastic, building material, food and agricultural processing industries:

Applicable Materials

Plastic & Chemical Materials: PVC resin powder, PE/PP plastic particles, color masterbatch, additive powder, carbon black, talc powder, titanium dioxide

Building & Mineral Materials: Cement, dry mortar, sand and gravel, lime, gypsum, mineral powder

Food & Agricultural Materials: Industrial flour, starch, cocoa powder, granulated sugar, edible salt, grain, feed raw materials, crop seeds, soybeans

5. Product Advantages

Zero Energy Consumption, Pure Gravity Operation

The entire cutting process relies entirely on the self-weight of FIBC bags. No motors, pneumatic cylinders, sensors, or wiring systems are required. Zero energy consumption per operation cycle, reducing long-term production and operation costs.

Heavy-Duty Welded Rigid Frame

Formed from reinforced steel plates, this frame provides high structural rigidity, stability, and load support. CAD models are available upon request.

Clean Cutting & Uninterrupted Discharge

The precision four-sided blade neatly cuts PP woven bags, thick plastic inner liners and multi-layer paper bags. The discharge opening is smooth and flat without loose edges or residual hanging materials, avoiding material waste and blockage. It supports continuous operation of downstream conveying and feeding equipment to improve production efficiency.

Fast Installation & Low Maintenance Cost

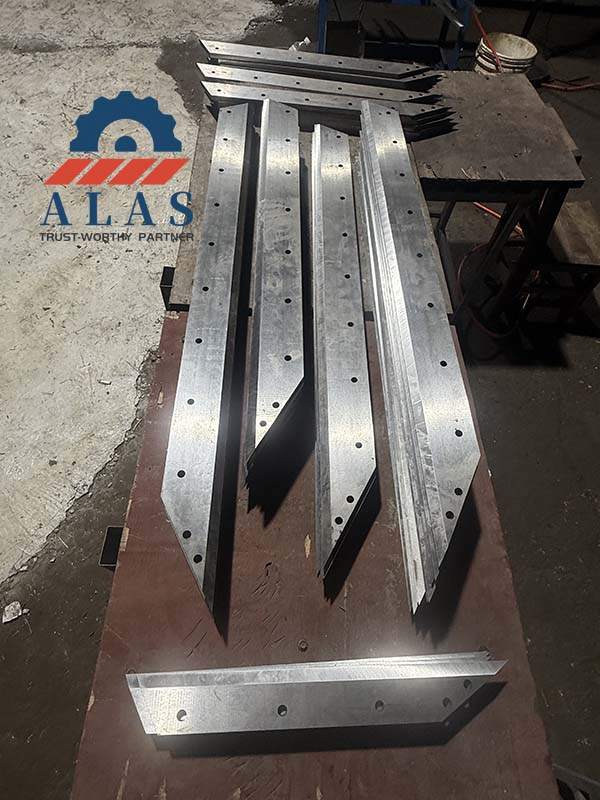

Equipped with universal base flange and multi-slots anchor holes. On-site maintenance personnel can complete positioning and installation via simple bolting within 15 minutes. The replaceable blade design eliminates the need for overall equipment replacement, greatly reducing subsequent maintenance and replacement costs.

High Compatibility & Custom Retrofitting

Blade length, thickness, cutting angle, mounting hole position and overall structure can be customized according to customer drawings or on-site sample parameters. It is compatible with new production lines and supports retrofitting and upgrading of old unloader equipment of different brands, with strong on-site adaptability.

6. Technical FAQ

What is a FIBC bulk bag cutter blade assembly?

It is a heavy-duty, stationary core component engineered for bulk material discharging infrastructure. Securely positioned over an unloading hopper, underground pit, or bag dump station, it utilizes the natural gravitational downward force of a lowered bulk bag to cleanly pierce and split the bag bottom, initiating efficient material evacuation. It serves as standard hardware for upgrading semi-automated processes, removing hazardous manual knife operations and keeping plant personnel away from high-dust discharge zones.

What types of industrial materials can this cutter blade unit handle?

The assembly is fully compatible with most dry industrial powders and granular solids. This includes PVC resins, PE/PP pellets, raw chemical powders, mineral powders, bulk cement, food ingredients, pharmaceutical APIs, color masterbatches, and industrial additives. We tailor the specific steel grade and blade geometry based on the exact corrosiveness, abrasiveness, and sanitation requirements of your handled material.

What are the mechanical differences between the available blade material options?

We offer distinct material formulations to match specific plant working conditions:

• Sanitary Stainless Steel Series (SUS304/SUS316L): Engineered specifically for food, pharmaceutical, and corrosive chemical environments. It provides excellent chemical corrosion resistance, rust prevention, and easy-to-clean sanitary surfaces that fully support factory compliance audits.

• Heavy-Duty Structural Steel Series (Hardened Manganese/Alloy Steel): Formulated to withstand repeated gravitational impact loads and high abrasion in heavy industrial environments like bulk cement, dry mortar, sand, and mining. It offers superior fracture toughness to prevent blade chipping under high stress.

• Wear-Resistant Tool Steel Series (D2 Steel): Optimized for non-impact, continuous friction scenarios, such as slicing through standard polymer plastic bags and woven liners, maintaining sharp edge retention over extended production runs.

Do you provide engineering customization for non-standard machinery?

Yes. We support comprehensive B2B engineering customization and OEM/ODM services. The blade thickness, cutting angle, outer frame dimensions, blade count, base flange footprint, bolt-hole layout (PCD), and surface finish can all be adjusted to fit your exact equipment blueprints. We manufacture components both for new machinery development and non-standard replacement parts for existing production lines.

Can these blade units retrofit or replace parts in legacy unloading equipment?

Our assemblies are fully compatible with legacy equipment refurbishment and retrofitting projects. You can supply original component blueprints, dimension parameters, on-site technical photos, or a physical wear sample. Our engineering department will replicate the part with exact dimensional alignment, allowing for a seamless replacement without requiring major structural modifications to your existing unloader frame.

What is the expected service life and maintenance cycle of the blade?

The component does not have a fixed operational lifespan, as wear depends on four variables: bag fabric material, operating frequency, the abrasiveness of the handled product, and the selected steel grade. Under standard operating conditions, a properly matched blade can deliver up to 10,000+ clean bag piercings. We recommend standard visual maintenance checks of the cutting edge; sharpening or replacement is required only when the blade edges exhibit passivation, noticeable chipping, or when bag-splitting becomes incomplete.

What are the applicable bulk bag specifications for this cutter?

The standard configuration is engineered to handle standard industrial FIBCs and ton bags ranging from 500 kg up to 2,500 kg in total weight. For highly specialized bag dimensions, multi-wall construction, or unusual liner configurations, customized adaptation services are fully available to ensure clean piercing and smooth material flow.
