Cr12MoV vs M2 HSS vs Cemented Carbide: Choosing the Right Blade Material for Bulk Bag Unloaders

1. Introduction

The cross cutter blade is the high-wear executive component in a dust-free bulk bag (FIBC) unloading system. Mismatched blade materials lead to rapid edge passivation, incomplete bag tearing, material winding, and unscheduled production shutdowns. This guide delivers clear, data-backed selection metrics for three industry-standard materials: Cr12MoV, M2 High-Speed Steel (HSS), and Cemented Carbide, based on actual shop-floor performance and O&M logs.

2. Technical Profile of the 3 Mainstream Blade Materials

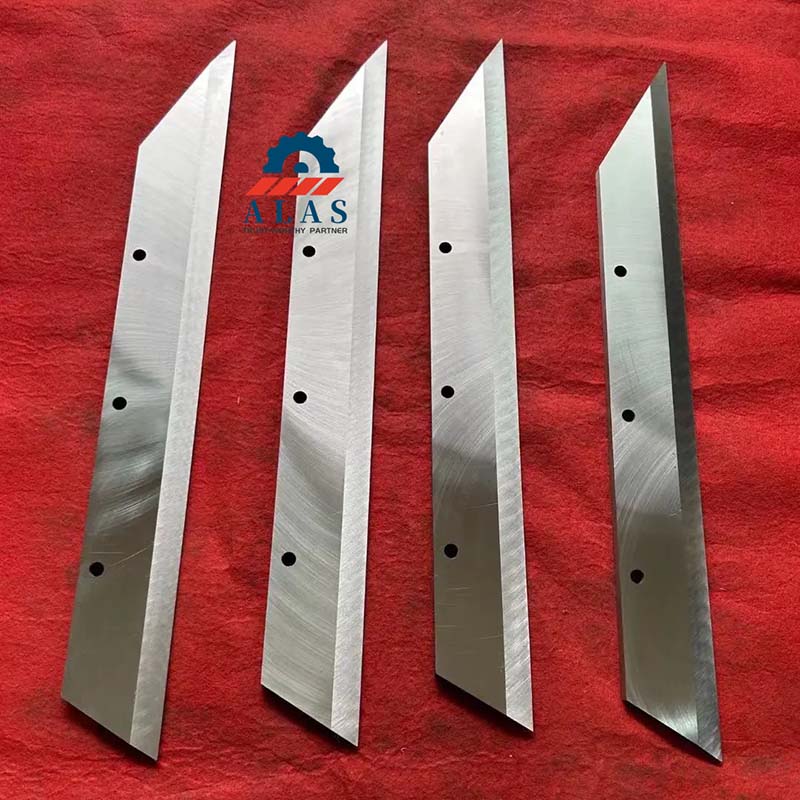

2.1 Cr12MoV (Cold Work Die Steel | Equivalent: SKD11 / D2)

Cr12MoV is the standard economy material for conventional FIBC Replacement Cutting Blades & Splitter Knives, widely used in small-to-medium discharge stations.

• Hardness: HRC 58–62 (Uniform vacuum quenching).

• Wear & Toughness: The 10%–13% Chromium content provides solid baseline wear resistance. Structural toughness is sufficient to handle normal pneumatic or hydraulic strokes. However, micro-chipping occurs if the blades hit hard mineral lumps or extra-thick multi-layer composite straps.

• Lifespan: 1,000 to 2,000 standard single-layer woven PP/PE bags per grinding cycle.

• Target Materials: Cement, fly ash, grains, and standard plastic pellets.

2.2 M2 High-Speed Steel (HSS)

M2 HSS is a premium alloy tool steel optimized for high-speed automated lines and heavy-duty, high-frequency cutting. It is the ideal material for Heavy-Duty Standalone Pyramid Bulk Bag Cutter Blade Assemblies.

• Hardness: HRC 62–65 (Excellent edge retention under friction-induced heat).

• Wear & Toughness: Significantly harder than Cr12MoV with superior fatigue resistance. The high thermal softening resistance prevents melted PP/PE plastics from sticking or cold-welding to the cutting edge during rapid, continuous operations.

• Lifespan: 2,000 to 3,000 thick composite or aluminum-foil lined bulk bags.

• Target Materials: Glass-fiber-reinforced bags, thick multi-layer liners, and high-volume raw chemical feeding.

2.3 Cemented Carbide (Tungsten Steel)

A ultra-hard material sintered from pure tungsten carbide (WC) and cobalt (Co) powders. It represents the top tier for continuous, zero-maintenance automation like Precision-Engineered Pyramid Bulk Bag Cutter Assemblies for OEMs.

• Hardness: HRA 89–92 (Equivalent to HRC 75–80). Extreme abrasive wear resistance.

• Wear & Toughness: Outlasts tool steel by 2x to 5x. However, the cobalt binder phase softens and oxidizes sharply if working temperatures breach 600–800°C. Crucially, its impact toughness is extremely poor; it is highly brittle.

• Lifespan: Exceeds 5,000 bags under optimized conditions.

• Target Materials: Highly abrasive mineral concentrates, corrosive chemicals, and ultra-thick hard woven fabrics.

• Limitation: Zero resistance to sudden mechanical shock. Structural misalignment, excessive cylinder vibration, or tramp metal contaminants will cause immediate, catastrophic blade shattering.Dry grinding during maintenance is strictly prohibited.

3. Material Selection Matrix

(Note: Cemented carbide’s Impact Toughness is strictly rated at ★☆☆☆☆ due to high material brittleness. Do not deploy carbide cutters in systems with loose mechanical tolerances or high metal contamination risks.)

4. Application-Based Selection Blueprint

1. Standard Plant Operations (Go with Cr12MoV): Best for low-to-medium frequency plants discharging standard single-layer bags (e.g., standard cement, lime powder, or animal feed). Delivers the lowest upfront spare parts budget.

2. Continuous High-Volume Lines (Go with M2 HSS): Best for high-frequency automated lines handling thick laminated bags, aluminum liners, or glass-fiber bags. It minimizes downtime losses from dull blades.

3. Severe Abrasive/Corrosive Environments (Go with Carbide): Best for unattended, continuous lines discharging highly abrasive silica, slag, or harsh chemicals. Prerequisite: The unloader must have a rigid frame, stable cylinder stroke, and a clean material stream free of metal scrap.

4. Food & Pharma Cleanrooms (Go with Grade 316L Stainless Steel): Standard tool steels and carbide are banned due to contamination risks. For these applications, utilize Precision-Engineered Pyramid Bulk Bag Cutter Assemblies for OEMs made entirely of Grade 316L Stainless Steel. While its mechanical wear profile matches standard 304, 316L offers superior resistance to chemical pitting and sanitation acids, ensuring full compliance with food safety protocols.

5. Practical Maintenance & Extension Tips

• Coatings: Applying Titanium Nitride (TiN) or Diamond-Like Carbon (DLC) coatings reduces the blade's friction coefficient, dropping material adhesion and extending run-times by 30%–50%.

• Drive Regulation: Pair your drive system to the blade. Set standard pneumatic cylinders to 0.5–0.7 MPa. For heavy pyramid cutters tearing thick composite fabrics, utilize a 16–21 MPa hydraulic drive to prevent stall-induced fabric tearing or over-pressure edge chipping.

• PM Cycles: Clear residual fiber debris at the end of every shift. Check structural fasteners weekly. Do not let blades run dull. When linear cutting edge wear reaches 0.2–0.3 mm, schedule immediate professional wet re-grinding.

6. Summary

Industrial blade selection is about condition matching, not paying for over-engineered specs. Cr12MoV fits basic cost-sensitive plants; M2 HSS resolves high-frequency tearing of tough, melting-prone composite plastics; and Cemented Carbide masters long-run abrasive lines provided mechanical shock is eliminated.

7. Frequently Asked Questions (FAQ)

Q1: Why does woven PP fabric melt and stick to the blade edge during high-frequency cutting?

A: Localized friction heat. Continuous high-speed cylinder strokes combined with slight edge passivation raise the blade temperature past polypropylene's melting point. Solution: Apply a Titanium Nitride (TiN) coating to lower surface friction, or replace flat cross blades with a 3D pyramid cutter frame to reduce fabric contact area during the stroke.

Q2: Can I use Cemented Carbide blades if the bulk material contains random iron scrap or tramp metal?

A: No. Cemented carbide is extremely brittle with poor impact toughness (rated at 1-star). Striking a single stray bolt or iron fragment will shatter the cutting edge instantly. If your material stream contains metal contaminants, use M2 High-Speed Steel (HSS), which tolerates mechanical shock without catastrophic failure.

Q3: Flat cross blade vs. 3D pyramid/conical cutter assembly: How to choose?

A: Choose flat cross blades for economical setups and free-flowing granules. Upgrade to a 3D pyramid cutter assembly for sticky, cohesive powders or high-abrasion applications. The 3D profile forces a wider, multi-directional puncture that prevents fabric winding and maximizes material gravity flow.

Q4: Is Grade 316L stainless steel harder or more wear-resistant than Grade 304?

A: No. Surface hardness and mechanical wear rates are virtually identical between 304 and 316L. The critical difference is the 2%–3% Molybdenum (Mo) in 316L, which prevents pitting corrosion from organic acids, salts, and aggressive CIP sanitation chemicals. Only specify 316L for cleanroom, food, and pharmaceutical applications to ensure chemical compliance, not for higher abrasive wear life.
