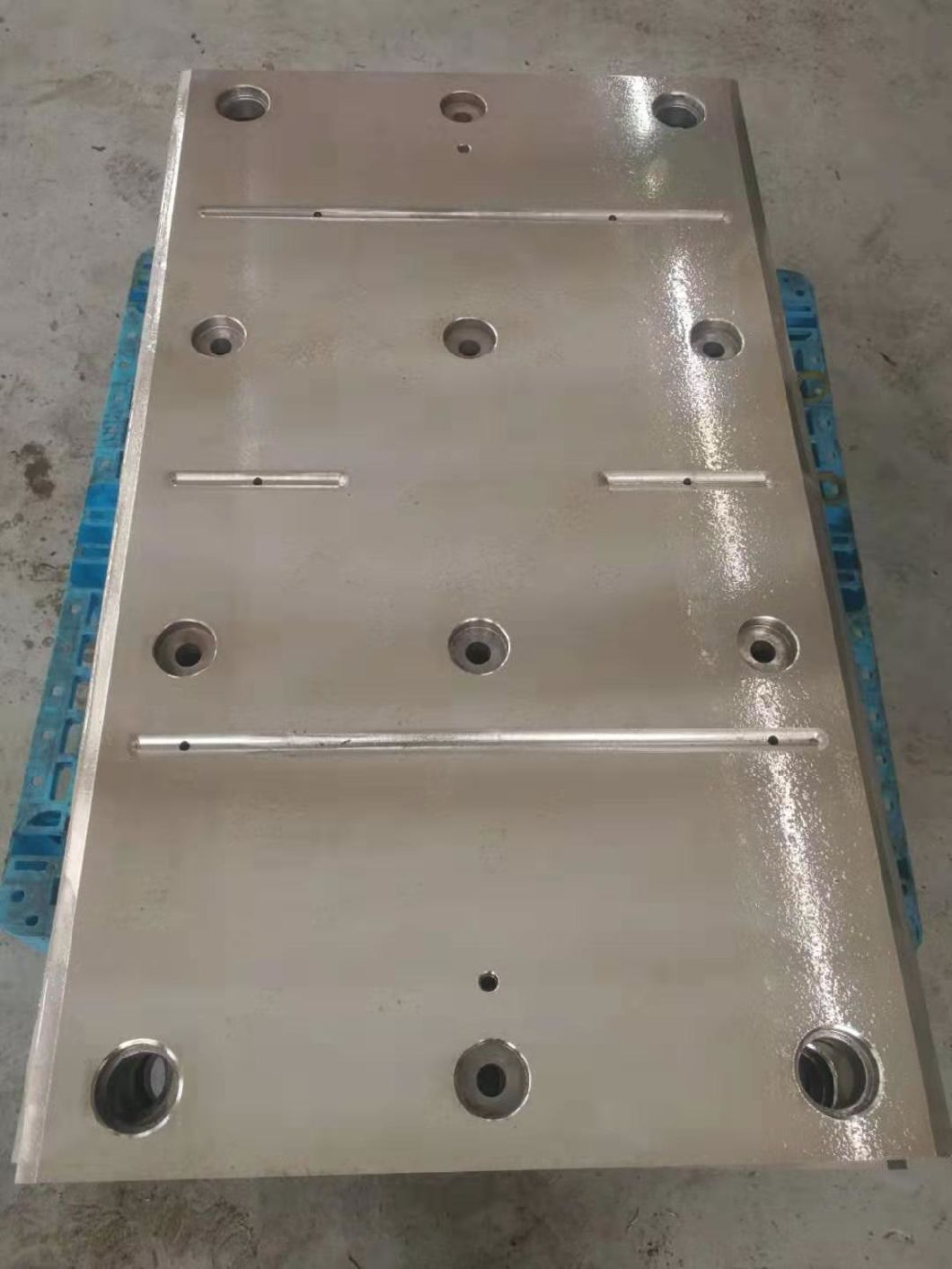

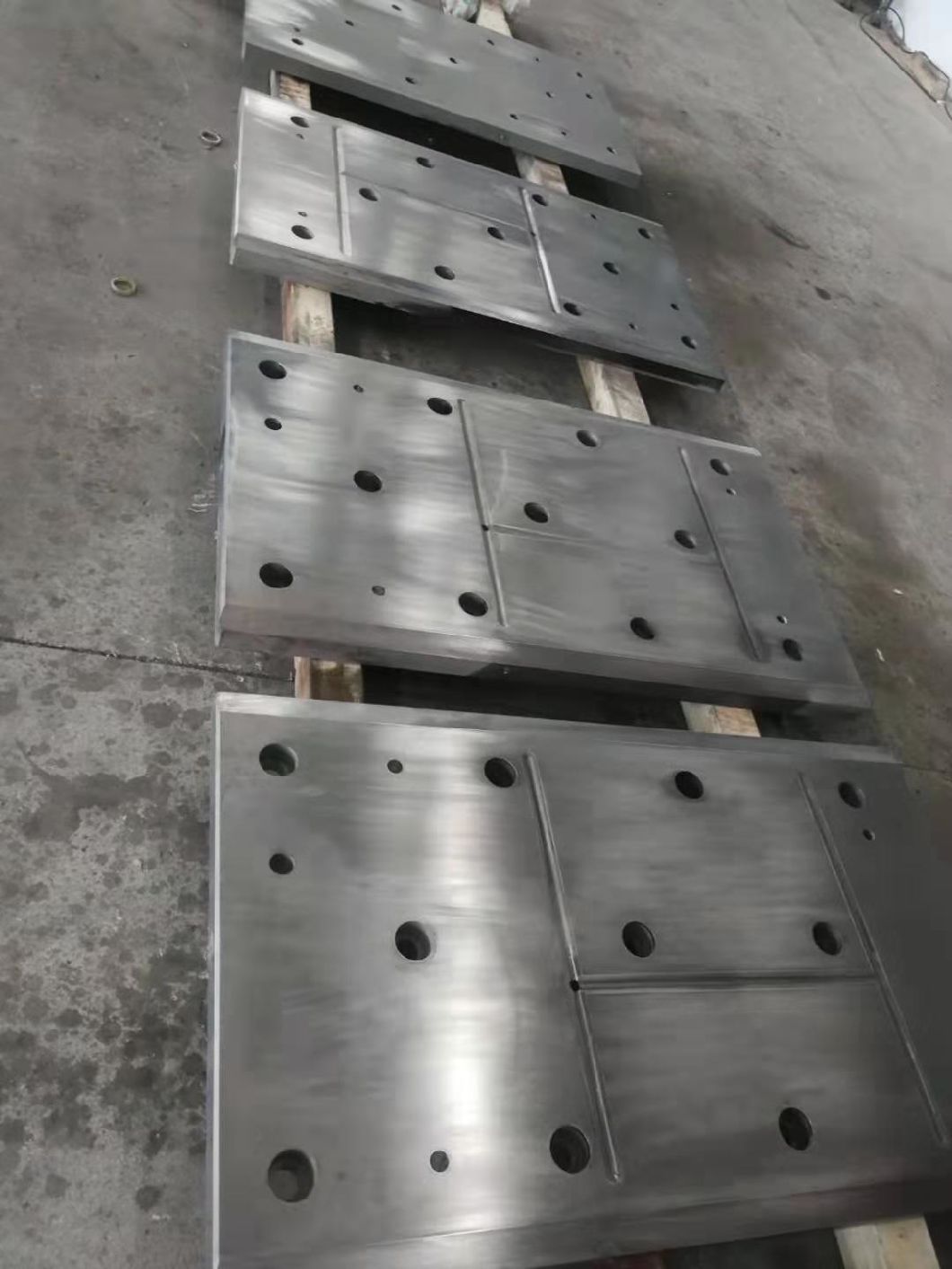

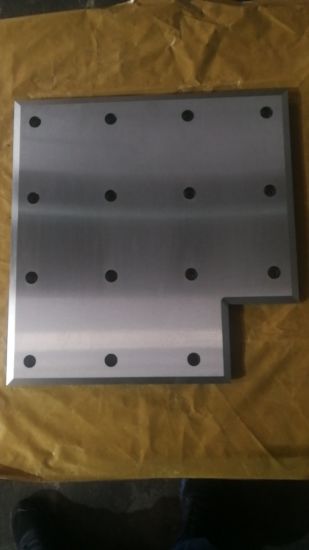

Corc G Composite Wear Liners

_{product description:}

_{Explosive high wear-resistant lining is a composite board exploding from tool steel, stainless steel and ordinary low-carbon steel. After heat treatment, it has high hardness, high wear resistance, impact resistance and corrosion resistance. Its wear-resistant lining products can fully meet the requirements. It is favored by the metallurgical industry due to the sliding wear and working conditions under high impact load. It has been widely used in the wear-resistant sliders, skateboards and archway linings of continuous rolling mills. Compared with other 45# steel plates and surfacing linings, it has the characteristics of high hardness, more uniformity, more wear resistance and longer service life.}

_{High wear-resistant material The ordinary low-carbon steel explosion welding technology is a unique patented technology of our company. It is one of the key technologies of high wear-resistant lining. Its unique heat treatment technology can obtain uniform hardness and hardened layer. The depth has reached the advanced level of similar products at home and abroad, and has met the production requirements of major domestic steel companies. Now it is equipped with the production line of foreign metallurgical mainframes.}

_{Second, the main technical indicators:}

_{Hardness: 55-58HRC}

_{Uniformity: ≤3HRC}

_{Hardened layer depth: 5-7mm}

_{Tool steel thickness: 6-10mm}

_{Ordinary carbon steel plate thickness: ≥20mm}

_{Third, the characteristics of explosive composite wear-resistant lining}

_{Compared with other types of wear-resistant linings, explosive composite linings with high wear resistance have the following characteristics:}

_{1. High hardness, high wear resistance, impact resistance and corrosion resistance. After heat treatment, the hardness can reach HRC56±2.}

_{2, the bottom layer is soft, effectively protecting the main mill arch.}

_{3, with good wear resistance, impact resistance, corrosion resistance, hardness, uniformity, mild shock absorption and so on.}
