Comprehensive Guide To Aluminum Alloy Density: Food-Grade Aluminum Foil, Industrial Blades, And Tool & Die Molds

Complete Guide to Aluminum Density: From Basic Parameters to Engineering Selection, Tooling, and Cost Optimization

1. Core Fundamentals: Standard Density of Aluminum and Its Engineering Significance

The most prominent characteristic of aluminum is its light weight. Density is the core physical parameter determining its engineering application value. It is widely used in aerospace, construction, consumer electronics, food packaging, and catering utensils.

1.1 Standard Density of Pure Aluminum (Multi‑unit Comparison)

Pure aluminum serves as the industry reference benchmark. The main unit values are as follows:

Pure aluminum is rarely used in actual working conditions; engineering mostly employs aluminum alloys. Adding elements such as copper, magnesium, silicon, zinc, manganese, and iron slightly changes the density:

• 7075 alloy (high‑strength aluminum for aerospace): density approx. 175 lb/ft³ (2.81 g/cm³), slightly higher than pure aluminum.

• 5052 alloy (marine corrosion‑resistant aluminum): density approx. 167 lb/ft³ (2.68 g/cm³), slightly lower than pure aluminum.

Tip: For high‑precision engineering calculations, always consult the material data sheet of the specific aluminum grade. For food‑contact aluminum, a value of 2.70 g/cm³ can be uniformly used in routine calculations.

1.2 Density Unit Conversion Formulas

Adapting to multi‑system engineering scenarios worldwide, the core conversion rules are:

• lb/ft³ → lb/in³: 1 ft³ = 1728 in³. Calculation: value ÷ 1728. Example: 168.5 ÷ 1728 ≈ 0.0975 lb/in³ (commonly used in US mechanical design, CNC machining).

• lb/ft³ → kg/m³: conversion factor 1 lb/ft³ ≈ 16.0185 kg/m³. Calculation: value × 16.0185. Example: 168.5 × 16.0185 ≈ 2700 kg/m³ (international scientific/engineering unit).

1.3 Core Role of Density in Engineering Design

Density is not just a weight calculation parameter; it is a key criterion for material selection, performance, cost, and safety.

• Specific strength (strength‑to‑weight ratio)
  Applications: aerospace, automotive manufacturing. Aluminum density is about 1/3 that of steel. High‑strength aluminum alloys enable lightweight construction while maintaining structural strength, directly improving fuel efficiency and payload – making them the preferred material for fuselages and vehicle frames.

• Structural dead load
  Applications: civil engineering. Material density determines the self‑weight (dead load) of a structure. Low‑density aluminum reduces the load on foundations and supporting structures, improves seismic performance, and is suitable for large‑span stadium roofs and complex building façades.

• Dynamic performance and energy efficiency
  Applications: robotics, high‑speed rail. Mass is determined by density and volume. Lightweight components have lower inertia, reducing energy consumption during start‑stop and steering; robots achieve more precise movements, while energy consumption and rail wear are significantly reduced for high‑speed trains.

• Cost and processing efficiency
  Applications: logistics, assembly, food packaging. Low‑density materials lower transportation costs, simplify component handling and installation, reduce the need for heavy equipment, and improve construction and production efficiency.
  In secondary processing of aluminum (cutting, bending), the low density also directly affects the wear rate of metal shearing blades and press brake tooling – compared to steel, aluminum causes less abrasive wear but its tendency to stick demands higher surface finish and better lubrication design on the tools.

2. Key Factors Affecting Aluminum Density and Common Misconceptions

The density of aluminum is not fixed. Alloying elements, processing techniques, temperature, and porosity all cause it to vary within a certain range.

2.1 Effect of Alloying Elements on Density

Alloying elements change atomic mass and lattice arrangement, increasing or decreasing the density of aluminum alloys. The classification is as follows:

Note: Lithium is an extreme lightweighting element. Adding 1% Li reduces the density of the aluminum alloy by about 3% while increasing stiffness by 6%, making it a premium aerospace material. Iron and manganese are common additions for aluminum foil; they improve formability and strength with only a small effect on density.

2.2 Effects of Processing, Temperature, and Porosity

• Processing
  Forging / rolling / cold‑pressing: extrusion and rolling eliminate internal voids and refine grains, increasing density by up to 2% compared to cast aluminum (the difference is usually less than 1% under normal conditions), resulting in a more compact and stronger material. Aluminum foil and foil containers are produced by cold rolling, achieving high density.
  Casting: hydrogen entrapment and solidification shrinkage during cooling form voids, reducing the overall density of cast parts.

• Temperature
  Aluminum thermally expands when heated; atomic spacing increases and density reversibly decreases: at 20°C, pure aluminum density is 2.70 g/cm³; at 200°C, it drops to about 2.68 g/cm³. Common aluminum alloys can be used up to 400°C without irreversible structural damage. Exceeding 550°C causes over‑burning and grain boundary damage, with permanent loss of strength.

• Porosity (most harmful)
  Molten aluminum readily dissolves hydrogen gas; when it solidifies, gas remains, forming microscopic pores. Porosity not only reduces apparent density but also creates stress concentrations, greatly lowering tensile strength, fatigue resistance, and ductility. A porosity level of 1–5% can reduce density by 0.03–0.14 g/cm³. Food‑grade aluminum foil and containers have strict porosity controls to avoid leakage and migration issues.

2.3 Correction of Three Common Misconceptions

• Misconception 1: Light weight means low strength
  Correction: Density and strength are independent properties. Pure aluminum is relatively soft, but through alloying and heat treatment (e.g., T6 temper), aluminum alloys such as 7075‑T6 can achieve tensile strengths comparable to ordinary structural steel, at only one‑third the weight – excellent specific strength. Food‑grade aluminum relies on alloying to improve strength while maintaining safety.

• Misconception 2: The density of 6061 aluminum alloy is fixed at 2.70 g/cm³
  Correction: That value is a common engineering approximation. Because of the addition of lightweight elements such as magnesium and silicon, the theoretical density of 6061 is about 2.69 g/cm³. In addition, processing and porosity can change the actual density. For high‑precision applications, measure it; for ordinary use, 2.70 g/cm³ is acceptable.

• Misconception 3: All aluminum alloys have higher specific strength than all steels
  Correction: Conventional carbon steels generally have lower specific strength than aluminum alloys, but advanced high‑strength steels (AHSS) and ultra‑high‑strength steels (UHSS) can match or even exceed the specific strength of low‑to‑medium grade aluminum alloys. Material selection must consider the specific working conditions.

3. Density, Performance, and Selection Guide for Common Aluminum Alloys

3.1 Quick Reference Table of Mainstream Aluminum Alloys (General Purpose + Food Grade + Foil Container)

3.2 Special Notes on Food‑Grade Aluminum & Foil Containers

3.2.1 Basics of Food‑Contact Compliance

Food‑grade aluminum must comply with standards such as GB 4806.9 (China), US FDA, and EU 10/2011, requiring non‑toxicity, acceptable metal migration limits, and resistance to food acids/alkalis.
Prohibited grades: 2xxx and 7xxx series (high copper/zinc), as well as ordinary cast aluminum containing lead impurities – these must not be used for food packaging, containers, or cookware.

3.2.2 Grade Selection Rules for Aluminum Foil Containers

Aluminum foil containers are a core category of food packaging. The mainstream grades and their application scenarios:

• 8011 (commonly O‑temper or H22/H24) : Highest market share, best cost‑performance ratio, good ductility and tear resistance. Suitable for standard disposable takeaway containers, general airline meal trays.

• 3003‑H22/H24/O : Higher strength, heat resistant. Suitable for thickened containers, BBQ/direct‑heat/self‑heating containers.

• 3004 : Excellent deep‑drawing and sealing performance. Mostly used for premium pre‑prepared meal containers requiring sealing.

• 8006 : Smooth, pattern‑free surface, refined appearance. Mainly for premium gift boxes, desserts, and western‑style trays.

Key role of support tooling:
In the slitting of aluminum foil, the selection of metal shearing blades directly affects edge burrs and yield. Special metal shearing blades for aluminum foil are typically made of cemented carbide with micro‑toothed edges to reduce aluminum sticking.
For the flanging and rib forming of special‑shaped containers, production lines use dedicated stamping dies (including blanking dies, drawing dies, flanging dies). Because the springback coefficient of 3003 and 8011 aluminum alloys is about 1.5–2 times that of steel, the drawing radius of the stamping die should be designed at 6–8 times the material thickness, and the working surfaces should be coated with DLC (diamond‑like carbon) to eliminate scratches and ensure the accuracy of flanging angles and rib profiles.

Standard thickness of aluminum foil containers: disposable type 0.06–0.12 mm, thickened type 0.12–0.20 mm.

3.2.3 Systematic Four‑Step Selection Method for All Aluminum Alloys

1. Define key performance requirements: Determine load type, strength, fatigue resistance, weight reduction needs. For food applications, additionally confirm direct food contact and heating method.

2. Evaluate the service environment: For marine, chemical, high‑salt/acidic food environments, choose 5xxx corrosion‑resistant series. For high‑temperature heating containers, 3003 is preferred. For standard disposable containers, 8011 is the first choice.

3. Consider processing performance: For foil and thin‑walled containers, prioritize 8xxx and 3xxx series with excellent formability. For complex structural parts, choose 6061.
   When the product involves cold forming such as bending and flanging, the compatibility with press brake tooling must be evaluated. For example, when bending 6061‑T6 sheet, if the V‑die opening of the press brake tooling is less than 6 times the sheet thickness, outer surface cracking is very likely, whereas 5052‑H32 allows a smaller bending radius. At the same time, frequent cutting and blanking of aluminum demand long‑term geometric stability from metal shearing blades.

4. Evaluate cost and supply: 8011 offers the best cost‑performance and is the general‑purpose choice for containers. For premium appearance or special functions, choose 8006 or 3004 as required.

3.3 Reliability Classification of Density Data Sources (for High‑Precision Applications)

• Tier 1 (preferred) : Aluminum Association standards, ASM Materials Handbook, MMPDS (Metallic Materials Properties Development and Standardization) – industry benchmarks.

• Tier 2 (reference) : Professional online material databases (e.g., MatWeb) – data traceable to authoritative standards.

• Tier 3 (reference) : Manufacturer’s Material Data Sheet (MDS) – product‑specific, applies only to that brand’s material.

High‑precision measurement methods (for critical components / food‑grade aluminum inspection):

• Archimedes method (water displacement) – measures overall apparent density including porosity.

• Gas pycnometer method – excludes open pores, measures intrinsic density of the material.

• X‑ray diffraction (XRD) – calculates theoretical density of ideal crystal structure, mostly used in research.

3.4 Special Section: Material Selection for Aluminum Alloy Shearing Blades and Aluminum Foil Stamping Dies

The efficiency and quality of aluminum processing strongly depend on the proper selection of cutting tool and die materials. This section provides specialized material guidelines for two typical scenarios: shearing of aluminum alloy sheets and stamping of aluminum foil (e.g., containers) .

3.4.1 Shearing Aluminum Alloy Sheets: Which Blade Material to Choose?

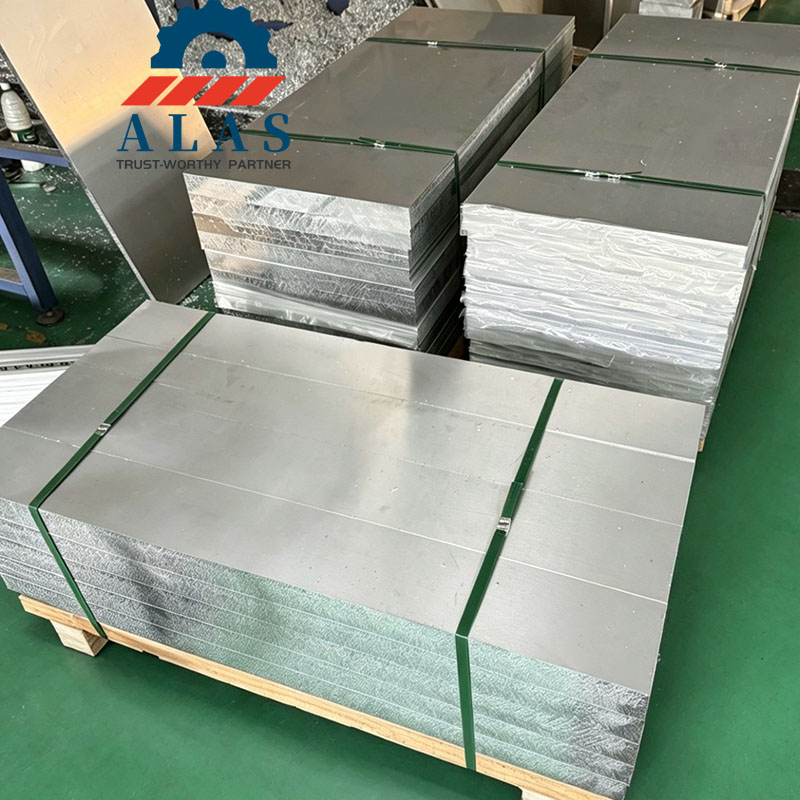

The core challenges when shearing aluminum alloy sheets (e.g., 6061, 7075) are high material toughness, a strong tendency for galling (material sticking to the blade) , and high friction‑induced heat at high shearing speeds. Therefore, the blade material must possess excellent anti‑adhesion properties, high red hardness (heat resistance), and superior edge sharpness. Main recommendations by condition and thickness:

Process advice (how to prevent burrs when shearing aluminum sheets) :

• Blade clearance must be stricter than for steel – set at 5–8% of the aluminum sheet thickness.

• The cutting edge must be micro‑ground, and coating with TiAlN (titanium aluminum nitride) is recommended. This coating greatly reduces the coefficient of friction between aluminum and the blade, completely solving galling and edge burr issues.

3.4.2 Stamping of Aluminum Foil (e.g., Containers): Which Die Material to Choose?

Aluminum foil (especially food‑grade foil for containers, thickness typically 0.03 mm – 0.20 mm) is extremely thin. Foil container dies integrate multiple operations: blanking, drawing, and hemming. They are high‑precision, high‑stroke‑rate tools. The core challenges are: foil tearing, wrinkling, and rapid wear of the forming punch.

Detailed die steel selection (refined configuration) :

Process advice:

• All working surfaces of drawing dies should be polished to Ra ≤ 0.05 μm, and DLC (diamond‑like carbon) or AlCrN coating is recommended to completely eliminate galling and scratching.

• For ultra‑high‑volume production lines producing tens of millions of foil containers per year, cemented carbide insert dies can be used directly. Although the initial investment is higher, die life can be extended by 5–10 times.

4. Engineering Practice: Weight, Cost, and Lightweighting Calculations

4.1 Basic Component Weight Calculation

General formula: Weight = Volume × Density – ensure consistent units.

• Sheet / block / foil container blank : Weight = Length × Width × Thickness × Density

• Round bar : Weight = π × Radius² × Length × Density

• Round tube : Weight = π × (Outer radius² − Inner radius²) × Length × Density

• Complex profile : Weight = Cross‑sectional area × Length × Density (cross‑sectional area preferably from CAD data)

Application points: For structural dead load and finite element analysis (FEA), use the standard density of the specific alloy. For bulk calculation of foil and containers, take 2.70 g/cm³ for 8011/8006, 2.73 g/cm³ for 3003, and 2.72 g/cm³ for 3004.

4.2 Complete Material Cost Estimation Model

Total part cost ≈ Raw material cost + Processing cost + Additional costs

• Raw material cost : (Net part weight ÷ Material utilization rate) × Unit weight price – must account for processing scrap and melting loss. Scrap rate is especially important in the foil container industry.

• Processing cost : (Machine hours + Labor hours) × Hourly rate + Tool and die wear costs.
  For aluminum sheet metal parts, the customisation and maintenance cost of press brake tooling directly affects the unit cost. A high‑precision, scratch‑free press brake tool can cost 2–3 times a standard tool, but it greatly reduces polishing frequency and reject rate. At the same time, the service life of metal shearing blades must be included in the model. For example, when continuously blanking 8011 aluminum foil, the replacement interval for a cemented carbide metal shearing blade is about once every 500,000 strokes; with a conventional high‑speed steel blade, the interval would drop to below 50,000 strokes, leading to skyrocketing downtime costs.
  In the stamping production of aluminum foil containers, the amortization of dedicated stamping dies is equally important – a multi‑station progressive die may require an initial investment of several hundred thousand RMB, which must be spread over millions of containers. Using long‑life materials such as DC53 or cemented carbide inserts can significantly reduce the per‑container die cost.

• Additional costs : Amortisation of dies/fixtures, surface treatment, logistics, management, profit. For food‑grade products, compliance testing costs must also be included.

5. Summary and Industry Frontier Trends

5.1 Summary of Core Principles

• Density of aluminum is a relative value; pure aluminum at 2.7 g/cm³ is only a benchmark. Alloying, processing, temperature, and added elements all change actual density. Food‑grade aluminum can be differentiated by grade; for routine calculations, 2.70 g/cm³ is acceptable.

• Density is a tool for optimising specific strength; lightweighting does not mean sacrificing strength. Foil containers achieve thinness, strength, and safety through alloy composition.

• There is no “universal” aluminum alloy. Selection must balance performance, environment, processing, and cost. For food applications, compliant grades must be strictly distinguished from prohibited ones.

• For high‑precision engineering and food‑grade quality inspection, authoritative data must be used, and critical components should be physically measured.

5.2 Five‑Step Execution Method

1. Clarify the working conditions, application scenario, and performance constraints. For food applications, additionally confirm contact requirements and heating conditions.

2. Combine density and performance to quickly screen alloy series. For containers, prioritise 8xxx and 3xxx food‑grade grades.

3. Verify material parameters using Tier‑1 authoritative databases, import into models to calculate weight and cost.

4. Build a full‑dimension cost model (including service life and amortisation of metal shearing blades, press brake tooling, dedicated stamping dies, and cemented carbide inserts), evaluate budget and mass production feasibility.

5. Produce prototypes / trial samples, measure density, performance, and safety, then iteratively optimise the design.

5.3 Industry Frontier Trends

• AI‑assisted alloy development : Using machine learning to predict alloy properties, greatly shortening the development cycle for new aluminum materials and food‑grade foil.

• Additive manufacturing (3D printing) : Processes like selective laser melting can produce ultra‑fine‑grained aluminum structures that are impossible with conventional methods, offering better strength and high‑temperature resistance.

• Circular economy : Laser‑induced breakdown spectroscopy (LIBS) enables precise sorting of scrap aluminum. Recycling aluminum consumes only 5% of the energy needed for primary production. Recycled foil and recycled containers are becoming mainstream.

• Green aluminum development : Inert anode smelting technology is gradually being implemented, resulting in zero CO₂ emissions during production. Low‑carbon aluminum is becoming a new benchmark for food packaging and high‑end manufacturing.
