Overview of Industrial Press Brake Tooling Solutions
ALAS delivers high-performance, standardized, and custom press brake bending tools for precision metal fabrication globally. Engineered with superior metallurgical integrity and strict parallel tolerances, our tooling optimizes workshop linear calibration, minimizes component scrap, and extends machine service life. This guide serves as a technical blueprint for international engineering procurement.
1. Press Brake Tooling Structure & Core Working Principles

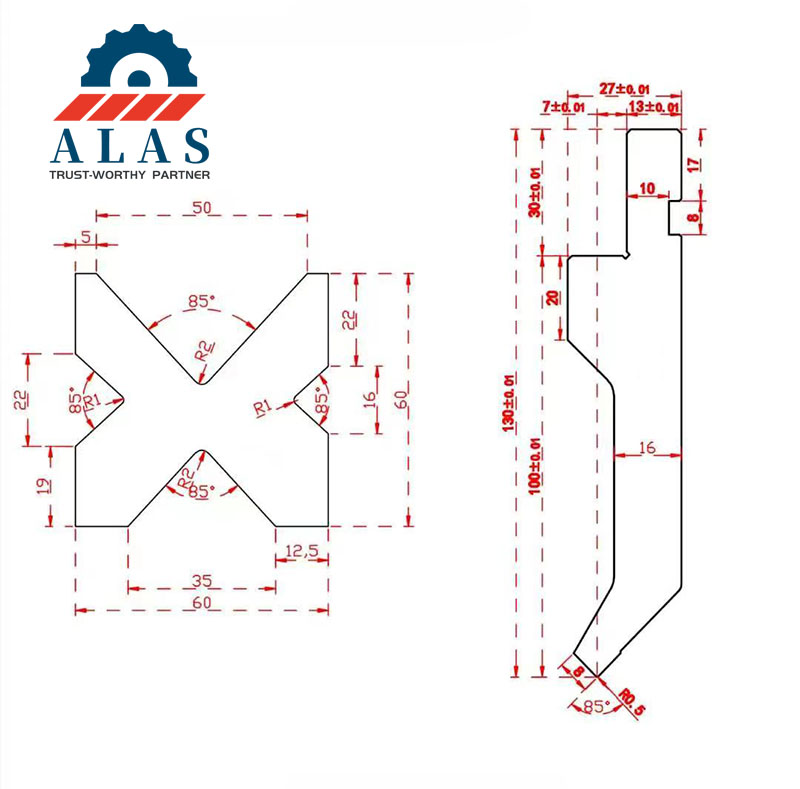

High-performance press brake tooling systems consist of two core matching components: upper punch die and lower V-block die. The paired upper and lower dies maintain strict geometric synchronization during hydraulic operation to resist high extrusion pressure and achieve precise, repeatable sheet metal bending forming.
Upper Die (Precision Punch Assembly)
Mechanical Interoperability: The precision punch assembly is firmly locked on the hydraulic ram clamping adapter, featuring zero displacement and high stability during long-stroke cyclic bending operations.
Uniform Force Distribution: The upper die transmits consistent linear tonnage vertically to sheet metal surfaces, ensuring uniform stress distribution and avoiding partial deformation of workpieces.
Multi-Scenario Geometric Versatility: Available in standard straight-edge, acute knife-edge, reinforced gooseneck and heavy-radius profiles. Different punch geometries define workpiece inner bend radii and reserve standard return flange clearance for diverse forming requirements.
Lower Die (V-Block & Die Bed System)
Rigid Stationary Alignment: The V-block die bed is rigidly anchored to the lower worktable bolster, maintaining overall structural rigidity for high-load bending.
Stable Material Support: Supports sheet metal steadily throughout the full linear stroke, effectively preventing workpiece offset, warping and dimensional errors.

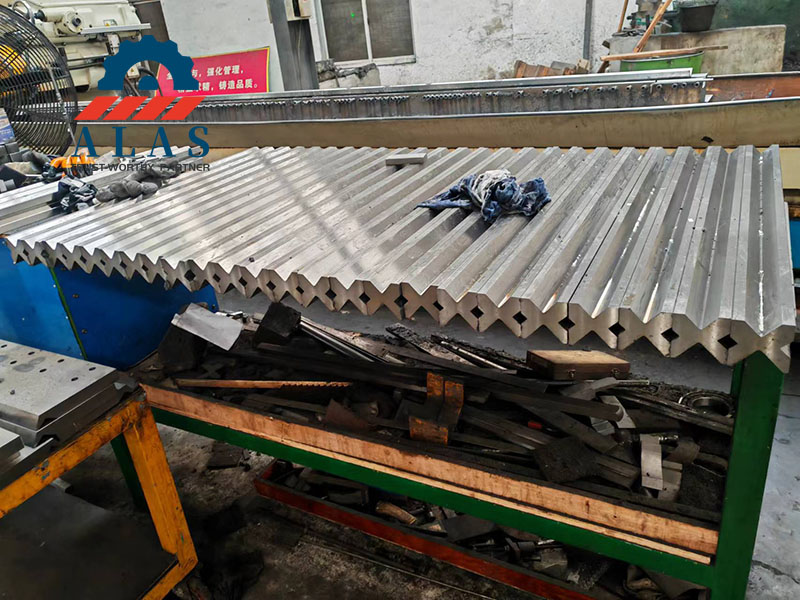

Optimized V-Groove Structure: Equipped with certified single-V, double-V and multi-V groove designs. V-groove aperture width directly controls forming resistance, inner fillet size and surface marking limits for all sheet metal specifications.
Synchronized Bending Kinematics (Standard Working Process)
First, align raw sheet metal flush with the CNC backgauge and place it stably on the lower die shoulders. The hydraulic ram drives the upper punch to execute vertical linear downward stroke, pressing the sheet metal into the lower V-groove. When the metal exceeds its structural yield point and reaches the preset bottom dead center, permanent plastic deformation is completed. Finally, the ram resets and releases clamping pressure, outputting dimensionally stable, high-precision bent components.
2. Quality Benchmarks & Engineering Advantages
As a professional press brake tooling supplier, ALAS strictly complies with global metallurgical and precision engineering benchmarks for all standard and custom bending tools, ensuring outstanding wear resistance, structural stability and long service life for industrial heavy-duty applications.
High-Grade Alloy Metallurgy & Wear Resistance
All ALAS press brake tools are forged from certified 42CrMo (AISI 4140) alloy steel. Key friction and stress-bearing parts undergo professional vacuum heat treatment and precision induction hardening, achieving a uniform hardness of HRC 47±2. This standardized processing avoids structural bowing and shoulder compression under extreme hydraulic loads, greatly improving tool durability and reducing replacement frequency.
Custom Tool Geometry & Profile Processing

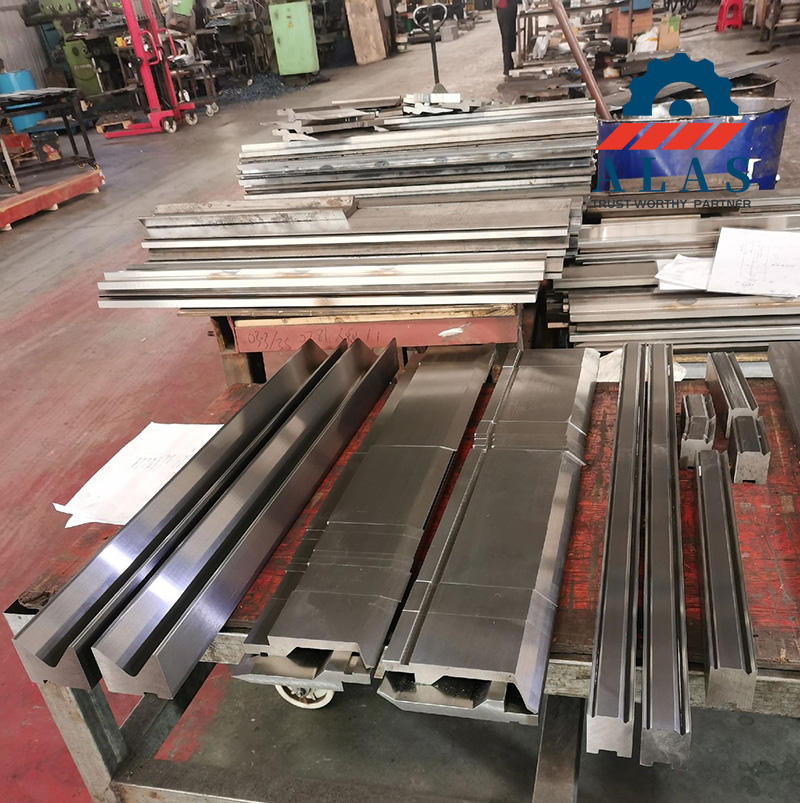

We provide full custom press brake tooling services tailored to complex engineering drawings. Customizable solutions include deep-throated gooseneck upper punches, variable-width lower V-blocks and anti-marking nylon cushion liners, meeting the high-precision and high-surface-quality processing needs of special-shaped workpieces.
Global Universal Mechanical Compatibility

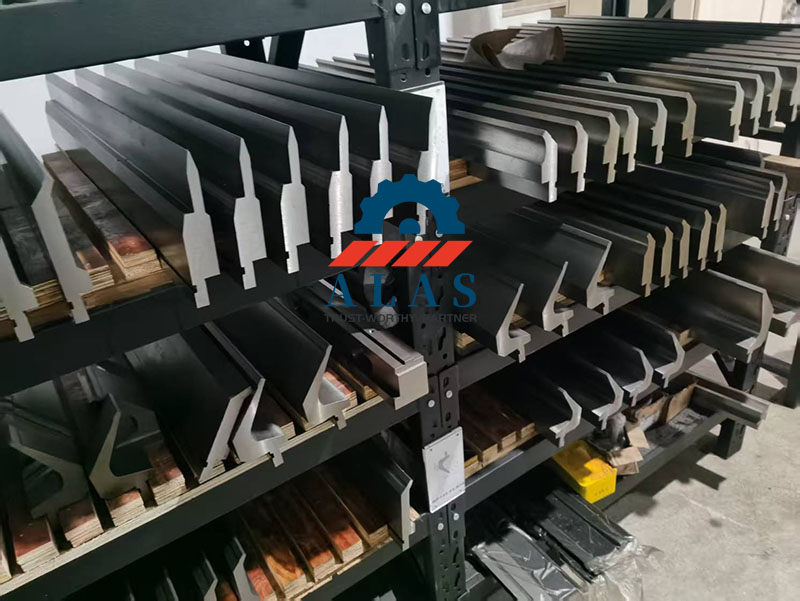

All tool tangs, shanks and tracking keyways are precision-machined to global industrial standards. Our press brake tooling supports full compatibility with mainstream equipment brands and systems, including Amada/Promecam, Trumpf/Wila New Standard and North American quick-clamp mechanisms, realizing seamless cross-brand equipment docking.
3. Tooling Series by Industrial Application
Standard Production Series
Application: Light to medium-gauge sheet metal, carbon steel, and galvanized sheets.
Core Benefit: Maximum cost-effectiveness and balanced tool life for everyday fabrication.
High-Strength Heavy-Duty Series
Application: High-yield heavy plates, SUS304/316 stainless steel, and armored materials.
Core Benefit: Reinforced shoulder forging resists extreme pressure without cracking or tipping.
Anti-Marring Thin-Sheet Series
Application: Anodized aluminum, mirror-finish stainless steel, and pre-painted metals.
Core Benefit: Progressive entry radii eliminate tool galling and surface scratching.
4. Technical Selection & Tonnage Calculation Blueprint
Step 1: Springback Compensation
Step 2: The 8× Core V-Groove Rule
Standard Gauge (3mm ≤ T ≤ 8mm): V-groove width (V) = 8 × Material Thickness (T).
Precision Thin Sheets (T < 3mm): V = 6 × T for sharper, tighter inner fillet radii.
Heavy Plates (T > 8mm): V = 10×T to 12×T to lower friction and prevent tool chipping.
Step 3: Hydraulic Bending Force Calculation
Standard Bending Formula
Universal Bending Force Formula: P = (650 × L × T²) ÷ (V × K)
Parameter Definition: P = Bending Force (kN); L = Bending Length (mm); T = Material Thickness (mm); V = V-Die Width (mm); K = Correction Factor
-
Safety & High-Tensile Material Standard: Reserve a 15%–20% safety margin based on tool rated tonnage per meter. For high-strength alloy materials, apply the professional formula: P = (1.42 × σb × T² × L) ÷ V (σb = Ultimate Tensile Strength, MPa)
Step 4: Clearance Matching
Step 5: Clamping Validation
Cross-check open shut height, maximum stroke limits, and machine holder types (Amada tang, Wila hydraulic, or American slot) before installation.
5. Industrial Procurement & B2B Supply Chain Commitments
100% Quality Assurance: Full material tracking, certified hardness inspection reports, and non-destructive batch testing.
Rapid Production Cycles: 10–15 business days for standard items; 3–4 weeks for complex custom shapes.
Heavy-Duty Export Logistics: Vacuum anti-rust wrapping secured inside robust wooden crates; full FOB, CIF, and DDP terms supported.
Hierarchical B2B Pricing: Factory-direct wholesale discounts with direct DFM optimization from our engineering team.
Frequently Asked Questions – Press Brake Tooling Supply
Q1: Do you provide custom design and prototype validation?
3D CAD & FEM Modeling: We analyze your prints using finite element stress simulation.
Springback & Conflict Prediction: Accurately predicts material rebound to eliminate tool deformation.
First-Stroke Accuracy: Ensures qualified, stable bending results from the very first production cycle.

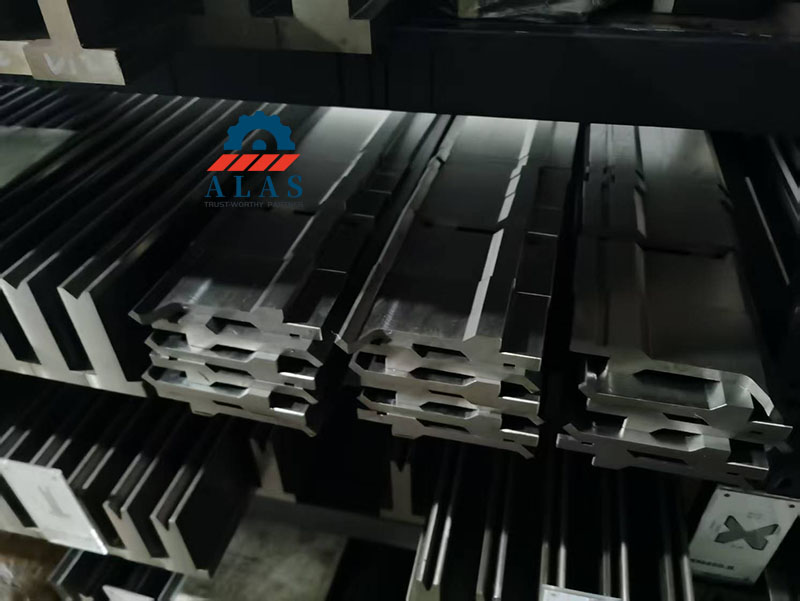

Q2: What are the advantages of your precision segmented tooling?
Strict Micron Tolerances: Each tool segment features a precise ±0.02mm parallel tolerance.
Flexible Tool Combination: Interchanges seamlessly without center drift or joint misalignment.
Zero Setup Downtime: Significantly reduces machine configuration time for long-bed bending.
Q3: Do you support global wholesale for heavy-duty applications?
B2B Bulk Supply: Specialized OEM/ODM production for global machine distributors and plants.
High-Tonnage Load capacity: Engineered 42CrMo tools withstand extreme pressure of 150T/m – 250T/m.
Tiered Wholesale Contracts: Offers competitive tiered pricing agreements for contract buyers.
Q4: What are your lead times, packaging, and logistics options?
Rapid Delivery: Standard stock items ship in 10-15 business days; custom tools take 3-4 weeks.
Heavy-Duty Export Packaging: Vacuum anti-rust wrapping secured inside robust wooden crates.
Flexible Global Logistics: Supports full commercial shipping via FOB, CIF, or DDP terms.
Q5: What are the core quality standards of ALAS press brake dies?
Certified Tool Steel: Uses uniform-density 42CrMo or Cr12MoV with verified hardness inspection reports.
Targeted Hardening: Vacuum heat treatment combined with edge induction hardening (HRC 47±2 to 55).

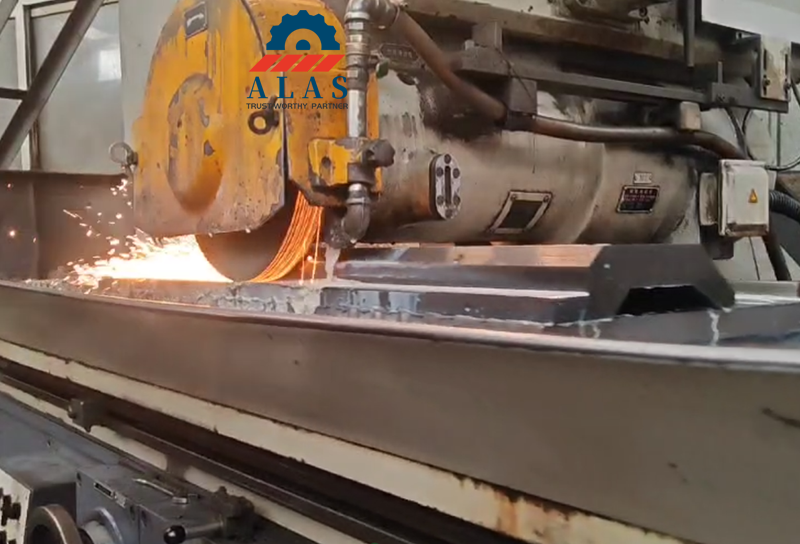

Flawless Finish: Sub-micron parallel grinding prevents sheet scratching and edge chipping under loads.
Explore our standard press brake die sizes for complete dimension specifications for regular sheet metal bending, and check our heavy duty press brake tooling series for ultra-thick plate and high-tensile material forming solutions.
