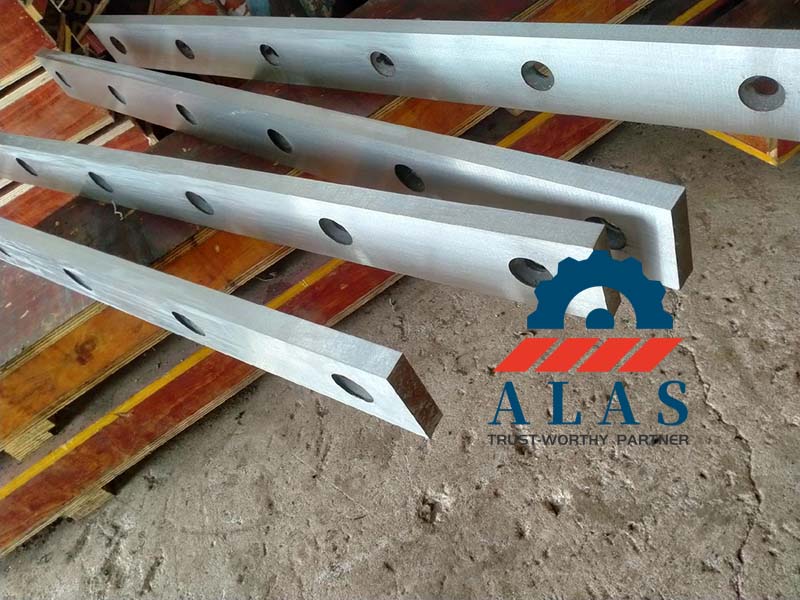

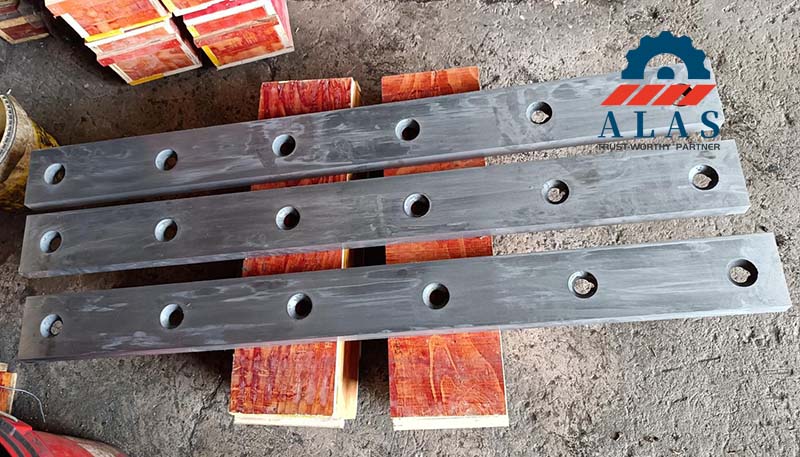

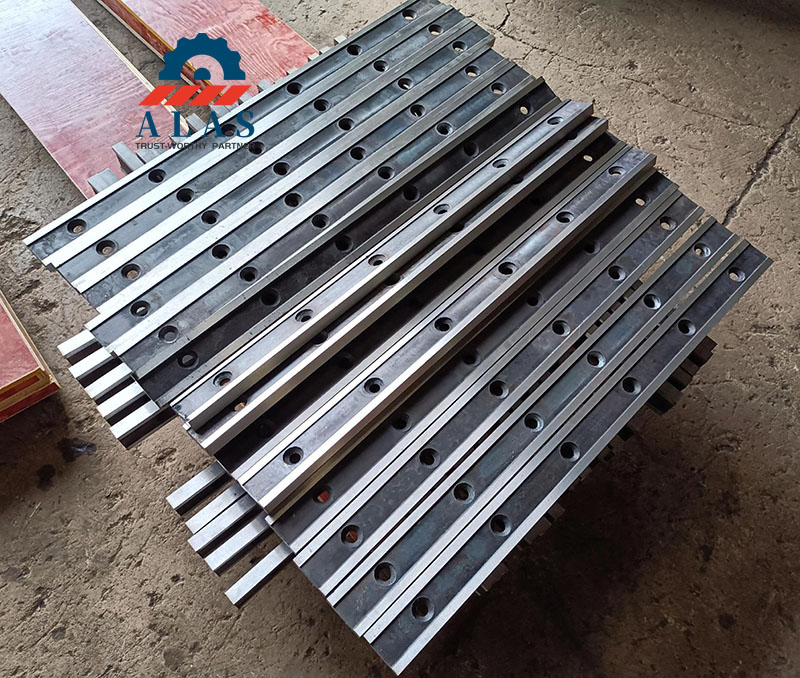

Custom Manual Shear Blades & Hand Guillotine Knives for Benchtop & Foot Treadle Shears

1. Technical Classifications & Operational Layout

Application Scope: Designed for manual benchtop shears, hand-crank guillotines, and mechanical foot-treadle sheet metal shears. Configured for low-volume workshop operations to minimize strip twisting, camber, and operator fatigue.

Edge Geometry & Force Reduction: Symmetrical multi-edge rectangular blade profiles feature optimized micro-bevels to lower the manual cutting force. This configuration delivers burr-free cuts and clean separation on cold-rolled steel, aluminum, copper, and non-metallic sheets.

Alignment & Gap Stability: Rigid linear mounting interfaces maintain stable cutting clearance under manual leverage, mitigating material distortion and preventing premature edge wear caused by blade friction.

2. Material Specifications & Metallurgical Properties

Blades undergo computer-controlled vacuum furnace quenching and multi-stage nitrogen gas tempering. This thermal processing refines the carbide microstructure, eliminates localized soft spots, and limits post-heat-treatment distortion to ≤ 0.02 mm/m.

• Cr12MoV / SKD11 (58–61 HRC) — Cold-Work Steel: High-carbon, high-chromium tool steel. Provides resistance to adhesive wear and edge build-up when shearing non-ferrous metals such as aluminum and copper.

• D2 (58–62 HRC) — High-Wear Tool Steel: Features high volume fractions of primary chromium carbides. Delivered for tight-tolerance, extended-run workloads cutting low-carbon steels and rigid polymers requiring high abrasive wear resistance.

• 6CrW2Si (57–60 HRC) — Shock-Resistant Steel: Tungsten-silicon modified alloy formulated for high impact toughness. Resists micro-chipping and structural fractures during intermittent, heavy-manual force shearing.

• 9CrSi (57–61 HRC) — Low-Alloy Tool Steel: Cost-effective tool steel option optimized for standard utility cutting. Specified for light-duty thin gauge sheets and low-frequency workshop maintenance.

3. Metric Dimensional Specification Matrix (Manual & Foot-Treadle Tooling)

4. Machined Tolerances & Linear Alignment Standards

Finishing is performed on CNC surface grinding machines under constant-flow liquid cooling to prevent thermal stress and micro-cracking along the cutting edge.

• Straightness & Parallelism: Deviations are verified within ≤ 0.02 mm/m across the entire blade span to maintain uniform cutting clearance and minimize tool-holder vibration.

• Thickness Tolerance: Finished dimensions are held to ±0.02 mm, establishing a reliable co-planar assembly baseline for multi-segment sectional tooling.

5. Blade Clearance & Operation Guidelines

Proper side clearance calibration relative to sheet thickness is essential on manual and foot-treadle shears to prevent edge chipping, material tearing, and excessive operating resistance.

• Thin Sheet Clearance (t ≤ 1.5 mm): The side blade clearance must be adjusted between 5% and 8% of the material thickness (resulting in a standard mechanical gap of 0.04 mm to 0.08 mm).

• Operational Impact: Clearances exceeding 8% cause thin sheet metal to bend and draw between the blades rather than fracturing cleanly, yielding heavy jagged burrs. Clearances below 5% increase micro-welding friction, accelerating edge dulling and operator fatigue.

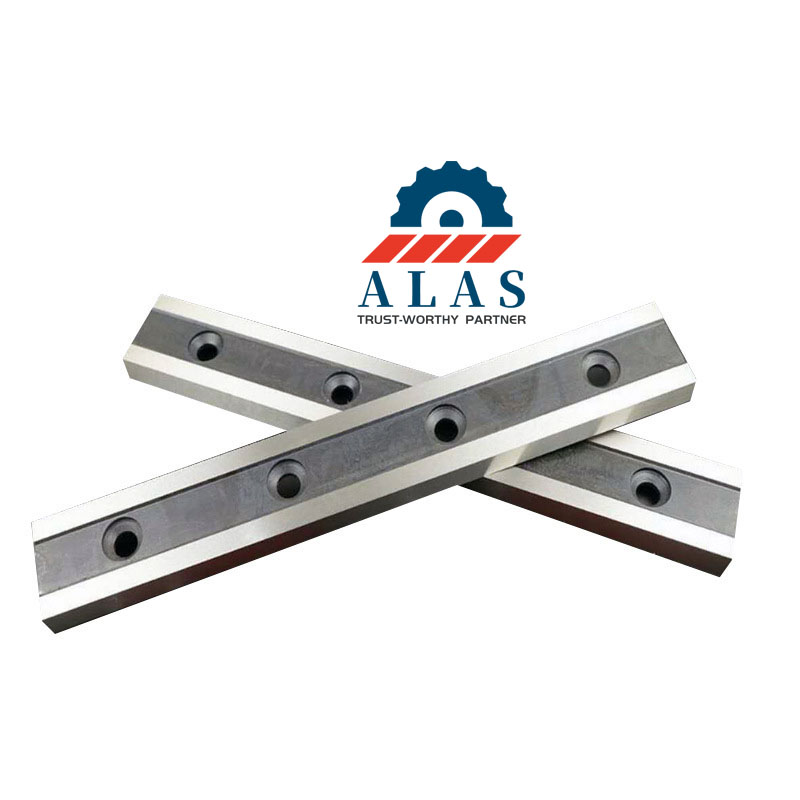

• Maintenance Protocol: Multi-edge rectangular blades should be rotated regularly to utilize all available cutting flanks (typically 2 to 4 usable edges). Blades require immediate regrinding if the cutting edge radius (R) exceeds 0.15 mm. Lubricate working edges with low-viscosity industrial oil to minimize sliding friction.

6. B2B Procurement, Quality Control & Packaging

Engineering Reverse Services: Bespoke manufacturing supports standard, non-standard, and legacy manual shear configurations with an unyielding MOQ of 1 piece. Production requires exact CAD engineering documentation (DWG, DXF, PDF, or STP formats) or physical sample dimension mapping to verify precise total segmented sections, total lengths, bolt hole pitch, and counterbore geometry.

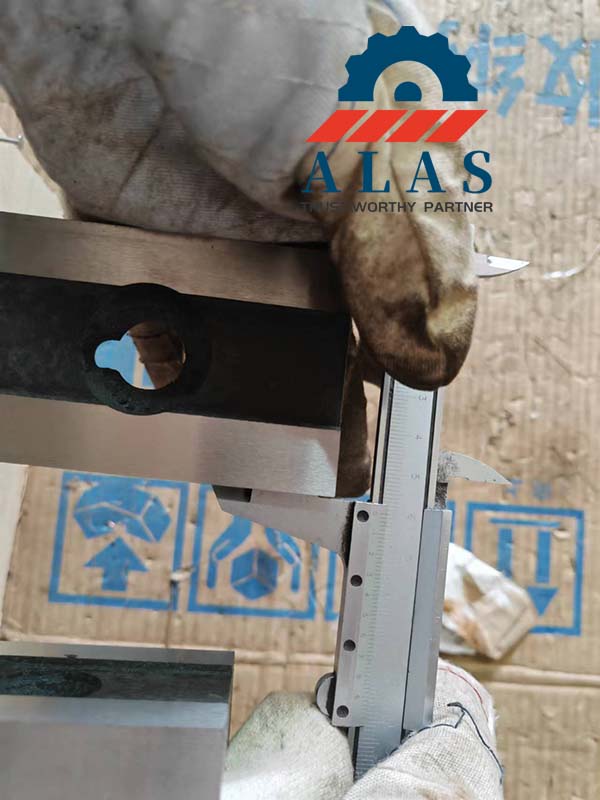

Traceable Inspection Protocols: Every production batch undergoes multi-layer quality testing. Calibration maps register chemical spectral composition testing, MPI magnetic particle micro-crack detection, and full-length coordinate hardness verification.

Logistics Packaging Standards: Blades are coated with heavy-duty rust-preventative oil, vacuum-sealed in Vapor Corrosion Inhibitor (VCI) anti-rust film, and packed inside heavy-duty, ISPM 15 certified wooden cases accompanied by traceable Material Test Certificates (MTC) and Heat Treatment Logs.

7. Blade Tool Steel Materials International Grade Corresponding Matrix

8. Technical Support FAQ (Drive-Type Classification: Manual & Foot Shears)

Q1: What mechanical factors cause premature dulling or chipping in hand guillotine knives under manual operation?

A: Unlike motorized shearing systems, manual guillotines operate with fluctuating cutting speeds and inconsistent downward force. This variable speed profile concentrates excessive shearing stress on localized areas of the cutting edge, leading to micro-chipping.

To mitigate this issue, tool blades must be machined from through-hardened steel grades such as Cr12MoV, SKD11, or D2 (58–62 HRC) to prevent localized deformation. Additionally, the cutting face must be ground to a surface finish of Ra ≤ 0.8 μm. This low-roughness profile reduces initial sliding friction, minimizes operator fatigue, and prevents material drawing or dragging.

Q2: What is the recommended blade clearance for setting foot treadle shears on thin-gauge sheet metals?

A: For optimal burr-free cuts on manual and foot treadle shears processing thin sheets (thickness t ≤ 1.5 mm), the side blade clearance (Δ) should be maintained between 5% and 8% of the material thickness.

Operational Impact: Clearances exceeding 8% cause the sheet metal to bend and draw down between the blades rather than fracturing cleanly, resulting in heavy burrs and material jamming. Clearances below 5% increase micro-welding friction and accelerate edge wear under unpowered, manual strokes.

Q3: How to diagnose if sheet curling or distortion during the handle down-stroke is caused by tool wear or frame deflection?

A: First, inspect the cutting edge under 10× magnification. If the edge radius (R) measures greater than 0.15 mm, the knife is dull and requires immediate rotation or regrinding. Second, check the lateral clearance of the manual slide guide and lever pivots. If the pivot bolt or guide rail variance exceeds 0.03 mm, lateral blade deflection will occur during the shearing cycle. This is a structural machine issue, not a tool steel defect.

Q4: What are the limits and requirements for regrinding worn manual shear blades?

A: Total material removal across the nominal thickness profile must not exceed 10% of the original dimension, and width wear must remain within 15%. Thinning beyond these limits causes the blade to flex laterally under manual load, compromising cutting alignment and operator safety. Additionally, all blades must undergo post-grind demagnetization to reduce residual magnetism below 0.15 mT, preventing ferrous micro-shavings from adhering to the cutting flank and accelerating friction wear.

Q5: Why is standard 9CrSi tool steel limited to intermittent cutting while SKD11 or D2 is recommended for extended workshop runs?

A: 9CrSi is a low-alloy tool steel that is susceptible to micro-chipping and localized wear under continuous use. It is specified for light-duty gauge sheets and low-frequency workshop maintenance. For extended-run workloads processing materials like structural carbon steels, upgrading to SKD11 or D2 provides a high volume fraction of chromium carbides, which ensures excellent edge longevity and reduces blade replacement frequencies.

Q6: How to stop narrow metal strips (width under 30 mm) from twisting and warping when processed on foot treadle equipment?

A: Narrow shearing under high rake angles induces asymmetrical twisting torque on the strip. To minimize this, ensure the upper blade uses a low rake angle profile between 0.5° and 1.0° to distribute mechanical downward force evenly. Furthermore, verify that the mechanical or foot-clamped hold-down bar is equipped with polyurethane pads to clamp the narrow sheet flat against the lower table bed, preventing rotational slip during blade entry.

Q7: What are the target quality control metrics required for custom manual shear blades to pass inspection?

A: To ensure dimensional compliance and field interchangeability, incoming custom-machined blades must verify the following parameters:

• Linear Straightness: Total deviation along the cutting edge must not exceed ≤ 0.02 mm per meter of linear blade length.

• Hardness Variance: Hardness testing performed at 5 equidistant points along the linear axis must show a variance of ≤ ±0.7 HRC.

• Parallel Ground Tolerance: Mounting and locating faces must maintain a parallelism error of ≤ 0.02 mm to establish a reliable co-planar assembly layout.
