Press brake dies are tools used in press brake machines to bend and shape metal sheets. They consist of an upper die (punch) and a lower die (die), which work together to apply force and form the metal into the desired shape and angle. Press brake dies are widely used in industries such as automotive manufacturing, aerospace, appliances, and construction.

Main Components of Press Brake Dies

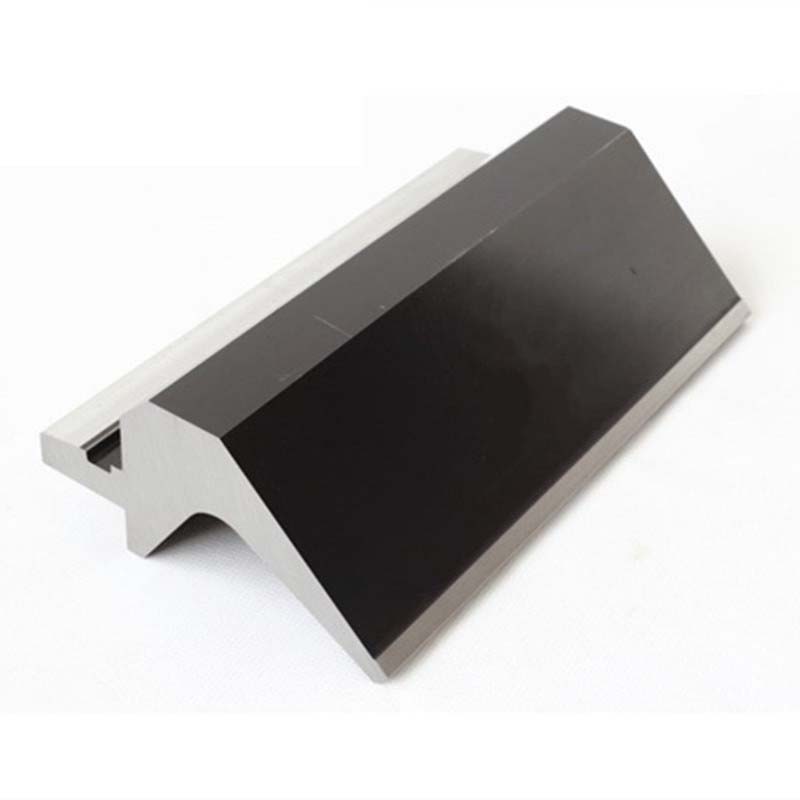

Upper Die (Punch):

Mounted on the press brake's ram, it moves downward to apply pressure on the metal sheet.

Common shapes include acute-angle dies, gooseneck dies, and radius dies.

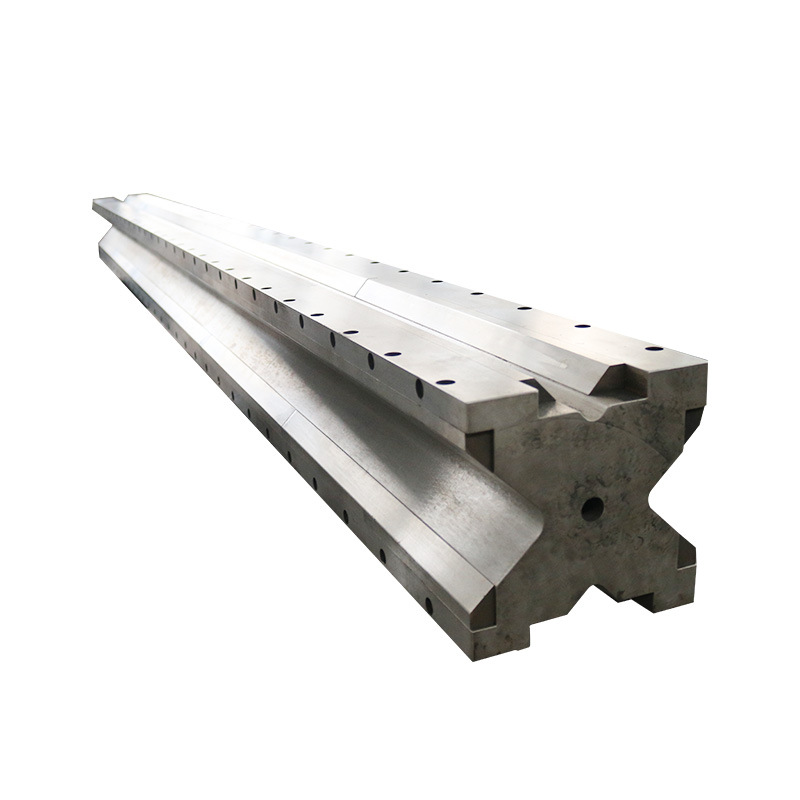

Lower Die (Die):

Fixed on the press brake's bed, it supports the metal sheet and works with the upper die to complete the bend.

Common shapes include V-dies and U-dies.

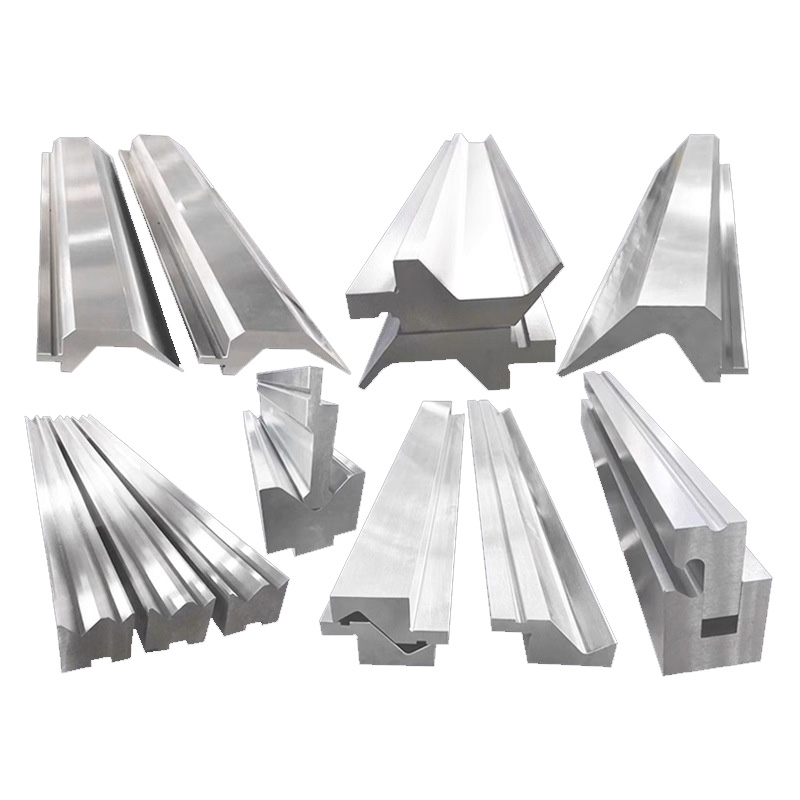

Classification of Press Brake Dies

By Application:

Standard Dies: Used for common bending operations, such as 90-degree bends.

Special Dies: Used for complex shapes, such as curves or hemming.

By Shape:

Acute-Angle Dies: For sharp-angle bends.

Gooseneck Dies: For clearing obstacles or complex bends.

Radius Dies: For creating curved shapes.

V-Dies: The most common lower dies, used for standard bending.

By Material:

Tool Steel Dies: High hardness and wear resistance, suitable for heavy-duty bending.

Carbide Dies: High precision and wear resistance, ideal for high-volume production.

Alloy Steel Dies: Cost-effective, suitable for medium-duty bending.

Plastic/Polyurethane Dies: Used to protect the workpiece surface from scratches.

How Press Brake Dies Work

The metal sheet is placed on the lower die.

The upper die moves downward, applying pressure to the sheet.

The sheet undergoes plastic deformation, forming the desired bend angle and shape.

Key Considerations for Selecting Press Brake Dies

Material: Choose the die material based on the hardness and thickness of the workpiece.

Shape: Select the die shape based on the desired bend.

Size: Match the die opening (e.g., V-die width) to the sheet thickness.

Precision: High-precision tasks require dies with high hardness and wear resistance.

Production Efficiency: For high-volume production, choose durable dies to minimize downtime.

Applications

Automotive Manufacturing: Forming vehicle body panels.

Appliance Industry: Bending casings for refrigerators, washing machines, etc.

Construction Industry: Processing steel structures and window frames.

Aerospace: Forming high-precision metal components.

Conclusion

Press brake dies are essential tools in metal sheet processing. Their selection and use directly impact production efficiency and product quality. By choosing the appropriate die material, shape, and size based on specific requirements, manufacturers can significantly improve efficiency and precision.
