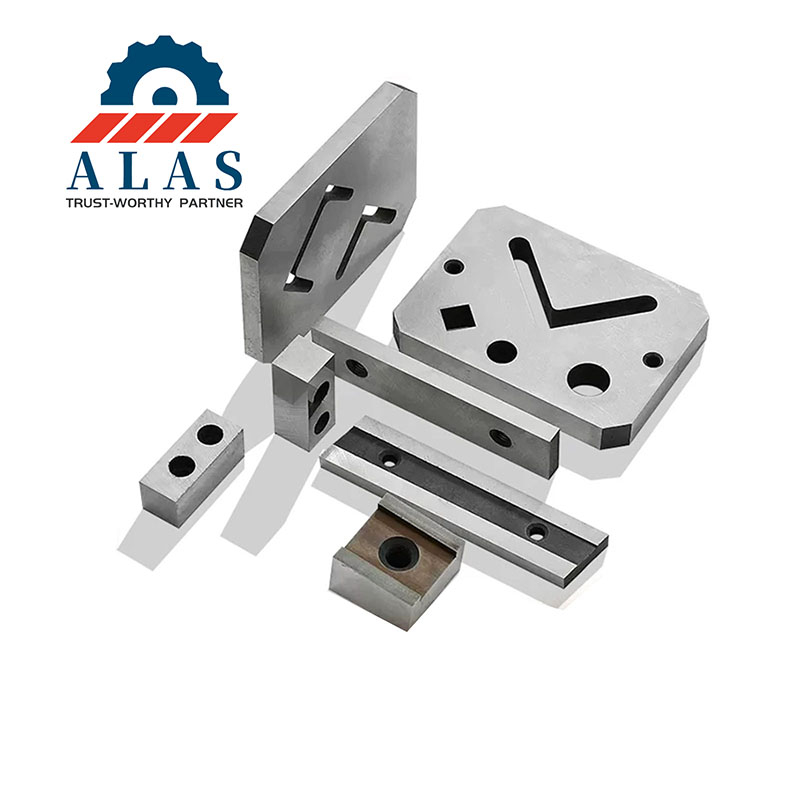

Premium tool steel angle iron and flat bar shear blades with dies for hydraulic ironworker machines

Share to:

Universal Ironworker Shear Blades for Angle Iron & Flat Bar

Premium Universal Ironworker Shear Blades

Engineered for clean, burr-free cuts on flat bar stock and both equal/unequal angle iron.

Premium Materials: Manufactured from D2 high-carbon tool steel and H13 hot-work steel.

Precision Engineering: Ground to ISO 2768-m tolerance with a hardness of HRC 52-60 for extended wear life.

Universal Compatibility: Fully compatible with major ironworker brands including Geka, Piranha, Sunrise, Kingsland, and Edwards.

Easy Installation: OEM direct replacement with factory-matched mounting holes for quick, no-modification setup.

Applications: Ideal for structural steel fabrication, metal shops, and high-volume production environments.

Brand:
ALAS
Port:
Nanjing, China
Payment Terms:
T/T, Money Gram
Min. Order:
1
Transport Package:
Wooden Crate Packaging

Availability:

Quantity:



Inquire Add to Basket

Product Description

Universal ironworker shear blades are precision-engineered cutting tools designed for hydraulic ironworker machines, performing clean, accurate shearing of angle iron, flat bar, round bar, and channel sections in metal fabrication operations. As a professional ironworker shear blades manufacturer with over 15 years of experience, ALAS produces replacement shear blades that meet or exceed OEM specifications for all major ironworker brands worldwide. Our blades deliver consistent cut quality, extended service life, and reliable performance across high-production metalworking environments. Fabricators, steel service centers, and structural steel shops choose ALAS shear blades to reduce downtime, improve cut quality, and lower total tooling costs compared to generic replacement parts.

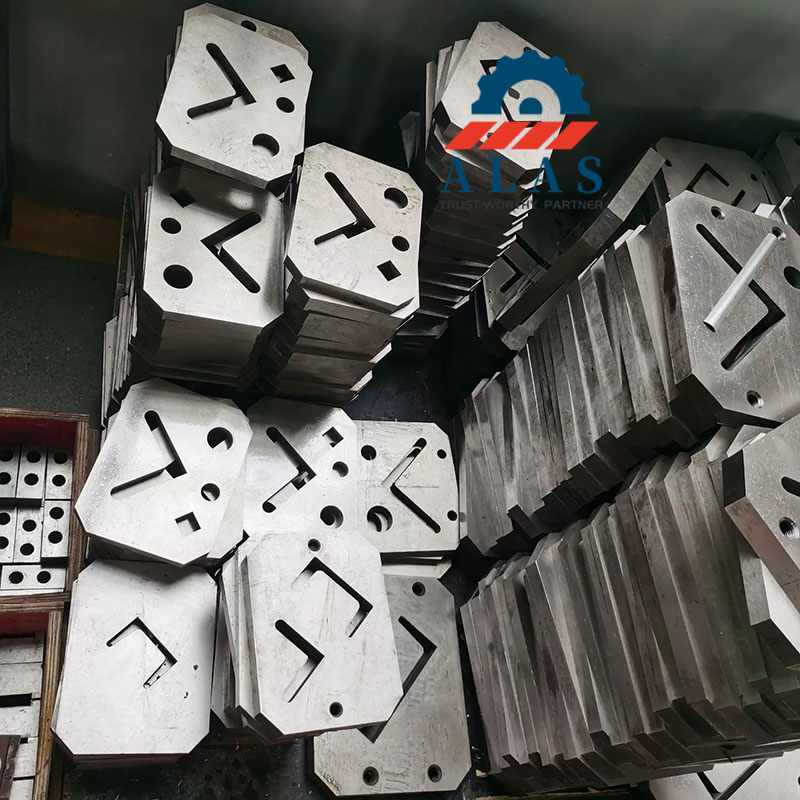

Mass production and wholesale inventory of universal ironworker shear blades for angle iron cutting

✓ Multi-Material Compatibility: Forged from premium tool steel to cut mild steel, stainless steel, aluminum and alloy profiles up to 25mm thick
✓ OEM Interchangeability: Direct OEM drop-in replacement; identical mounting hole layouts fit mainstream ironworker machines without modification
✓ Precision Ground: Fully CNC ground seating faces guarantee zero misalignment and consistent minimal blade clearance

Technical Specifications

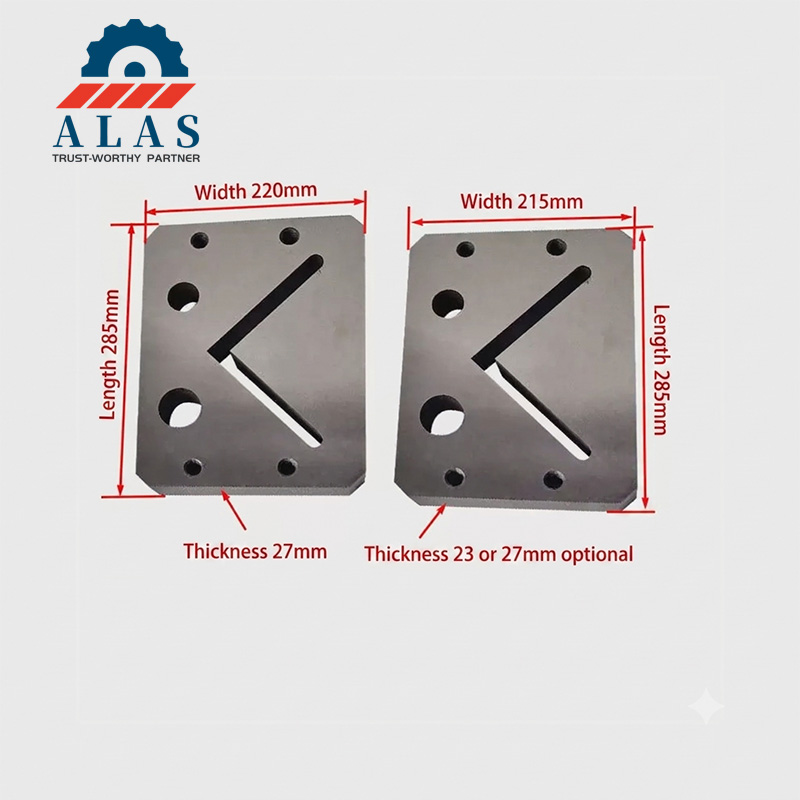

Universal ironworker shear blades with dimensions for angle iron cutting

Angle Iron Shear Blade - Standard 285x220/215mm

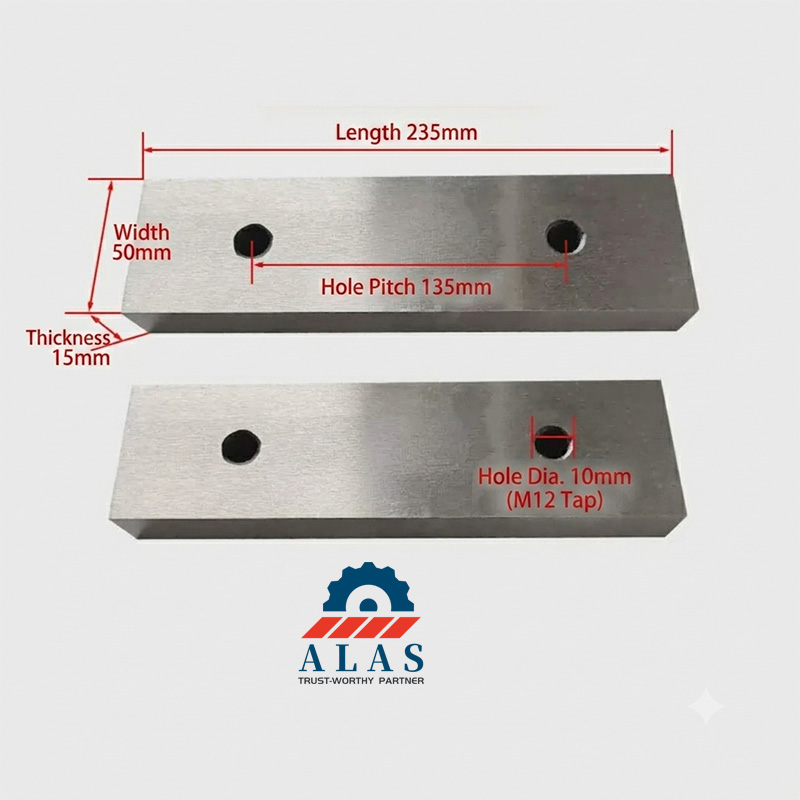

Dimensions of universal ironworker shear blades for flat bar and plate cutting

Flat Bar Shear Blade - Standard 235x50x15mm

Parameter	Standard Value	Customizable Option
Material Specification	AISI D2 (Cr12MoV/1.2379/SKD11)	Customizable H13, DC53, 9CrSi, 6CrW2Si available
Hardness	HRC 58-62 (D2), Rockwell C per ASTM E18	Customizable HRC 54-58 (H13 heavy duty), HRC 60-64 (DC53)
Dimensional Tolerance	±0.02mm, High-Precision CNC Ground	Customizable ±0.01mm precision grinding available
Surface Finish	Ra 0.8μm, precision ground	Customizable Ra 0.4μm mirror finish available
Standard Size Range	100mm to 1000mm length	Customizable Custom lengths up to 2000mm
Cutting Edge Geometry	Single bevel, 90° shear angle	Customizable Double bevel, variable rake angles
Operating Temperature Range	-20°C to 200°C (cold shearing)	Customizable H13 grade for hot shearing up to 500°C
Mounting Configuration	Standard OEM hole patterns	Customizable Custom hole patterns per drawing
Certifications	SGS material certified	Third-party inspection reports available
Flatness Tolerance	0.02mm per 300mm length	Customizable Hand-scraped precision sets available

What Makes Our Universal Ironworker Shear Blades Stand Out?

Extended Service Life Through Optimized Heat Treatment

We adopt vacuum oil quenching paired with triple tempering to deliver consistent hardness across the entire blade cross-section, eliminating soft zones and preventing premature edge abrasion. This proprietary heat treatment extends usable service life by 30–50% versus generic market blades, reducing blade replacement frequency and production downtime.

Burr-Free Cut Quality With Precision Grinding

All seating surfaces and cutting edges undergo CNC precision grinding to achieve Ra 0.8μm surface finish and ±0.02mm dimensional accuracy. This precision ensures perfect blade alignment and consistent blade gap, producing clean, burr-free cuts that eliminate secondary deburring operations. The precisely ground 90° cutting edge maintains sharpness through thousands of cuts, delivering consistent cut quality within ±0.1mm dimensional accuracy on all sheared sections.

Superior Shearing Performance

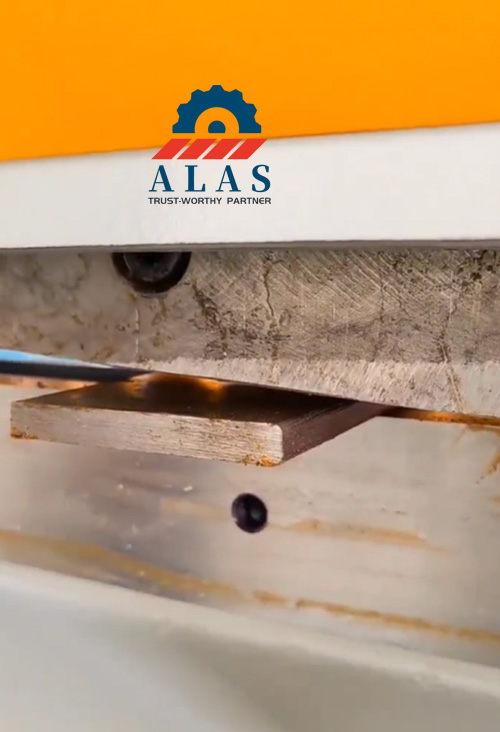

Close-up of a universal ironworker flat bar shear blade performing a clean cut on a metal plate

Flat bar shearing in action

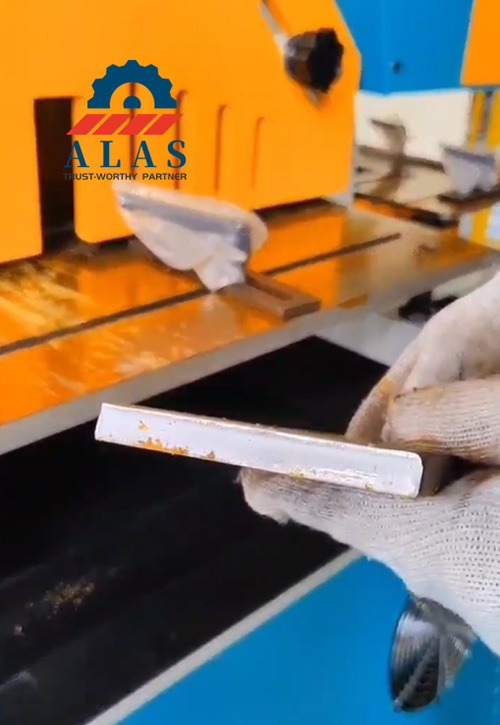

Clean and flat shearing result of thick flat bar using universal ironworker shear blades

Perfect flat bar cut surface

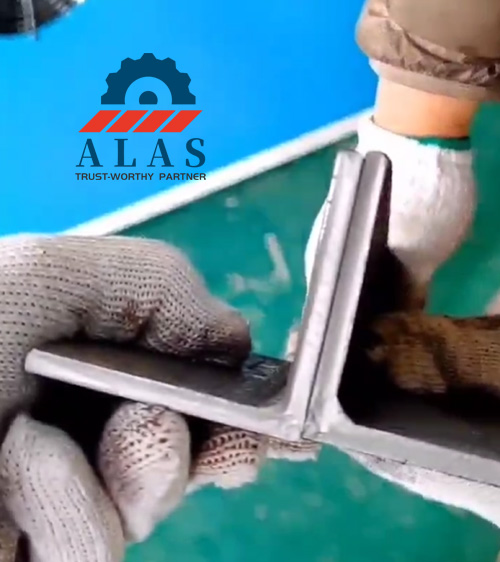

Perfect 90 degree angle iron cutting result with clean edges using universal ironworker shear blades

90° angle iron miter cut

Chipping Resistance With Toughness Optimization

We engineer our blades for the optimal balance between wear resistance and impact toughness, a critical factor in ironworker applications where sudden shock loads occur during angle and channel shearing. Our cryogenic treatment option transforms retained austenite into stable martensite, increasing toughness by 20% while maintaining edge hardness. This reduces chipping and catastrophic blade failure, particularly when shearing heavy sections or materials with scale and surface imperfections.

Universal OEM Compatibility Guaranteed

We maintain an extensive database of OEM blade dimensions and mounting hole patterns for all major ironworker manufacturers. Every blade is CNC machined to exact OEM specifications, ensuring drop-in installation with zero machine modification. This includes blades for Geka, Peddinghaus, Scotchman, Sunrise, Kingsland, Edwards, Marvel, Harsle and all Chinese Q35Y series hydraulic ironworkers. Custom blades reverse-engineered from customer samples or drawings are available within 7-10 working days.
*Note: Please send your machine model or original blade drawing if you require custom size matching.

Four-Sided Usability for Maximum Value

Our flat bar shear blades feature four usable cutting edges. When one edge wears, operators simply rotate the blade 90 degrees to expose a fresh cutting edge. This quadruples the effective blade life before resharpening is required, delivering exceptional value for high-production shops. All edges are precision ground during manufacturing to identical tolerances, ensuring identical cut quality regardless of which edge is in use.

What Materials & Processes Ensure Ironworker Shear Blade Quality?

Premium Tool Steel Selection

We select material grades based on the specific shearing application, following the industry-standard "wear resistance vs. toughness" selection matrix. Our standard AISI D2 (DIN 1.2379, JIS SKD11) high-carbon, high-chromium cold work tool steel provides excellent wear resistance for general-purpose shearing of mild steel up to 12mm thickness. For heavy-section shearing above 12mm or applications with high shock loads, we recommend H13 hot work tool steel, which provides superior impact toughness and thermal fatigue resistance. For premium applications requiring maximum life, DC53 tool steel offers 20% higher toughness than D2 with equivalent hardness, per ASTM A681 standard specifications for tool steels. All material is sourced from certified steel mills with full material traceability and mill test reports.

Controlled Manufacturing Process

Every shear blade progresses through a strictly controlled 6-step manufacturing process with documented quality checkpoints:

1 Forging/Pre-Machining: Steel blocks are forged to refine grain structure, then rough machined to near-net shape, leaving 2mm grinding stock. QC checkpoint: Ultrasonic testing for material defects per ASTM A388.
2 Vacuum Heat Treatment: Blades undergo vacuum hardening followed by triple tempering to achieve specified hardness while relieving internal stresses. QC checkpoint: Hardness testing on every blade, with microstructural analysis per batch.
3 CNC Precision Grinding: All surfaces are ground on CNC surface grinders to achieve final dimensional tolerances and surface finish. QC checkpoint: In-process coordinate measuring machine (CMM) inspection of critical dimensions.
4 Cutting Edge Preparation: Cutting edges are honed to a precise edge radius, removing micro-grinding defects that cause premature chipping. QC checkpoint: 100% visual inspection under 10x magnification.
5 Final Inspection: Complete dimensional inspection, hardness verification, and surface finish measurement. QC checkpoint: Every blade receives a unique serial number and inspection report.
6 Preservation & Packaging: Blades receive rust-preventative coating and are individually packaged in vapor corrosion inhibitor (VCI) paper. QC checkpoint: Packaging integrity verification before shipment.

Our proprietary deep cryogenic treatment process, performed at -196°C immediately after quenching, completes the martensitic transformation and increases wear resistance by an additional 20-30% for premium-grade blades.

Where Are Our Universal Ironworker Shear Blades Used?

Steel Structure Fabrication Plants

Primary application for mass cutting angle iron, flat plate and channel steel for factory steel frames, workshop supports and building steel trusses. Our long-life blades reduce frequent shutdown replacement for high-volume production lines.

Construction & Civil Engineering Sites

On-site cutting of structural steel, reinforcement bars and bracket profiles. High impact toughness prevents chipping when shearing rusted, scaled raw steel on construction job sites.

Metal Furniture & Frame Manufacturing

Precision clean-cut edges for guardrail frames, metal furniture brackets, window and door steel profiles. Burr-free cuts eliminate secondary grinding steps.

Vehicle & Agricultural Machinery Factories

Cutting chassis brackets, tractor frame profiles and light truck structural parts. DC53 premium blades deliver stable service life for continuous light alloy and medium steel processing.

Steel Service & Metal Processing Centers

Custom length cutting of all standard steel profiles for wholesale metal distributors. Four-sided usable cutting edges maximize cost efficiency for batch processing orders.

General Job Shops & Small Fabrication Workshops

Compatible with all mainstream small tonnage hydraulic ironworkers (Q35Y, GEKA, Scotchman). Standard OEM interchangeable sizes without custom modification required.

Frequently Asked Questions About Ironworker Shear Blades

1. Which material grade should I choose for my ironworker shear blades?

AISI D2 is the standard universal grade for general mild steel cutting up to 12mm thickness. Select H13 for heavy thick plate, hot shearing and high shock load working conditions. DC53 is recommended if you need balanced high toughness and maximum wear resistance for contaminated raw steel with scale or weld slag.

2. Are your shear blades direct OEM drop-in replacements for Geka, Scotchman and Peddinghaus machines?

Yes. Our blade database covers all mainstream global ironworker brands including Geka, Peddinghaus, Scotchman, Sunrise, Kingsland, Edwards, Marvel, Harsle and all Q35Y series Chinese hydraulic ironworkers. All mounting hole positions and overall dimensions strictly match original OEM drawings for zero-modification installation.

3. What dimensional tolerance can your CNC ground blades achieve?

Standard finished tolerance is ±0.02mm via high-precision CNC grinding, we also support customized ultra-precision grinding up to ±0.01mm for strict tolerance fabrication projects. Flatness is controlled within 0.02mm per 300mm blade length.

4. How many usable cutting edges do flat bar shear blades have?

Our flat bar shear blades feature four fully ground usable cutting edges. Once one edge dulls, simply rotate the blade 90 degrees to expose a fresh sharp edge, quadrupling service life before resharpening is needed.

5. How can I send you specifications for custom blade production?

You may provide your machine brand + tonnage model, original blade dimension drawings, physical sample photos or old blade measurements (length, width, thickness and bolt hole spacing). Our engineering team will confirm drawings within 24 working hours.

6. How long is the production lead time for standard and custom blades?

Standard universal size blades are in stock for immediate shipment. Custom reversed-engineered blades take 7–10 working days from drawing confirmation to finish production and inspection.

Get a Quote for Universal Ironworker Shear Blades

Reach out to ALAS to source custom ironworker shear blades tailored to your fabrication demands. Our professional engineering team offers free material grade consultation, custom drawing development, and competitive factory quotations delivered within 24 hours via email or WhatsApp.
