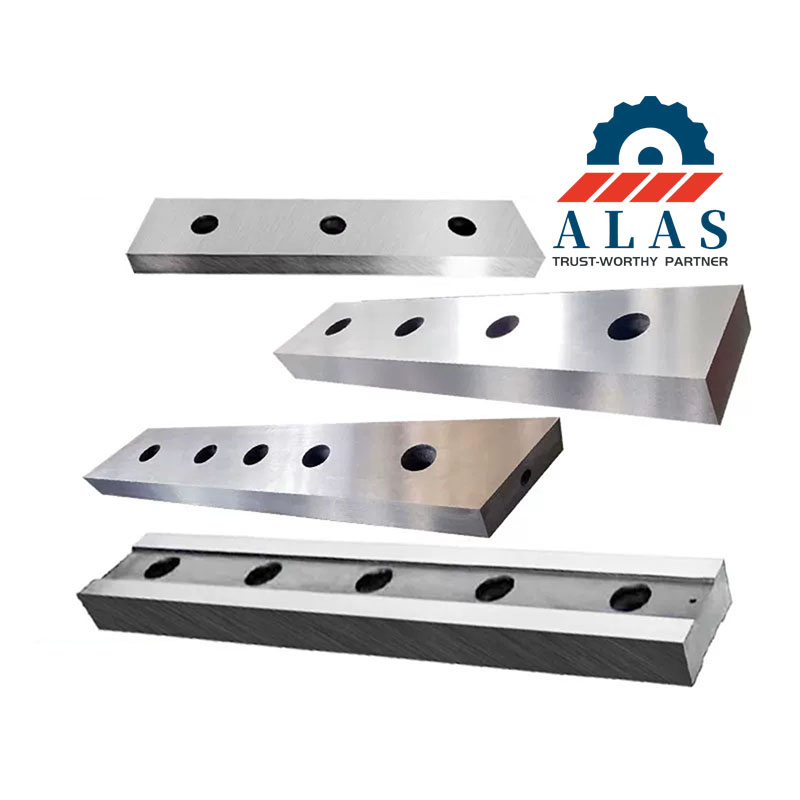

Standard OEM Replacement Alligator Shear Blades & Knives

Premium replacement alligator shear blades for cold shearing in scrap recycling, structural demolition and industrial waste processing. Fully interchangeable with standard Q43 series hydraulic alligator shears, direct drop-in installation for new and old equipment, no on-site modification needed.

1. Applications & Field Performance

Engineered for continuous high-frequency shearing under heavy peak loads. Resists edge chipping and early cracking when cutting:

• Structural Steel: Channel iron, I-beams, heavy steel plates, vehicle frames

• Rebar & Rail: High-tensile rebar, round bars, railway tracks

• Non-Ferrous Metals: Large aluminum extrusions, copper busbars, heavy cable scrap

2. Tool Steel Selection & Technical Specifications

2.1 Material Performance Matrix

2.2 International Equivalent Reference

3. Vacuum Heat Treatment & Edge Preparation

Hardness Calibration: Digitally controlled vacuum quenching and multiple tempering cycles eliminate internal residual stress, optimizing microstructural consistency for heavy cyclic cutting.

• H13 / X45: Calibrated to 50–55 HRC to maximize dynamic impact energy absorption and prevent structural distortion under peak loads.

• 6CrW2Si / Premium Cold Work: Precision hardened to 54–59 HRC for maximum abrasion resistance while preserving sufficient core fracture toughness to avoid brittle failure.

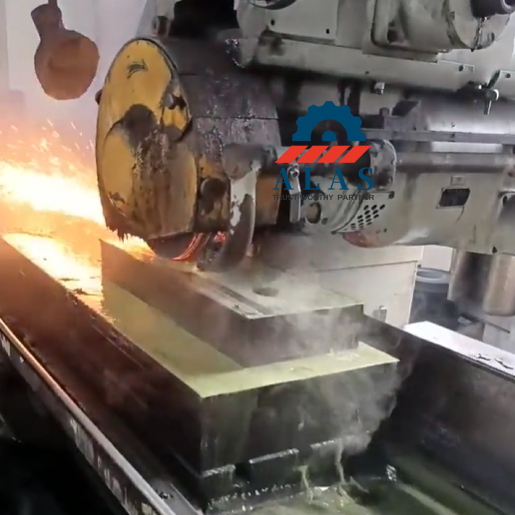

Zero Decarburization: All cutting edges undergo precision grinding post-heat treatment to completely remove the soft decarburized layer. 100% rated sharpness out of the box.

4. Precision Machining Tolerances

Tolerance design accommodates worn, rusted or slightly deformed blade seats on old hydraulic shears to guarantee perfect fit:

• Thickness: -0.05 mm ~ -0.15 mm (negative tolerance). Avoids jamming; fits corroded blade slots without on-site grinding.

• Flatness & Straightness: ≤ 0.10 mm per meter. Ensures full contact surface and uniform stress after bolt tightening.

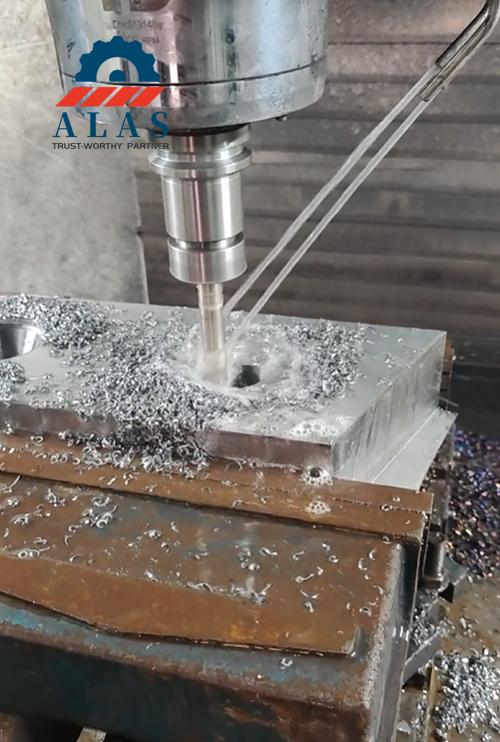

• Bolt Hole Pitch: ±0.20 mm. Compensates minor thermal deformation or frame offset on aged shear heads.

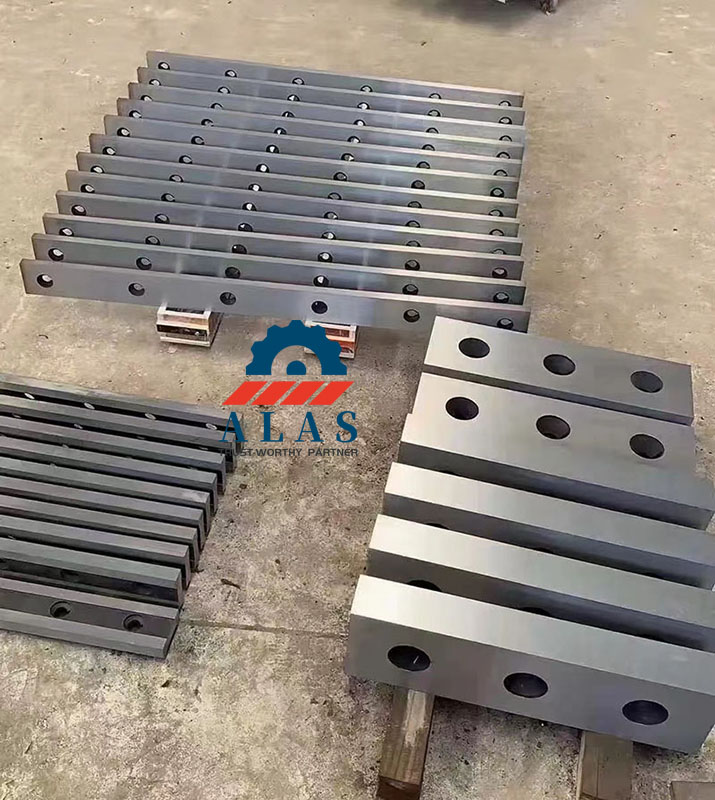

5. Standard Sizes & Material Recommendations

6. Quality Control & Ordering

100% Inspection: Every batch passes chemical composition verification, HRC hardness test and dimensional inspection to avoid on-site failure.

Commercial Support: Bulk orders and custom blade dimensions available. Contact our engineering team for material selection consultation and technical support.

7. Frequently Asked Questions (FAQ)

Q1: Why do these blades feature a negative thickness tolerance (-0.05 mm to -0.15 mm)?

A: Extended impact operation inevitably causes rust, scaling, and minor deformation within the shear's blade seat. Blades machined to zero or positive tolerances frequently bind during installation. This engineered negative tolerance ensures a smooth drop-in fit into worn or corroded knife holders without requiring time-consuming on-site grinding, while maintaining standard safe cutting clearance once fully torqued.

Q2: Which steel grade is recommended for high-volume, continuous rebar shearing?

A: Premium Cold Work Steel (7Cr7Mo2V2Si) is the optimal choice. Unlike standard alloys that dull or chip under high-frequency compression, this grade balances high yield strength with excellent edge-retention. Calibrated to a stable 56–59 HRC, it effectively prevents micro-chipping and edge collapse during continuous, heavy-duty rebar and bar stock processing.

Q3: Why are heavy-duty H13 and X45 blades kept at 50–55 HRC instead of a higher hardness?

A: Shearing thick structural steel, railway tracks, and heavy HMS scrap generates extreme, instantaneous shock loads. Under these conditions, catastrophic splitting—not abrasive wear—is the primary cause of blade failure. Hardness ratings above 60 HRC increase material brittleness, leading to sudden fractures under peak impact. Tempering H13 and X45 to 50–55 HRC maximizes fracture toughness and impact energy absorption.

Q4: Will these blades fit legacy equipment with slight bolt hole drift?

A: Yes. The bolt hole center pitch tolerance is tightly controlled within ±0.20 mm. This parameter matches the factory-reserved clearance of standard Q43 shear heads, compensating for minor structural drift, thermal expansion, or frame shift on aging machinery to guarantee 100% bolt alignment.

Q5: Is any edge preparation or pre-grinding required before installation?

A: No. All cutting edges undergo comprehensive precision finish-grinding post-heat treatment to completely eliminate the soft surface decarburization layer. The blade arrives with full-rated hardness and cutting sharpness across all working edges, making it 100% ready for full-load production straight out of the box.

Q6: Do you support custom dimensions and non-standard tooling specifications?

A: Yes. In addition to standard OEM configurations, we provide full custom manufacturing services, including tailored dimensions, proprietary bolt patterns, specialized surface polishing, and targeted hardness adjustments to match unique scrap profiles or proprietary equipment.

Q7: What quality and inspection documentation is provided with shipment?

A: Every production batch is delivered with complete QC certification paperwork. This includes material composition analysis (MTR), certified HRC hardness test logs, digital dimensional inspection reports, and vacuum heat treatment charts to comply with international industrial procurement standards.
