Shear Blade Chipping Analysis: Top 5 Root Causes and Prevention

A fractured or chipped industrial shear blade stops processing operations instantly. Unlike routine abrasive edge blunting, chipping represents a sudden, structural tool steel failure. It introduces immediate safety hazards, destroys underlying backing blocks, and increases workshop operating costs.

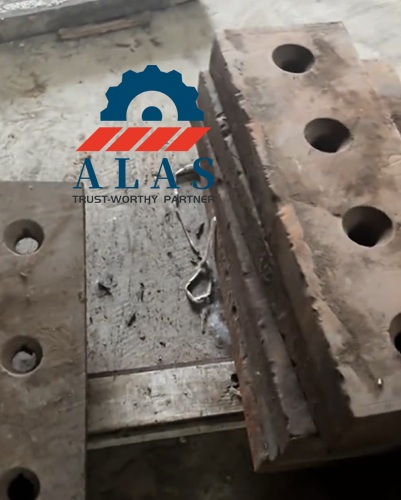

In heavy scrap recycling yards and high-frequency sheet metal stamping lines, edge fragmentation is rarely an isolated metallurgical defect. It is almost always a physical symptom of severe mismatches between tool steel alloy selection, processing tonnages, heat-treatment stress relief, and edge clearance maintenance.

Root Cause 1: Defective Tool Steel Selection and Heat Treatment

Selecting an incompatible tool steel grade or improper tempering cycle triggers premature edge cracking. Procurement teams frequently misapply high-carbon D2 or Cr12MoV as universal grades due to their high abrasive wear resistance. While D2 provides excellent edge retention during thin cold-rolled or stainless steel sheet shearing, it exhibits low fracture toughness under heavy shock. Processing thick plates, structural steel, or heavy scrap requires a total deviation from cold-work alloys to tougher hot-work or specialized nickel-alloy matrix steels.

To eliminate impact failures, tool steel chemistry and heat-treatment cycles must align directly with specific feedstock profiles:

- Thin to Medium Sheets & High Abrasion: Use D2 (W-Nr. 1.2379) or Cr12MoV (HRC 58–62) to resist abrasive wear and flank blunting. Components undergo computer-controlled vacuum hardening followed by triple tempering to fully decompose residual austenite and secure micro-structural stability.

- Thick Plates, High-Tensile Structural Steel & Heavy Scrap: Deploy H13 (W-Nr. 1.2344, HRC 50–55) or X45NiCrMo16 (W-Nr. 1.2767, HRC 52–56). X45 leverages its 4% nickel content for maximum mechanical shock absorption in dynamic knives, while H13 delivers the high core toughness required to arrest rapid crack propagation under peak high-tonnage impacts.

- Medium-Temperature (Warm) Shearing & Heavy Section Mills: Deploy H13 (W-Nr. 1.2344, HRC 50–55) for warm cropping applications up to 450°C. Application-matched high-temperature tempering ensures optimal thermal fatigue resistance and temper stability in profile section shears and billet cropping lines.

- Continuous High-Speed Hot-Rolling Mills & Hot Flying Shears: For hot-rolling lines exceeding 600°C, bypass standard cold-work and hot-work steel entirely. Utilize proprietary HMB (Hot Mill Blade) matrix steel or apply cobalt-based alloy cladding to preserve red-hardness and resist severe heat checking under cyclic thermal loads.

- High-Wear Precision Automation: Utilize Powder Metallurgy (PM) tool steels or Cemented Carbide for continuous production lines where abrasive wear dominates and impact forces are minimized through controlled material feeding.

Root Cause 2: Incorrect Blade Clearance and Material Mismatches

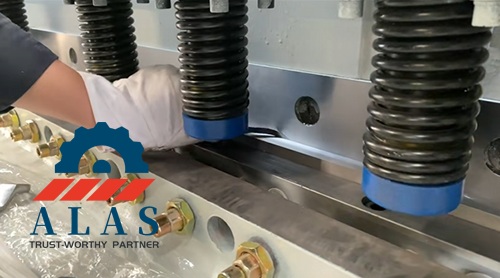

Blade clearance—the horizontal gap between the upper moving knife and the lower fixed bed blade—governs how clean the material fractures.

While excessive clearance causes sheet metal to roll over and generate heavy edge burrs, setting the clearance too tight introduces severe lateral compression and metal-to-metal friction. This bypass friction creates localized hot spots, leading to thermal stress cracks along the flank face that rapidly turn into widespread chipping.

A common floor mistake is applying a single clearance percentage across all material types. Tooling gaps must be calibrated based on the specific feedstock metallurgy and thickness:

• Mild Carbon Steel Baseline: The standard recommended blade clearance is 5% to 10% of the target material thickness. Falling below this 5% baseline creates excessive shearing resistance and flank wear.

• Stainless Steel Sheets: Due to its high tensile strength and work-hardening traits, stainless steel requires a wider clearance, typically 7% to 12% of the material thickness, combined with rigid tool settings.

• Aluminum and Soft Alloys: Highly ductile materials require a tighter clearance gap—typically 4% to 6% of the material thickness. This tight clearance ensures a clean fracture flow and prevents the soft metal from dragging, generating excessive burrs, or squeezing into the knife seat.

Running high-tensile stainless steel or thick plates on a clearance calibrated for thin carbon steel will cause an immediate overload, resulting in severe blade strike and edge chipping.

Root Cause 3: Structural Overloading and Cross-Material Misuse

Every industrial hydraulic shear or guillotine is rated for specific thresholds of material thickness and maximum tensile strength. Chipping occurs immediately when operators exceed these physical limits:

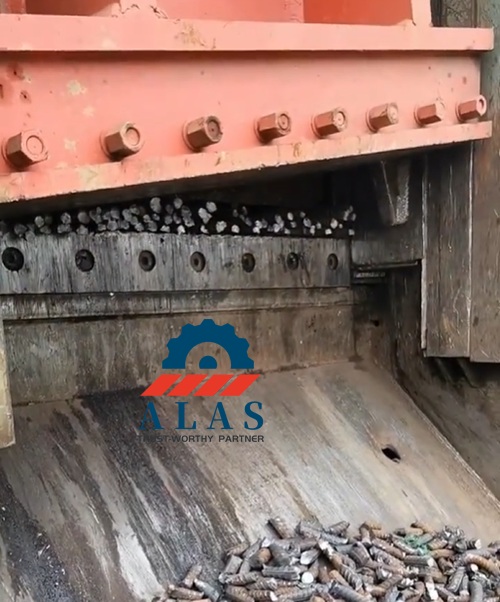

• Attempting to process high-tensile deformed rebar or alloy structures on a machine calibrated strictly for soft, mild carbon steel.

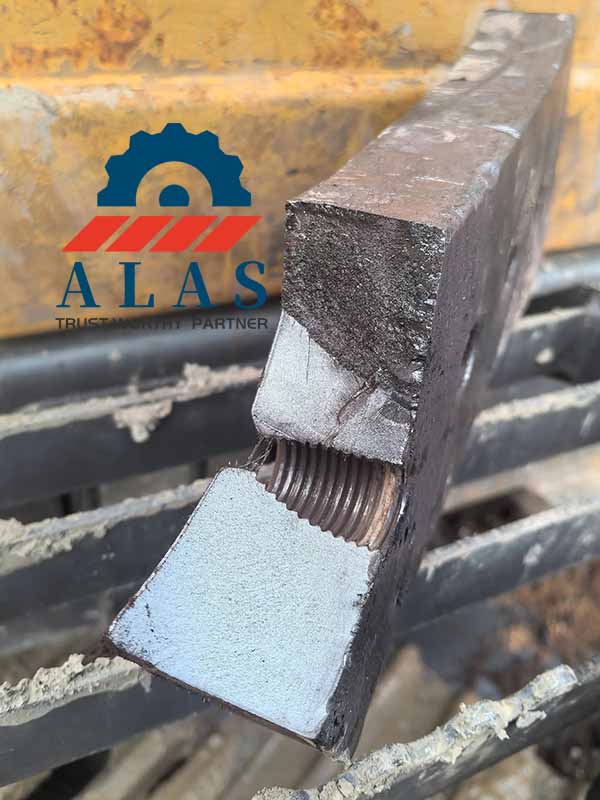

• Shearing multiple overlapping sheet layers simultaneously, which forces the metal to twist inside the blade gap, generating extreme lateral thrust that snaps bolt threads and fractures the knife edge.

• Striking hidden, non-shearable foreign contaminants embedded in scrap piles, such as hardened engine valves, high-carbon steel shafts, or concrete core shards.

Root Cause 4: Trapped Internal Stresses from Substandard Heat Treatment

The balance between cutting edge hardness and fracture toughness is critical to blade life.

Defective Manufacturing Process

Substandard manufacturing may skip essential post-roughing stress-relief annealing and instead rely on rapid, single-tempering cycles to shorten lead time and reduce cost. This can produce acceptable surface hardness readings but may leave residual stresses and insufficient toughness.

Micro-Failure Mechanism

Skipping stress-relief stages can trap residual machining stresses within the alloy matrix. Under cyclic, high-tonnage impact, these internal stresses can accelerate micro-crack propagation and contribute to deep, transverse fractures.

Procurement Quality Control

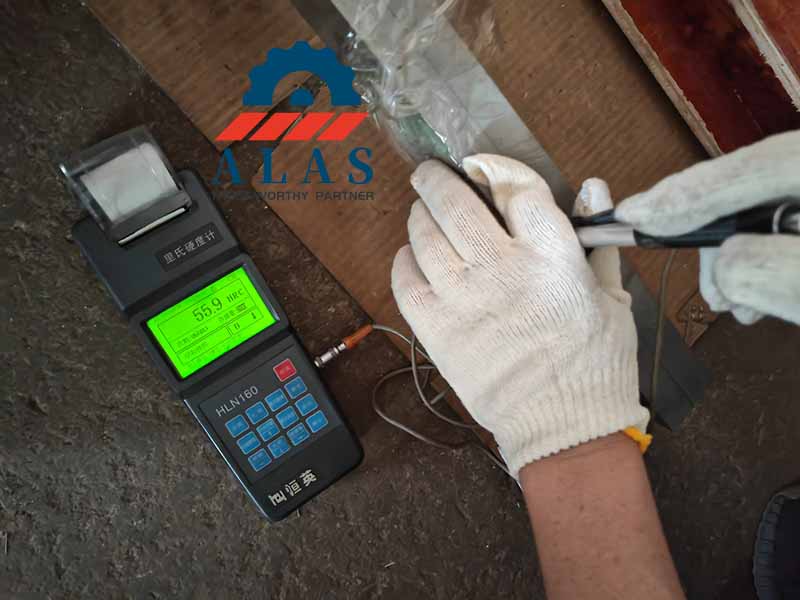

Plant managers should reject unverified tooling blanks. Sourcing protocols must require documented heat-treatment records—such as certified vacuum heat-treatment logs—and multi-point hardness verification before commissioning. Crucially, surface hardness data alone does not confirm core toughness. To guarantee long-term reliability, verified suppliers focus on premium raw material steel tracking and strict, multi-point Rockwell hardness control to ensure uniform structural density before shipment.

Root Cause 5: Pocket Debris Contamination and Clamping Imbalances

Even a premium tool steel blade will chip if its supporting bed or machinery pocket is compromised:

The Localized Fulcrum Effect: If iron oxide scale, rust chips, or metal burrs are left trapped between the backup face of the blade and the machinery pocket wall during assembly, they act as localized structural pivots. Under a 100-ton cutting stroke, the blade is forced to bend over this invisible high spot, shattering the tool steel instantly.

Loose Fastener Vibrations: Reusing stretched or galled bolts prevents the assembly from holding proper clamping torque. If the blade micro-shifts inside its pocket midway through a shearing cycle, the blade alignment shifts into a destructive zero-clearance collision course.

How ALAS Engineers Chipping-Resistant Tooling Solutions

At ALAS Machinery, we manufacture industrial metal shear blades as precision structural tooling rather than consumable wear blanks. Our engineering and production workflows are structured to eliminate edge chipping at the root:

• Application-Specific Metallurgy: Based on your shop-floor operations, we match the exact alloy to your cutting conditions. For high-impact lines processing heavy structural rebar or demolition scrap, we utilize modified H13 (DIN 1.2344) or X45NiCrMo16 (DIN 1.2767) tool steels. Tempered to HRC 50–55, these grades maximize mechanical shock absorption and fracture toughness.

• Post-Roughing Stress Elimination: All custom long-strip or multi-hole blades undergo secondary stress-relief tempering after rough grinding. This step completely eliminates residual grinding stresses and prevents micro-distortion before final precision CNC surface grinding.

• Quality Control and Testing: Every production batch undergoes rigorous dimensional verification and structured multi-point Rockwell hardness mapping across the cutting edge. All shipments are backed by certified Material Test Certificates (MTC) tracking steel mill heat numbers and chemical compositions to ensure complete trace-ability.

Stop cycling through fragile, underperforming tooling. Contact our engineering department today with your CAD blueprints, worn blade samples, or equipment models for a technical review and a factory-direct quotation.
