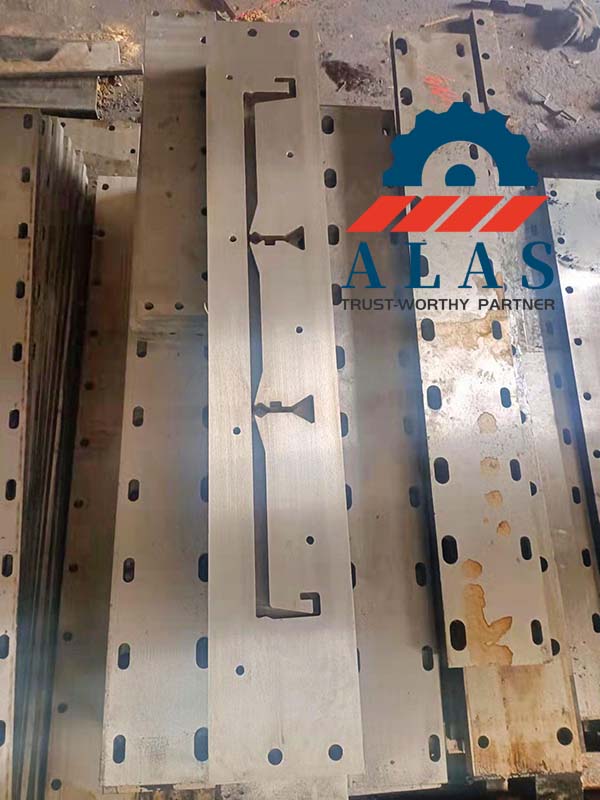

Roll Forming Machine Post-Shearing Blade Materials Selection Guide

9CrSi vs. SKD11: Choosing the Right Roll Forming Post-Shearing Blade Material

Prices for roll forming machine post-shearing blades vary drastically on the market. Grade labeling is frequently misleading. Many budget-tier suppliers label their tools as "SKD11" or "Cr12MoV" but secretly utilize 9CrSi (low-alloy tool steel) to slash manufacturing costs. Understanding the metallurgical differences between these materials explains why cheap blades dull, chip, and fail prematurely.

The Shop-Floor Reality: The nominal steel grade is only a baseline. Steel cleanliness and the heat treatment process dictate the actual service life of a blade. Poor heat treatment can reduce the lifespan of an identical steel grade by 2 to 3 times.

1. Tool Steel Breakdown: The Cost vs. Quality Trap

Group A (The Premium Target): SKD11 & Cr12MoV (The Industry Standards)

The Relation: Japanese standard SKD11 and Chinese standard Cr12MoV are peer-level alternatives. They represent the benchmark high-chromium cold work die steels used on professional shop floors.

Performance: After standard vacuum quenching and tempering, their hardness stabilizes at HRC 58–62. They handle continuous abrasive friction and repetitive profile-shearing impacts without flattening.

Application: Best suited for standard 0.3–0.8mm PPGI (pre-painted galvanized iron) and GI sheets. Under proper operational conditions, a well-tempered blade from this group yields over 1 million clean cuts before its first regrinding cycle.

Group B (The Low-Quality Trap): 9CrSi (The Cheap E-Commerce Material)

The Chemistry: 9CrSi is a low-alloy tool steel containing less than 1.5% chromium (Cr) and lacks essential carbide-forming elements like molybdenum (Mo) and vanadium (V). It is not a true die steel.

Performance: Quenched hardness peaks poorly around HRC 56–58. Because its chromium content is extremely low, its matrix lacks the dense alloy carbides required to maintain edge sharpness.

The Risk: 9CrSi wears down rapidly and features low structural toughness. Never use 9CrSi to cut stainless steel, high-strength steel, or heavy gauges. It dulls instantly under high tonnage, creating heavy edge burrs, sheet deformation, and localized chipping. It is commonly hidden inside unbranded, low-cost replacement blades.

Group C (The High-Spec Upgrade): D2 & Cr12MoV1 (Refined Long-Life Steels)

The Relation: American standard D2 and China's high-spec grade Cr12MoV1 are exact chemical equivalents. They feature doubled molybdenum and vanadium content compared to Group A.

Performance: This enhancement provides a much finer carbide distribution and superior core hardenability for thick, custom wave profiles. They offer exceptional resistance to edge chipping and material galling (built-up edge).

The Workshop Truth: While laboratory tests show D2/Cr12MoV1 has 2 to 3 times the wear resistance of Group A, the actual performance gap on an average shop floor is roughly 15% to 20% due to machine rigidity limits and mill vibration.

Application: Highly recommended for demanding environments, such as cutting thin stainless steel sheets, nano-insulated panels, or high-speed automated lines.

Group D (Impact Grade): 6CrW2Si (The Shock-Resisting Fighter)

Performance: A shock-resisting tool steel quenched to HRC 58–60. Thanks to tungsten (W) and silicon (Si) additions, its core trait is extreme impact toughness rather than wear resistance.

The Trade-off: Its wear resistance is significantly inferior to SKD11 or Cr12MoV. It will dull much faster, leading to heavy burrs and requiring more frequent regrinding cycles.

Application: Ideal for old mills with poor structural rigidity that suffer from frequent tool crashes. It acts as a safety backup steel to save the blade from shattering during mechanical failure.

Alternative: W6Mo5Cr4V2 (High-Speed Steel - HSS)

Quenched to HRC 62–65, its core advantage is exceptional hot hardness (red hardness). The cutting edge will not soften or anneal even during prolonged, high-frequency continuous shearing where heat builds up rapidly. It is expensive and brittle, reserved only for 24/7 continuous high-speed automated mills.

2. Application & Material Selection Matrix

3. Heat Treatment: The Main Driver of Tool Lifespan

Regardless of the steel grade selected (SKD11, Cr12MoV, D2, or Cr12MoV1), sub-standard heat treatment renders the blade useless. When operators report that a premium D2/Cr12MoV1 blade performed worse than a cheaper steel blade, it is almost always because the manufacturer skipped vacuum quenching or proper multiple-tempering cycles to save costs.

Procurement Inspection Benchmarks:

Hardness Uniformity: Verify that the hardness across the cutting edge and the core remains uniform between HRC 58–62 (for Groups A & C). Localized soft spots accelerate wear, while localized brittle zones trigger chipping.

Microstructure Check: For large-volume purchases, request metallographic reports to confirm that the carbides are fine and evenly distributed, free from severe net-like or band-like segregation. Severe carbide segregation causes internal stress concentrations, leading to tool failure.

Identify Cheap Grade Claims (The 9CrSi Trap): If an online supplier lists a D2 or SKD11 blade cheaper than standard market prices for basic Cr12MoV, the metallurgy is false. It is either low-alloy 9CrSi mislabeled or the steel has skipped proper heat treatment.

Final Maintenance Reminder:

If your mill experiences constant blade chipping, do not assume it is a material defect. First check if the slide guide gib bolts have loosened, confirm that the blade clearance is set correctly to 5%–10% of the sheet thickness, and inspect the roll former frame for structural flexing or misalignment.

4. Frequently Asked Questions (FAQ)

Q1: Can I visually distinguish a 9CrSi blade from a genuine SKD11 blade?

A: No. Visually, they look identical, but a Rockwell hardness tester cannot detect fraud either. Here is how to actually tell them apart:

1. The Hardness Flaw (Why Hardness Fails)

A Rockwell test is useless here. While 9CrSi is a lower-alloy steel, standard heat treatment easily pushes its hardness to HRC 59–64, heavily overlapping with SKD11 (HRC 58–62). You cannot catch a fake by measuring hardness.

2. Instant Field Tests (Low Cost)

• Acid Etch Test (Best Option): SKD11 contains 11%–13% Chromium (Cr) and resists corrosion. 9CrSi has only 0.9%–1.2% Cr. Apply a drop of dilute nitric acid: 9CrSi turns black within seconds; SKD11 stays clear.

• Spark Test: Touch the blade to a grinding wheel. 9CrSi throws bright, dense, exploding sparks (due to high Silicon/Carbon). SKD11 produces dark, stream-like sparks with very few bursts (due to high Chromium/Molybdenum).

3. Bulk Inspection

For large orders, a handheld XRF spectrometer (alloy gun) is the only definitive method. A 3-second scan will instantly confirm if the Chromium content crosses the 11% threshold required for genuine SKD11.

Q2: Why did my new "SKD11" blade start throwing massive burrs after only two weeks?

A: If your mechanical alignment is correct, you likely bought a mislabeled 9CrSi low-alloy tool steel blade or a blade that underwent a skipped tempering process. 9CrSi rounds off at the cutting edge rapidly under regular production tonnage, shifting the cutting action from "shearing" to "tearing," which creates severe, stringy burrs.

Q3: If SKD11 is superior, why did my SKD11 blade chip into pieces on the first day?

A: This is usually triggered by two main mechanical or metallurgical causes:

• Tool Collision / Incorrect Clearance: The blade clearance was not set to the required 5%–10% of the sheet thickness, causing the upper and lower blades to physically smash into each other during the downward cutting stroke.

• Defective Heat Treatment: The manufacturer skipped multiple tempering cycles during the vacuum hardening process to save production costs, leaving high residual stresses that made the refined tool steel matrix overly brittle under load.

Q4: Is it safe to regrind a post-shearing blade that has worn down?

A: Yes, but only for light edge-dressing using a fine surface grinder or a manual oilstone. You must maintain the original acute bevel angle and the exact wave profiling. Over-grinding or using an overly coarse grinding wheel without proper coolant will burn the steel matrix, lowering its hardness and ruining the matching gap clearance.

Q5: Can a 9CrSi blade be used for short, temporary production runs?

A: Yes. 9CrSi is fully capable of short runs on mild steel up to 3mm to 6mm, but it fails on high-volume efficiency due to rapid dulling.

• The Real Regrinding Interval: Under real-world 3–6mm mild steel shearing (especially with abrasive surface mill scale), a 9CrSi blade requires a regrind every 3,000 to 5,000 cuts before burrs exceed tolerance. In comparison, genuine SKD11 runs for 15,000 to 25,000 cuts before its first regrind.

• The Total Lifespan Deficit: A 9CrSi blade can only withstand 5 to 8 regrinds (yielding roughly 30,000 to 40,000 total cuts) before the edge loses its profile or develops micro-cracks under impact. SKD11 supports more re-sharpenings and survives 150,000 to 200,000 total cuts before retirement—a massive 5x operational advantage.

• The Downtime Cause: Because 9CrSi lacks the massive chromium and vanadium carbides of SKD11, its edge dulls rapidly. Once the edge rounds off, the shearing force spikes, causing severe sheet deformation and heavy burrs that force immediate line stops for blade replacement.

If your total production batch is a one-off run under 3,000 cuts, 9CrSi is the most cost-effective choice. Beyond that, the labor cost of pulling the blade for regrinding every few shifts will immediately wipe out the initial savings.
