Core Special Accessories for Prestressed Steel Bar Processing of Concrete Pipe Pile Driver
Fixed blades, movable blades, heading dies and steel bar clamps are the core special accessories for prestressed steel bar processing of concrete pipe pile drivers. They serve the entire process of blanking and cutting, end upsetting, tensioning and clamping of special prestressed steel bars for pipe piles.
The precision, material and adaptability of these accessories directly determine the quality of steel bar processing. This, in turn, affects the prestressed anchoring effect, structural strength and qualified rate of finished pipe piles—critical for minimizing downtime in fast-paced PHC spun pile plants, where machine stoppages often incur higher costs than the parts themselves.
At NANJING ALAS INTERNATIONAL CO., LTD, we focus on providing high-grade, durable reinforcement consumables that outlast standard OEM parts, ensuring seamless operation of your automated production line. We adopt premium materials including H13 tool steel and D2 cold work die steel for our core accessories, leveraging their superior performance to extend tool life and reduce downtime. These four core accessories work in coordinated cooperation with distinct division of labor, covering every link of prestressed steel bar processing to guarantee consistent production output and product reliability.

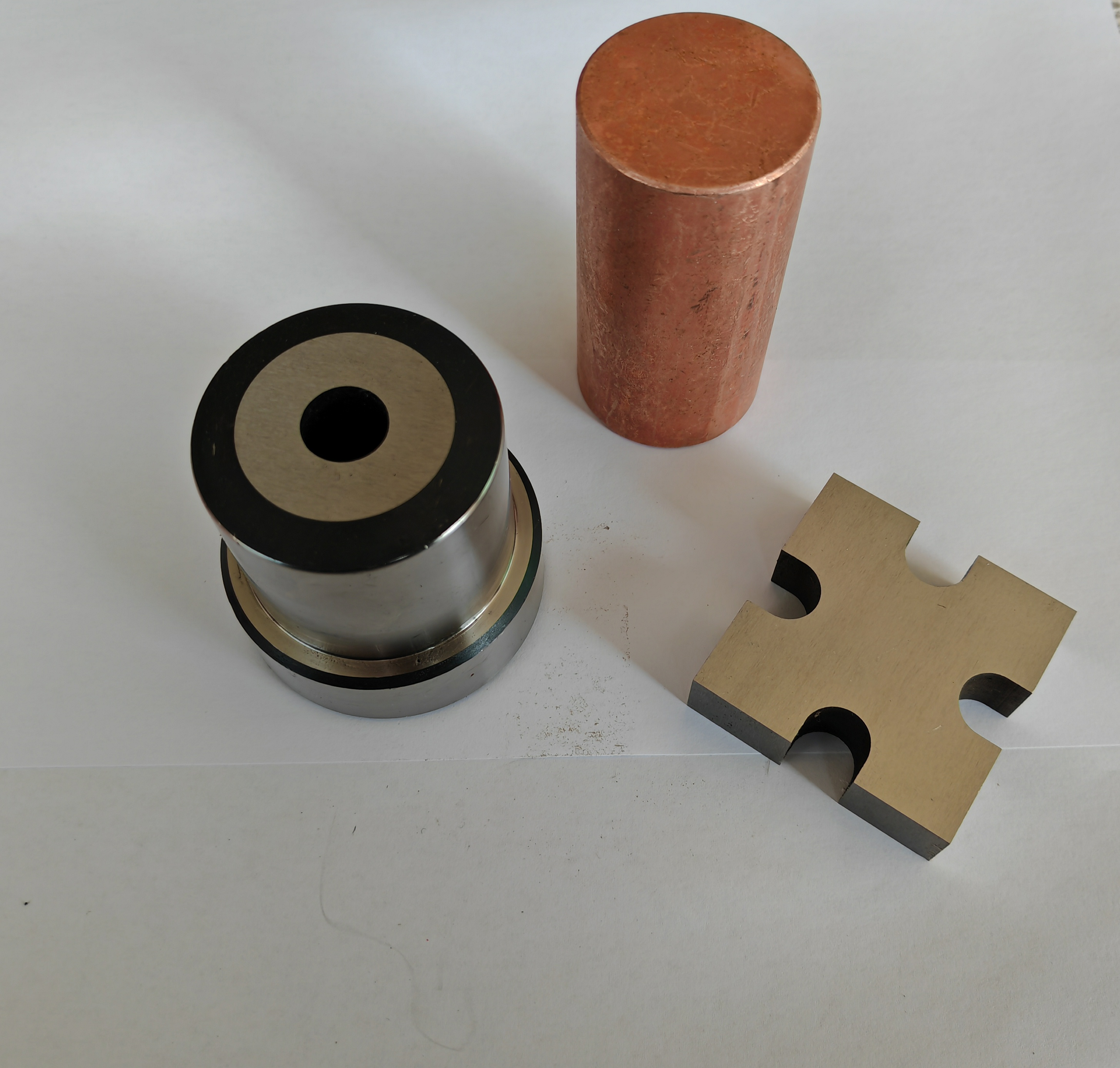

Fixed & Movable Blades: Blanking and Cutting Core Accessories
The fixed and movable blades of a pipe pile driver are special matching wear parts for steel bar cutting. Specially designed for small-diameter, high-strength prestressed steel bars (common specifications: Φ7.1, Φ9.0, Φ10.7, Φ12.6mm), they differ from general cutting tools for pipe pile blank cutting.
Engineered to withstand high-strength shearing force and continuous metal friction, these blades are key to minimizing tool replacement downtime—ensuring uninterrupted production in high-volume PHC plants.
Material Selection: D2 & H13 Premium Steel
For material selection, we prioritize high wear resistance and edge chipping resistance. Our fixed and movable blades are available in two premium options: D2 cold work die steel and H13 tool steel. Both outperform conventional materials like Cr12MoV in durability, helping reduce tool replacement frequency and downtime. Their detailed chemical composition and performance effects are as follows:
Chemical Composition & Performance of D2 Cold Work Die Steel
D2 is a high-carbon, high-chromium cold work die steel with excellent wear resistance, suitable for high-volume, high-friction cutting scenarios. Its typical chemical composition (mass fraction) and corresponding performance impacts are:
Carbon (C): 1.40–1.60% — Provides extremely high hardness and wear resistance after quenching, ensuring the blade edge maintains sharpness during long-term high-volume cutting, reducing replacement frequency.
Chromium (Cr): 11.00–13.00% — Forms dense hard carbides, significantly enhancing wear resistance and corrosion resistance, preventing premature wear caused by metal friction during cutting.
Molybdenum (Mo): 0.70–1.20% — Refines grain structure, improves hardenability and temper resistance, reducing brittleness and avoiding edge chipping under high shear force.
Vanadium (V): 0.10–0.30% — Enhances hardness and wear resistance, refines grains, and improves the dimensional stability of blades, ensuring consistent cutting precision.
After proper heat treatment, D2 steel reaches a hardness of HRC 60–64. Its exceptional wear resistance and good dimensional stability make it ideal for high-volume cutting of small-diameter, high-strength prestressed steel bars.
Chemical Composition & Performance of H13 Tool Steel
H13 is a hot work tool steel with a balanced combination of hardness and toughness, suitable for harsh cutting environments where brittle fracture is a concern. Its typical chemical composition (mass fraction) and corresponding performance impacts are:
Carbon (C): 0.32–0.45% — Provides moderate hardness and excellent toughness, balancing wear resistance and impact resistance, preventing brittle fracture during high-strength shearing.
Chromium (Cr): 4.75–5.50% — Enhances hardenability and wear resistance, forms a dense oxide film on the surface to improve corrosion resistance, extending blade service life.
Molybdenum (Mo): 1.10–1.75% — Refines grain structure, improves high-temperature strength and temper resistance, reducing thermal cracking caused by heat accumulation during cutting.
Vanadium (V): 0.80–1.20% — Further refines grains, enhances hardness and wear resistance, and improves dimensional stability, ensuring consistent cutting precision after thousands of cycles.
Silicon (Si): 0.80–1.20% — Improves hardenability and strength, enhances oxidation resistance, preventing surface damage during high-temperature operation.
Manganese (Mn): 0.20–0.50% — Promotes fine-grained structure, improves toughness and ductility, and assists in deoxidation, ensuring steel purity and avoiding internal defects.
After vacuum heat treatment, H13 steel achieves a stable hardness of HRC 58–62. Its excellent toughness and wear resistance prevent brittle fracture, extending service life in harsh cutting environments.
Blade Function & Production Value
Through the fixed support of the fixed blade and the hydraulically driven reciprocating movement of the movable blade, a precise shearing force is formed. This realizes burr-free and non-bevel cutting of PC steel bars and prestressed steel wires.
This precision ensures the blanking length of steel bars and avoids the impact of cutting defects on the adaptability of subsequent upsetting and tensioning processes—further reducing production interruptions and improving product consistency.

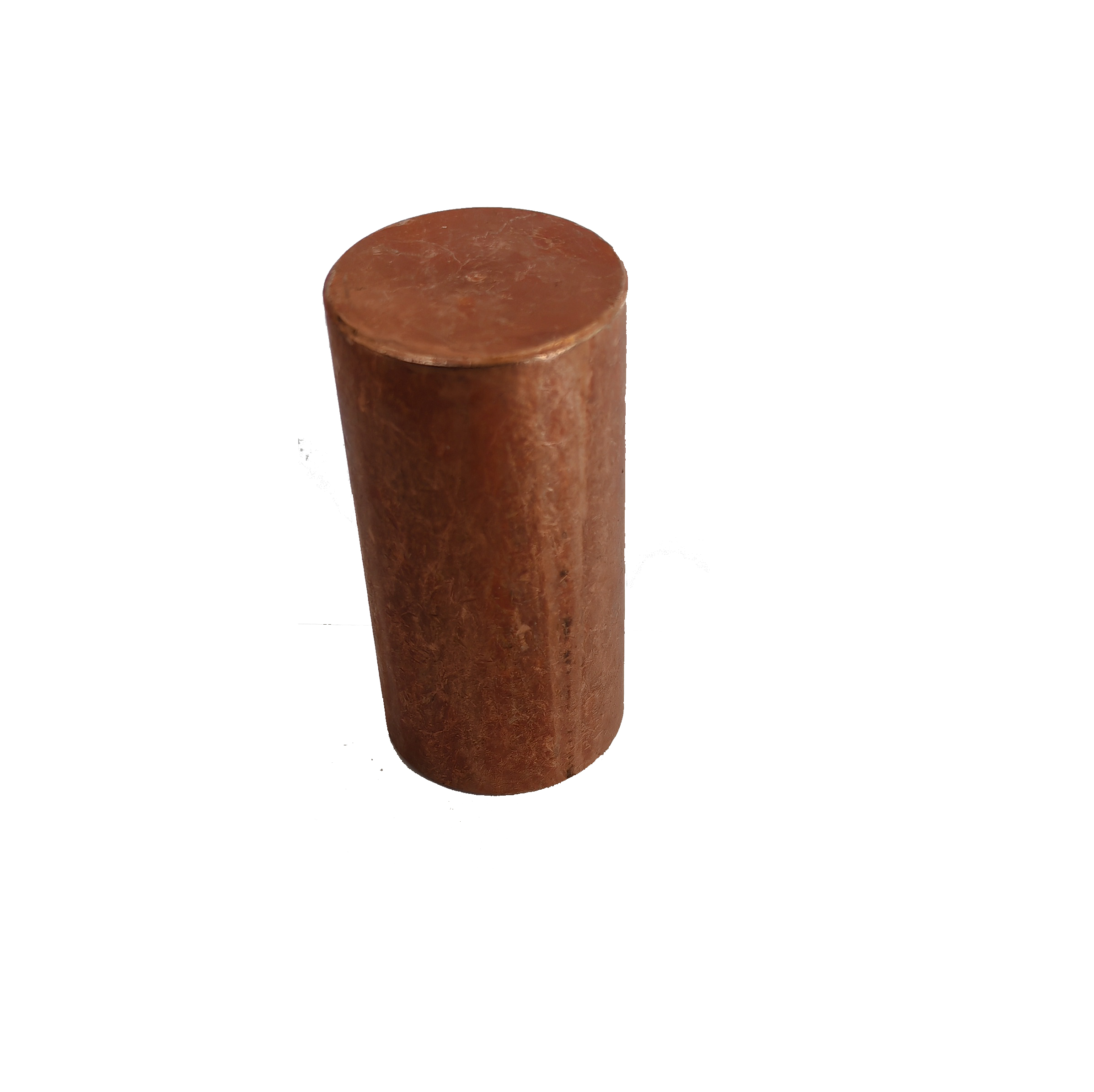

Heading Dies: Special Forming Die for Prestressed Steel Bar End Upsetting
The heading die is the core forming die of the heading mechanism of a pipe pile driver and a key accessory for prestressed steel bar anchoring. In pipe pile production, the end of the steel bar must be upset to form a regular "heading" to ensure the reliable connection between the steel bar and the anchor during tensioning.
The cavity precision of the heading die directly determines the forming quality of the heading, which in turn affects the safety of pipe pile prestress tensioning and reduces downtime caused by unqualified heading formation.
Material Selection: Consistent Premium Standards
Consistent with our high-grade material standard, our heading dies are also available in D2 cold work die steel and H13 tool steel. The selection is based on production needs to ensure optimal durability and forming precision.
Application of D2 Cold Work Die Steel in Heading Dies
D2 cold work die steel heading dies are ideal for high-volume heading operations. They leverage D2’s exceptional wear resistance and hardness (HRC 60–64) to withstand the high pressure and friction during upsetting.
The dense carbides formed by high chromium content ensure the die cavity maintains precision, avoiding deformation and ensuring consistent heading formation—reducing tool replacement downtime.
Application of H13 Tool Steel in Heading Dies
H13 tool steel heading dies are preferred for harsh upsetting environments (high pressure, frequent impact). H13’s balanced hardness and toughness (HRC 58–62) prevent brittle fracture and thermal cracking.
Its excellent dimensional stability ensures the die cavity remains precise after thousands of upsetting cycles. This is particularly suitable for processing high-tensile PC bars, where die failure would cause significant production interruptions.

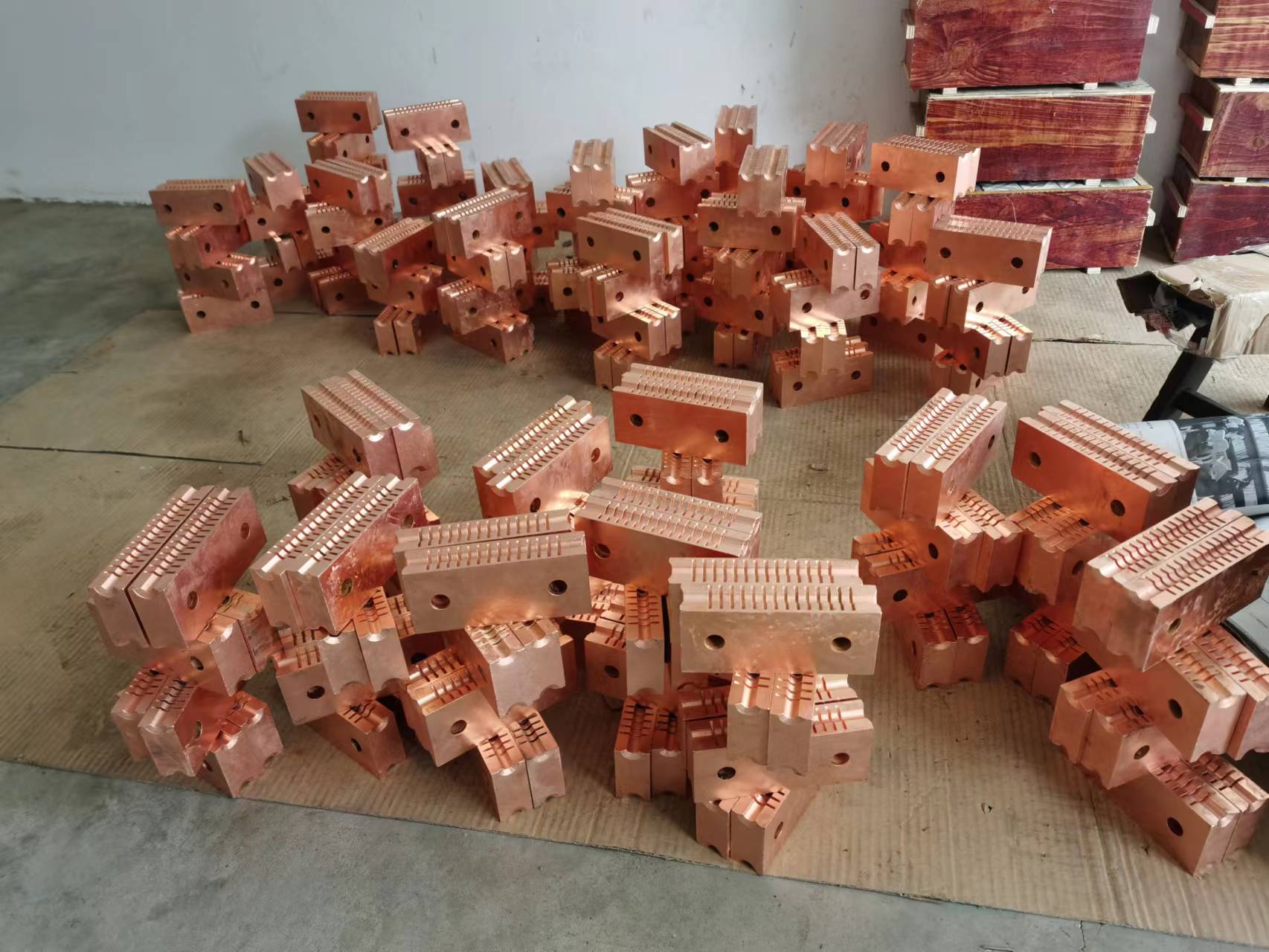

Steel Bar Clamps: Core Guarantee Accessory for Prestressed Steel Bar Upsetting Positioning
The clamp for the steel bar heading machine is an exclusive positioning and clamping accessory for the prestressed steel bar upsetting process, used in conjunction with the heading die. Its core function is to fix the steel bar and ensure the coaxiality of the steel bar and the heading die cavity.
By preventing the steel bar from eccentricity and movement during upsetting, it ensures the heading is formed round and full. As one of the key components affecting the anchoring reliability of prestressed steel bars, it avoids downtime caused by unqualified heading or steel bar slippage.
Material Selection: Aligned with Core Accessories
Our steel bar clamps adopt the same premium D2 and H13 materials as other core accessories. This ensures consistent performance across the entire processing line, maximizing production efficiency and minimizing downtime.
Application of D2 Cold Work Die Steel in Steel Bar Clamps
D2 cold work die steel clamps are suitable for high-volume, high-pressure clamping scenarios. D2’s high hardness and wear resistance ensure the clamping surface does not wear easily, maintaining a stable grip on the steel bar.
Its corrosion resistance prevents surface rust, avoiding slippage caused by surface defects and reducing clamp replacement frequency.
Application of H13 Tool Steel in Steel Bar Clamps
H13 tool steel clamps are ideal for clamping high-tensile PC bars under extreme pressure (50~200kN). H13’s excellent toughness and impact resistance prevent the clamp from cracking under high pressure.
Its dimensional stability ensures the coaxiality deviation between the steel bar and the heading die cavity is ≤0.03mm. The clamp’s smooth surface avoids steel bar surface damage and work hardening, ensuring the mechanical properties of the steel bar are not affected.
Coordinated Operation of Core Accessories & Core Value
Fixed blades, movable blades, heading dies and steel bar clamps work in coordinated cooperation with distinct division of labor. They cover every link of prestressed steel bar processing—from blanking and cutting to end upsetting and clamping.
Synergistic Advantages of Premium Materials
By adopting premium D2 and H13 materials for all core accessories, we ensure uniform durability and performance. This minimizes tool replacement downtime and production interruptions, keeping your automated line running smoothly.
Core Value for PHC Spun Pile Plants
The superior performance of D2 and H13 steel—backed by their optimized chemical compositions—ensures our accessories outlast standard OEM parts. This reduces the "cost-per-pile" and improves production efficiency.
For PHC spun pile plants, this means seamless automated operation, consistent product quality, and lower overall production costs.
Conclusion
The quality of core special accessories directly determines the efficiency and product reliability of PHC spun pile production. At NANJING ALAS INTERNATIONAL CO., LTD, our full range of prestressed steel bar processing accessories—fixed & movable blades, heading dies, and steel bar clamps—adopt premium D2 and H13 tool steel.
With optimized chemical compositions, these accessories deliver exceptional wear resistance, toughness, and precision. By choosing our high-grade reinforcement consumables, you can minimize downtime, ensure consistent production output, and enhance the structural strength and qualified rate of finished pipe piles.
