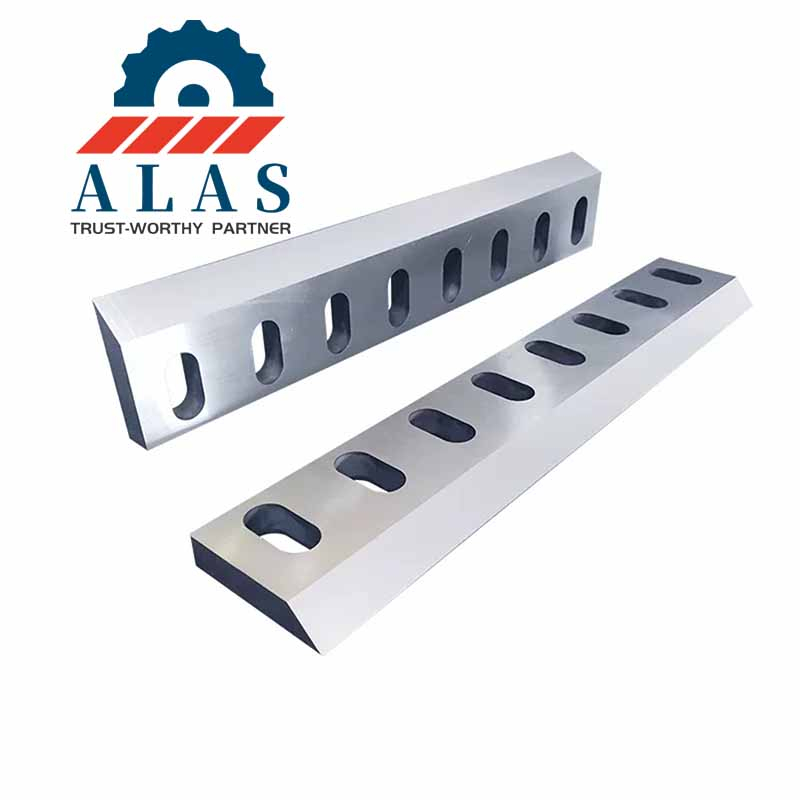

PET Bottle Granulator Knives | High-Yield Flat Crusher Blades

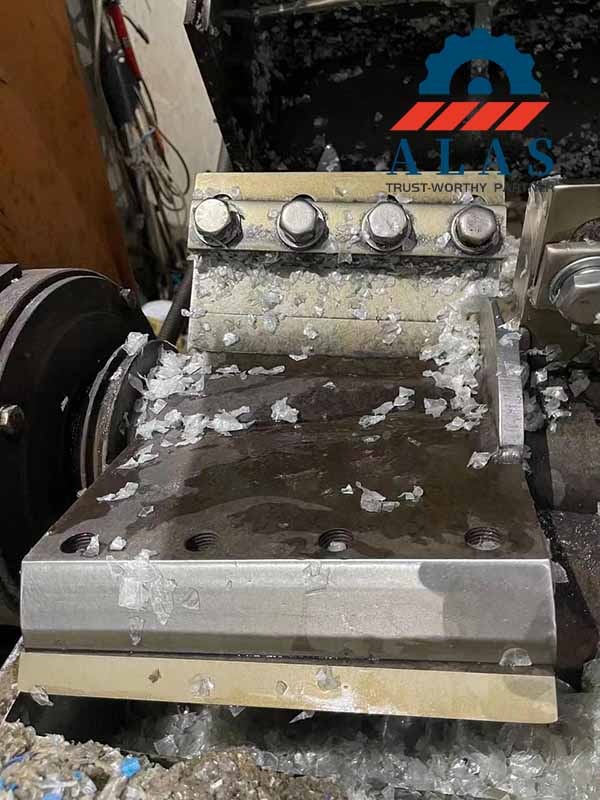

ALAS manufactures high-yield SKD11 flat granulator knives for PET water bottle, preform, and flake recycling lines. • 28% Less Dust: CNC dual-face ground edges maintain a strict 0.1mm–0.2mm shearing clearance, preventing PET melting and fines buildup. • 58–62 HRC Hardness: Vacuum heat-treated tool steel prevents micro-chipping from caps and dirty feedstock flakes. • 100% Direct Fit: Precision-machined bolt slots ensure zero-vibration compatibility with global granulator brands.
Mismatched alloy steel configurations trigger micro-crack propagation, resin thermal fusion (melting), and premature edge passivation. Align your tool metallurgy strictly with specific resin wear indexes to optimize cutting tool runtime and minimize regrind fines.
1. Metallurgical Performance Matrix
SKD11 / AISI D2 (58–62 HRC): Standard Cold-Work Tool Steel
Best For: Rigid brittle polymers (ABS casings, thick PC panels, rigid PVC profiles, PET preforms, and PET bottles).
Why It Works: High chromium carbide distribution prevents micro-abrasive erosion, sustaining a keen edge radius over high-volume continuous operations.
DC53 Matrix Steel (58–64 HRC): Heavy Shock‑Resistant Upgrade
Best For: Fiber-filled composites (FRP, glass-filled nylon), thick lumps, solid purges, and dense post-industrial waste.
Why It Works: Delivers twice the impact toughness of standard D2/SKD11 steel, completely suppressing macro-chipping and edge fracture failure modes under peak shock loads.
Best For: Flexible elastomers, clean PE stretch films, PP woven sacks, and soft polyurethane (PU) runners.

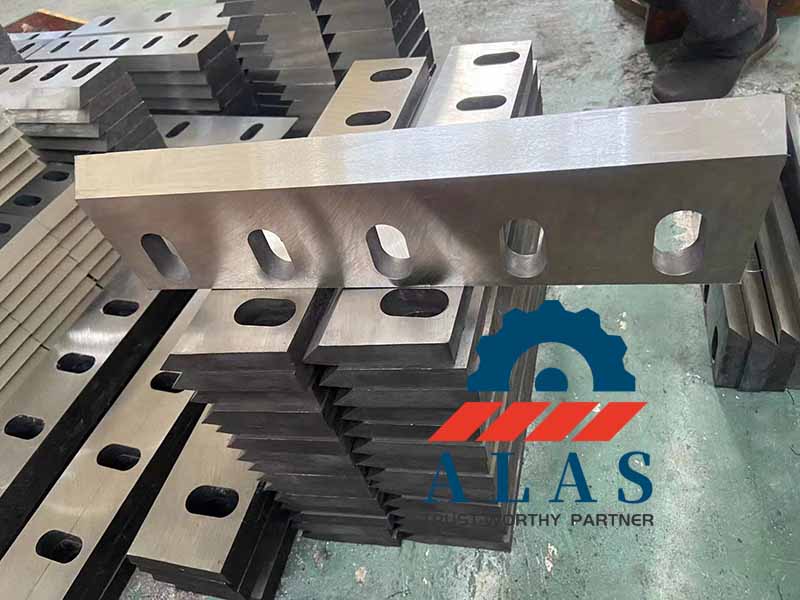

Why It Works: Fine-ground rake faces exhibit a low drag coefficient, minimizing frictional heat buildup to prevent thin films from cold-welding or wrapping around the rotor holder shaft.
2. Operational Calibration & Machining Standards
Controlled-Atmosphere Vacuum Heat Treatment: All ALAS flat blades undergo multi-stage deep-core vacuum quenching and triple tempering, guaranteeing uniform Rockwell hardness from the cutting edge face directly through to the inner core matrix without surface decarburization.

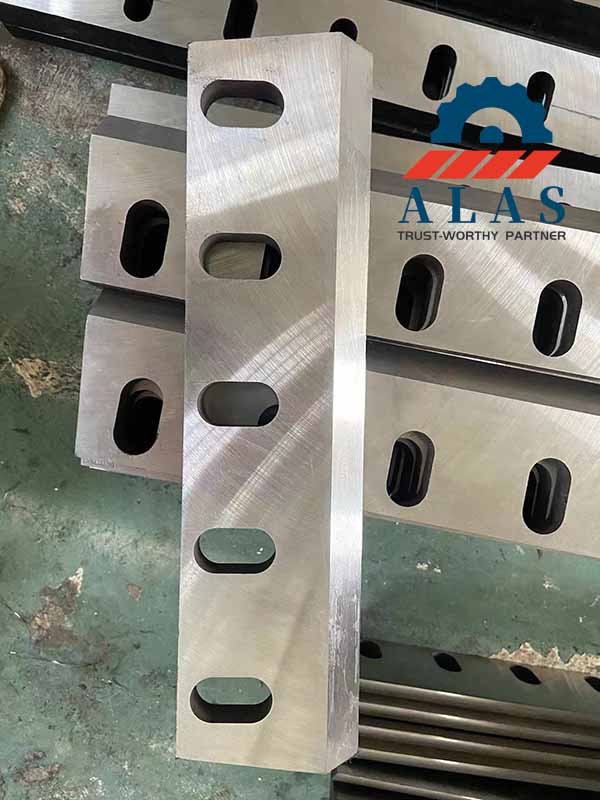

Precision Machining Tolerances: Dual-face CNC grinding limits flatness deviation strictly to ≤0.03mm to ensure seamless linear alignment across the knife bed, keeping dimensional thickness and hole-pitch tolerances within ±0.05mm.
Engineered Blade Geometry: Primary cutting angles (25°–35°) and relief angles (8°–12°) are precision-machined according to CAD blueprints, lowering mechanical shear resistance and motor load.
Q: What is the correct blade clearance (gap) for flat granulator knives?
A: Clearance calibration must strictly match the polymer's material traits.
For standard rigid plastics (PET bottles, rigid PVC), calibrate the gap between 0.2mm and 0.3mm to avoid tool collision caused by structural thermal expansion.
For ultra-thin PP/PE films, set the gap to 0.15mm–0.25mm to prevent material folding or drawing. Thick-walled profiles or heavy plastic lumps should maintain a wider clearance of 0.3mm–0.4mm.
Q: What happens if the flat blade gap is too wide?
A: The machine will tear or bounce the plastic instead of shearing it cleanly. This creates excessive friction heat, triggers local resin melting, generates up to 30% more fine dust waste, and accelerates screen clogging.
3.2 Metallurgy & Wear Lifespan
Q: SKD11 vs. DC53: Which steel is better for flat granulator knives?
A: Choose SKD11 (D2) for standard high-volume runs of clean hard plastics (PET bottles, rigid PVC) to maximize edge retention. Upgrade to DC53 if you process fiber-reinforced resins or thick-walled purges; it provides twice the impact toughness to eliminate edge micro-chipping.
Q: Why do the flat blade cutting edges chip or wear out prematurely?
A: Edge chipping indicates that either the hardness is too brittle for unexpected heavy impact loads, or tramp metal contaminants (screws, nails) entered the chamber. Rapid dulling without chipping stems from processing highly abrasive materials (like glass-filled nylon) with substandard entry-level steel.
3.3 Maintenance & Precision Sharpening
Q: How often do flat granulator blades require resharpening?
A: Maintenance cycles depend on feedstock cleanliness and abrasive indexes.
For clean PET bottle/flakes processing, perform precision resharpening every 200 to 400 operational hours.
For abrasive hard plastics (ABS/PC), a 100 to 150-hour cycle is recommended, while PE/PP films typically allow 150 to 200 hours of continuous runtime between grinds.
Sharpen immediately if you notice non-uniform granule sizing, elevated fines, or a sudden 15% spike in motor current draw.

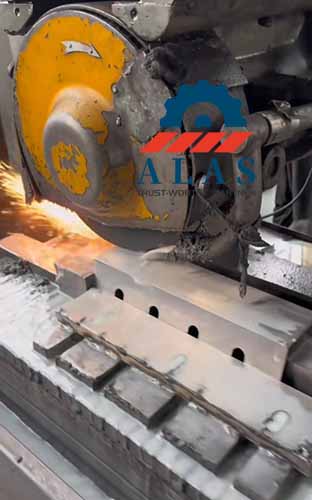

Q: What are the strict engineering rules during blade regrinding?
A: First, preserve the original factory cutting and relief angles without changing blade geometry. Second, apply continuous flood coolant throughout the CNC grinding cycle; overheating will destroy the steel temper, soften the cutting edge, and permanently degrade blade performance.
Q: Is it acceptable to replace a single damaged rotor fly knife?
A: No. Flat blades must be installed and replaced as a complete weight-matched set (within ±5 g). Mixing a new single knife with old worn ones causes severe rotor unbalance, leading to destructive machine vibration and main bearing failure.
Custom CNC Machining Support: We provide full custom blade manufacturing according to your technical drawings, CAD blueprints, or worn physical samples. All mounting hole layouts, shoulder offsets, and slot pitches are machined to OEM coordinates.
OEM Brand Compatibility: 100% direct-fit replacement blades compatible with mainstream global size reduction equipment brands, including Herbold, Cumberland, Zerma, Rapid, Wittmann, Conair, and Alpine.

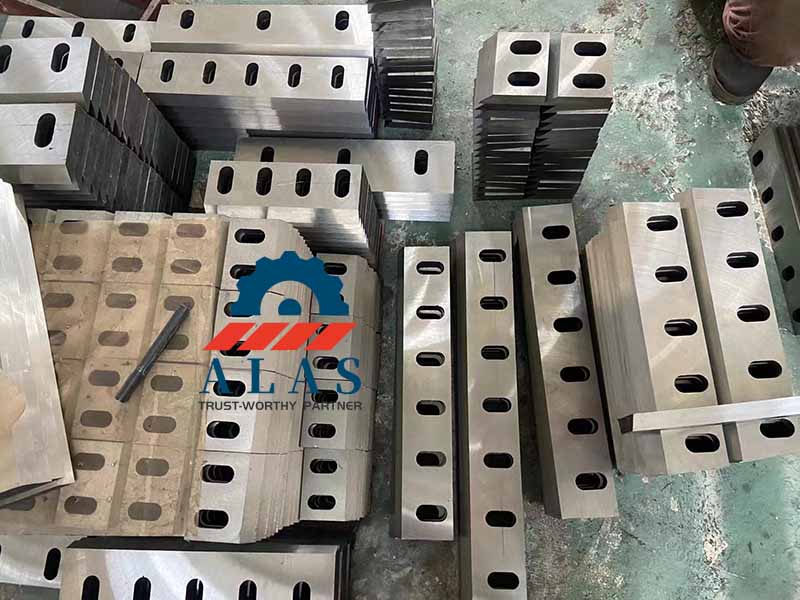

Production Lead Time & MOQ: Minimum Order Quantity (MOQ) starts at 10 pieces per specification to optimize vacuum heat treatment batch efficiency. Standard specifications ship directly from stock; customized non-standard blade production requires 15 to 25 working days.
Export Packaging & Anti-Rust Logistics: All blades are coated with heavy-duty anti-rust surface oil, film-sealed against moisture, cushioned individually with shock-absorbing foam, and packed inside robust, seaworthy wooden crates lined with iron strapping.
Frustrated with Excessive Dust, Resin Melting, or Rapid Edge Chipping on Your PET Recycling Lines?
Don't let uncalibrated rotor clearances or substandard tool steel passivation ruin your PET bottle and preform flake yield. Contact the ALAS engineering team today to receive an application-matched metallurgical upgrade blueprint (Premium SKD11 Tool Steel), certified 58–62 HRC vacuum quenching verification logs, and a factory-direct wholesale quote!
Nanjing Alas International Co., Ltd. is a professional industrial tooling manufacturer focused on shear blades, bending dies, shredder blades, and custom wear parts. We offer full application engineering, material selection, setup guidance, and after-sales support to global customers. Tell us your requirements, and our engineering team will provide professional solutions for blade specification, tool life optimization, and cost-effective production.
