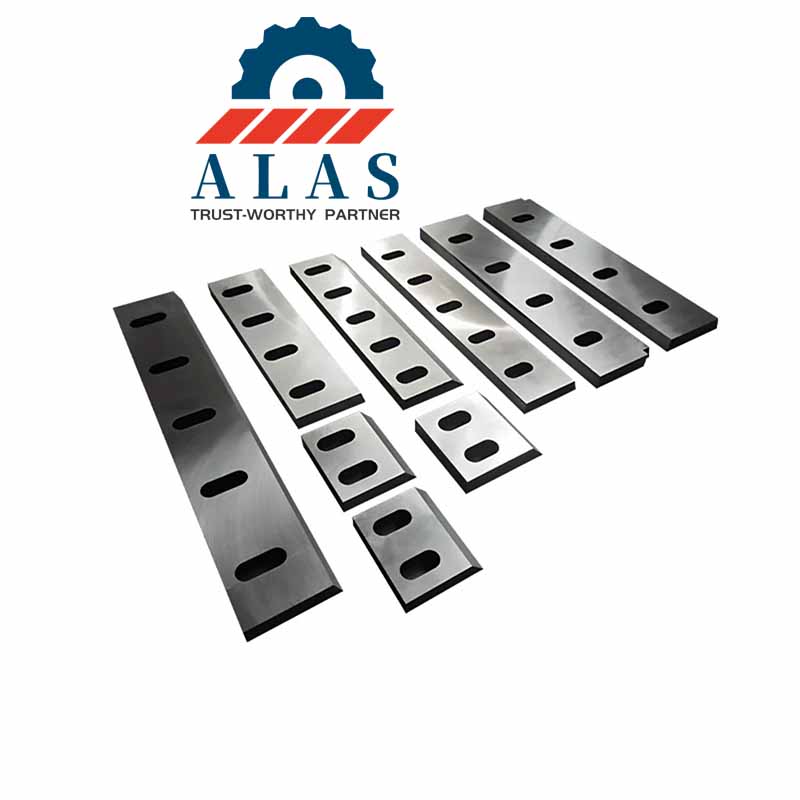

PE/PP Film Granulator Knives | Anti-Wrapping Flat Crusher Blades

1. Advanced Metallurgical & Cutting Mechanics for Flexible Polymers

ALAS manufactures high-precision 9CrSi alloy steel flat granulator knives engineered for high-speed, continuous shearing of flexible PE/PP films, agricultural sheets, and woven sacks. Flexible elastomers require definitive mechanical cleavage rather than raw impact force. Our specialized film recycling flat blades feature automated CNC-ground razor edges that deliver a clean, scissor-like shearing action under extreme cyclical loads.

2. 9CrSi Structural Specification & Hardness Verification

To eliminate common failure modes like film wrapping and edge rounding, our metallurgy balances chemistry and core-to-surface heat treatment:

• Chemical Composition Optimization: Formulated with 0.85%–0.95% Carbon, 1.20%–1.50% Chromium, and 1.00%–1.30% Silicon to secure sharp edge retention and resilient structural toughness.

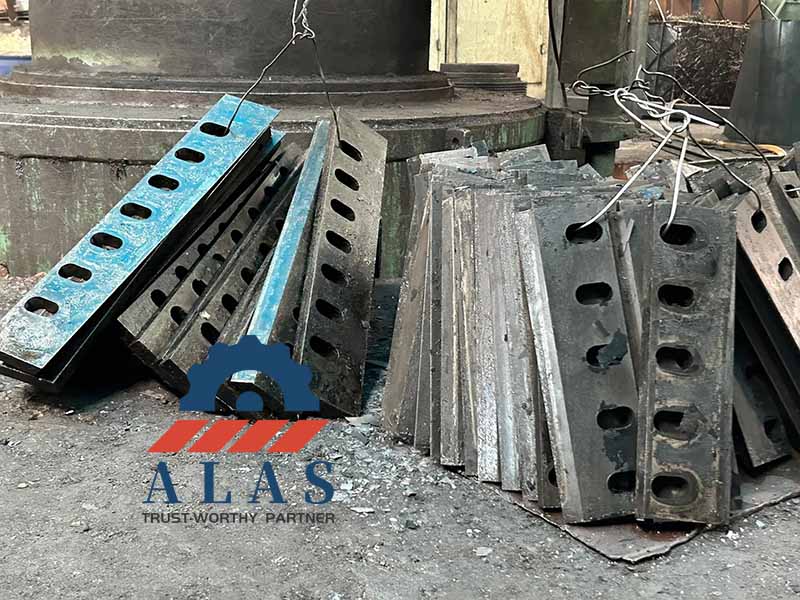

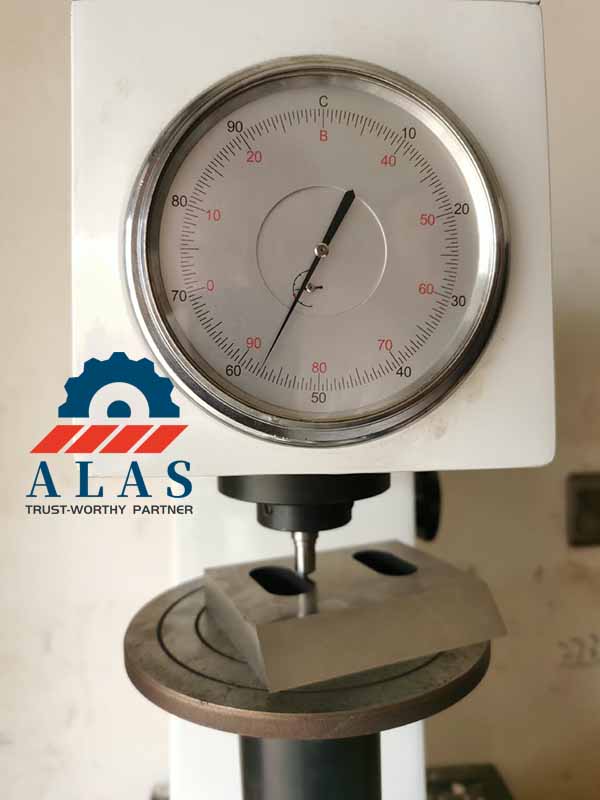

• Vacuum Quenching Profile: Multi-stage computer-controlled vacuum oil quenching yields a uniform martensitic grain matrix, sustaining a stable core hardness of 55–58 HRC without surface decarburization.

• Anti-Friction Shearing Dynamics: The high-silicon alloy base delivers superior elasticity and structural bend resistance, reducing chipping risks inside high-volume feeding hoppers. Dual-face fine-ground rake faces exhibit a minimal friction coefficient, suppressing localized temperature spikes to prevent low-melting-point soft polymers from sticking to the knife edge.

3. Standard Model & Dimension Reference Matrix

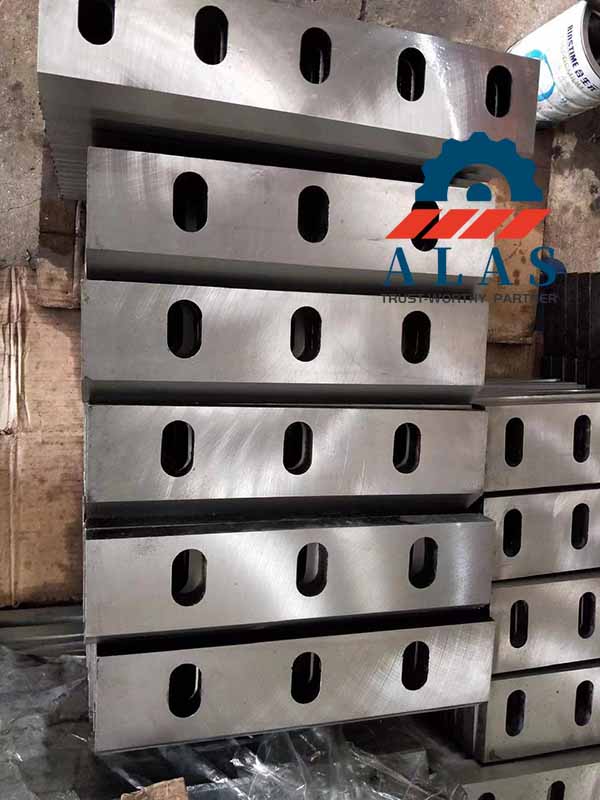

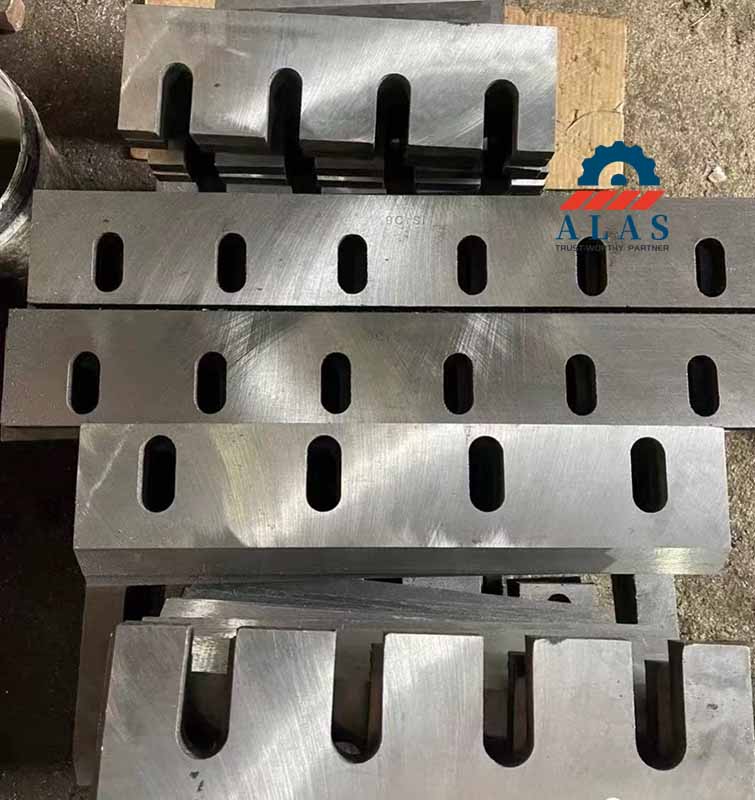

Note: Flatness deviations are strictly controlled within ≤0.05mm via dual-face automated CNC surface grinding. Custom mounting coordinates and specific bevel geometries are available matching OEM drawings.

4. Operational Guidelines & Troubleshooting FAQ

Q: Why does flexible plastic film melt and stick to the granulator flat blades?

A: Dull cutting edges or a clearance gap wider than 0.25mm will tear and stretch the film instead of shearing it. This mechanical pulling creates massive friction heat, driving the chamber temperature past the polymer's melting point. The soft plastic then fuses to the blade edge, causing instant screen clogging.

Q: When should film-processing knives be resharpened or replaced?

A: Sharpening cycles and tool lifespan depend on feedstock cleanliness and wear metrics:

• Sharpening Trigger: Grind or rotate the blades immediately if the edge blunt radius exceeds 0.1mm, a 15% current spike occurs, or the output flakes show strings and ragged tails.

• Operating Hours: Inspect edges every 150–200 hours when processing dirty post-consumer films (containing sand or soil). For clean in-line factory film scrap, extend the run to 300–500 hours.

• Regrinding Limits: Flat blades endure 3 to 5 precision regrinds. Beyond this, the tempered case layer wears away, or tool thickness drops below safety limits, requiring a complete weight-matched set replacement.

Q: How do you set the cutting clearance gap to prevent thin film folding?

A: Isolate the machine with standard Lock-Out, Tag-Out (LOTO) protocols and clean the blade seats. Secure the stationary bed knife to the housing frame first. Advance the rotor fly blades and use a feeler gauge to set the cold clearance strictly at 0.15mm–0.25mm across the entire knife bed.

• Thermal Expansion: Running friction reduces the operational gap by 0.02mm–0.05mm. Always recheck the clearance with a feeler gauge after a 10-minute no-load test run.

Q: What are the installation standards for blade-to-seat fitment and locking bolts?

A: Proper fitment prevents blade shifting and cutting stress imbalances:

• Seat Tolerance: Maintain a strict back-face fitment clearance of 0.05mm–0.30mm between the blade and the machined rotor seat to stop vibration and shifting under load.

• Bolt Torque: Use a calibrated torque wrench to lock all bolts strictly to the machine manual specifications. Tighten in a progressive, diagonal star pattern to prevent tool holder skew.
