Multi-Grade Packaging Slitter Knives & Bottom Grooved Knives for Corrugated Board

The Challenge: Slitting multi-layer corrugated cardboard and abrasive containerboard causes rapid micro-abrasive tool wear. Dull knives rip and crush the corrugated fluting instead of shearing it cleanly, leading to poor box compression strength, delaminated liner edges, and frequent machine downtime.

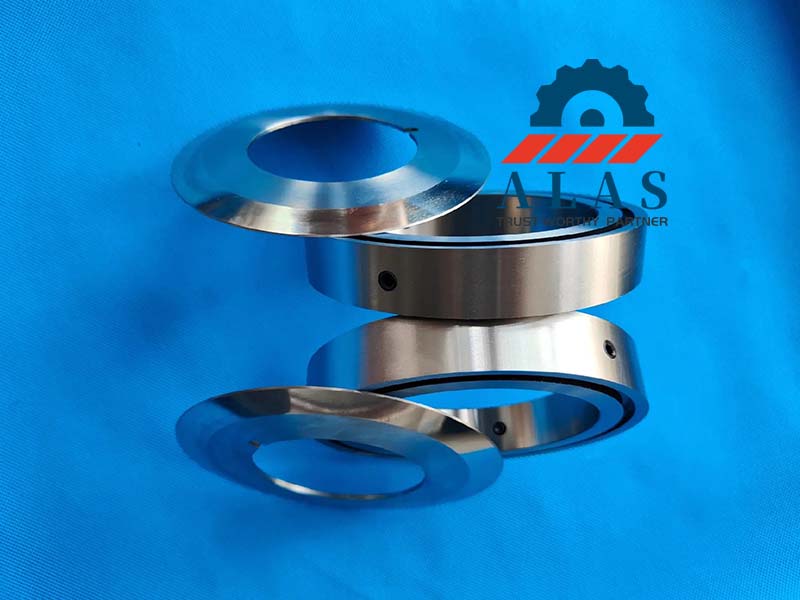

Our Solution: ALAS manufactures heavy-duty circular slitter knives and matched bottom grooved cutters forged from solid Tungsten Carbide (TCT), High-Speed Steel (HSS), and induction-hardened alloy steels. Precision-ground via multi-axis CNC machinery to hold thickness tolerances within ±0.002 mm, our tools maintain stable edge geometry on high-speed corrugators.

Applications: Multi-layer corrugated board, heavy kraft linerboard, and containerboard stock.

Operational Benefits: Minimizes dust generation, eliminates liner delamination, and ensures clean, burr-free cardboard partitioning.

2. Metallurgical Architecture: Three-Tier Material Selection

Solid Tungsten Carbide Knives (89–92 HRA) Designed for high-volume corrugated board slitting lines. Machined entirely from solid cemented carbide billets, this matrix provides maximum abrasive wear resistance and structural rigidity, extending edge sharpness up to 10x over conventional steel blades.

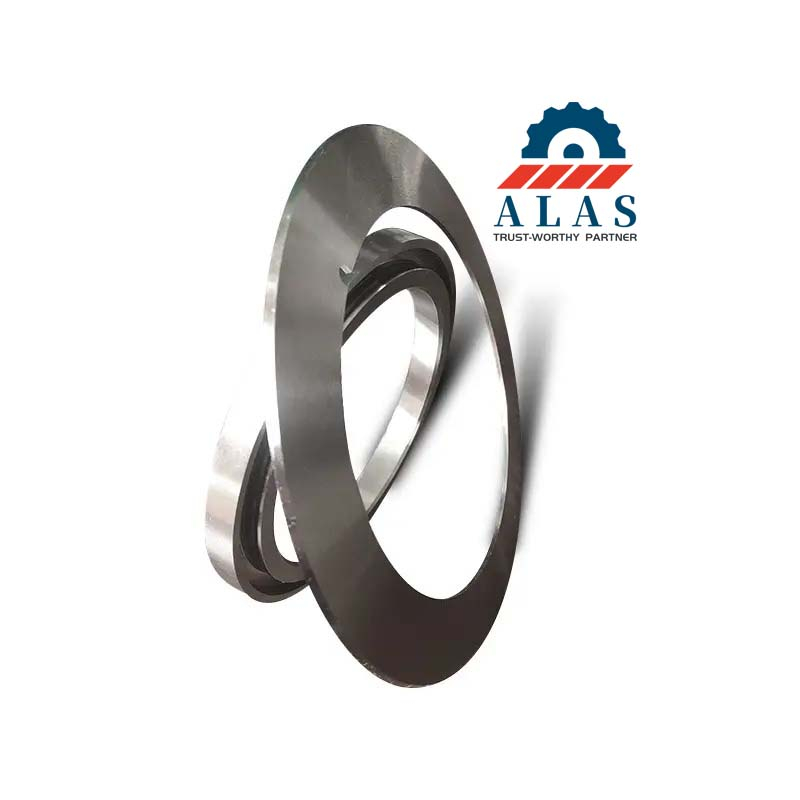

Premium Solid High-Speed Steel (62–65 HRC) Machined from uniform M2 HSS or PM HSS alloys. Optimized for high-speed automated slitting of medium-weight packaging stocks, paper liners, and lightweight cardboard, maintaining a clean cut at high production velocities.

Induction-Hardened Multi-Groove Bottom Knives (58–62 HRC) Forged from premium cold-work alloy steels with targeted induction hardening along the wear slots. These female bottom knives work in synchronized shear pairs with upper slitter blades to maintain rigid gap alignment.

3. Precision Geometrical Tolerances

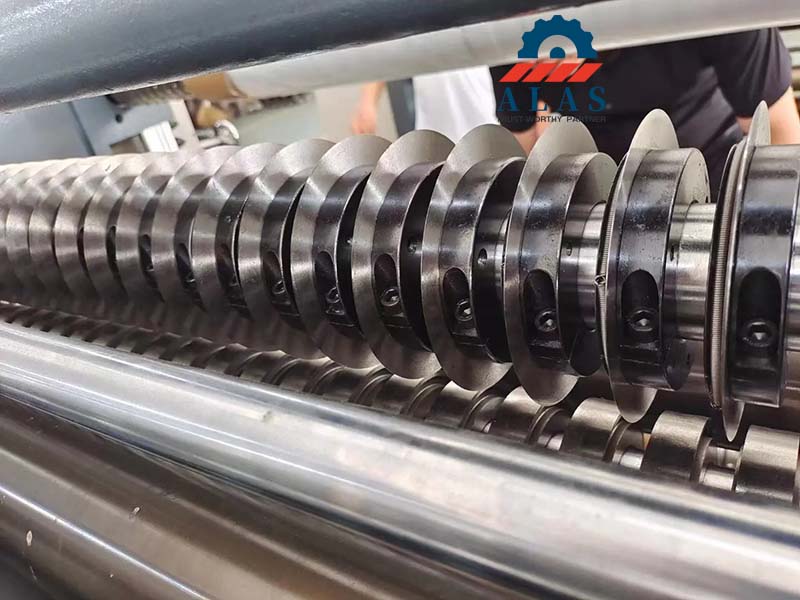

ALAS controls geometric tolerances using advanced CNC dual-axis surface grinders to ensure uniform shearing accuracy and prevent clearance drift across the spindle arbor:

• Thickness Tolerance: Within ±0.002 mm to eliminate cumulative axial stack-up errors.

• Flatness & Parallelism: Maintained under 0.002 mm to prevent high-speed knife wobble and stop cardboard corner collapse.

• Surface Finish: Ground to Ra 0.2 – 0.4 μm to balance material sliding friction with optimal rust-preventative oil film retention.

4. Packaging Line Material Selection Decision Matrix

5. Technical FAQ: Troubleshooting Packaging Slitting Lines

Q1: What causes serious edge burrs and liner delamination during corrugated board slitting?

A: Liner delamination and edge burrs are driven by horizontal clearance expansion between the upper and lower knives, or microscopic edge rolling. Coarse fibers blunt standard alloys, turning the shearing force into heavy compression. Our solid tungsten carbide knives resolve this; the 89–92 HRA matrix maintains razor-sharp edge keenness across millions of linear meters, while our ±0.002 mm thickness consistency ensures rigid gap synchronization.

Q2: When should our packaging center specify solid tungsten carbide knives versus high-performance alloy steel tools?

A: Specify solid tungsten carbide knives for automated corrugators running above 60 m/min, or when cutting heavy multi-wall corrugated lines and high-grammage linerboards where maximum edge rigidity is mandatory. Move to alloy steels or PM HSS for low-to-medium velocity lines, legacy machinery setups prone to vibration, or generic light kraft paper converting where budget limits apply.

Q3: What is the correct preventative maintenance grinding routine for solid carbide packaging knives?

A: Implement a light maintenance grind at the first sign of micro-wear. Running heavily dulled carbide tools overloads slitter shafts and causes deep micro-cracks. Follow these operational steps:

• Light Regrind: Use a premium diamond grinding wheel under continuous, high-volume flood cooling, removing only 0.01 mm to 0.02 mm of material per pass to clear the fatigue layer.

• Flank Lapping: Always follow with side-flank lapping to preserve a low-friction surface finish.

6. Manufacturing Specs, Packaging & Machinery Compatibility

Manufacturing Specifications & Setup Capabilities

To ensure direct interface with high-speed automated slitting systems, our production capacity covers the following parameters:

• Outer Diameter (OD): 100 mm – 450 mm

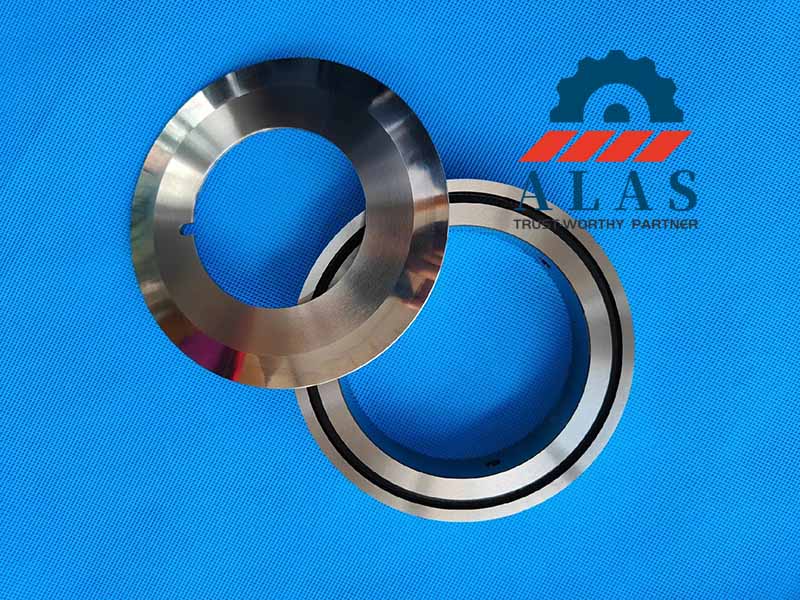

• Inner Diameter (ID): 40 mm – 300 mm (with precision standard driving keyways or single/double slots)

• Thickness Window: 0.5 mm – 15.0 mm (Thickness tolerance maintained strictly within ±0.002 mm)

Custom multiple-groove female bottom cutters, multi-segment spacers, and custom bevel angles are manufactured strictly to client blueprints.

Industrial Anti-Rust & Heavy-Duty Crating Standard

Tungsten carbide and high-speed steel components require strict moisture and impact isolation during sea freight:

• Anti-Rust Protection: Vacuum-wrapped in VCI (Volatile Corrosion Inhibitor) paper and coated with synthetic rust-preventative oil to block maritime moisture.

• Shock Isolation: Circular knives are individually secured in customized rigid plastic trays or dense foam slots to prevent tool-to-tool edge collision.

• Outer Packing: Packed in heavy-duty, ISPM-15 compliant export wooden crates with integrated desiccants and internal structural bracing.

Target Industries & Machinery Compatibility

Our heavy-duty slitting tooling integrates seamlessly across major global packaging lines and corrugated machinery setups:

• Compatible OEM Lines: Fully compatible with universal slitting arbors such as MarquipWardUnited, Agnati, BHS, Fosber, Mitsubishi, and Marquip systems.

• Applicable Feedstock: Engineered for high-efficiency processing of double-wall/triple-wall corrugated sheets, high-grammage kraft liners, recycled boxboard, and dense testliners on automated high-speed corrugators.
