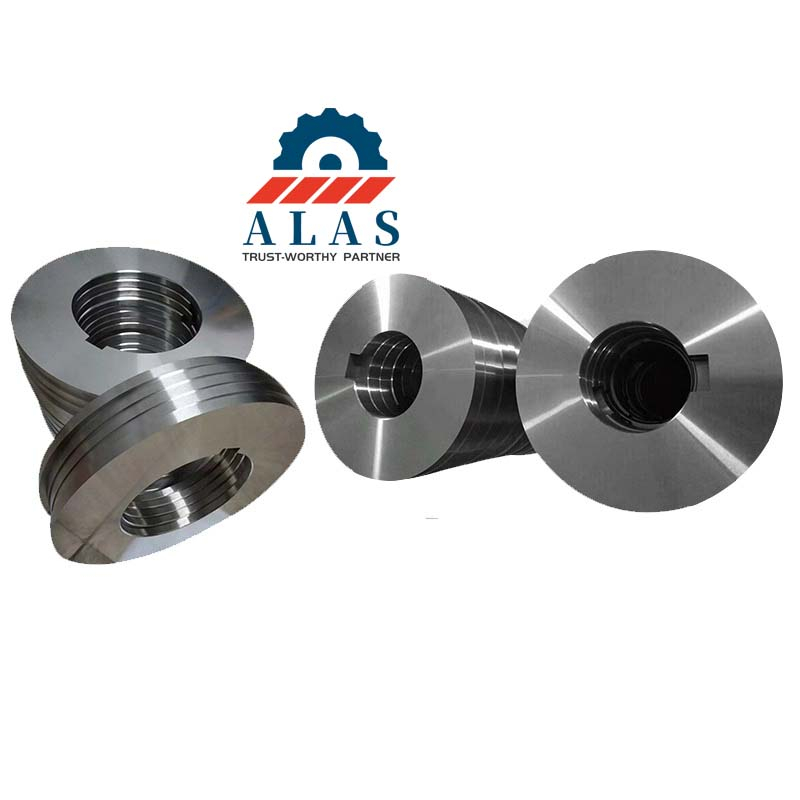

Multi-Grade Alloy Steel Rotary Slitter Knives for Metal Coil Slitting Lines

1. Material Selection & Metallurgy Grading

Successful coil slitting requires a precise balance between tool wear resistance and fracture toughness. To prevent premature edge chipping and minimize thickness deviations, ALAS provides an extensive matrix of vacuum-degassed tool steels and alloys tailored to your specific processing tensile loads:

Core Alloy Steel Grades

AISI D2 / Cr12MoV1 / DIN 1.2379 / GB Cr12Mo1V1 (58–61 HRC)
The global benchmark for slitting cold-rolled and thin-gauge steel coils. High-carbon, high-chromium metallurgy provides reliable resistance to abrasive wear, locking in sharp edge retention during high-volume production runs.

GB Cr12MoV /SKD-11 / DIN 1.2601 (57–60 HRC)
A highly cost-effective alloy steel option for daily, medium-load slitting. It balances standard structural toughness with predictable tool wear life on non-abrasive, generic steel strip stock.

6CrW2Si / DIN 1.2550 (55–58 HRC)
A shock-resistant tool steel engineered specifically for medium-to-heavy gauge steel coils from 3.0 mm to 6.0 mm. Formulated to absorb massive dynamic shear backpressure and severe impact without premature edge cracking.

DC53 (60–63 HRC)
An advanced cold-work steel with a highly refined microstructure that suppresses carbide segregation. It provides up to twice the toughness of standard D2/SKD11, drastically eliminating sudden edge chipping on heavy-impact slitting lines.

AISI M2 / JIS SKH51 / DIN 1.3343 (62–65 HRC)
High-Speed Steel (HSS) optimized for excellent red hardness. Essential for automated high-speed slitting lines running above 120 m/min, or when cutting thin stainless steel, silicon steel, and work-hardened strip that generate rapid friction heat.

AISI H13 / JIS SKD61 / DIN 1.2344 (47–52 HRC)
A hot-work alloy steel balancing structural fracture toughness with superior thermal crack resistance. Selected strictly for hot-rolled pickled band slitting or elevated-temperature metal shearing environments.

Tungsten Carbide YG15 / YG20 (89–92.5 HRA)
A cemented carbide tool selection providing up to 10x the abrasive wear life of standard tool steels. Recommended for clean, high-precision slitting of ultra-thin foils or specialized abrasive lines where metal tool steel degrades too rapidly.

2. Structural Processing Scope & Gauges

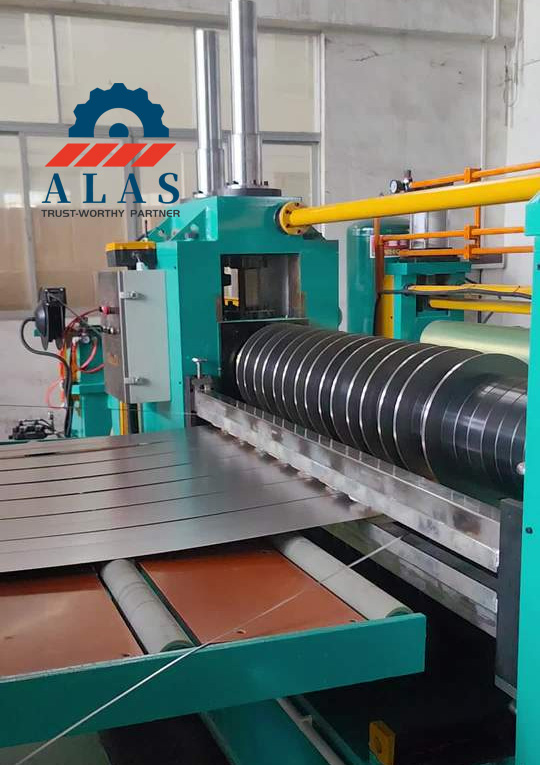

ALAS alloy steel rotary knives are dimensionally configured for standard automated slitting lines:

• Substrate Calibration Range: Continuous longitudinal slitting of carbon steel sheets, hot-rolled pickled bands, and zinc-coated steel coils from 0.2 mm up to 6.0 mm in thickness.

• Dimensional Manufacturing Scope: Outer diameter (OD) options ranging from 80 mm to 450 mm, with customized edge bevel angles configured to material tensile profiles.

• Speed Consideration: For line speeds above 200 m/min, high-speed steel grades such as SKH51/M2 are required to maintain edge hardness.

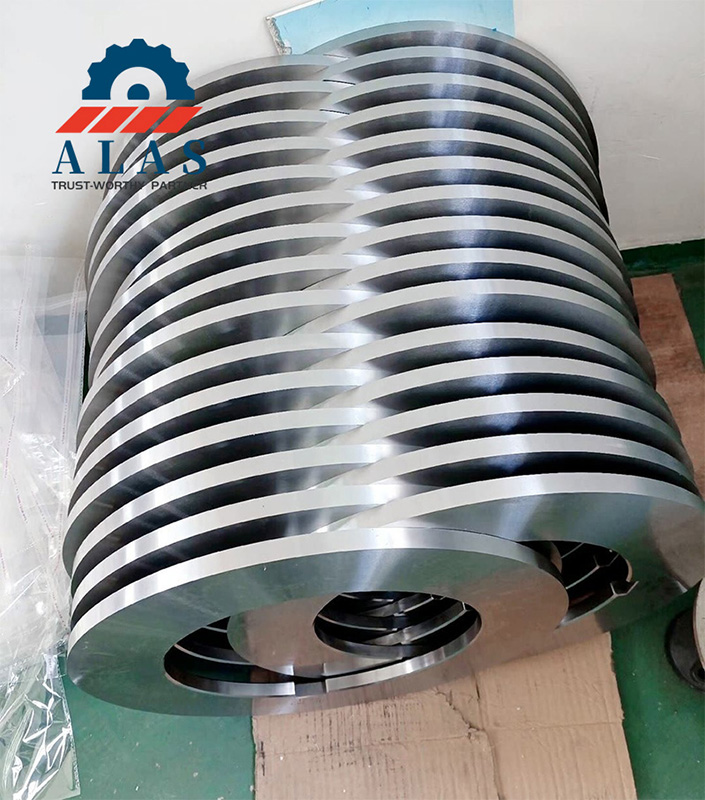

3. Precision Grinding & Geometrical Tolerances

ALAS holds strict manufacturing limits to maintain consistent horizontal clearance and ensure uniform shearing accuracy:

• Thickness Tolerance:

  Within ±0.003 mm to eliminate cumulative axial stack-up errors across the slitter arbor.

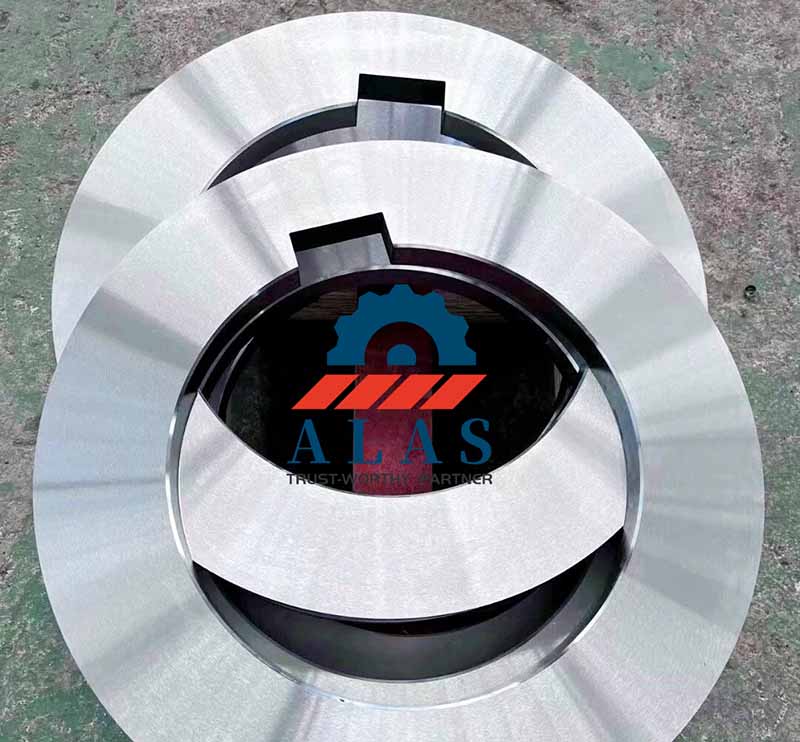

• Flatness & Parallelism: Maintained under 0.002 mm to prevent tool wobble, dynamic axial runout, and strip edge deformation.

• Surface Finish: Ground to Ra 0.2 – 0.4 μm to minimize sliding friction while optimizing anti-rust oil film retention.

4. Troubleshooting & Fault Prevention

• Rapid Abrasive Wear: For high-speed lines (>120 m/min) or abrasive strip processing, upgrade to SKH51/M2 High-Speed Steel or specify TiAlN PVD coatings.

• Edge Chipping & Cracking: Switch to shock-resistant steels such as 6CrW2Si, DC53, or H13 depending on the material gauge. Always calibrate the horizontal clearance using a feeler gauge during setup.

• Excessive Cutting Burrs: Caused by horizontal clearance expansion. Deploy knives with a strict ±0.003 mm thickness consistency to maintain rigid clearance alignment.

5. Integrated Tooling Accessories

To guarantee precise setup alignment and protect strip surfaces, ALAS manufactures matched tooling components:

• Polyurethane Stripper Rings: Oil-resistant, high-elasticity rings designed to eject slit metal strips cleanly without causing surface indentations or marring.

• Precision Steel Spacers & Shims: Forged from GCr15 or SKD61 and through-hardened to HRC 50+. Ground to a parallel tolerance within 0.002 mm to allow precise horizontal gap configuration with minimal axial deflection.

• Optional PVD Coatings: Available with TiN, TiAlN, CrN, or DLC layers to increase surface hardness, lower friction coefficients, and extend regrinding intervals by 3 to 5 times.

6. Tool Steel Grade Cross Reference

7. Material Selection Decision Matrix

8. Grade-Specific Regrinding Guidelines

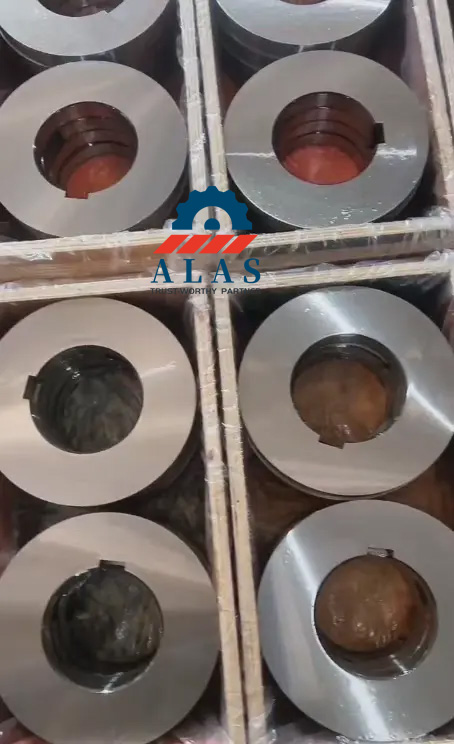

9. Anti-Rust Preservation & Heavy-Duty Export Packaging

D2 and Cr12MoV steels risk oxidation during maritime transit. ALAS uses a multi-layer protocol: anti-rust oil and VCI paper, edge protection via foam/plastic guards, and ISPM-15 wooden crates with internal bracing and desiccants.

10. Machinery Compatibility & Target Materials

Field-tested across service centers and production lines.

Target Materials & Compatibility:

For details on compatible materials (such as CRC, HRPO, GI/GA, silicon steel) and OEM machinery brands (like Primetals, SMS Group, Georg, Nishimura), please refer to the technical specifications on ALAS Website.

Technical FAQ | Multi-Grade Alloy Steel Slitter Knives

Q1: What mechanical factors cause edge burrs during carbon steel coil slitting, and how do we resolve this?

A: Burr formation is driven by horizontal clearance variances across the cutter shaft or cutting edge deformation during extended production runs. When the horizontal knife gap expands by even tens of microns, the metal strip tears instead of shearing cleanly. ALAS machines all alloy steel rotary knives via high-precision, dual-axis CNC grinders, locking thickness tolerances strictly within ±0.003 mm. This dimensional consistency minimizes axial stack-up errors on the slitter arbor, ensuring uniform knife gaps and stable shearing alignment.

Q2: How do I select the optimal tool steel grade among AISI D2, Cr12MoV, DC53, 6CrW2Si, and SKH51?

A: Material selection must match the target metal thickness, operating line speeds, and shearing resistance:

• 0.2 mm to 1.5 mm (Thin Steel / Cold-Rolled Coils): Use AISI D2 / SKD11 (58–61 HRC) or DC53 (60–63 HRC) for higher toughness. For high-speed lines running above 120 m/min, switch to SKH51 / M2 High-Speed Steel (62–65 HRC) to prevent thermal softening.

• 1.5 mm to 3.0 mm (General Purpose Slitting): Use Cr12MoV (57–60 HRC), Cr12Mo1V1 (58–61 HRC), or DC53. These grades provide a cost-effective, wear-resistant profile for standard carbon steel and galvanized web shearing.

• 3.0 mm to 6.0 mm (Medium-to-Heavy Gauge Plates): Use 6CrW2Si (55–58 HRC) or H13 (47–52 HRC). These high-shock chemistries deliver the fracture toughness required to handle heavy shearing forces without tool breakage.

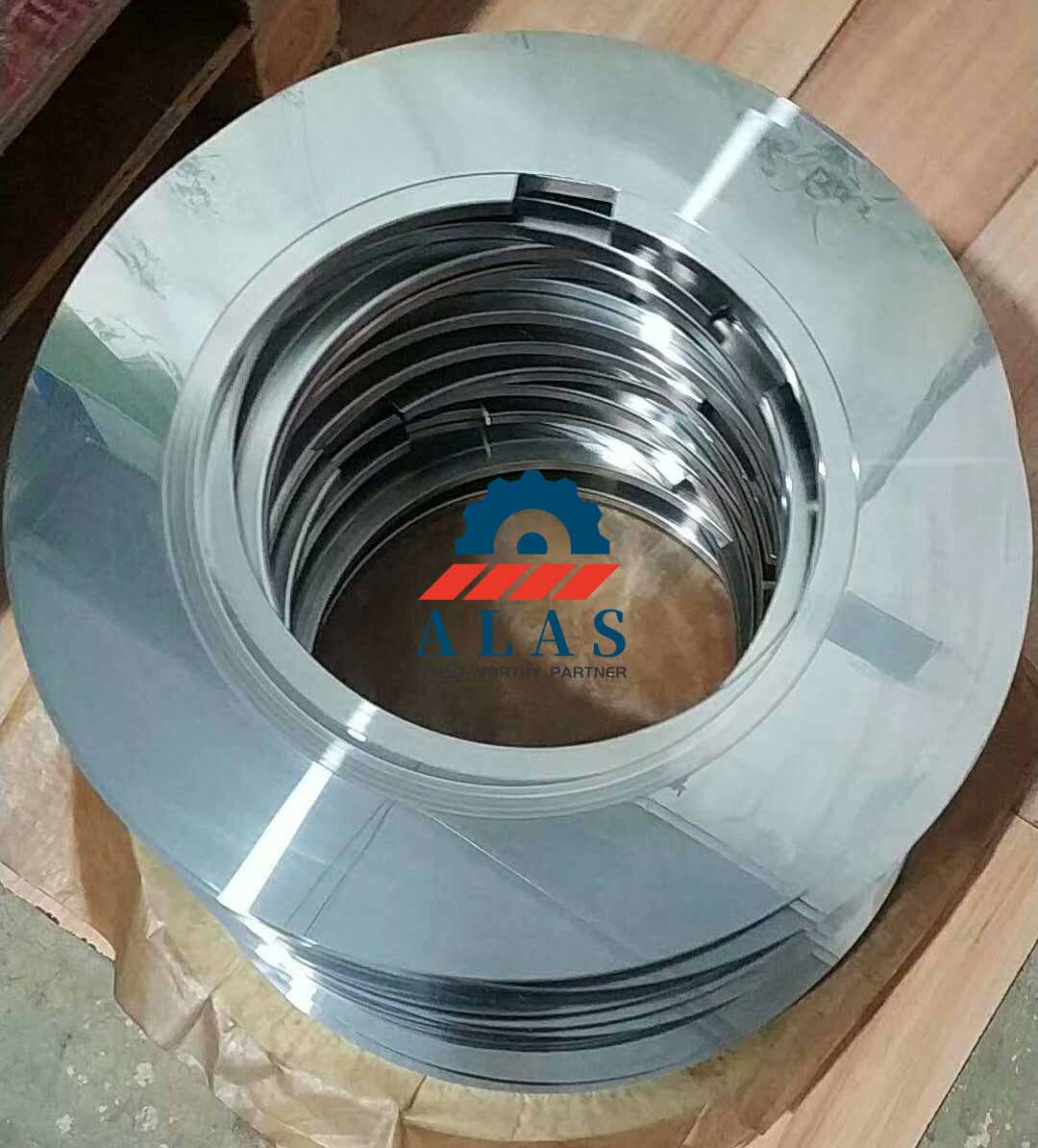

Q3: Why does ALAS maintain a surface finish of Ra 0.2 to 0.4 μm instead of a hyper-mirror finish for regular alloy knives?

A: For standard carbon steel and heavy-gauge slitting, a precision-ground finish of Ra 0.2–0.4 μm is optimal. A hyper-mirror finish (Ra < 0.1 μm) adds unnecessary processing costs without improving performance on standard steel. Our fine grinding minimizes sliding friction while leaving sufficient surface micro-texture for optimal anti-rust oil film retention.

Q4: What setup protocols prevent edge-waving and strip twisting?

A: Wavy edges and strip twisting originate from dynamic axial runout or non-parallel spacers. ALAS holds the flatness and parallelism of every knife and steel shim within 0.002 mm. This precise specification ensures the assembled tools remain perpendicular to the spindle axis without wobble. For best results, combine our knives with matched polyurethane stripper rings to maintain even vertical stripping pressure.

Q5: What is the optimal preventative regrinding threshold for these alloy slitting tools?

A: Do not operate the slitting line until severe micro-chipping or a radius rollover exceeding R 0.5 mm occurs. Running a heavily dulled blade increases burr height and requires excessive steel removal during sharpening. Implement a light maintenance grind at the first sign of micro-wear.

Recommended Metal Removal per Regrind:

• High-Speed Steel (SKH51/M2): Remove 0.02 mm to 0.03 mm to restore the sharp edge matrix.

• Standard Cold-Work Steel (D2 / SKD11 / Cr12MoV / DC53): Remove 0.03 mm to 0.05 mm under continuous flood cooling.

• Shock-Resistant Steel (6CrW2Si): Remove 0.05 mm to 0.08 mm to fully clear the material fatigue layer.

This routine restores original shearing geometry and extends total blade service lifespan by over 40%.
