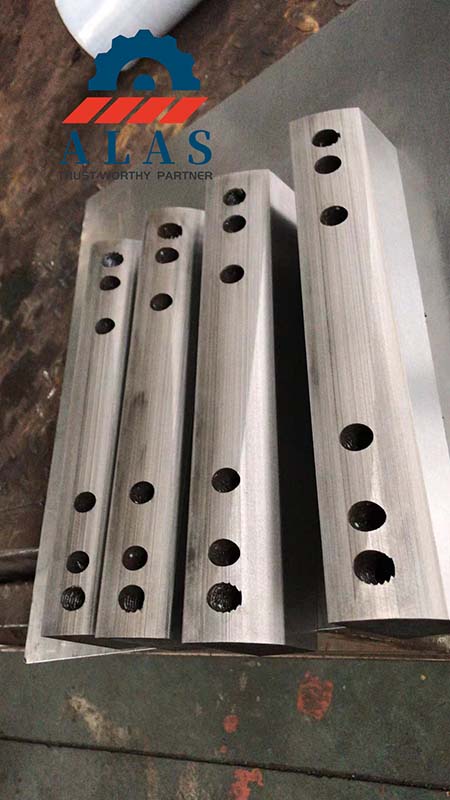

Mid-to-High Temperature Wear Resistant Metal Shear Blades & Specialized Wear Knives (Manufactured As Per Drawing)

1. Technical Classifications & Elevated-Temperature Shearing Operational Layout

We manufacture precision-engineered wear resistant shear blades and high temperature shear knives developed exclusively for high-tensile metal cutting within mid-to-high temperature manufacturing environments. Our custom shear tools maintain permanent mechanical red hardness alongside fracture toughness under sustained thermal friction, effectively preventing premature cutting edge micro-chipping and frictional flank wear when processing pre-heated alloy bars, structural metal profiles, and metallic strips.

To ensure 100% dimensional accuracy and correct process matching within your shearing press frames, custom manufacturing is executed strictly according to submitted official engineering CAD blueprints in DWG, DXF, PDF, or STP formats. Your drawings must specify complete parameters including exact geometric dimensions, bolt hole center-to-center distances, countersunk hole profiles, and detailed positional tolerances.

Additionally, providing your specific onsite operational variables—such as the chemical composition/tensile strength of the processed workpiece metal and your active equipment preheating temperature range—enables our technical team to custom-optimize the heat treatment parameters and edge profile geometry for your tooling replacements.

2. High-Wear Material Specifications & Thermal Metallurgical Properties

Our specialized mid-to-high temperature cutting tools undergo precise computer-regulated vacuum furnace quenching and multi-stage nitrogen tempering composite heat treatments. This professional metallurgical solution balances surface wear resistance with core matrix fracture toughness, allowing individual tool blocks to withstand prolonged thermal friction and repetitive cyclic heating without rapid edge degradation.

To secure an extended tool lifecycle during uninterrupted automated workloads, we engineer our configurations with multi-edge rectangular geometries, fully supporting a routine onsite cutting-edge rotation schedule to distribute mechanical abrasion evenly. Additionally, maintaining a continuous on-site spray application of a low-viscosity synthetic stamping oil mist or fogged emulsion fluid directly over the active tool flanks dissipates localized heat buildup, effectively suppressing adhesive tool galling and preventing premature edge dulling.

Depending on your localized pre-heating metrics and specific tensile strength workloads, we provide four optimized metallurgical steel grades:

• HMB (52–56 HRC) — Heavy Metallurgical Ni-Cr-Mo Heat-Resistant Alloy: Engineered with a proprietary nickel-chromium-molybdenum core formulation. Delivers maximum micro-structural resistance to thermal softening, hot plastic deformation, and phase transformation when continuously operated within harsh environments from 1000°C to 1200°C. Specified as the premium tooling tier for extreme-wear heated profile shearing lines.

• H13K (52–55 HRC) — High-Red-Hardness Modified Steel: Advanced hot-work alloy steel utilizing cobalt micro-alloying to stabilize the matrix grain boundary structure under severe cyclic thermal stress. Successfully retains high near-surface micro-hardness and suppresses micro-crack expansion during automated continuous high-temperature manufacturing campaigns.

• H13 / 4Cr5MoSiV1 (50–54 HRC) — Universal Hot-Work Alloy Steel: Mainstream industrial chromium-molybdenum-vanadium alloy offering a proven balance of red hardness and impact toughness. Delivers highly stable comprehensive mechanical cutting properties and cost-performance under sustained thermal loading up to 700°C.

• 6CrW2Si (54–58 HRC) — Shock-Resistant Alloy Tool Steel: Tungsten-silicon cross-alloyed tool steel optimized specifically for low-to-mid temperature workloads below 500°C. Retains high cutting-edge rigidity and chip-resistant toughness under high-frequency continuous cyclic mechanical friction.

3. Machined Tolerances & Precision Flatness Control Framework

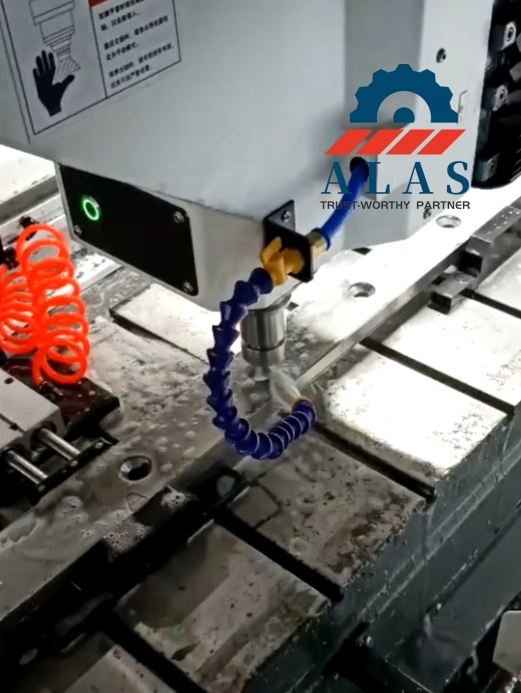

To mitigate localized grinding heat and eliminate microscopic stress-concentration defects along the cutting edges, all finished tool blocks undergo micro-precision abrasive polishing on temperature-stabilized CNC surface grinding machines. Under continuous constant-flow coolant loop filtration, our automated machining framework ensures exceptional dimensional consistency and rigid clamping alignment across specialized heavy-wear cutting frameworks.

• Straightness & Parallelism Tolerance: Flatness and linear straightness deviations are maintained strictly within ≤ 0.02 mm per meter across the entire tool block span. This precise geometric control ensures a uniform side cutting clearance over long continuous production runs, preventing toolholder binding, premature edge abrasion deviation, and thermal expansion lockups.

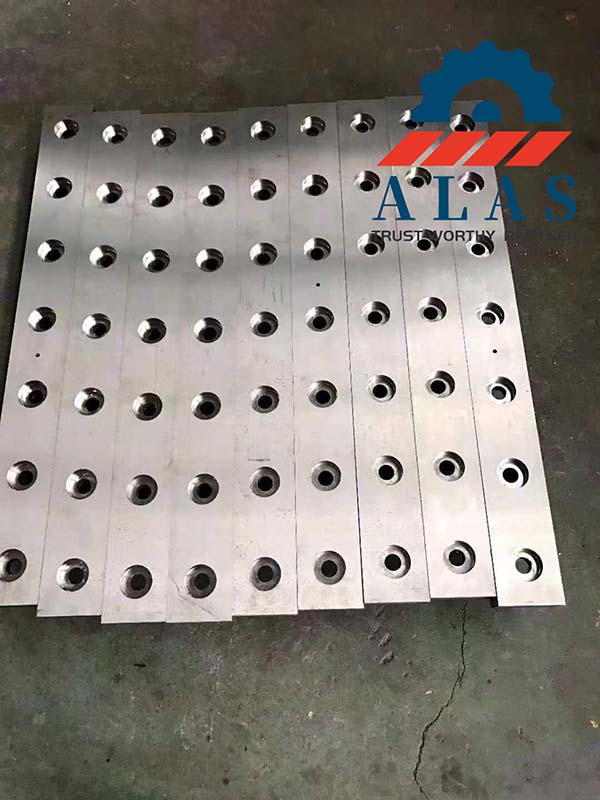

• Thickness Dimension Accuracy: Finished tool thickness metrics are calibrated within ±0.02 mm to secure a completely parallel, co-planar assembly baseline inside your flying shear or mechanical cutting frames, successfully minimizing lateral blade deflection during high-load mechanical cutting strokes.

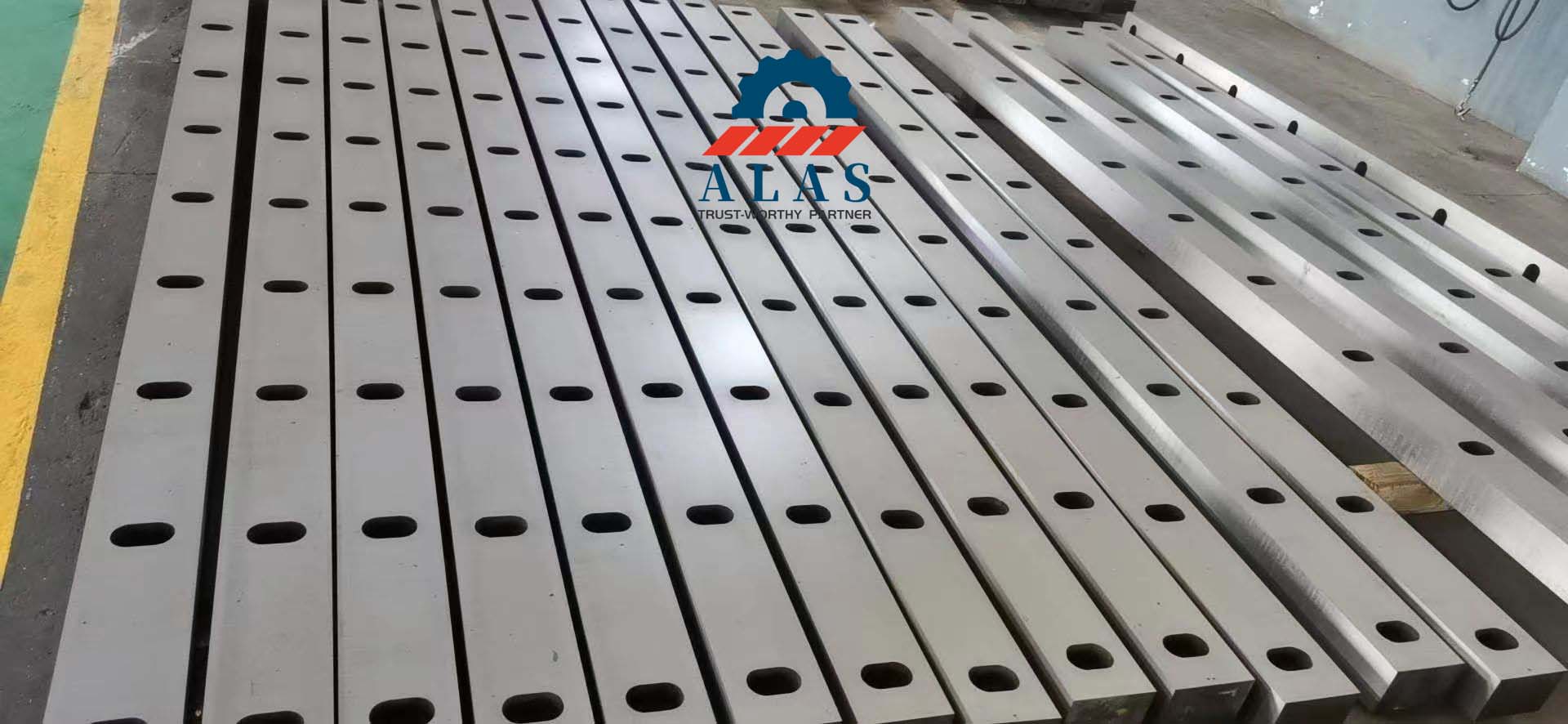

4. Advanced In-House Manufacturing Process & Standardized Production Flow

All custom special wear knives and high-temperature metal shear blades are processed entirely in-house to guarantee structural consistency:

• 1. Raw Material Spectral Verification:

  ASTM A681 and DIN EN ISO 4957 compliant chemistry analysis using spectral technology, with Mill Test Certificates (MTC) archived for trace verification.

• 2. Multi-Directional Integral Forging: Heavy-duty hydraulic forging cycles to maximize core steel density, refine structural grain size, and eliminate internal structural voids.

• 3. Stress-Relief Annealing: Standardized spheroidizing heat cycles to lower matrix hardness for exact profiling readiness and eliminate material internal stresses.

• 4. CNC Precision Fine Machining: High-accuracy milling of rectangular cross-sections, drilling custom fixing bolt holes, and machining heavy countersunk profiles according to blueprint designs.

• 5. Vacuum Quenching & Nitrogen Tempering: Computer-regulated vacuum furnace heat treatment ensuring uniform through-hardness and carbide stability across the full blade length.

• 6. Ultra-Precision Wet Grinding: Finished grinding on temperature-stabilized grinding machinery, under continuous coolant loops to achieve an exact Ra ≤ 0.8 μm precision finish without surface thermal cracks.

• 7. Metrology Inspection & NDT: 100% full-size inspection of dynamic dimensional parallelism and thickness metrics, alongside Non-Destructive Testing (NDT) to prevent microscopic surface defects.

5. Steel Grade Correspondence & International Standard Equivalents

HMB (GB): Equivalent alternative grades include ISO K20/K30 and VK6/VK8 variants.

H13K (GB): Cobalt-modified H13 and SKD61 variants.

6CrW2Si (GB): Equivalent to USA S1, Japan SKS42, Germany 60WCrV7 / 1.2550, Russia 6XB2C, U.K. BS4659 S1.

4Cr5MoSiV1 / H13 (GB): Equivalent to USA H13, Japan SKD61, Germany X40CrMoV5-1 / 1.2344, Russia 4X5MF1C, U.K. BH13.

6. Technical Support FAQ (Specialized for Mid-to-High Temperature Shearing)

Q1: What documentation is required for ordering custom mid-to-high temperature wear resistant shear blades?

A: We require official engineering CAD blueprints in DWG, DXF, PDF, or STP formats. Drawings must specify exact geometric dimensions, bolt hole center-to-center distances, countersunk profiles, dimensional tolerances, and your specific heating and shearing environment variables (such as raw material metal chemistry and pre-heat temperature profile).

Q2: Why is the heat-treated hardness of hot-cutting shear blades typically controlled below 58 HRC instead of higher limits?

A: Under mid-to-high temperature cutting friction (operating from 500°C to 1200°C), balancing wear resistance with structural fracture toughness is essential. Forcing tool steels beyond 60 HRC internal matrix stress drastically reduces their impact toughness, causing immediate micro-chipping, edge collapse, or catastrophic structural fracturing during repetitive high-frequency strokes. Controlling standard H13 at 50–54 HRC, 6CrW2Si at 54–58 HRC, H13K at 52–55 HRC, and HMB alloy at 52–56 HRC optimizes fatigue life and cutting-edge rigidity under high-heat mechanical impacts.

Q3: How do advanced alloy configurations resist thermal softening during prolonged high-friction manufacturing campaigns?

A: Our vacuum-heat-treated H13, H13K, and heavy metallurgical HMB alloys utilize specialized cross-alloying elements including chromium, molybdenum, cobalt, and vanadium. At elevated temperatures, these elements form dense, ultra-stable secondary alloy carbide arrays. These microscopic particles strongly resist over-tempering and matrix micro-structural thermal softening, keeping the functional cutting edge sharp and preventing localized plastic deformation under continuous thermal loading.

Q4: What mechanical factors accelerate blade wear when shearing sticky pre-heated non-ferrous alloys?

A: Processing pre-heated aluminum or copper strips under elevated thermal friction induces high initial sliding friction, leading to severe localized adhesive wear (material galling). If the blade surface roughness exceeds Ra 1.5 μm, softened metal micro-particles weld onto the tool flank, acting as destructive abrasion points. To stop this dragging effect, all ALAS mid-to-high temperature knives are finished to a precision-ground profile showing a low surface roughness of Ra ≤ 0.8 μm.

Q5: What are the engineering clearance rules for setting special wear knives on high-strength metal strips?

A: Side blade clearance must track the specific thickness (t) and temperature matrix of the high-tensile metal. Standard pre-heated low-carbon profiles require a 5% to 8% gap, while rigid or high-tensile alloy strips require up to 5% to 10% clearance. Gaps exceeding 10% cause the heated metal profile to draw and warp, yielding prominent jagged exit burrs; clearances below 5% multiply friction heating and accelerate edge wear.

Q6: What onsite cooling and maintenance protocols are mandatory to extend tool lifecycle under elevated thermal friction?

A: The most effective onsite maintenance method is to continuously spray a low-viscosity industrial stamping oil mist or emulsion fluid directly over the active cutting flank. This constant application quickly dissolves localized frictional heat buildup along the tool block, suppresses adhesive buildup, and prevents premature edge dulling. Additionally, implementing a regular edge rotation schedule across the multi-edge rectangular geometry distributes mechanical wear evenly.

Q7: What are the material removal limits and requirements for servicing worn mid-to-high temperature shear blades?

A: To avoid structural deflection, cumulative material removal across the nominal thickness profile must not exceed 10% of the initial blueprint dimension, and width wear must remain within 15%, while maintaining the factory thickness tolerance of ±0.02 mm post-grind. Crucially, following any flat profile regrinding process, all blade blocks must undergo a thorough post-grind demagnetization to keep residual magnetism strictly below 0.15 mT, preventing ferrous debris accumulation along the functional cutting edge.
