Core Specs: Vacuum-quenched LD/LD+Ni steel, precision ground to Ra 0.2–0.4 μm with thickness tolerances within ±0.003 mm. Custom Service: Factory-direct wholesale with full OEM/ODM support. Custom outer diameters (OD), thicknesses, and bevel angles manufactured to your blueprints. B2B Terms: Low MOQ starting from 10 pieces for trial runs. Securely protected and shipped in export-standard wooden crates.
The Challenge: Slitting stainless steel coils induces rapid work hardening, high shearing resistance, and high friction heat. Standard tool steels frequently fail under these stresses, leading to material adhesion (galling), sheet scratching, and premature micro-chipping.
Our Solution: ALAS resolves these bottlenecks using high-performance rotary slitter knives forged from high-purity LD matrix steel (7Cr7Mo2V2Si) and nickel-modified LD alloys. These materials ensure stable shearing for 304, 316, and 430 stainless steel without edge-waving or secondary burrs.
Metallurgical Engineering: LD vs. LD+Ni Alloy Selection
To maximize tooling lifespan and prevent material adhesion on automated shearing lines, we offer two specialized alloy formulations:
1. Refined LD Matrix Steel (7Cr7Mo2V2Si)
Characteristics: High structural fracture toughness paired with excellent working hardness. Its refined microstructure eliminates the brittle, coarse carbide segregation common in standard cold-work alloys.
Application Logic: Best for medium-to-heavy gauge stainless steel. LD absorbs high shearing shocks and impact loads, eliminating tool cracking and providing up to twice the shock resistance of conventional die steels.
2. LD+Ni Modified Alloy (Anti-Galling Specialty)
Characteristics: Features a precise nickel modification embedded within the base LD matrix to lower the tool-to-strip friction coefficient.
Application Logic: Engineered specifically for surface-sensitive, bright-annealed (BA) stainless coils. It prevents cold-welding sticking, stops sheet galling, and ensures clean, square edges.
Precision Specifications & Quality Controls

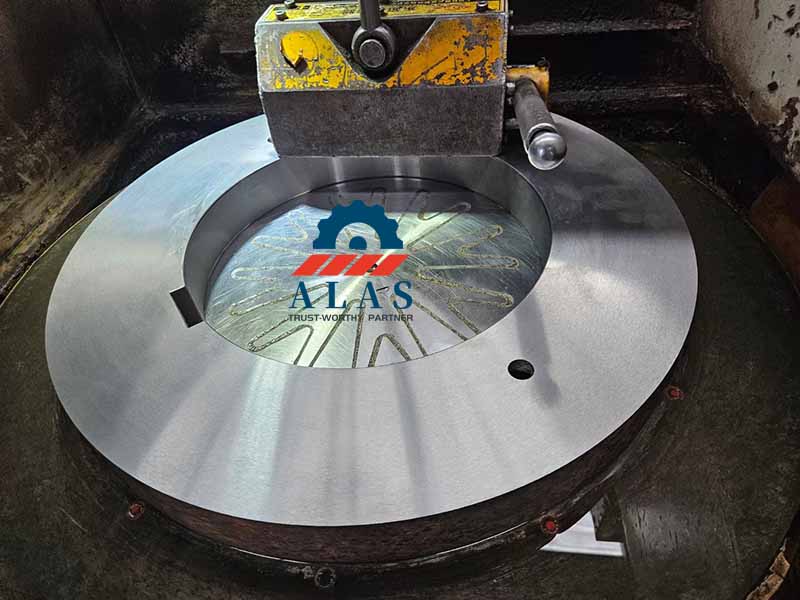

Blade thickness variations create cumulative stack-up errors across the slitter arbor, which widens the horizontal knife clearance and degrades slitting accuracy. ALAS controls geometric tolerances using advanced CNC dual-axis grinders:
Thickness Tolerance: Within ±0.003 mm to eliminate axial stack-up errors.
Flatness & Parallelism: Maintained under 0.002 mm to prevent tool wobble, axial runout, and strip edge twisting.

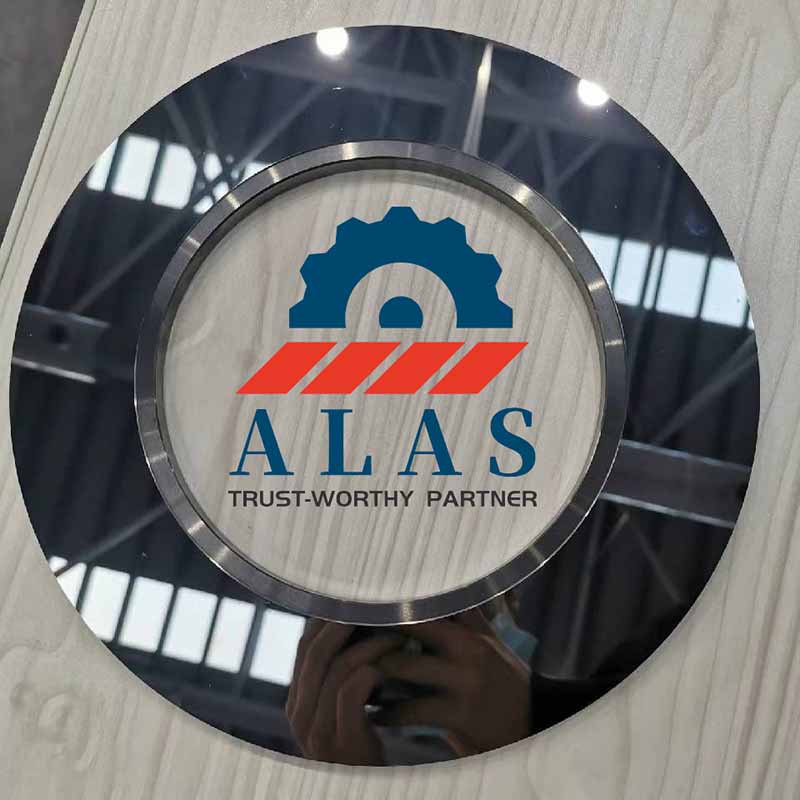

Surface Finish: Ground to Ra 0.2 – 0.4 μm to minimize sliding friction while ensuring optimal rust-preventative oil film retention.
Material Selection & Application Matrix for Stainless Steel
Lower friction coefficient prevents cold-welding adhesion and micro-scratching at high line speeds.
1.5 mm – 6.0 mm
Standard cold-rolled coils, hot-rolled pickled bands, industrial plates
LD Matrix Steel
57–62 HRC
Balances high abrasive wear resistance with structural toughness under continuous automated runs.
Integrated High-Precision Tooling Systems
To ensure rigid alignment and maximize the service life of LD and LD+Ni rotary knives, ALAS provides matched tooling accessories:

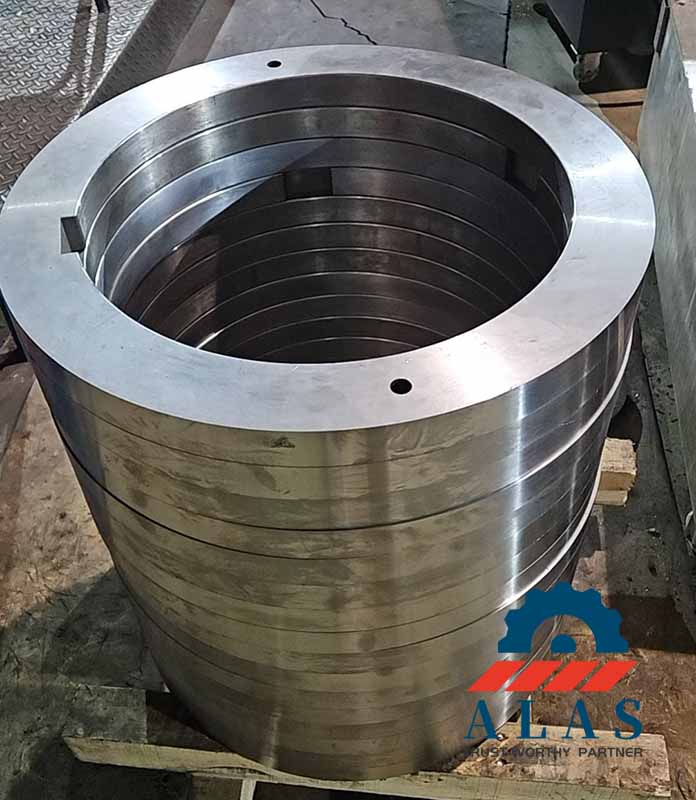

Precision Alignment Spacers & Shims: Hardened alloy steel (HRC 50+) ground to a parallelism tolerance within 0.002 mm to eliminate axial stack-up errors and prevent horizontal clearance drift.

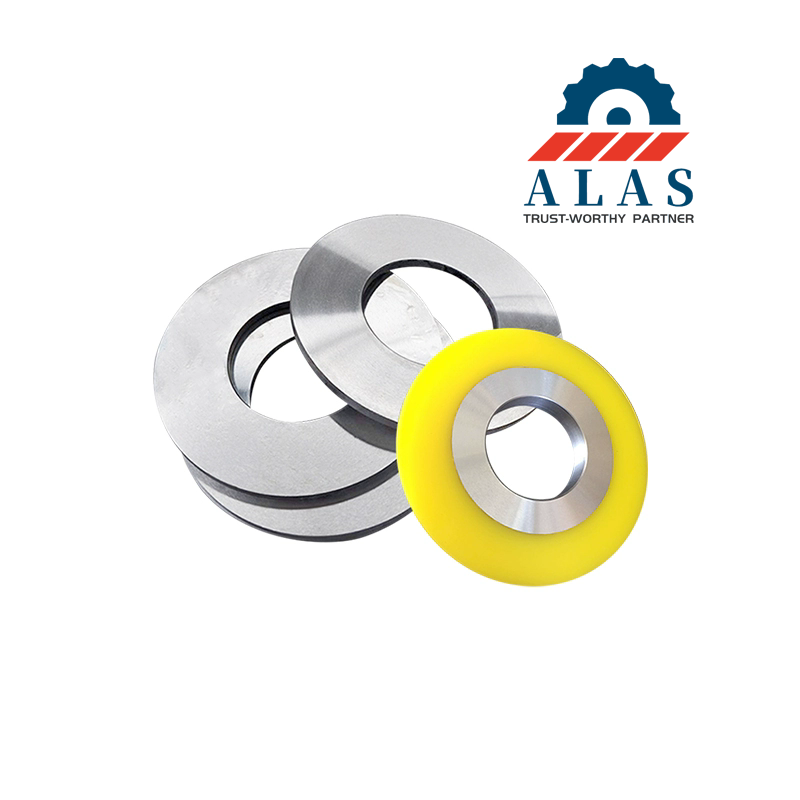

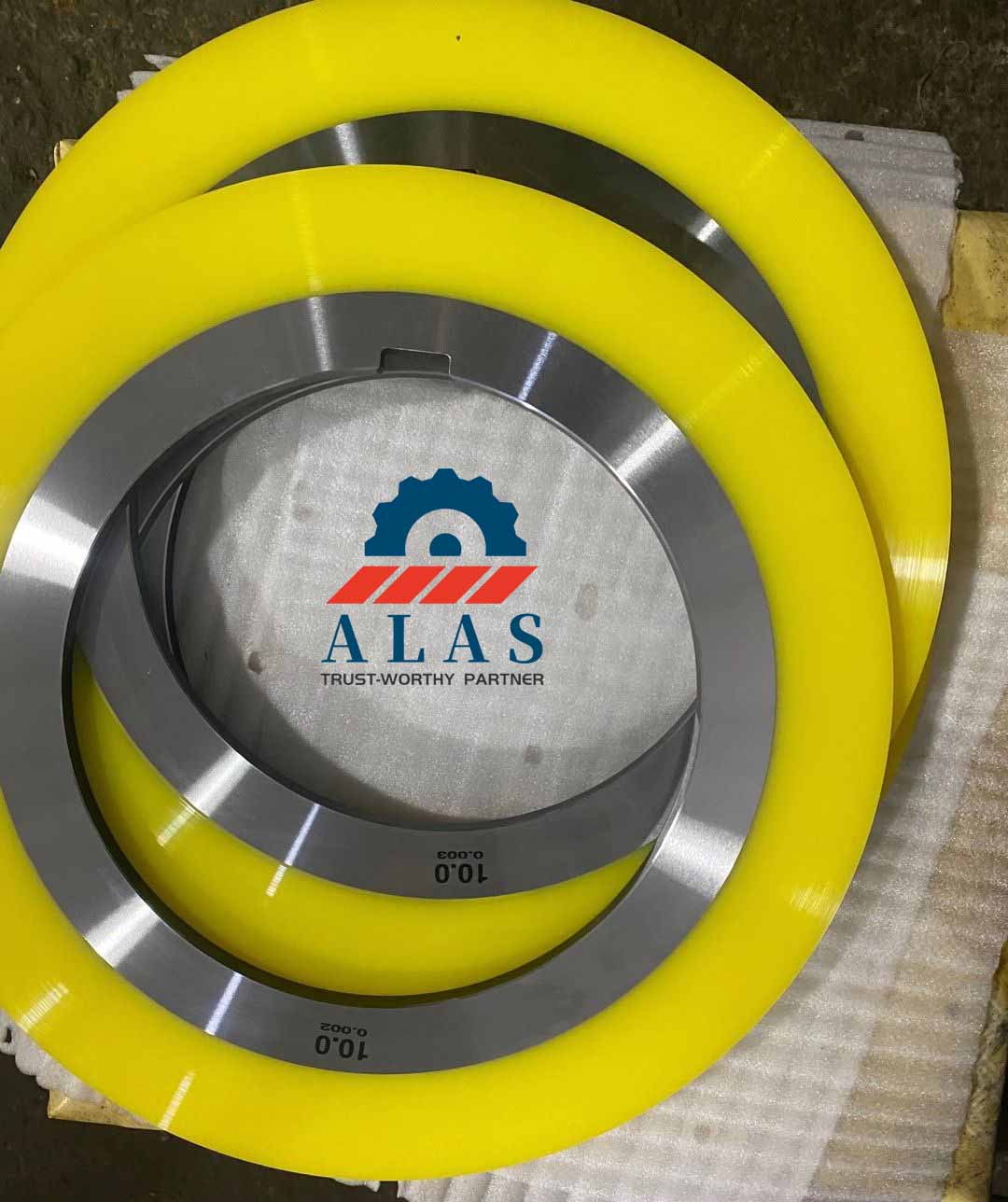

Polyurethane Stripper Rings: Oil-resistant, high-elasticity rings designed to apply even, non-marring vertical pressure, preventing surface scratching during stainless steel strip ejection.
Standard Specifications & Customization Window
To ensure direct interface with slitting arbors and tooling setups, manufacturing capabilities cover outer diameters from 40 mm to 600 mm, inner diameters from 20 mm to 400 mm, and thicknesses from 0.5 mm to 20 mm with tolerances within ±0.003 mm. Custom keyways (DIN, JIS, ANSI) and positioning pinholes are fully supported.
Heavy-Duty Anti-Rust & Precision Packaging

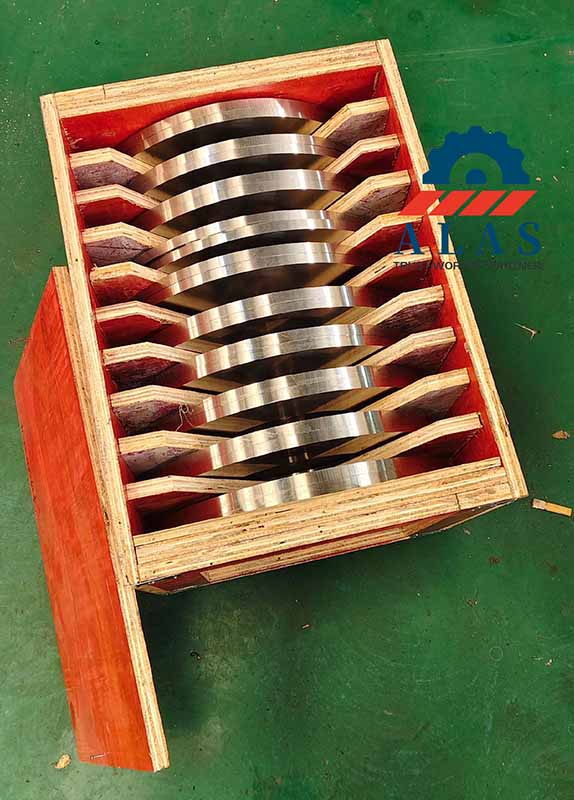

Blades receive multi-layer anti-rust treatment and secure export crating.
Target Industries & Compatible Machinery
Field-tested in automotive, battery foil, and electronic strip applications, compatible with major global machinery brands.
Q1: What causes severe material sticking (galling) on the knife sides, and how do we prevent it?
A: Galling is caused by a strong chemical affinity between stainless steel and standard cold-work steels, accelerated by cutting friction heat. Under pressure, metallic micro-particles transfer and weld onto the blade sides, widening horizontal clearance and scratching the coil. We prevent this by using our LD+Ni modified alloy finished to Ra 0.2–0.4 μm. The nickel additive modifies the alloy's chemical profile, while precision grinding minimizes sliding friction drag to ensure clean, scratch-free shearing.
Q2: How do we resolve rapid edge micro-chipping when processing work-hardened 316 strips?
A: Edge chipping occurs when the tool steel lacks the impact toughness required to withstand the high shearing shocks of work-hardened stainless steel. Conventional alloys contain large, brittle chromium carbides that fracture easily under load. Upgrading to our vacuum-quenched LD Matrix Steel resolves this. Its refined microstructure eliminates carbide segregation, doubling the shock toughness of standard cold-work steels while maintaining a stable cutting edge up to 62 HRC.
Q3: What is the correct preventative regrinding protocol to maximize tool lifespan?
A: Do not run knives until severe chipping or a radius rollover exceeding R 0.5 mm occurs. Operating dull knives overloads the slitter arbor and increases steel removal during sharpening. Instead, implement a light maintenance grind at the first sign of micro-wear:
Light Regrind: Use a fine-grit CBN wheel under continuous flood cooling to remove just 0.01 mm to 0.03 mm of steel. This fully restores cutting geometry without creating grind cracks or thermal soft spots.
Side Polishing: Ensure side faces are relapped to maintain the required finish and prevent post-grind galling.
This preventative routine protects the fatigue layer and significantly extends total blade service life.
Request an Engineered Sourcing Solution to Maximize Slitting Precision!
Eliminate burr generation, tool breakage, and surface scratching on your stainless steel slitting lines. Submit your exact OEM machine models, target coil dimensions, and material grade specifications to receive a certified custom engineering blueprint and an industrial factory-direct quotation within 24 hours!
Nanjing Alas International Co., Ltd. is a professional industrial tooling manufacturer focused on shear blades, bending dies, shredder blades, and custom wear parts. We offer full application engineering, material selection, setup guidance, and after-sales support to global customers. Tell us your requirements, and our engineering team will provide professional solutions for blade specification, tool life optimization, and cost-effective production.
