Ironworker Section Shear Blades & Profile Cutting Knives

Heavy-Duty Ironworker Replacement Shear Blades & Notcher Tools

Fully Compatible with Piranha, Geka, and Sunrise Hydraulic Ironworkers

Overview

ALAS Machinery manufactures heavy-duty replacement shear blades and punching tools for mainstream global ironworker machines, fully compatible with Piranha, Geka, and Sunrise series multi-station hydraulic ironworkers. We supply complete, engineered blade solutions across all core working stations, including Plate Shear Blades, Flat Bar Shear Blades, Angle Shear Blades, Profile/Section Shear Blades (Channel, I-Beam, T-Joint), and Notcher Blades.

Tailored exclusively for hot-rolled steel profile and solid bar shearing, our tools abandon generic, multi-purpose blade templates. Instead, we utilize industry-specific tool steel grading matched to your exact shop floor applications. We offer two field-proven, application-targeted material grades: wear-resistant AISI D2 for continuous standard cold shearing mass production, and high-toughness AISI H13 for high-temperature hot shearing and severe heavy-impact cutting. Every blade undergoes computer-controlled vacuum heat treatment and precision CNC grinding to ensure absolute dimensional stability, reliable edge retention, and extended service life. Under standardized working conditions, standard bare D2 blades achieve 30,000–60,000 cutting strokes, while premium coated and cryogenically treated D2 blades reach a verified lifespan of 50,000–80,000 strokes.

• Field-Verified AISI/DIN Tool Steel Grades: Fully recognizable and auditable by overseas mechanical engineers and procurement teams.
• Application-Specific Metallurgical Matching: Tailored parameters for heavy profile shearing—no mismatched generic material specs.
• Dual Graded Solutions: Distinct material choices covering high-yield cold work and high-temperature, heavy-load impact scenarios.

Core Technical Specifications

All technical parameters strictly comply with ASTM and AISI industrial standards. Tool service life is uniformly tested and quantified by actual cutting strokes—the most verified, transparent metric for ironworker blade performance.

Material Grades & Industrial Application Scenarios

We eliminate universal template materials and match tool steels directly to ironworker profile shearing physics. This ensures maximum cost-efficiency and on-site tool dependability.

AISI D2 (DIN 1.2379) | Standard Mass Production Grade

AISI D2 high-carbon, high-chromium cold-work tool steel is our primary grade for high-volume ironworker shear blades. Tempered to an optimal HRC 58–61, it provides exceptional abrasive wear resistance and stable edge retention. It resists the harsh abrasive wear caused by heavy scale layers on hot-rolled profiles and uneven structural steel surfaces.

• Best Applications: High-volume daily cold shearing of mild steel, structural carbon steel, and conventional stainless steel profiles (angle iron, channel steel, flat bars) and solid structural bars. Ideal for fabrication shops and automated structural steel production lines.
• Limitations: Not suitable for operating environments where continuous friction or material temperatures exceed 150°C, as D2 will undergo tempering softening, leading to rapid edge rollover. Because D2 emphasizes wear resistance over extreme impact toughness, it carries a micro-chipping risk when cold-shearing heavy high-tensile structural steel exceeding 16 mm in thickness without surface treatment. In these heavy-impact scenarios, upgrading to H13 or DC53 is highly recommended.

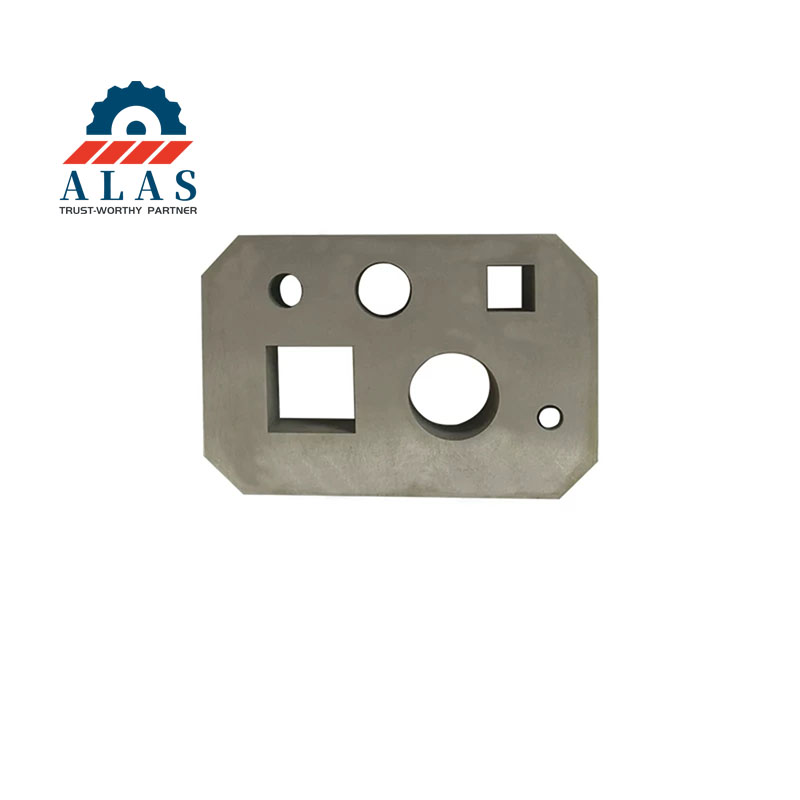

Figure 2: ALAS solid round & square bar cutting die block with custom engineered geometries.

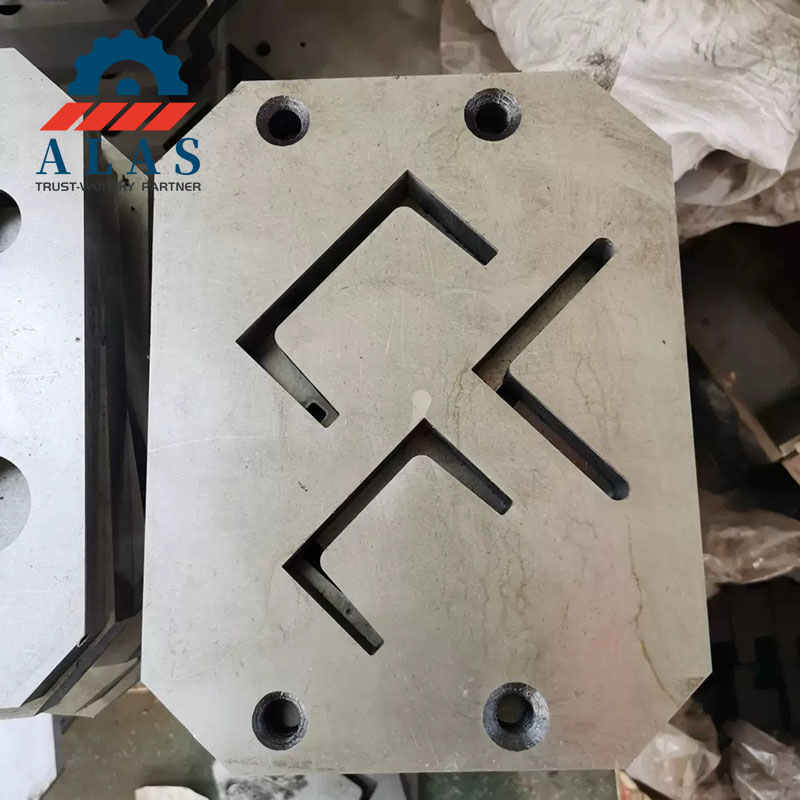

Figure 3: Multi-cavity section shear blade optimized for simultaneous angle iron and structural channel cutting.

AISI H13 (DIN 1.2344) | High-Temperature & Heavy-Impact Grade

AISI H13 premium hot-work tool steel is engineered specifically for severe impact and high-temperature processing. Calibrated to HRC 52–55, this grade intentionally trades a degree of wear resistance to achieve superior structural toughness and thermal shock stability, effectively preventing structural cracks, edge chipping, and plastic deformation.

• Best Applications: Hot-shearing of thick steel plates directly out of primary forming, large structural profiles, high-strength structural bars, and severe cutting conditions characterized by intense shock loads.
• Limitations: Lower ambient wear resistance than AISI D2. Utilizing H13 for standard room-temperature cold shearing of thin or mid-gauge steel profiles will accelerate edge wear, resulting in higher replacement frequency and lower cost-performance.

Product Advantages

Industry-Specific Material Customization

Unlike generic blade wholesalers using all-purpose steels, our metallurgical specs are split explicitly between D2 and H13 for structural profile shearing. D2 targets maximum abrasion resistance for cold work, while H13 prioritizes impact toughness and hot-work thermal stability, perfectly matching real-world workshop workflows.

100% Verified, Audit-Ready Lifespan Data

All blade lifespan metrics are derived from continuous on-site cutting stroke monitoring, completely free of exaggerated parameters. Bare D2, premium treated D2, and H13 blades have clearly differentiated, realistic lifespan boundaries, providing professional procurement teams with transparent data they can budget around.

Engineered On-Site Regrindable Geometry

Our advanced vacuum heat treatment guarantees a uniform metallographic structure and consistent hardness from the blade surface to the core. For standard Flat Bar Shear Blades, slight edge wear can be easily serviced via routine, on-site flat surface grinding by standard workshop maintenance machinery, drastically lowering operational costs.

* Note: For complex, geometrically profiled Section Blades (Angle, Channel, I-Beam) and Notcher Tools with precise V-notches or radiused edges, we recommend returning the tooling to our facility or utilizing specialized 5-axis profile grinders to preserve original cutting clearances.

Production-Grounded Machining Standards

We reject unrealistic, marketing-driven tolerances that don't match the mechanical reality of hydraulic ironworkers. All blade tolerances (±0.02 mm) and surface finishes (Ra ≤ 0.4 μm) are engineered precisely to match heavy-duty machine assembly clearances and structural steel tolerances, guaranteeing smooth drop-in replacement and instant high-intensity operation.

Drop-In Cross-Model Compatibility

Standard dimensions are engineered to perfectly replace OEM components on 90% of medium-to-heavy hydraulic ironworkers worldwide, including:

• Piranha: P50, P60, P-65, P110
• Geka: Hydracrop 55S, 85S, 110S, Microcrop 36
• Sunrise: IW-60, IW-80, IW-100, IW-120

We provide full technical blueprint customization for legacy, highly specialized, or non-standard industrial machinery to ensure a 100% precision fit.

Manufacturing & Quality Control (QC) Process

Backed by our factory's 15 years of dedicated industrial blade and punch manufacturing experience, we implement rigorous, step-by-step quality gates tailored to heavy shearing applications.

1. Raw Material Spectroscopy & NDT: Full validation of steel chemical composition and ultrasonic non-destructive testing (NDT) to ensure compliance with premium AISI/DIN tool steel standards.
2. Precision CNC Machining: High-accuracy roughing and fine milling to lock in exact mounting bolt patterns, clearances, and structural shear angles.
3. Graded Vacuum Heat Treatment: Specialized, recipe-driven quenching and multi-stage tempering cycles executed separately for D2 and H13 to optimize the toughness-to-hardness ratio.
4. CNC Edge Precision Grinding: Ultra-precise surface finishing to eliminate micro-burrs and ensure a perfect, uniform cutting edge.
5. 100% Final CMM Inspection: Full coordinate measuring machine (CMM) dimensional verification, ASTM E18 hardness checking, and flatness audits on every single unit before packaging.

Application Industries

Our replacement ironworker blades are trusted in structural steel engineering, heavy metal fabrication shops, construction machinery manufacturing, commercial bridge building, and high-volume rebar/profile processing plants worldwide.

Order & Customization Policy

We provide comprehensive OEM and ODM support, including non-standard spatial dimensions, modified shear angles, custom notch profiles, PVD/TD hard coatings, and deep cryogenic performance upgrades.

• Flexible MOQ Framework:
  • In-Stock Standard Blades: No minimum order quantity (starting from a single piece) for emergency replacements and initial quality verification.
  • Bulk Wholesale: 10 pcs per line-item to qualify for tier-one factory volume discounts.
  • Custom Engineered Blades: 30 pcs minimum for custom dimensions or unique geometries requiring specialized programming. *First-time corporate partners qualify for sample MOQ exemptions upon technical review.*
• Reliable Lead Times:
  • In-Stock Standards: Packaged and dispatched within 3–7 working days.
  • Custom Non-Standard Tooling: 15–20 working days for complete manufacturing, heat treatment, and QC. Expedited manufacturing channels are available for urgent breakdown situations.

Factory Capabilities

ALAS Machinery is an engineering-driven production facility focused exclusively on heavy-duty ironworker cutting, shearing, and punching tools. Our modern production workshop features complete CNC grinding lines and independent vacuum heat treatment centers, supporting a stable monthly output exceeding 50,000 industrial blades. With strict technical validation and stable quality, our tools are exported to more than 30 countries, supporting global manufacturing and fabrication enterprises.

Frequently Asked Questions (FAQs)

Q1: What is the main operational difference between D2 and H13 ironworker shear blades?

AISI D2 is a cold-work steel characterized by maximum carbon-chromium carbide density and high hardness (HRC 58–61). It is engineered for long-term continuous ambient temperature shearing where abrasive wear resistance is the primary requirement. AISI H13 is a hot-work tool steel featuring excellent thermal stability and impact toughness (HRC 52–55). It is engineered to withstand thermal cracking and heavy impact shock in hot-rolled or high-stress environments, though it has lower ambient wear resistance than D2.

Q2: How do I select the right tool steel grade for my specific shop floor conditions?

If your workshop primarily shears standard structural carbon steel or stainless steel shapes (angles, channels, flats) at room temperature, AISI D2 offers the highest edge retention and cost-efficiency. If your ironworker is cutting thick-gauge high-tensile materials, materials straight out of heat processing, or facing severe, repetitive high-impact shock that causes standard blades to crack, AISI H13 is the correct technical choice.

Q3: Are your blades guaranteed to fit my Piranha, Geka, or Sunrise ironworker?

Yes. Our standard catalog items are machined to exact OEM dimensional data for major global brands like Piranha, Geka, and Sunrise. They function as direct drop-in replacements that match original machine alignment and clearance limits. We also specialize in custom manufacturing to blueprints for older or modified machinery models.

Q4: How can we maximize the service life of our D2 shear blades?

For standard AISI D2 blades operating in high-volume environments, we highly recommend ordering our premium upgrade package, which adds automated PVD/TD surface coatings and deep cryogenic treatment. This metallurgical refinement upgrades verified edge lifespan from 30,000–60,000 cuts to 50,000–80,000 cuts, drastically lowering tool changes and machinery downtime.

Q5: Do you accommodate small sample orders for industrial field-testing?

Absolutely. We support 1 pc sample orders for any standard in-stock blade configuration to allow procurement teams and mechanical engineers to verify our steel quality and dimensional accuracy on their own machines before committing to volume contracts.

Q6: What is the warranty framework on ALAS industrial blades?

We offer a comprehensive 12-month industrial product warranty covering raw material integrity and manufacturing defects. Any tool showing structural defects or non-conformance under correct operational parameters will be replaced immediately at zero cost, backed by engineering analysis from our technical team.

Q7: Can these ironworker blades be re-sharpened when the edge eventually passivates?

Yes. Because our vacuum heat treatment guarantees uniform, through-hardened metallographic structures, both D2 and H13 blades can be re-ground. Flat bar blades can be ground on standard surface grinders. However, to maintain clean, burr-free cuts on V-shaped angle or channel blades, profile re-grinding should be handled via precision multi-axis machinery or factory recalibration.

Q8: Why should a global industrial distributor choose ALAS Machinery over generic blade suppliers?

We reject one-size-fits-all generic blade templates. We apply specific, quantified tolerances (±0.02 mm) and surface finishes (Ra ≤ 0.4 μm) that fit the exact physics of ironworker operations. All tool stroke data is field-verified, our supply chain is direct from our specialized manufacturing facility, and we back our products with 15 years of factory engineering expertise.
