Ironworker Punch and Die Sets (Hexagon, Square, Slot) | Custom D2 Steel S6-S16 Sizes

Product Overview

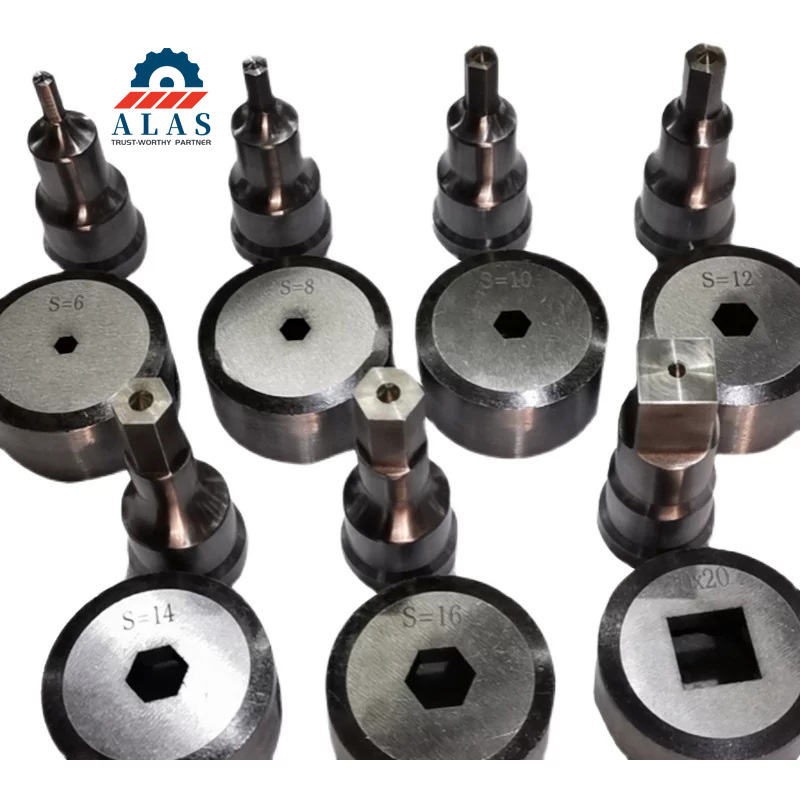

Standard round and oval punches often fail to meet today’s complex structural and architectural metal fabrication requirements. Our Specialty Shaped Punching Tools deliver reliable, high-precision solutions for hexagon, triangle, slotted, dimple and non-standard composite hole punching. Designed as direct replacements for original tooling, these punches fit most mainstream hydraulic ironworkers and automated stamping systems. With 15+ years of professional tooling manufacturing experience, ALAS Industrial solves common industry pain points, including corner chipping, edge collapse and premature tool cracking. Every unit is built for stable dimensional consistency and longer service life under continuous heavy-duty production.

Core Selling Points

• Custom micro-radius stress relief corner design reduces concentrated hydraulic pressure, extending tool lifespan by up to 45% under high-tonnage operation

• CNC wire-cut EDM precision ensures consistent tolerance down to ±0.005mm, delivering clean, burr-free geometric holes

• Full OEM and custom support, with complete compatibility across all major European and American ironworker brands

Core Technical Specifications

What Makes Our Custom Geometric Shape Punches Stand Out?

1. Micro-Radius Stress Relief Corners Prevent Chipping & Fracture

Sharp zero-degree corners on standard angular punches concentrate massive hydraulic pressure during stamping, which commonly causes edge chipping, cracking and sudden tool breakage. We add precision micro-radius transitions to all internal sharp corners to evenly disperse instantaneous impact force. This practical structural upgrade eliminates the most frequent failure mode of geometric punches and extends tool service life by up to 45% under continuous high-tonnage production. We also supply perfectly matched geometric dies with optimized clearance and precise angle cleaning to eliminate workpiece burrs, jamming and punching deformation.

2. Vacuum Heat Treatment + Deep Cryogenic Stabilization Ensures Long-Term Stability

Instead of conventional atmospheric tempering, all our tool steel blanks undergo multi-stage vacuum quenching and sub-zero deep cryogenic treatment. This process fully converts residual austenite into stable martensite and removes internal material stress. The final punches maintain consistent hardness and zero dimensional shift, even under long-term friction and rising working temperatures. This avoids tool loosening, position deviation and inaccurate hole sizes caused by structural fatigue.

3. Scenario-Based Graded Material Matching Improves Overall Cost Performance

Different geometric punching scenarios require completely different material properties. We avoid generic one-fit-all steel solutions. DC53 delivers excellent toughness and anti-shock performance for thick plate and high-impact punching. M2/SKH51 high-speed steel retains stable hardness under continuous high-frequency stamping. D2/SKD-11 provides superior wear resistance for high-precision, medium-load thin plate processing. Targeted material selection reduces overall tool loss rate by 30% compared with ordinary generic punches.

4. CNC Wire-Cut EDM Processing Guarantees Batch Consistency

All geometric profiles, including hexagon, triangle and special irregular shapes, are finished by high-precision CNC wire-cut EDM. This processing method completely avoids dimensional errors and edge unevenness caused by traditional grinding and cutting. Standard tolerance reaches ±0.01mm, with optional ultra-precision tolerance up to ±0.005mm. Every batch of punches maintains identical profile accuracy and assembly compatibility for mass production.

What Materials & Processes Ensure Custom Die & Punch Sets Quality?

Professional Grade Tool Steel Material Selection

We strictly select industrial-grade tool steel compliant with ASTM A681 standards and match each material to its actual working scenario. DC53 cold work steel stands out for its outstanding impact toughness and anti-chipping ability, making it the ideal choice for thick steel plate punching and high-impact structural processing. M2/SKH51 high-speed steel features excellent red hardness and wear resistance, perfectly suited for uninterrupted automated stamping lines. D2/SKD-11 tool steel offers stable dimensional accuracy and long-term wear resistance, ideal for high-precision, medium-load thin and medium plate fabrication. All raw materials pass full spectral composition testing before production.

Standardized 5-Step Manufacturing & Quality Control Process

Our complete production workflow guarantees stable quality from raw material to finished product. First, incoming material inspection verifies steel composition, hardness and surface condition to reject unqualified blanks. Second, precision CNC rough machining forms basic geometric profiles with reasonable finishing margin. Third, core vacuum heat treatment and deep cold stabilization eliminate internal stress and stabilize material structure. Fourth, CNC wire-cut EDM finishing shapes accurate geometric outlines and stress-relief corner radii. Fifth, fine grinding and optional mirror polishing standardize surface roughness, followed by final dimensional calibration and quality inspection.

Where Are Our Anti-rotation Hole Punches Used?

1. Structural Steel Fabrication

Applicable Equipment: Hydraulic ironworkers, CNC steel stamping lines

Core Use Case: Hexagon punches create anti-rotation cutouts for high-strength structural bolts and mechanical locking components

Performance Requirements: Strong impact toughness, resistant to corner cracking under repeated high-tonnage punching

2. Architectural Metal Decoration

Applicable Equipment: Architectural sheet metal stamping machines, decorative mesh forming equipment

Core Use Case: Triangle, diamond and special-shaped punches produce ventilation screens, building facade grilles and curtain wall hollow panels

Performance Requirements: Smooth cutting surface, uniform hole spacing and consistent visual effect

3. Industrial Anti-Slip Grate Manufacturing

Applicable Equipment: Steel deck stamping machines, walkway grating production lines

Core Use Case: Slotted and dimple punches process industrial stair treads, safety walkways and anti-slip steel plates

Performance Requirements: Excellent shear resistance, stable structure to prevent metal edge lifting and long-term abrasion

4. Automotive & Mechanical Grille Processing

Applicable Equipment: Automotive part stamping presses, precision metal forming machines

Core Use Case: Custom geometric holes for automotive heat dissipation grilles and mechanical connection positioning

Performance Requirements: Ultra-precise tolerance, reliable batch consistency for standardized component assembly

Cross-sell Recommendation: Custom punch adapter sleeves and alignment couplings for full machine compatibility

How Do We Ensure Custom Geometric Shape Punches Quality Consistency?

We implement a full-chain quality control system, covering raw material inspection, in-process monitoring, finished product testing and pre-shipment verification to ensure stable quality for both bulk orders and custom projects.

1. Raw Material Incoming Inspection

Every batch of tool steel is tested via spectral analyzers and Rockwell hardness testers. We strictly verify chemical composition, hardness uniformity and surface quality to eliminate defective materials at the source.

2. Real-Time In-Process Monitoring

Our technical team monitors heat treatment temperature, holding time and deep cold stabilization parameters throughout production. Dimensional accuracy and surface finish are sampled regularly during finishing processes to adjust machining parameters timely.

3. 100% Finished Product Inspection

Each finished punch is inspected for dimensional tolerance, surface roughness and profile uniformity with high-precision measuring tools. We also conduct simulated stamping tests to verify wear resistance and structural stability under actual working conditions.

4. Standardized Packaging & Shipment Check

All punches adopt professional anti-rust and shockproof packaging. Before delivery, we inspect packaging integrity and product appearance to avoid transportation damage.

Can You Customize Geometric Shape Punches to Our Specifications?

Yes. ALAS Industrial provides full-cycle OEM and ODM customization services to tailor geometric punches to your unique equipment and production requirements. We support personalized adjustment of profiles, sizes, precision, surface treatment and structural accessories.

Customizable Scope

• Profile customization: Standard geometric shapes and non-standard composite profiles per CAD/STEP drawings

• Size customization: Full size range from 6mm to 120mm, with custom length and aperture ratios

• Performance customization: Adjustable hardness grades and ultra-precision tolerance down to ±0.005mm

• Surface treatment: PVD CrN/TiAlN wear-resistant coating and anti-rust treatment

• Structural customization: Custom adapter caps and positioning couplings for outdated or special machine models

Procurement & Lead Time Information

• MOQ: 1 piece for in-stock standard samples; flexible negotiable MOQ for custom tooling

• Lead Time: 3 working days for in-stock products; 7–10 working days for standard custom punches after drawing confirmation

• Reverse Engineering Service: We replicate obsolete punch tooling 100% accurately based on physical samples or dimension data

ALAS Industrial Supplier Credibility & Factory Strength

We strictly follow ASTM industrial tool steel standards in production. Our products have been exported to more than 50 countries and regions, serving professional clients in structural steel fabrication, architectural metalwork and industrial equipment manufacturing. We consistently deliver stable, high-precision custom tooling solutions for medium and large industrial production enterprises worldwide.Learn more about our factory strength

FAQ for Custom Geometric Shape Punches

Q1: What causes hexagon and triangle punches to chip prematurely at corners?

Premature corner chipping mainly occurs due to stress concentration on zero-radius sharp corners and improper heat treatment. Ordinary punches lack stress relief design and unstable material structure. We solve this issue by applying precision micro-radius corner transitions and optimized D2/DC53 vacuum heat treatment plus deep cryogenic stabilization, greatly improving impact resistance for thick-plate high-impact punching.

Q2: Can your custom geometric punches fit old European and American ironworker machines?

Absolutely yes. Our geometric punches are fully engineered as direct OEM replacement parts, matching original specifications for Amada, Trumpf, Geka, LVD, Piranha, Sunrise, Edwards and other mainstream ironworker models. Custom adapter caps and alignment couplings ensure seamless installation on both new equipment and legacy machines.

Q3: What is the service life difference between coated and uncoated geometric punches?

PVD CrN/TiAlN coated punches provide over 40% higher wear resistance, ideal for high-frequency continuous stamping production. Uncoated mirror-finish punches are more cost-effective for low-frequency, high-precision architectural and decorative punching tasks.

Q4: What is the MOQ for custom geometric shape punch orders?

We support 1-piece MOQ for in-stock standard punches for sample testing and performance verification. For drawing-based custom geometric profiles, the minimum trial order quantity is flexible and negotiable based on product complexity.

Q5: How long does it take to produce a set of custom non-standard punches?

Standard custom geometric punches take 7–10 working days after CAD drawing confirmation. Complex composite profile tooling requires 12–15 working days. We also support urgent order priority production for time-sensitive projects.

Q6: Do you provide after-sales warranty and technical support?

All our geometric punches come with formal after-sales warranty service. Our engineering team provides 24-hour online technical guidance for installation, debugging and machine parameter matching to ensure stable operation.

Q7: Can you reverse engineer punches from physical samples without drawings?

Yes. You can send us worn punch samples or accurate caliper measurement data. Our Nanjing technical team completes 3D scanning, STEP file replication and batch customization to achieve 100% dimension restoration of obsolete tooling.

Q8: What advantages does ALAS Industrial have as a custom geometric punch manufacturer?

With 15+ years of tooling experience, ALAS Industrial integrates independent R&D, production and precision testing. We adopt scenario-based professional material grading, vacuum cryogenic stabilization treatment, stress-relief structural optimization and matched die customization. We deliver full-set, high-stability geometric punching solutions with verified factory strength and stable global supply capacity.
