Industrial Counter Blades & Stationary Bed Knives for Single Shaft Shredders

Performance Mechanics: Why Stationary Alignment Matters

• Low-Drag Shearing: Acts as a rigid wall against rotating blades to deliver clean, scissor-like cuts that won't bog down your motor.

• Anti-Slip Retention: Holds bulk waste tight in the cutting pocket, preventing material from slipping backward so your machine maintains constant hourly tonnage.

• Shaft Protection: Built with an intentional 2–3 HRC hardness gap to take the hit first, absorbing severe shocks and saving your expensive main shaft from cracking.

Key Technical Features

• Certified Mill Steel: Machined directly from certified plates of AISI D2 (1.2379), DC53 Matrix Steel, or H13 (1.2344) with verifiable chemistry tracking.

• Stress-Relieved Heat Treatment: Atmosphere vacuum quenching followed by multi-stage tempering to prevent edge brittleness and stop the blade from cracking under load.

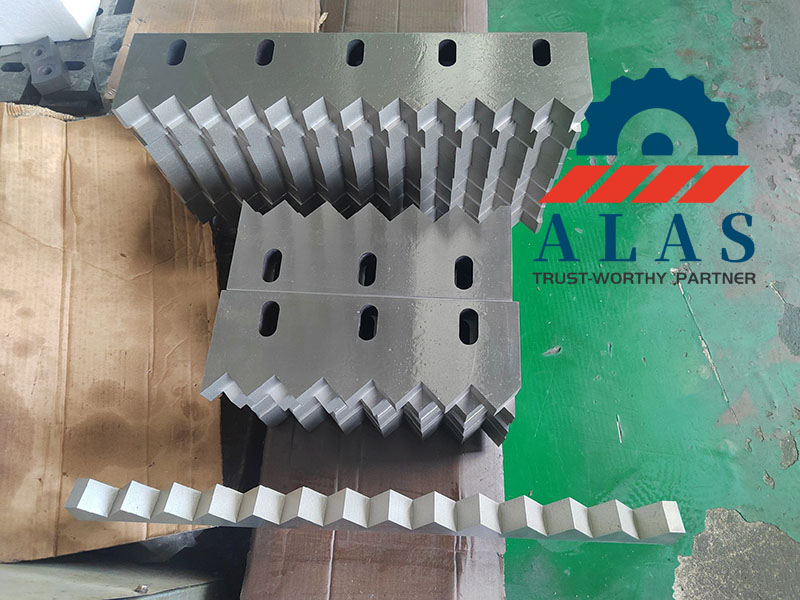

• Flatness ≤0.03 mm: Batch ground on precision magnetic surface grinders to guarantee zero horizontal slop inside your seating blocks.

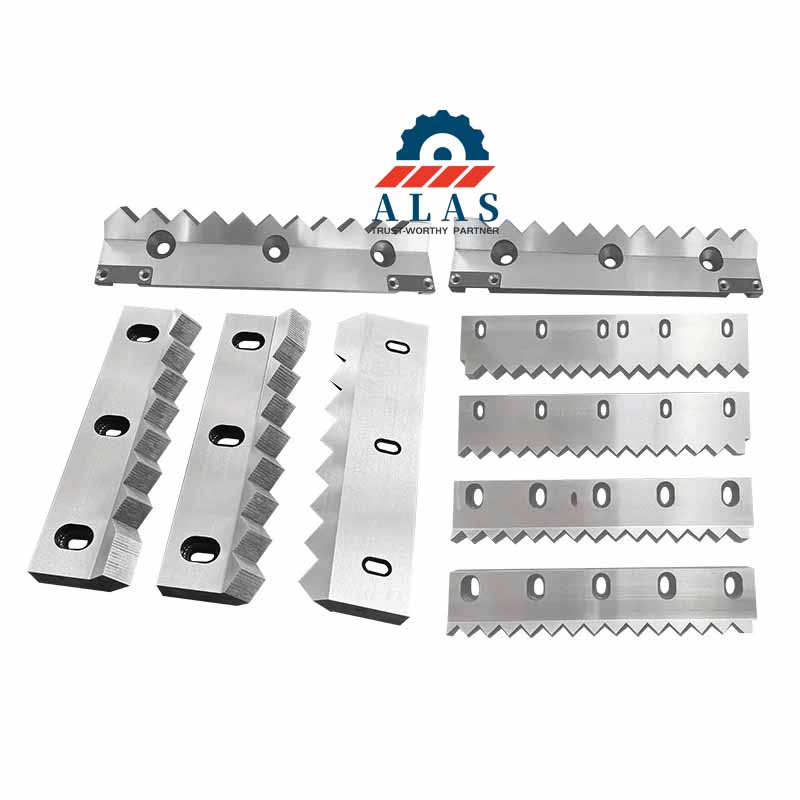

• OEM Drop-In Fitment: Machined to match native dimensions and bolt pitches for Vecoplan, Weima, Lindner, UNTHA, and Genox single-shaft shredders.

 Application-Specific Metallurgy & Hardness Matrix

Extreme Abrasion Upgrade: Optional Tungsten Carbide Hardfacing Edge (HRA 86–90) available strictly for clean, glass-filled plastics or highly abrasive fiber runs. Warning: Not suitable for lines with recurring foreign metal shocks.

Geometric Profiles for Specific Shearing Actions

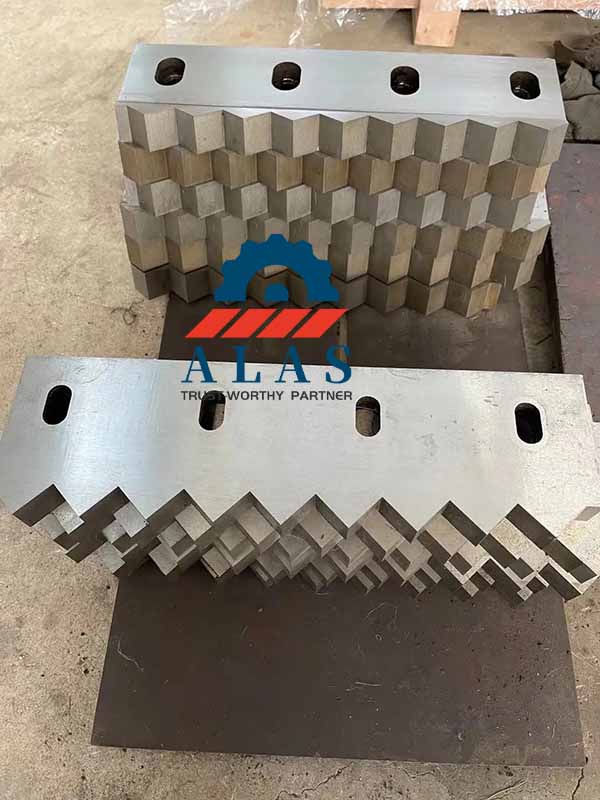

Multi-Tooth Serrated Profile (As Shown in Our Factory Batch Photo):

Design feature: Precision CNC-notched "V-shape" teeth patterns.

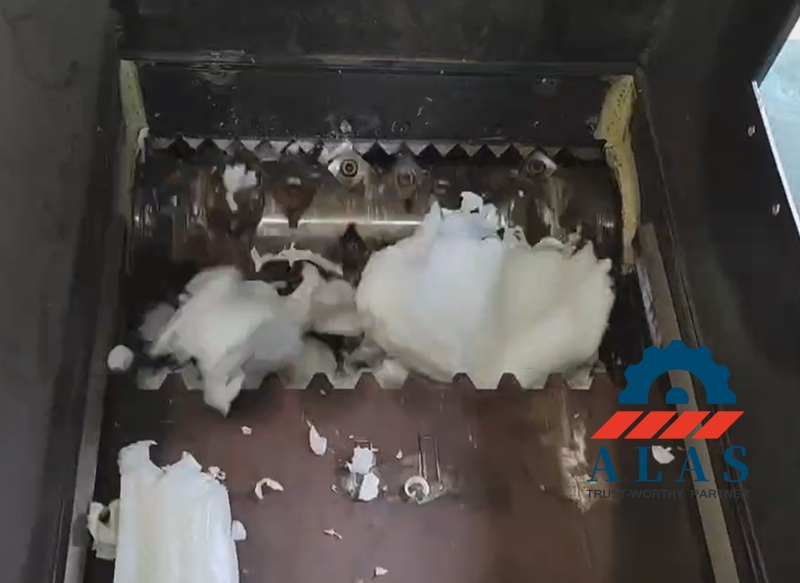

Best for: Thin packaging films, stretch wraps, woven giant bags, and scrap fibers.

Shop-floor benefit: Prevents flexible polymers from slipping through the gaps un-sheared. Forces a clean scissor-like cut to maximize throughput on light materials.

Straight Plain Edge Block:

Design feature: Heavy rectangular profile with solid reversible plain sharp edges.

Best for: Thick rigid injection lumps, heavy timber pallets, tree logs, and thick PVC pipes.

Shop-floor benefit: Maximizes body mass and cross-sectional strength to absorb heavy continuous crushing impacts without body cracking.

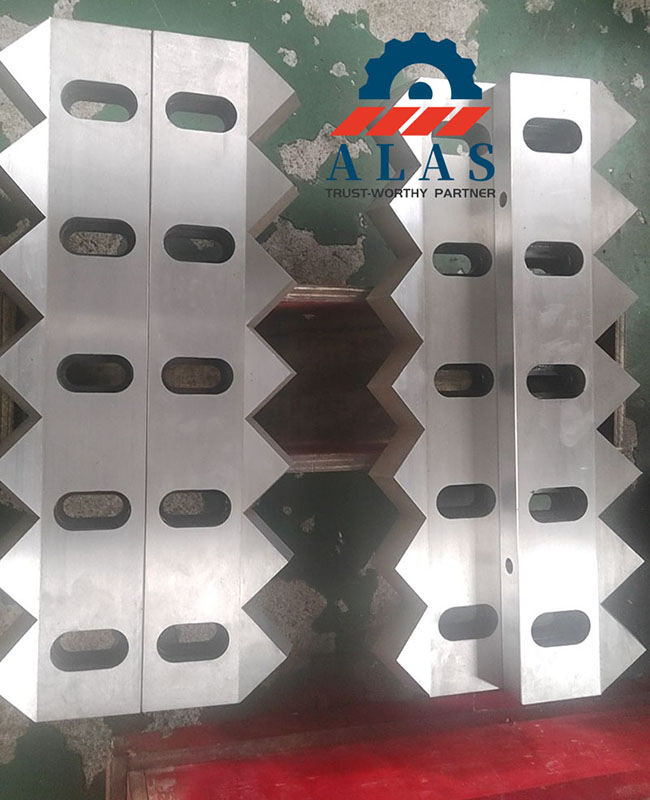

Elongated Bolt Slot Configuration:

Design feature: Oblong/oval mounting channels instead of standard round holes.

Shop-floor benefit: Allows operators to manually slide the bed knife forward to recalibrate and reset tight clearances after edge erosion, doubling the tool’s service life before regrinding.

Warping Prevention: How ALAS Locks Linear Straightness ≤0.03mm

Thermal Bowing Mitigation: Long bed knives are highly prone to thermal bowing and micro-warping under continuous 24/7 frictional heat.

Double Stress-Relief Cycle: Multi-stage computer-controlled vacuum tempering relieves manufacturing residual stresses before final grinding.

Linear Straightness ≤0.03 mm: Strict flatness metrics eliminate local friction hot-spots, preventing rotor-blade crashes during high-tonnage runs.

Shop-Floor Actionable Sourcing & Operations

When to Change Your Bed Knife (Checklist)

• Ugly Output: Scrap pieces are coming out elongated and oversized, or film and plastics start wrapping around the rotor block instead of shearing clean.

• Visible Edge Wear: You see clear chipping, nicking, or a visible radius forming across the stationary shearing edge during a lock-out inspection.

• Spiking Amp Draw: Your motor current (amperage) spikes on the control panel while your hourly output tonnage drops. The machine is brute-forcing the material, not cutting it.

How to Measure for an RFQ Blueprint Clone (Before You Request a Quote)

• Main Dimensions: Grab your calipers and record the exact overall length, height, body thickness, and the cutting edge bevel angle.

• Mounting Specs: Measure the center-to-center bolt hole pitch, counterbore depth, and let us know if your current slots are already elongated for adjustment.

• Rotor Hardness: Check or estimate your current rotating knife HRC hardness so we can dial in the proper 2–3 HRC metallurgical safety gap for your new bed knife.

Technical FAQ

Q1: Must the stationary bed knife always be softer than the rotating inserts?

Answer: Yes. Keeping a 2–3 HRC hardness gap is a hard shop-floor safety rule.
Think of the bed knife as your machine's fuse. If a stray bolt or tramp iron slams into the cutting chamber, the bed knife has to take the hit and deform first. If you make it as hard as the rotor knives, high-torque impacts will instantly snap your main shaft or strip out your rotor pockets. A dead rotor means weeks of downtime and thousands in repair bills.

Q2: Can ALAS reproduce custom counter blades from worn samples or old drawings?

Answer: Yes. We replicate and optimize from worn samples, CAD files, or OEM part numbers with a 100% fitment guarantee.
Our application engineers don't just copy the dimensions; we audit why your old blades failed. If your original OEM blades keep chipping under mixed waste, we won't just clone them—we will upgrade your material to our custom-tempered DC53 Matrix Steel to handle the impact.

Q3: What is the risk of using low-grade steels like 9CrSi or 42CrMo for bed knives?

Answer: Those are low-grade agricultural steels. They cannot survive industrial waste.
They lack deep hardenability. Run them against abrasive plastics or glass-filled scrap, and the edges will round off in days. Once the edge goes bald, your cutting gap widens, and the machine starts tearing and jamming instead of shearing. Your motor will overheat, energy bills will spike, and your team will waste hours constantly stopping production to adjust the blade gap.

Q4: If the bed knife is softer (54–58 HRC), won’t it wear out too fast?

Answer: No. While it is tempered lower for safety, its wear rate stays highly controlled.
Rotor knives take high-velocity, repetitive hits. The stationary bed knife faces static compression and sliding friction, eating a completely different kind of wear. Keeping it slightly softer protects your expensive main rotor from warping during a metal crash. Replacing a counter knife is a fraction of the cost of changing a bent main shaft that breaks your budget and kills your TCO.

Q5: My shredder is an older model and the rotor seating block has slight deformation. How can you guarantee your replacement counter knives won't crash?

Answer: Older shredders face bolt-hole drift and pitch mismatch. At ALAS, we fix this through practical design, not guesswork.
If your cutting chamber or seating block is slightly warped, a generic, rigid catalog blade will almost certainly misalign and crash. We solve this by implementing our Elongated Bolt Slot Configuration as a standard upgrade for older machinery. These slotted mounting holes give your maintenance crew the manual micro-adjustment play they need. Instead of fighting rigid, misaligned bolt holes, your operators can use standard feeler gauges to dial in and lock down a safe, uniform shearing clearance across the entire worn bed.

Q6: Should I upgrade to your Tungsten Carbide Hardfacing Edge for processing Municipal Solid Waste (MSW) or RDF lines?

Answer: Absolutely not. Do not waste your budget on carbide for MSW or RDF.
Carbide is hard but gets destroyed by impact. It only works on clean plastics under pure friction. Municipal Solid Waste (MSW) and Refuse-Derived Fuel (RDF) lines always have hidden concrete chunks, thick structural bolts, or steel brackets. When the rotor hits that tramp metal at high torque, a rigid carbide edge will shatter instantly. For contaminated waste, stick with our 56–58 HRC DC53 Matrix Steel or 50–54 HRC Premium H13. In this environment, toughness beats dead hardness every single day.
