Impact of Deflection Compensation on Angle Consistency of Long Workpieces

Introduction & Industry Pain Point

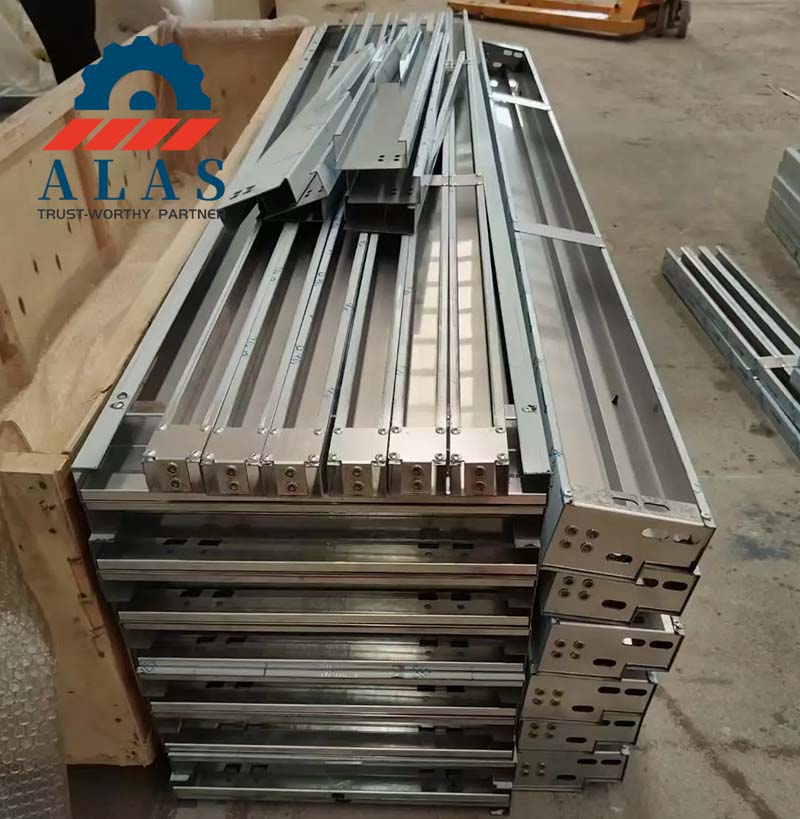

In precision sheet metal bending, workpieces of 2 meters or longer frequently suffer from precision defects where the angle is correct at both ends but deviates in the middle (typically resulting in under-bending or over-bending). This poor angle consistency during mass production leads to rework, scrap, reduced efficiency, and compromised assembly precision. It is one of the most common and easily overlooked process challenges on medium-to-large sheet metal processing lines.

Unlike standard operator errors, tool wear, or material inconsistency, the root cause of angle variance across long workpieces is machine deflection under load. During bending, the ram and worktable experience immense opposing forces. Supported at both ends without central support, the ram flexes upward while the worktable flexes downward. This expands the clearance between the upper and lower dies in the center, causing insufficient bending force on the middle section of the sheet. The longer the workpiece, the thicker the sheet, and the higher the bending tonnage, the more pronounced this deflection-induced angle error becomes.

Section 2: Deep Comparison of Three Mainstream Deflection Compensation Methods

The sheet metal industry corrects deflection using mechanical wedge compensation, hydraulic worktable compensation, or CNC automatic compensation. A detailed comparison based on accuracy, cost, automation, and practical applications follows:

A. Mechanical Wedge Compensation (Manual / Motorized)

• Working Principle: Multiple inclined wedges with varying slopes are installed under the lower die holder or inside the worktable. Adjusting their relative displacement forms a continuous convex curve (higher in the middle, lower at the ends) along the worktable surface, pre-offsetting the deflection of the ram and table.

• Accuracy: Angle compensation accuracy is ±0.3°, suitable only for basic, minor deflection corrections.

• Pros & Cons: Stable structure, low cost, and low failure rate. However, adjustment heavily relies on manual experience (or single-motor control), offering poor repeatability, time-consuming setup, and low automation. Best suited for small-batch, standard-precision sheet metal processing.

B. Hydraulic Deflection Compensation (NC Hydraulic)

• Working Principle: Multiple dedicated compensation hydraulic cylinders are embedded inside the lower worktable. During pressing, the CNC system calculates the required compensation force based on sheet thickness and length, driving proportional valves to control oil pressure and dynamically push the table upward into a pre-stressed convex curve.

• Accuracy: Angle compensation accuracy is ±0.1°, meeting most medium-to-high precision sheet metal bending standards.

• Pros & Cons: Fast response, stable compensation, and zero manual intervention. However, minor pressure fluctuations may occur due to oil temperature changes. It remains a cost-effective mainstream choice. Upgrading your setup with certified CNC Press Brake Tooling and Bending Dies further ensures that mechanical pre-stressing translates into smooth, linear angles.

C. CNC Automatic Mechanical Deflection Compensation (Smart Adaptive)

• Working Principle: Exclusive to high-end press brakes. The CNC system uses built-in material and mechanical algorithm models to calculate precise deflection values based on material type, thickness, bend length, and tooling parameters. Servo motors drive multiple wedge sets to generate a micron-level optimal compensation curve automatically.

• Accuracy: Angle compensation accuracy reaches up to ±0.1°, delivering micron-level curve correction.

• Pros & Cons: Fully automatic, self-adaptive across multiple working conditions, highly consistent, and free of operator error. Ideal for high-volume, high-precision long workpiece bending. The primary drawback is higher equipment purchasing and maintenance costs.

Section 3: Specific Issues and Solutions for Segmented Tooling

While solid one-piece tooling works well with the three compensation methods above, segmented sectional tooling introduces unique accuracy vulnerabilities. Due to accumulated manufacturing tolerances, uneven wear between sections, and structural weakness at the joints, a localized angle deviation of 0.2° to 0.5° often occurs at the seams, even when the machine's overall deflection compensation parameters are fully calibrated.

Targeted On-Site Countermeasures:

• Standardize Tooling Baselines & Fast Clamping: Use high-precision ground, same-batch segmented tooling (such as precision quick-change tooling) paired with uniform hydraulic or pneumatic clamping systems to eliminate micro-gaps and height variations between sections.

• Lock Backing Plates & Reinforce Bases: Lock the segmented tooling securely onto a high-rigidity backing seat to prevent micro-displacement or lateral deflection during bending.

Section 4: Field Test Data Verification (3m Workpiece, 4mm Carbon Steel)

Standardized shop‑floor testing was conducted using a 3‑meter‑long, 4 mm‑thick carbon steel plate with a target bend angle of 90°:

Section 5: Summary and Process Selection Recommendations

The root cause of angle inconsistency in long workpieces is elastic deflection of the worktable and ram under pressure. Matching the correct compensation method is key to maintaining angle consistency:

1. Small-batch, low-precision production: Choose low-cost mechanical wedge compensation.

2. Medium-batch, standard precision production: Opt for NC hydraulic compensation.

3. High-volume, high-precision, long workpiece production: Prioritize CNC automatic mechanical deflection compensation.

4. Segmented tooling applications: Must be paired with high-precision ground tooling and uniform clamping systems to prevent localized joint defects.
