Replacing metal shear blades requires strict precision. Done right, it restores edge stability and maximizes tool life. Done poorly, it can ruin the blade pocket, crack the tool steel, or lock up the machine entirely.

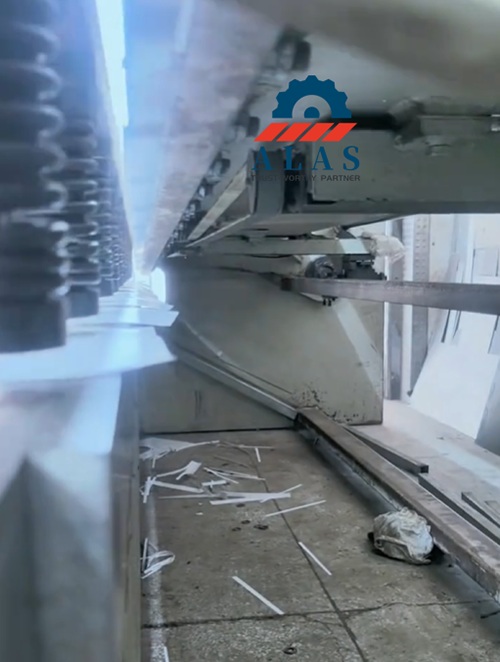

Whether you work on hydraulic scrap shears, alligator shears, or sheet metal guillotines, these standard steps will help you avoid structural damage and protect your machine's guiding gibs.

Pre-Installation Safety & Energy Isolation

Industrial shears store hazardous energy across hydraulic, pneumatic, electrical, mechanical, and gravity systems depending on the machine type. Never rely on standard control switches, valves, or system gravity to hold the upper ram or knife beam in position during blade maintenance.

• Lockout/Tagout (LOTO): Isolate and lock out all electrical, hydraulic, pneumatic, and mechanical energy sources. Completely de-energize electrical power and bleed down all hydraulic pressure accumulators. Verify a absolute zero-energy state using calibrated pressure gauges, electrical test instruments, and a mandatory try-start procedure. Ensure the upper ram is mechanically secured before loosening any fasteners.

• Mechanical Support: Support the upper ram or knife beam using rated safety pins, engineered cribbing blocks, or designated support stands. Do not rely on hydraulic valves to hold up the ram weight. Use crane hoisting straps strictly for lifting and handling logistics, never as a primary mechanical fall-protection mechanism.

• Personal Protective Equipment (PPE): Wear cut-resistant gloves (avoid metal chainmail until electrical isolation is fully verified), industrial safety glasses equipped with a full-face shield, a safety helmet, heavy-duty steel-toe boots, and hearing protection. Because single blade sections can weigh up to 50 kg, utilize mechanical lifting aids or mandatory two-person lifts. Keep hands and limbs clear of all focal shear points at all times.

Step 1: Check Shims and the Machining Baseline

Clean the blade assembly with a degreasing solvent to expose the layout. Record the current blade clearance with a feeler gauge before loosening any fasteners, and log the following details:

• Shim Packing Configuration: Measure each shim thickness using a digital micrometer or a calibrated digital caliper. Document the shim quantity, order, orientation, and total stack thickness for each specific blade section. Shims compensate for blade bed wear and past regrinds; mixing them during reassembly will throw off the final blade clearance alignment.

• Fastener Assessment: Always replace high-tensile fasteners with exact OEM specifications—typically Class 10.9 or 12.9 for socket head and hex bolts.

• Orientation Markings: Record any factory index marks or stamped alignment numbers present on the blade face.

Step 2: Sequential Blade Disassembly

Unbolting long or segmented shear blades in a random order releases structural clamping forces unevenly, which can lead to thread galling or blade holder distortion. Securely support the blade weight using cribbing blocks or a lifting device before removing the final fasteners.

• Loosening Sequence: Loosen all bolts gradually in an alternating, diagonal cross pattern. For long continuous blades, keep two central bolts loosely threaded until the end to prevent unexpected slipping. For segmented blades, follow the diagonal cross pattern within each segment, leaving one bolt loosely threaded per block until the section is fully supported.

• Extraction Tooling: Thread lifting eyebolts into the blade’s integrated removal holes where available. Use a brass drift and a mallet to tap the blade block out of its pocket. Never strike the tool steel directly with a steel hammer, and never pry against precision-ground surfaces. Use integrated jack-screw holes to back the blade out. Never insert pry bars into precision-ground seating interfaces.

• Post-Removal Inspection: Thoroughly clean the blade seat and pocket contact faces. Scrape away burrs, metal chips, and dried oil, then inspect for any surface dents or rust that could prevent uniform seating during reassembly.

CRITICAL WARNING: Always replace shear blades as a complete, factory-matched set. Never mix worn and new blade segments within the same pocket bed.

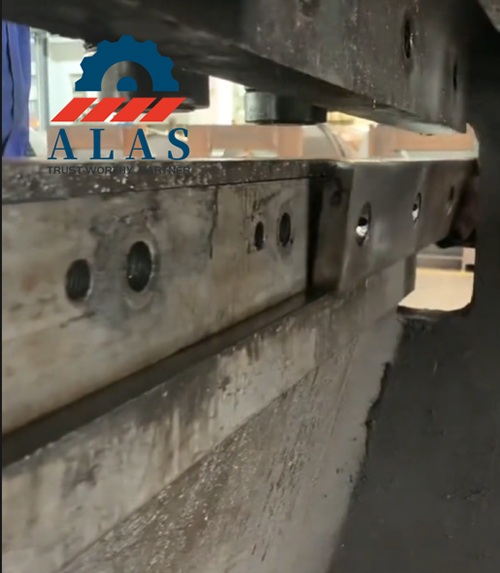

Step 3: Blade Pocket Cleaning and Flatness Inspection

• Pocket Cleaning: Scrape off all scale, rust, and debris using wire brushes and solvent cleaners. File down any burrs or deformations on the blade seat. The pocket surface must be completely smooth to ensure uniform support.

• Flatness & Alignment: Inspect the backup block and bed flatness using a precision straightedge and feeler gauges. Since replacement blades have a strict thickness tolerance of ±0.02 mm/m, any high spot exceeding 0.03 mm will cause localized stress. Dress high spots flat with a hand stone. If deep pitting or depressions are found, the bed must be re-machined.

• Thread Chasing: Run a dedicated thread chaser (not a cutting tap) through all mounting holes to remove grit, paint, and scale. This prevents thread damage and ensures accurate torque measurements during assembly.

Step 4: Dry-Fitting and Mechanical Interference Verification

• Hole Pitch Alignment: Fit the new knife block into the pocket without shims. Make sure all through-holes line up with the backing holes. For blades longer than 1,000 mm, verify that any minor pitch shifts from heat treatment still fall within machine limits.

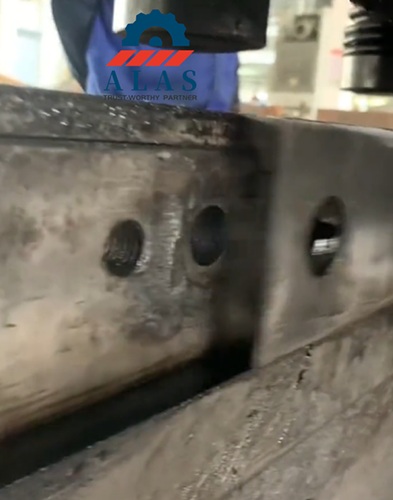

• Countersink/Counterbore Inspection: Check that the counterbore depth allows your high-strength bolts to sit completely flush or slightly sub-surface.

Step 5: Lubrication and Torque Control

Thread Lubrication: Coat all bolt threads and washer faces with high-pressure molybdenum disulfide (MoS₂) anti-seize paste to ensure uniform bolt tension and prevent galling.

Incremental Torque Sequence: Torque fasteners in four progressive stages: hand-tight, 30%, 60%, and 100% of target specification. Follow an inward-to-outward cross pattern. For multi-hole beds, repeat the final 100% pass until all fasteners stabilize.

Torque Specifications: Reference the machine manual for specific lubricated torque values. Do not use dry torque values, as MoS₂ significantly reduces friction. Over-torquing will fracture the counterbore shoulders; under-torquing will cause fasteners to back out under impact.

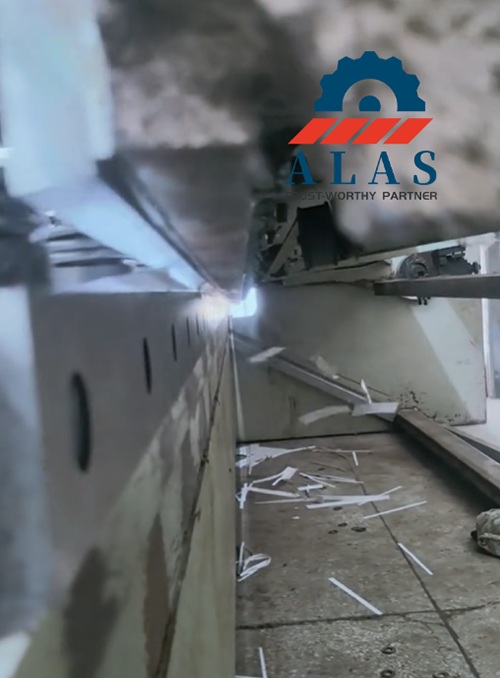

Step 6: Set the Blade Clearance

Clearance Calibration: Blade clearance must be set as a percentage of the material thickness based on the table below:

Example: For 10 mm mild carbon steel, set the single-side clearance to 0.5 mm – 1.0 mm.

Multi-Point Inspection: Jog the machine until the knives overlap. Measure the gap with a precision feeler gauge at multiple index points along the full bed length. The maximum allowable gap variation along the bed is 0.05 mm. If the deviation exceeds 0.05 mm, re-calibrate the backing shims.

Step 7: Manual Rotation and Commissioning Tests

• Manual Jogging: Verify LOTO (Lockout/Tagout) remains active and the upper ram is mechanically locked before rotation. Disengage automatic hydraulic cycles. Manually rotate the drive mechanism for one full cycle, or use low-pressure, controlled jog pulses. Listen for abnormal friction and visually verify blade bypass clearance.

• Test Shearing: Perform a test cut on a piece of scrap metal of the identical grade and thickness. Inspect the sheared face:

  • Correct: A clean, burnished zone followed by a uniform fracture plane.

  • Too Wide: Heavy burrs or excessive edge rollover.

  • Too Tight: Secondary shear lip or double burnish.

• Post-Cut Re-Torque: Re-check all bolt torques after an initial 8-hour break-in period. Re-verify torque every 8 operational hours thereafter. Discard and replace any bolt that requires re-torquing more than once after the initial break-in.

Troubleshooting Installation Failures

Issue: Bolts bind during assembly.

• Root Cause: Pitch error across the blade length, thread damage inside the bed, packed grit/rust in holes, or deformed bolt threads. Never force bolts with an impact wrench. Remove the blade to inspect hole alignment and threads.

Issue: Blade cracks or chips within 100 cycles.

• Root Cause: Trapped debris behind the blade causing stress concentration, uneven torque, or insufficient clearance leading to blade clashing.

Issue: Bolts loosen or snap at the head.

• Root Cause: Protruding bolt heads striking the moving jaw, insufficient preload causing fatigue failure, or false torque readings from a lack of anti-seize lubrication.

Conclusion & Engineering Support

Proper shear blade installation requires precise torque control, thorough pocket cleaning, and accurate clearance calibration to prevent machine guide damage and premature blade fracture.

ALAS Machinery manufactures custom metal shear replacement blades with strict linear tolerances and precise counterbore depths. Contact ALAS with your CAD prints or wear samples for an engineering review and wholesale quotation.
