How to Measure and Match Bolt-Hole Dimensions for Metal Shear Blade Replacement

When buying aftermarket shear blades, material choice determines edge life, but the bolt-hole pattern decides if you can even mount it. Even if a replacement blade’s length, width, and thickness are perfect, it is useless if the cumulative pitch error, countersink angle, or counterbore depth does not match your machine's blade pocket.

For maintenance teams, accurate field measurements prevent common installation issues like binding, stripped threads, and premature blade cracking under heavy loads.

Why Bolt Alignment Matters

Shear knives handle massive vertical and lateral forces. The bolts do more than just hold the blade in place; they provide the clamping force that keeps the knife from shifting during a cut.

If the hole tracking or pitch calculations are off, you will run into immediate problems on the shop floor:

• Fastener damage: Forcing M12 or M16 bolts into misaligned holes causes cross-threading, galling, and stress concentration.

• Blade shifting: Loose hole alignment allows the blade to micro-shift under heavy loads. This throws off your blade clearance, causing heavy material burrs or chipped edges.

• Protruding bolt heads: If the countersink is machined incorrectly and a bolt head sticks out by even 0.5 mm, passing material will hit it. The bolt will absorb side thrust until it snaps or the blade steel cracks.

Key Bolt-Hole Parameters to Check

Before sending an RFQ to a blade manufacturer, make sure your team verifies these dimensions:

• Total Hole Count: Number of holes along the blade.

• Clearance Hole Diameter: For standard M12 heavy-duty fasteners, through-holes are typically machined to 13.5 mm conforming to ISO 273 medium-series specifications. For applications requiring minimal play, a 13.0 mm close-fit series hole (ISO 273) can be specified for applications requiring minimal play.

• Hole Pitch: The center-to-center distance between adjacent bolt holes. To prevent alignment failure at the machinery pocket, the cumulative pitch error across the entire blade length must be strictly controlled within ±0.20 mm, ensuring each fastener shares the shearing load uniformly without generating destructive localized stresses.

• Hole Layout: Whether the holes are in a straight row, staggered, or offset. Measure this from a fixed, unworn reference edge.

• Edge-to-Center Distance: Distance from the hole center to both the back face and the cutting edge.

• Countersink Angle: The taper angle, typically 90° for standard metric countersunk fasteners. While 120° configurations exist for specialized thin-gauge applications, industrial shear blade assemblies conform strictly to the 90° profile to maximize load-bearing surface contact and prevent bolt loosening under operational vibration.

• Counterbore/Step Depth: Depth from the blade surface to the internal seating shoulder. Getting this right keeps bolt heads flush.

• Thread Details: Thread pitch and size (Metric or Imperial/UNC) if the blade has built-in internal threads.

How to Measure on the Shop Floor

Before initiating any caliper measurements, thoroughly flush and degrease all bolt hole cavities and seating reference faces. Hidden grit, rust, or packed grease inside the counterbore will distort your readings and cause dimensional variations.

Do not rely on a worn or warped blade for your measurements. Heavy use distorts tool steel over time. Always cross-reference shop floor dimensions with your machine manual or original drawings when you can. Use calibrated digital calipers, pitch gauges, and depth gauges.

1. Finding the True Hole Pitch

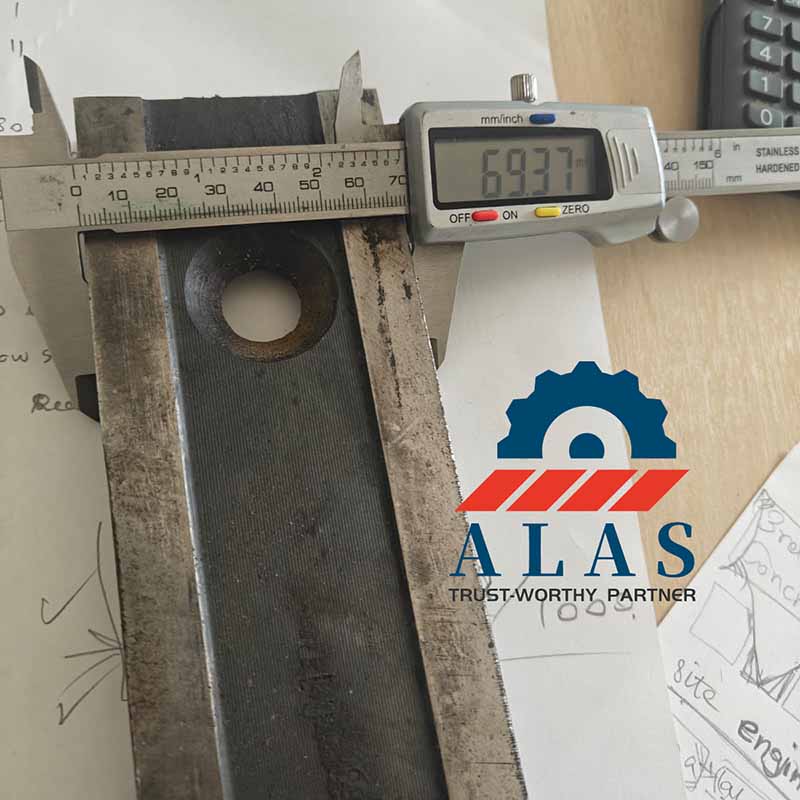

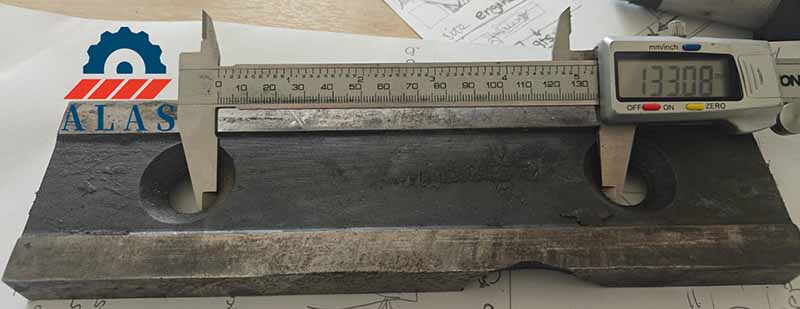

Do not attempt to eyeball the center of a hole with caliper tips—it introduces excessive measurement error. Instead, measure from the left edge of Hole A to the left edge of Hole B (or right-to-right). As long as the hole diameters are identical, this edge-to-edge dimension yields the exact center-to-center pitch.

Always log the cumulative distance from the first hole to the absolute last hole over the entire span. For heavy-duty blades exceeding 1,000 mm, physical wear or historical heat-treatment distortion may generate non-standard fractional readings on your caliper. Our engineering center utilizes these comprehensive field metrics to reverse-engineer and reconstruct the original nominal design pitch before programming CNC toolpaths.

2. Verifying Counterbore Depths and Countersink Taper Angles

Wrong countersink sizes will cause installation issues. Your team must differentiate between these two seat geometries to ensure flush clamping stability:

• Countersink (Bevel Hole): Verify the major diameter and entry angle (typically 90° or 120° for metric industrial fasteners). Forcing a mismatched screw angle minimizes surface contact, forcing the bolt to back out under continuous severe cutting vibration.

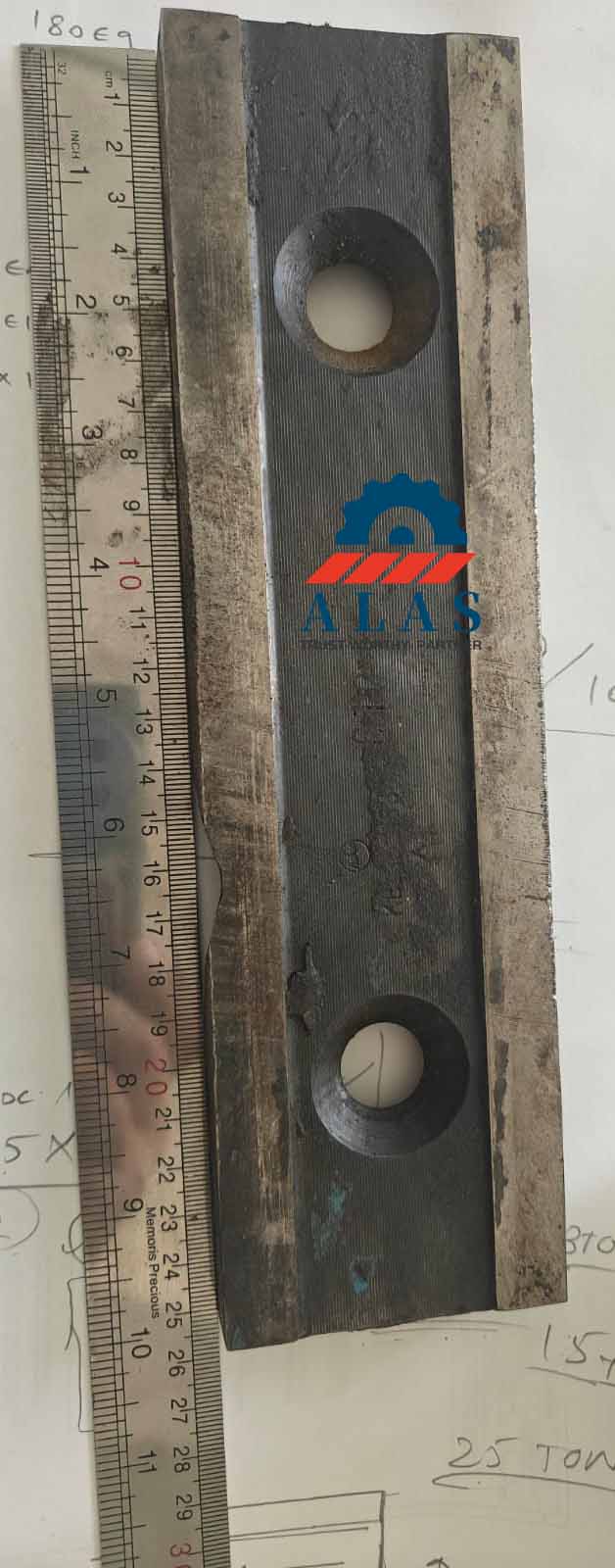

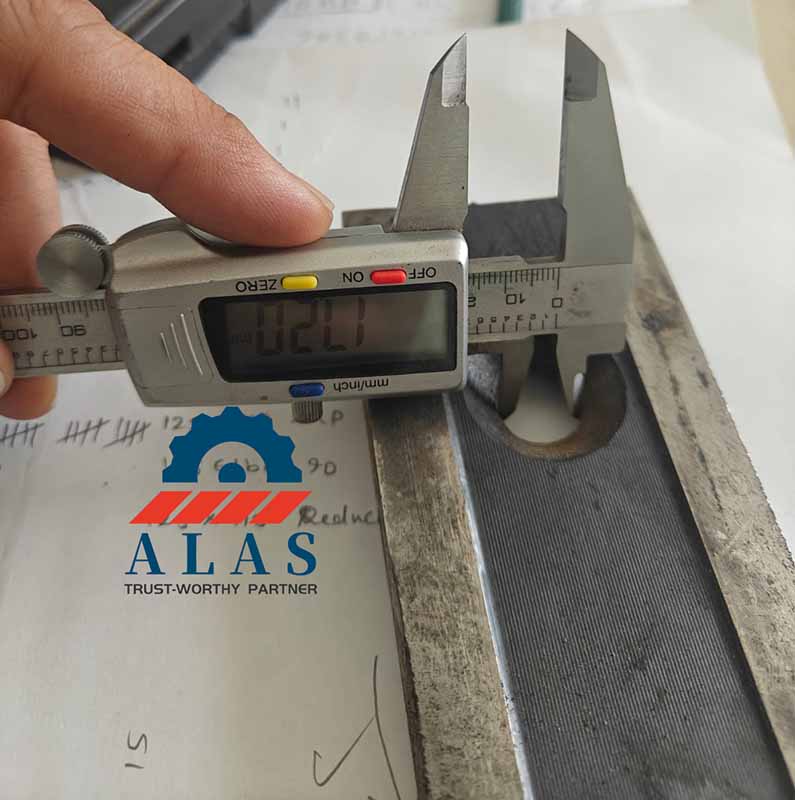

• Counterbore (Stepped Hole): Lock down the precise step depth to the internal seat shoulder using a caliper depth rod. A shallow counterbore cavity allows the M12 bolt head to protrude from the blade surface. During high-tonnage cutting strokes, this protrusion strikes the opposing upper jaw or internal blade pocket wall, immediately snapping the bolt shank or scoring the guiding gibs.

Technical Specifications Required for an Accurate RFQ

To allow an engineering-driven manufacturer like ALAS to provide a formal review and wholesale quotation within 24 hours, ensure your technical inquiry includes:

• 2D Technical Prints: PDF, DWG, or DXF files containing explicit linear tolerances and hole center coordinates.

• 3D Step Models: STEP, STP, or IGES files for complex profile or custom alligator shear knives.

• Physical Wear Samples: Shipping a physical knife to our facility allows our CMM (Coordinate Measuring Machine) department to handle full reverse-engineering and map missing datums.

• Machinery Context: Equipment brand, machine model number, input steel grade (e.g., rebar processing, structural beams, or cold-rolled sheet), and material thickness.

• Production Batch Quantity.

Common Shop-Floor Errors to Avoid

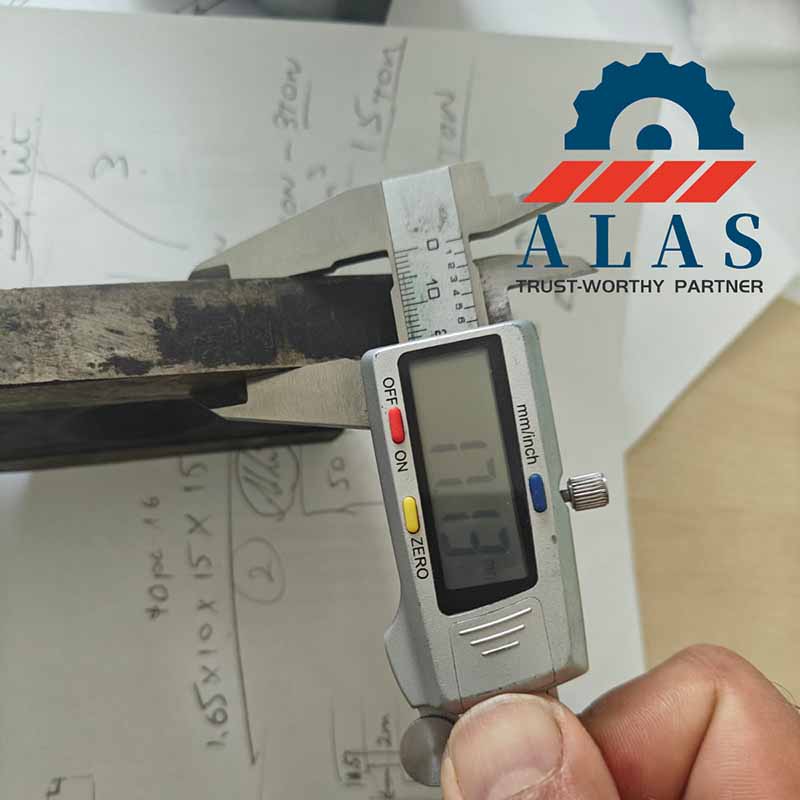

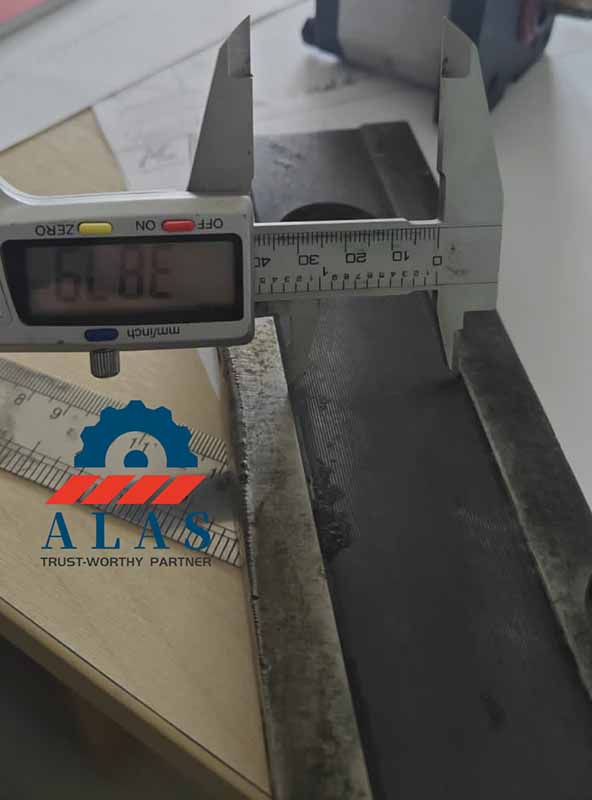

• Measuring from worn edges: The cutting edge loses material from wear and regrinding. Never use it as a reference. Always measure hole locations from the back rigid supporting face.

• Ignoring cumulative tolerance build-up: Measuring sequentially from hole to hole (A to B, then B to C) compounds minor caliper errors. Always measure each hole's distance back to your primary reference edge.

• Mixing metric and imperial hardware: Confusing an M12 thread with a 1/2-inch UNC thread will lock up bolts midway through machine assembly.

How ALAS Guarantees Assembly Alignment

Our manufacturing workflow eliminates fitment issues during the engineering and machining phases through a standardized verification protocol:

- Blueprint Verification: Our technical department cross-checks field measurements against OEM equipment datums before programming toolpaths to identify and resolve cumulative tolerance errors.

- CNC Pitch Control: All bolt tracks, counterbore steps, and countersink geometries are processed on high-precision CNC machining centers to maintain rigid center-to-center pitch positioning tolerances.

- Thermal Stabilization: To guarantee flatness and prevent warping in long-strip tool steels like H13 and HMB, components undergo stress-relief annealing immediately after rough machining. This eliminates residual machining stresses prior to final vacuum gas quenching and precision surface grinding.

- Pre-Shipment Assembly Verification: Quality control engineers perform a physical alignment mockup using calibrated master gauges and fasteners to verify thread clearance, countersink flush seating, and edge straightness across the entire block length.
