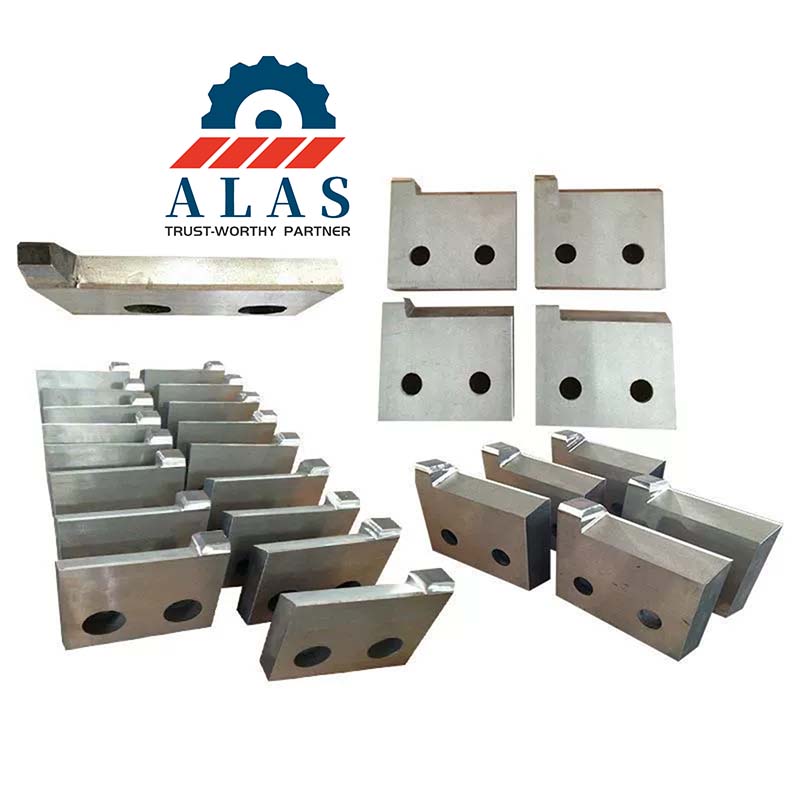

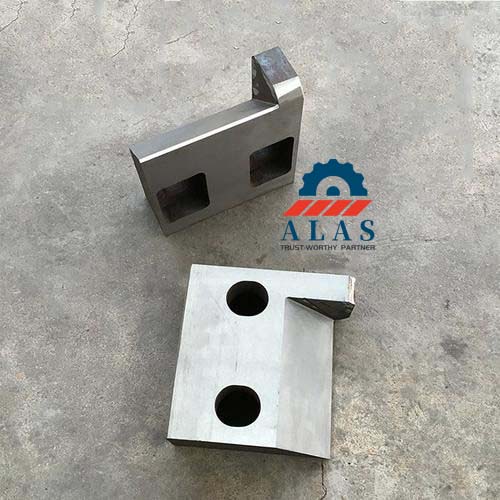

High-Speed Rotary Flying Shear Blades & Metallurgical Crop Knives for Rebar & Wire Rod Mills (Manufactured As Per Drawing)

1. Technical Classifications & Operational Design

We manufacture rotary flying shear blades and metallurgical crop knives engineered for automated rebar shearing lines and high-speed wire rod mill equipment, executing instantaneous cropping and fixed-length sectioning on fast-moving steel sections. Formulated to operate under continuous line velocities from 40 m/s to over 100 m/s, individual tool assemblies are calibrated with matched weight distribution metrics and precise dynamic balance constraints to suppress centrifugal mechanical resonance and eliminate spindle vibration during high-cycle rotation. This rigid geometric alignment maintains uniform edge positioning tolerances, preventing cutting accuracy deviation and uneven end-face shearing under heavy hot rolling mill stress profiles.

2. Premium Core Material Grades & High-Temperature Metallurgical Properties

Blades undergo vacuum quenching and multi-stage tempering to resist centrifugal fatigue and thermal wear. Three core grades are offered:

• HMB (52–56 HRC) — Premium Metallurgical Heat-Resistant Alloys: Advanced Low-Si, High-Mo alloy modified with Niobium (Nb), engineered to sustain linear speeds up to 120 m/s in high-speed wire rod finishing blocks. The precise metallurgical reduction of Silicon minimizes high-temperature brittleness, while Niobium additions induce micro-grain refinement to maintain extreme carbide matrix stability, successfully preventing edge chipping and hot thermal softening during continuous high-velocity production runs.

• H13K (52–55 HRC) — High-Red-Hardness Modified Hot-Work Steel: High-purity, premium ESR (Electro-Slag Remelted) hot-work steel optimizing ultra-low sulfur and phosphorus content; engineered with superior red-hardness and thermal fatigue resistance for uninterrupted, heavy-duty rebar shearing. The ultra-clean isotropic matrix significantly delays structure breakdown caused by frequent rapid temperature changes in continuous rebar flying shearing processes, reducing blade micro-chipping and wear failure during long-cycle campaigns.

• H13 / 4Cr5MoSiV1 (50–54 HRC) — Universal Hot-Work Alloy Steel: Universal standard hot-work steel delivering a proven balance of matrix toughness and abrasion resistance, suitable for general-purpose conventional rolling mills. Meets daily high-frequency cutting demands of standard bar rolling mills with high cost-performance and stable comprehensive mechanical properties.

3. Machined Tolerances & Precision Dynamic Balance Calibration

Knives undergo strict calibration for low-friction cutting:

• Mass-Verification & Centrifugal Alignment: Suppresses mechanical resonance during high-speed rotation.

• Straightness & Parallelism Tolerance: Controlled within ≤ 0.02 mm to prevent cutting deviation.

• Surface Finish Accuracy: Ground to Ra ≤ 0.8 μm to reduce friction and prevent adhesive wear.

4. Advanced Metallurgical Manufacturing & Traceability Framework

All custom rotary flying shear blades and metallurgical crop knives are processed entirely in-house:

1. Raw Material Spectral Verification: ASTM A681 and DIN EN ISO 4957 compliant analysis with MTC logging.

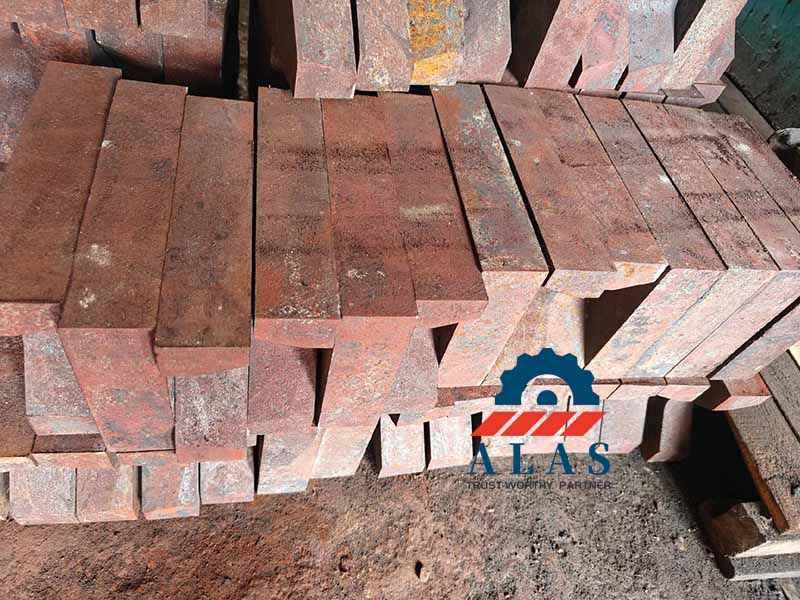

2. Multi-Directional Forging: Heavy-duty hydraulic hammer processing for maximum density.

3. Spheroidizing Annealing: Thermal cycles for machining readiness.

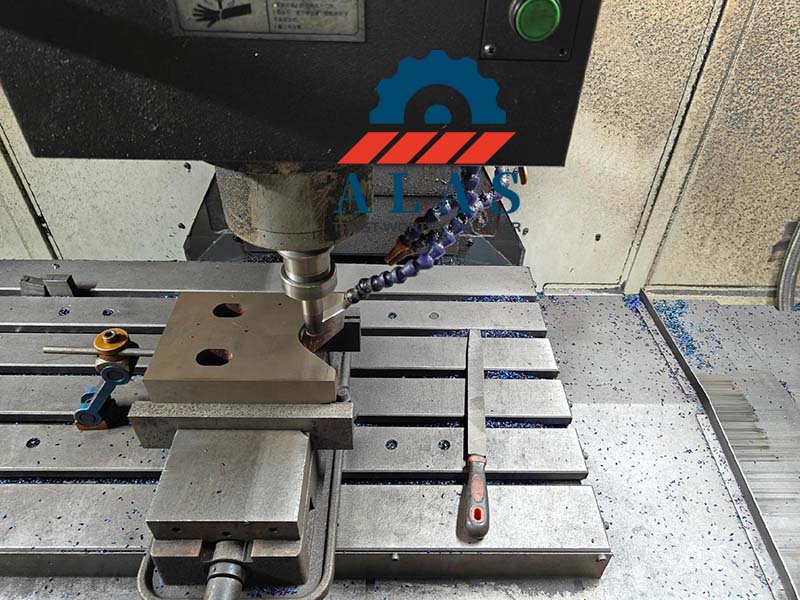

4. CNC Precision Rough Machining: Milling profiles and fixing bolt holes per CAD.

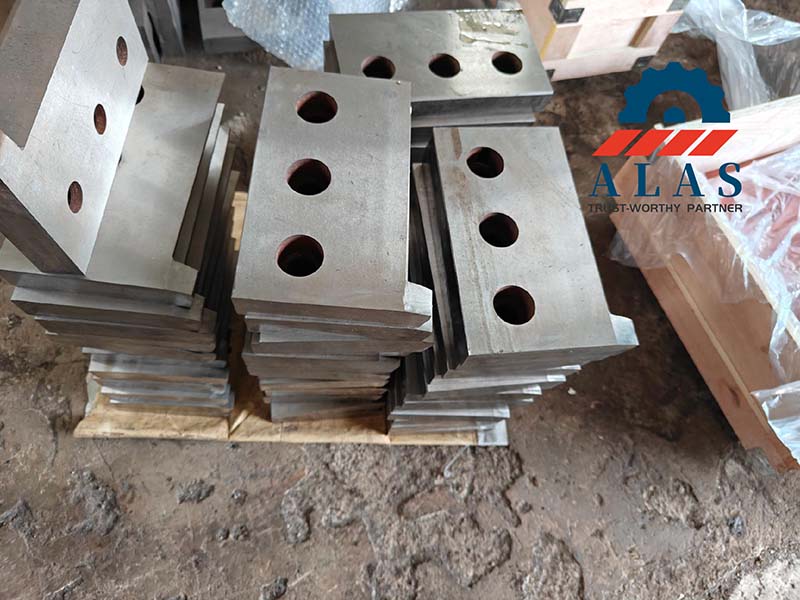

5. Vacuum Quenching & Tempering: Computer-regulated heat treatment for through-hardness.

6. Ultra-Precision Wet Grinding: Achieving Ra ≤ 0.8 μm mirror finish.

7. Metrology Inspection & NDT: 100% dimensional and defect verification.

8. Laser Marking: Permanent traceability etching.

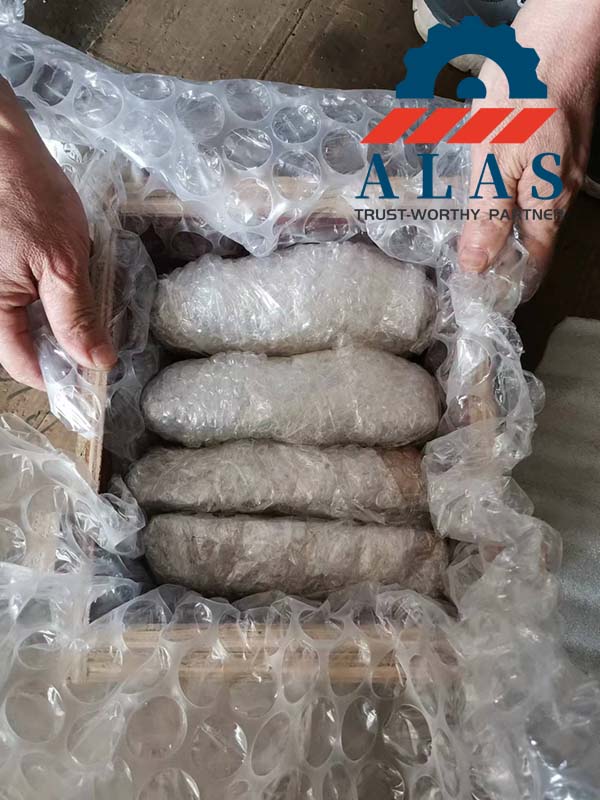

9. Anti-Rust Treatment & Packing: VCI vacuum sealing and export crating.

5. International Steel Grade Correspondence

• HMB (Premium Custom High-Mo Hot-Work Steel)

  • USA (AISI): Custom Low-Si High-Mo Mod (e.g., Uddeholm Dievar / QRO 90 level)

  • Germany (W-Nr.): ~1.2367 (X38CrMoV5-3 Mod)

  • Japan (JIS): Custom Ni-Cr-Mo Hot-Work Grade (e.g., Daido DH31-S level)

• H13K (High-Purity ESR H13)

  • USA (AISI): H13 ESR / Premium H13 (ASTM A681)

  • Germany (W-Nr.): 1.2344 ESR (EFS)

  • Japan (JIS): SKD61 ESR (e.g., Hitachi DAC-P)

• H13 (Standard Hot-Work Steel)

  • USA (AISI): H13

  • Germany (W-Nr.): 1.2344 (X40CrMoV5-1)

  • Japan (JIS): SKD61

  • Russia (GOST): 4X5MF1C

  • U.K. (BS): BH13

6. Technical Support FAQ (Specialized for High-Speed Rotary Flying Shears)

Q1: What technical documentation is required for ordering custom rotary flying shear blades?

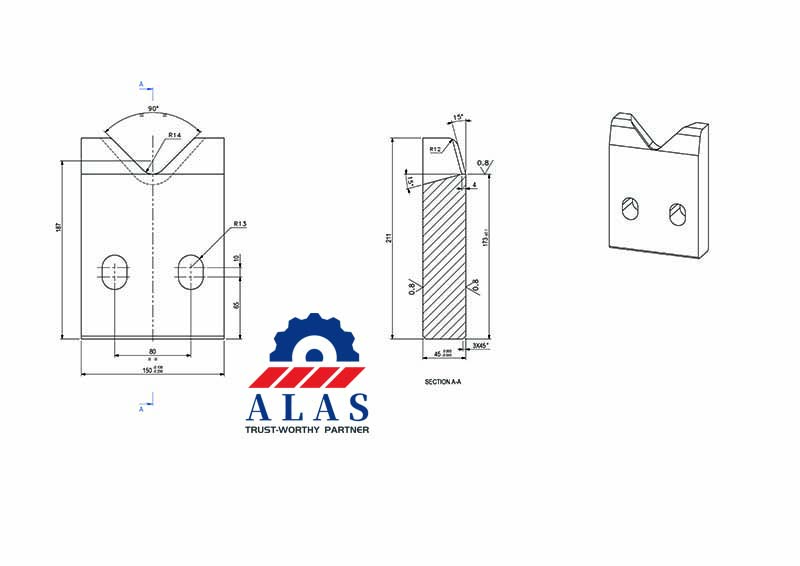

A: Official CAD blueprints in DWG, DXF, PDF, or STP are required, specifying dimensions, tolerances, and mill operational variables.

Q2: Why is the through-hardness of rotary flying crop knives typically balanced within a 52–58 HRC matrix instead of being pushed higher?

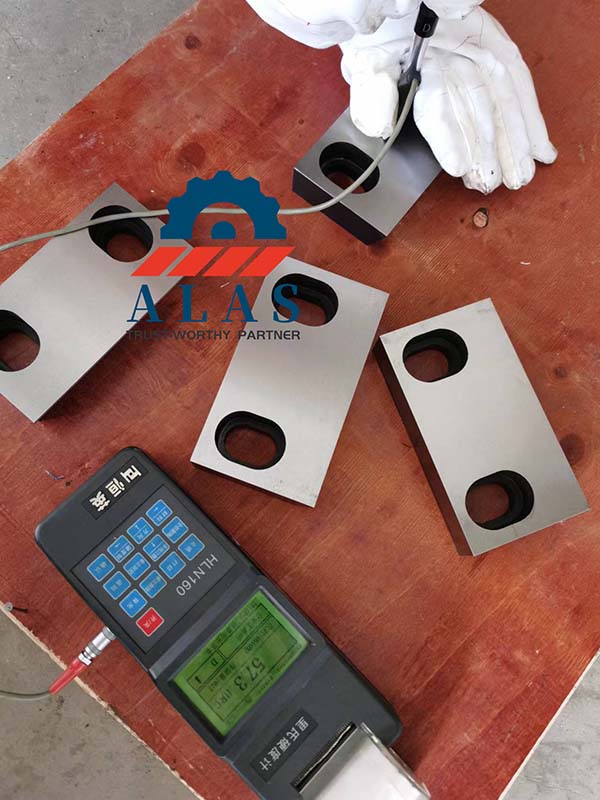

A: For rotary flying shears operating under severe 40–120 m/s velocities, structural impact toughness and resistance to centrifugal fragmentation are critical. Forcing tool steels beyond 58 HRC drastically increases internal crystalline matrix stress, making the edge brittle. We deliberately control the standard through-hardness via automated multi-stage tempering cycles: standard H13 operates at 50–54 HRC, premium ESR H13K scales to 52–55 HRC, and specialized Nb-modified HMB alloy is held at 52–56 HRC. For high-velocity bar finishing profiles processing specific rigid sections, we intentionally custom-engineer the matrix to peak at 56–58 HRC (as certified in our factory inspection logging 57.3 HRC) to secure maximum abrasion defense without risk of body blowout.

Q3: What specific metallurgical failures cause premature cracking or edge degradation in rolling mill flying knives?

A: The primary cause is thermal fatigue cracking, commonly known as heat checking, combined with internal microscopic inclusions. The continuous cycle of sudden heating when contacting red-hot steel followed by high-pressure water cooling induces extreme cyclical thermal stress. If the tool steel contains trace elements of sulfur and phosphorus, these impurities act as internal stress-concentration nodes that initiate catastrophic blade body fracturing. Upgrading to H13K modified steel provides a high-purity, premium ESR (Electro-Slag Remelted) metallurgy with ultra-low sulfur and phosphorus content. This ultra-clean microstructure maximizes structural fatigue resistance, successfully resisting micro-crack expansion and preventing edge degradation under heavy continuous mechanical strokes.

Q4: How does a mass or weight variance affect high-speed rotary shear equipment?

A: Micron-level weight mismatches at high speeds cause centrifugal unbalance and resonance; precise matching ensures operational stability.

Q5: Which material configuration is recommended for the finishing trains of high-velocity wire rod mills?

A: HMB nickel-chromium-molybdenum alloy is recommended for 100–120 m/s finishing trains to prevent thermal softening.

Q6: What quantitative quality control standards apply to each finished batch of rotary crop knives?

A: Metrics include linear straightness error ≤ 0.02 mm, 5-point hardness variance ≤ ±1 HRC, and surface roughness Ra ≤ 0.8 μm.

Q7: What role do rotary flying shear blades play in high-speed rolling mill lines?

A: Rotary flying shear blades are mounted directly onto rotating drums to execute dynamic, synchronized cutting on fast-moving steel sections without halting the production line. At the instant of shear entry, the linear edge velocity matches the exact speed of the rolling bar. These knives perform head/tail cropping, fixed-length segmenting, and emergency cobble chopping. Operating under intensive centrifugal forces, extreme high-frequency impact loading, and cyclic thermal fatigue, their material purity, dynamic balance limits, and clearance settings are held to strict standards compared to conventional static shears.

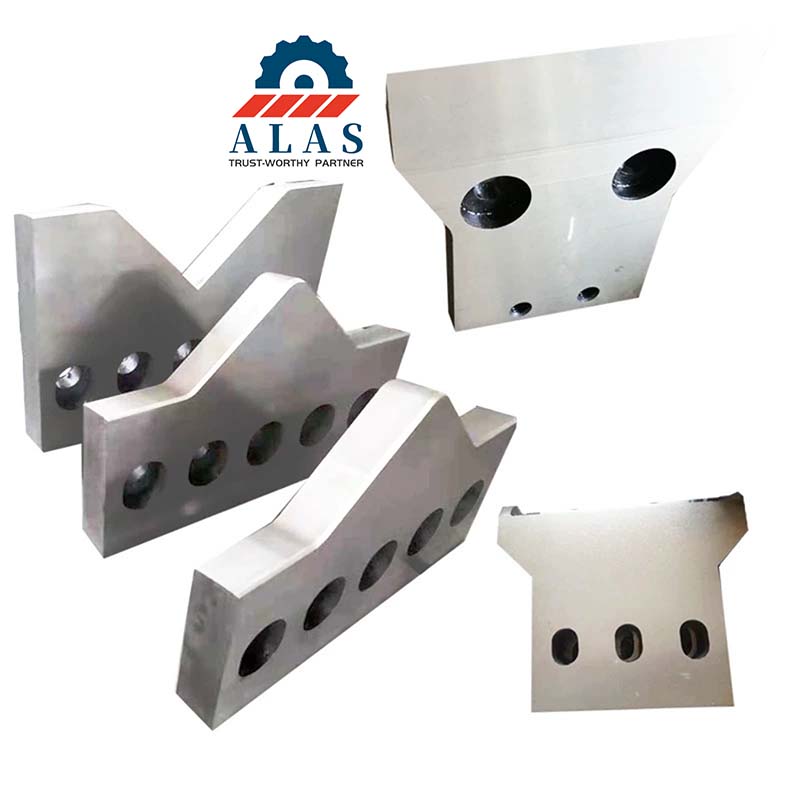

Q8: Can custom blade dimensions, fixing profiles, and arc-shaped cutting edges be manufactured?

A: Yes. We manufacture custom blade profiles, specific arc radii, and customized rake or relief edge angles tailored to your precise flying shear drum diameter, installation slot configurations, and target steel cutting specifications. Hardness tiers and vacuum heat-treatment parameters can be custom-adjusted to balance toughness and wear resistance for hot rolling mills, cold-finishing lines, reinforcing rebar, wire rod coils, or metallic strip lines. Production is executed based on submitted technical drawings or physical sample mappings.
