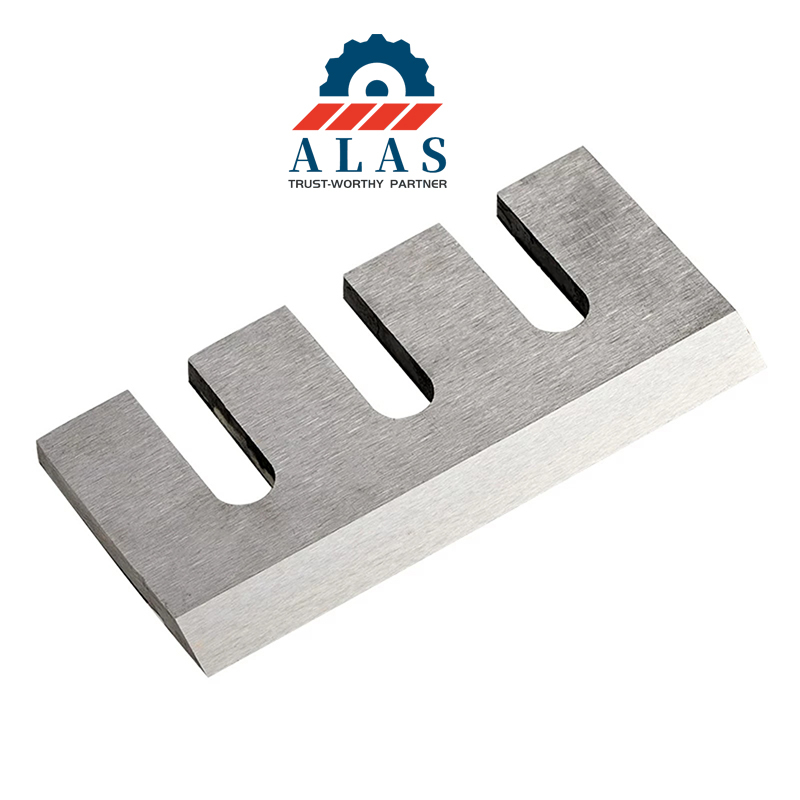

H12 Recycled Wood Chipper Blades

AISI H12 Hot-Work Steel Wood Chipper Blades: Thermal Softening Protection for High-Friction, Contaminated Feedstock Processing

This page details AISI H12 hot-work steel chipper blades optimized for processing operations where rapid cutting-edge heat softening and edge rolling are the primary failure modes. These conditions are driven by friction-induced heat spikes and abrasive contaminants. AISI H12 relies on excellent red-hardness to sustain its cutting edge under extreme thermal loads, extending tool life through predictable, slower abrasive wear.

• Impact Loading Scenarios: If your primary operations involve extreme mechanical shock against frozen logs, hard knots, or unsegregated heavy timber without friction heat accumulation, select standard AISI A8 knives (56–58 HRC) or ALAS Premium A8B series (58–60 HRC).

• Clean Feedstock Scenarios: For high-volume cutting of clean, debarked softwood, bamboo, or agricultural straw under low-impact parameters, select high-carbon chromium AISI D2 series (58–62 HRC) to secure maximum sliding edge retention.

I. Friction Mechanics & Cold-Work Material Limits

Edge wear in waste wood reclamation is multi-causal. Feedstock containing sand, soil, concrete grit, or wood pallets embedded with fasteners escalates cutting friction. This friction raises edge temperatures past the secure tempering boundaries of standard cold-work steels.

Standard alloys like AISI D2 or standard AISI A8 are calibrated for room-temperature mechanical limits. Under persistent high friction, these grades undergo rapid heat softening, causing a sharp hardness drop. This structural decline degrades blade performance from clean shearing to compressive crushing, increasing machine fuel consumption, generating non-uniform wood fractions, and causing accelerated edge rolling and dulling.

II. H12 Metallurgy & Heat-Resistant Structure

AISI H12 is a 5% chromium hot-work tool steel alloyed with 1.00–1.50% tungsten (W) and 1.25–1.75% molybdenum (Mo).

The tungsten and molybdenum additions generate highly stable carbides that resist softening at elevated runtime temperatures. This chemistry allows the steel to retain stable mechanical yield strength during aggressive thermal input, maintaining a sharp cutting edge. The 0.35% carbon configuration provides an essential toughness threshold, delivering higher impact resistance than high-carbon AISI D2 to handle sporadic stone and metal contamination without immediate body cracking.

III. Standardized Engineering Specifications

Technical Attribute Matrix

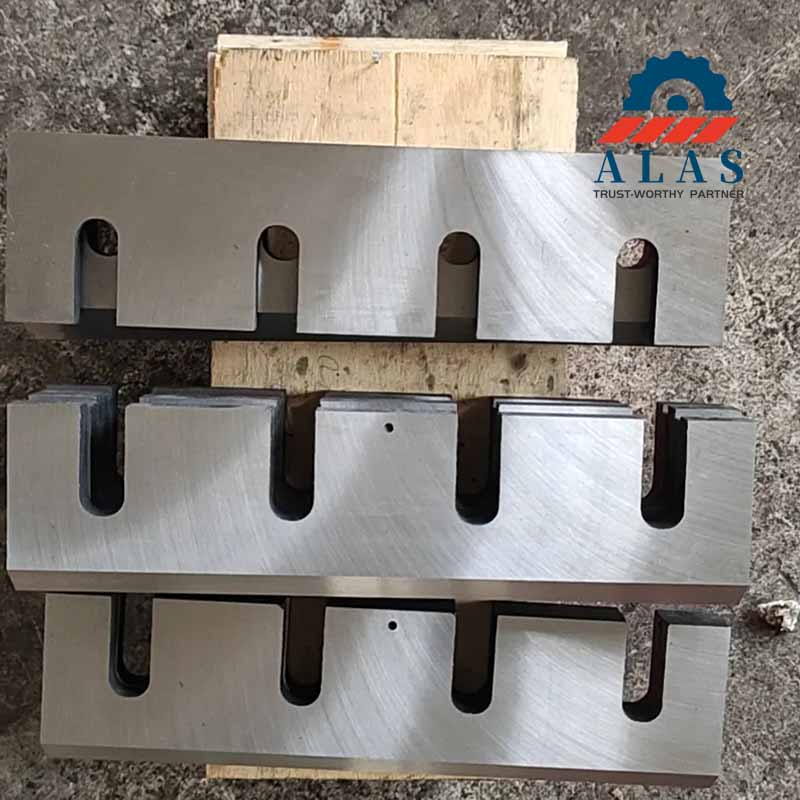

Technical Note: The 54–58 HRC hardness window must be evaluated through the lens of thermal stability. While alternative cold-work grades exhibit higher nominal hardness at room temperature, they soften rapidly under friction. AISI H12 delivers the engineering capability to maintain its stable 54–58 HRC working threshold while running hot, preventing premature edge failure.

IV. Industrial Operating Conditions & Sourcing Boundaries

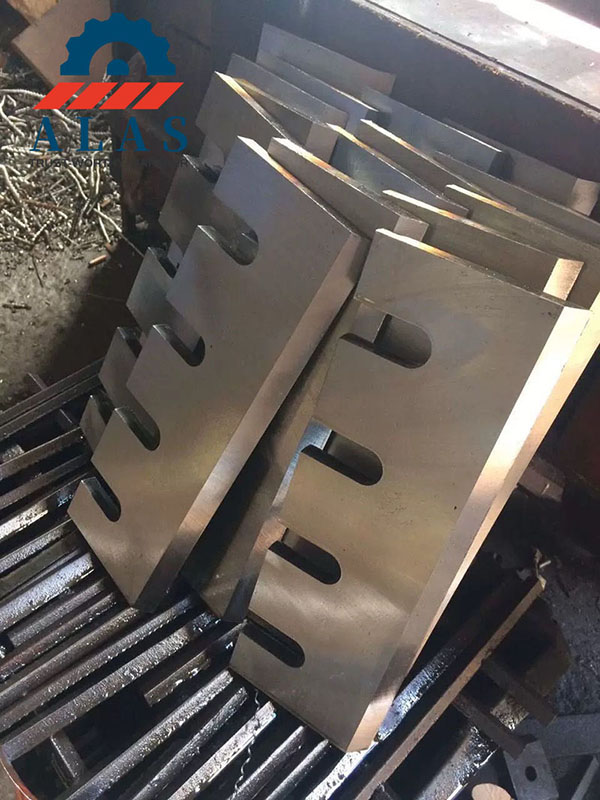

Ideal Applications for AISI H12 Blades: Shredding construction formwork and demolition timber laden with concrete residue and abrasive silica sand. Processing un-debarked tree roots, stumps, and dry hardwoods causing concentrated friction heat input. Processing recycled shipping pallets and crating embedded with steel staples, framing nails, and soil. Continuous-feed 24/7 automated mill operations where minimizing changeout downtime is the primary financial metric.

Prohibited Material Applications: Extreme Mechanical Impacts: Do not deploy H12 as a substitute for standard AISI A8 steel where unseparated large-scale rock impact or frozen timber splitting forces are the primary risk factors with negligible heat accumulation. High-Speed Clean Runs: Do not deploy H12 for high-speed, clean softwood continuous runs where pure sliding abrasion resistance is required; prioritize ALAS Premium A8B series.

V. OEM Compatibility & Quality Documentation

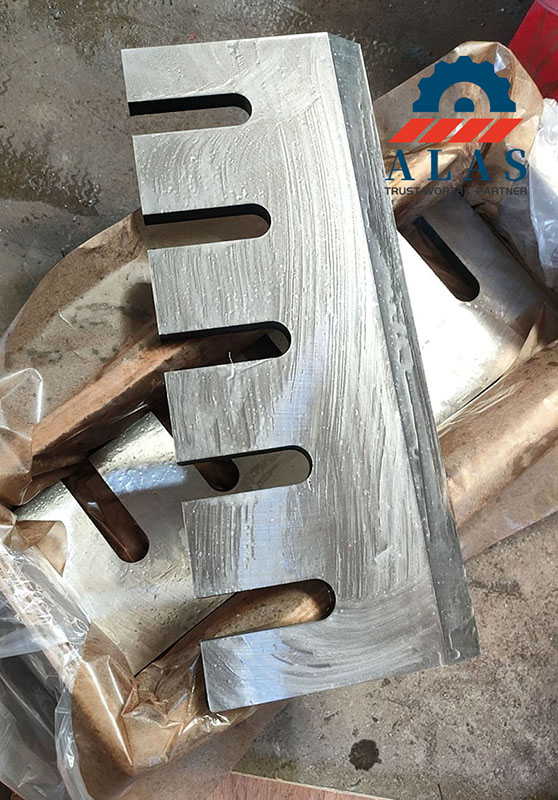

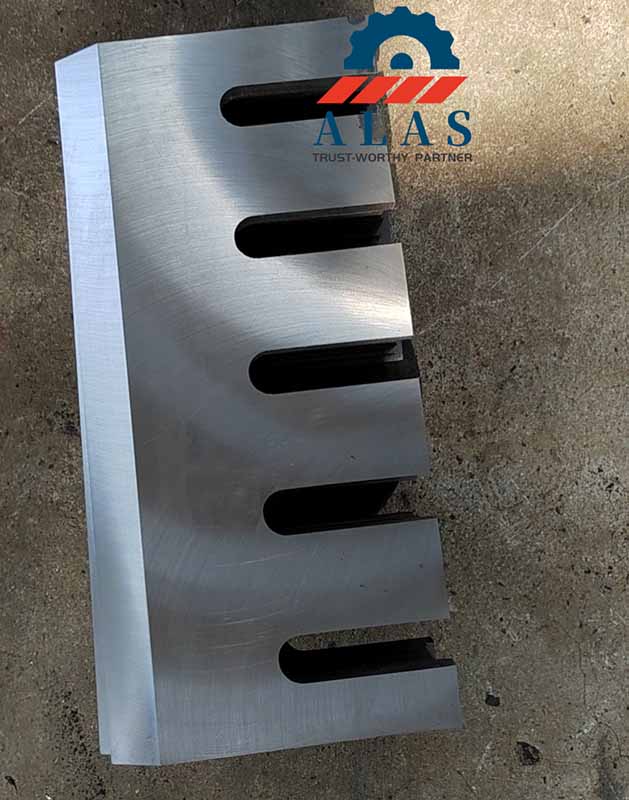

All H12 knives are processed to direct technical specifications matching heavy-duty drum and disc cutter pockets, including Morbark, Bandit, and Vermeer. Thickness parameters are locked within ±0.02 mm CNC tolerances, with face flatness controlled under 0.01 mm to eliminate high-speed rotor vibration. Shipments include complete material chemistry verification (MTC), hardness inspection tracking, and dimensional inspection sheets.

VI. Technical Sourcing Guidance for Procurement Teams

Specify your equipment model, exact blade dimensions, bolt hole layout, and wood waste classifications when requesting direct factory wholesale pricing. Use the following operational guidelines:

Symptom A: The blade edge experiences rapid rounding, softening, or rolling within minimal shifts with zero large-scale body cracking. ➔ Recommendation: Select ALAS AISI H12 Hot-Work Specification.

Symptom B: The tools undergo catastrophic body splitting, snapping, or deep cracking upon hitting hard contaminants. ➔ Recommendation: Select standard AISI A8 High-Toughness Specification.

FAQ

Q1: Why does the AISI H12 blade have a lower room-temperature hardness (54–58 HRC) than AISI D2 (58–62 HRC), and how does it extend runtime in waste wood processing?

A: High-carbon cold-work steels like AISI D2 provide excellent wear life at ambient temperatures but suffer from rapid heat softening when friction raises cutting-edge temperatures past their tempering limits. Once softened, the edge deforms instantly. AISI H12 is alloyed with tungsten and molybdenum to resist softening at elevated runtime temperatures. While its room-temperature hardness is lower, AISI H12 strictly maintains its 54–58 HRC threshold at hot operating temperatures, preventing edge rolling and shifting the tool failure mode to a predictable, slower abrasive wear track.

Q2: Can AISI H12 blades be deployed to process frozen logs or heavily knotted structural timber?

A: No. AISI H12 is balanced for severe thermal stability, not the extreme mechanical shock profiles found in frozen timber splitting. If your primary operational risk factor is catastrophic blade splitting from frozen hardwood or large unseparated knots without substantial friction heat, select the standard AISI A8 (56–58 HRC) or ALAS Premium A8B (58–60 HRC) series to handle high-impact conditions safely.

Q3: How do embedded metal fasteners like nails and staples affect the H12 blade compared to high-carbon steels?

A: In high-carbon steels like AISI D2, striking an embedded steel nail regularly triggers instant breaking or deep edge cracking due to low impact strength. AISI H12 utilizes a lower-carbon (0.35% C) configuration to provide an intentional toughness buffer. When encountering minor steel staples, framing nails, or grit embedded in shipping pallets, the H12 matrix absorbs the localized shock waves without structural blade splitting.

Q4: Does the lower carbon content of AISI H12 cause it to wear out faster on clean wood feedstock?

A: Yes. If your feedstock is purely clean, pre-segregated, and debarked softwood or bamboo, the sliding abrasive wear resistance of AISI D2 (58–62 HRC) will yield extended sharpening intervals. AISI H12 is a specialized metallurgical solution for high-friction, unsegregated, and contaminated feedstock lines (including demolition timber, tree roots with soil, and recycled pallets) where friction-induced heat—not pure sliding abrasion—is the primary driver of edge degradation.

Q5: Are these H12 blades interchangeable direct-fit replacements for existing equipment rotors?

A: Yes. All ALAS H12 wood chipper knives are manufactured to direct technical dimensions matching major heavy-duty cutter rollers like Vermeer, Bandit, and Morbark. We control thickness parameters within a strict ±0.02 mm CNC envelope and face flatness under 0.01 mm. This dimensional precision eliminates weight variation across the assembly, minimizing high-speed rotor vibration and protecting main drive spindle bearings from premature fatigue. Every volume order is delivered with full material chemistry tracking and hardness inspection documentation.
