Frozen Timber & Heavy-Impact Wood Chipper Knives

Technical Specifications: Frozen Timber & Heavy-Impact Wood Chipper Knives

1. Sub-Zero Metallurgy & Operational Safety

Commercial logging and land clearing in sub-zero environments subject felling tools to high failure rates driven by low-temperature steel brittleness. When standard high-carbon tools run at typical high-velocity rotation speeds, striking frozen organic fibers or concealed ice knots induces high-energy stress concentration. To control this risk, ALAS implements a dedicated modification protocol utilizing Premium A8B (Modified AISI A8 / DIN 1.2345 Mod.) tool steel. The alloy processing sequence enforces full-vacuum through-hardening followed by sub-zero cryogenic treatment and deep tempering to eliminate internal stress and achieve maximum shock fatigue tolerance for winter logging.

By locking the operational hardness strictly within a ductility-prioritized window of HRC 55–57, the steel matrix maintains excellent impact absorption. This metallurgical tuning retards micro-fracturing and prevents catastrophic blade splitting under severe cold-weather shock loads, optimizing machinery safety limits during deep-winter harvesting operations.

2. Structural Precision & Dynamic Stability

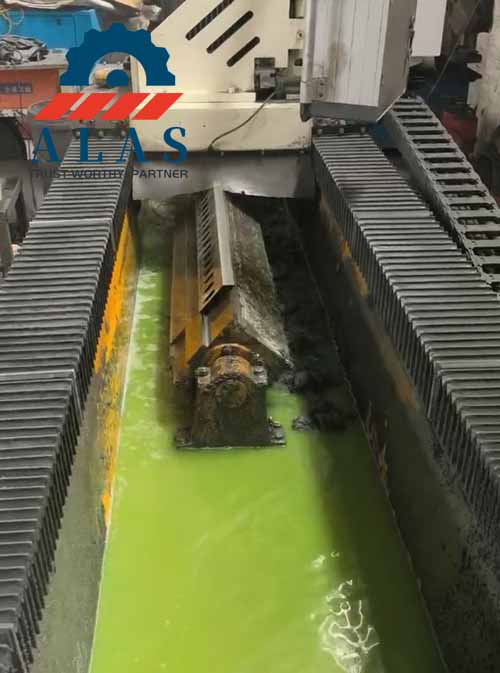

• CNC Bevel Grinding: Cutting-edge profiles are finished on automated vertical grinders to hold standardized 30° or 35° primary bevel angles. This geometrical consistency lowers feeding friction, prevents stringy wood waste output, and stabilizes chip sizing.

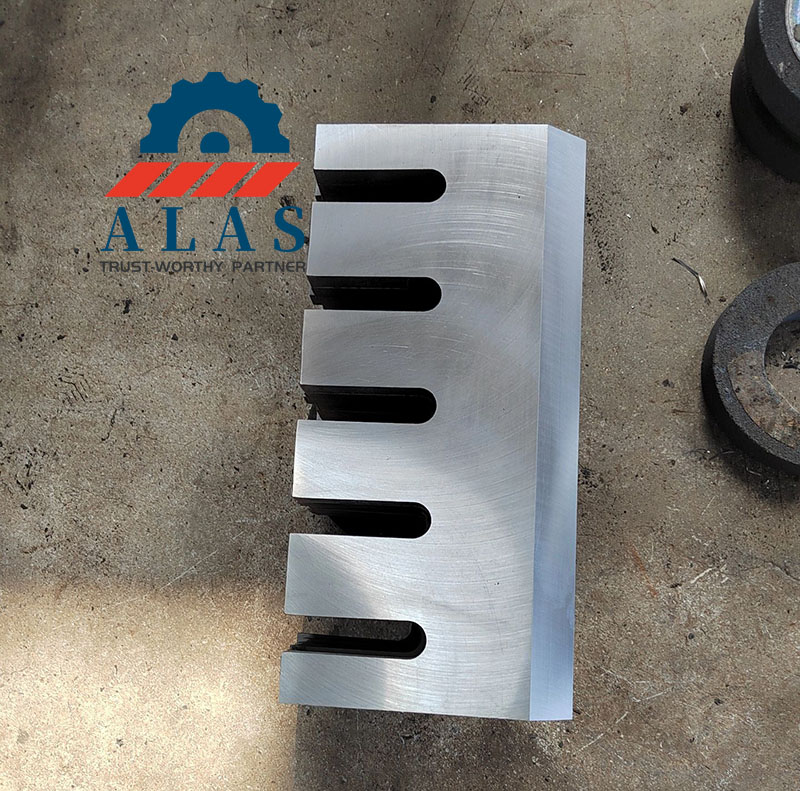

• ±0.02 mm Thickness Tolerance: Strict dimensional monitoring across the entire batch ensures matching spindle weights. This eliminates dynamic imbalance and shaft play under heavy cyclic resistance during high-speed 1,000+ RPM rotor rotation, protecting main spindle bearings from premature fatigue.

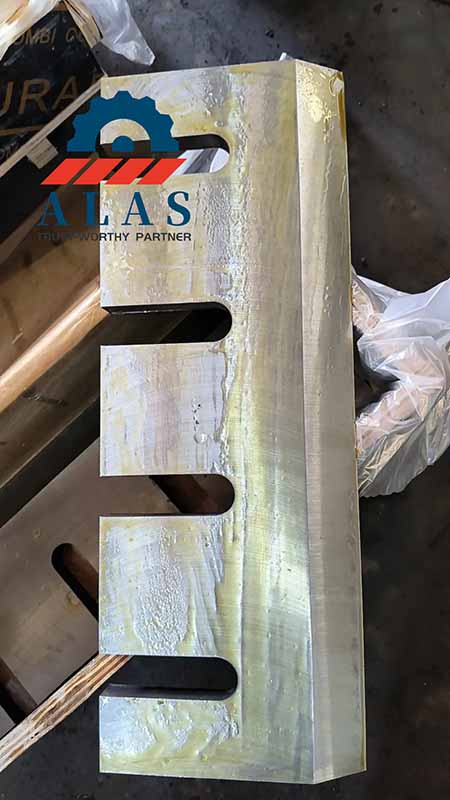

• Counterbored Fitment Integrity: Bolt hole pitches and countersink parameters are machined to OEM factory mounting pocket specifications for Vermeer, Bandit, Morbark, and Altec lines, preventing loose clamping or blade ejection hazards.

3. Performance Matrix: Sub-Zero Optimization Comparison

Sourcing specifications must match your local winter conditions and raw wood contamination levels to keep the total cost of ownership (TCO) as low as possible.

Mechanical Attribute Matrix

Note on Abrasion Resistance: The 3-star wear rating for Premium A8B is a deliberate metallurgical design. In severe winter logging, we reduce the hardness slightly to maximize impact safety and prevent the blade from shattering under ice-knot shocks.

4. Technical FAQ

Q1: Why must blade hardness be controlled within HRC 55–57 when processing frozen timber?

A: Higher steel hardness inherently lowers impact toughness. When operating below freezing temperatures, standard tool steels quickly become brittle. Running a blade at a standard HRC 60+ against frozen timber knots will cause heavy chipping or catastrophic breaking on impact. Controlling our vacuum heat treatment strictly within the HRC 55–57 window ensures excellent shock fatigue resistance. The modified A8B chemistry allows the cutting edge to absorb high-energy shock waves elastically instead of cracking, ensuring safe and reliable deep-winter forestry operations.

Q2: How do ALAS sub-zero chipper knives lower daily machinery fuel consumption?

A: Low-cost aftermarket blades often suffer rapid edge deformation and rolling under extreme cold weather. Once the cutting edge blunts, the machine stops slicing cleanly and begins crushing the logs with blunt mechanical force. This crushing effect spikes internal hydraulic pressure and forces the engine to burn 30% or more fuel. ALAS precision CNC-ground 30° and 35° bevel profiles preserve sharp edge retention under high-impact cold loads. This minimizes cutting resistance, lowers engine load, and reduces daily diesel consumption.

Q3: Are these cold-weather replacement knives compatible with standard OEM rotor pockets?

A: Yes. Every batch undergoes full CNC profiling to guarantee 100% plug-and-play fitment that matches original factory specifications for Vermeer, Bandit, Morbark, and Altec equipment lines. We maintain detailed drawings for all major industrial drum and disc chipper models. For custom or modified equipment setups, we support custom production from your dimensions or physical sample blades. Our engineering team will verify and deliver a formal CAD blueprint within 12 working hours.

Q4: What is the mandatory cooling protocol when resharpening these high-impact tools?

A: Constant, high-volume liquid flood cooling is required during all maintenance regrinds. Dry grinding or insufficient coolant flow will cause localized overheating instantly. This friction heat ruins the original factory temper and drops the apex edge hardness to below 40 HRC. Once installed back into heavy-duty winter felling, this soft layer will roll over and dull within hours, destroying the blade's wear life and forcing premature replacement.
