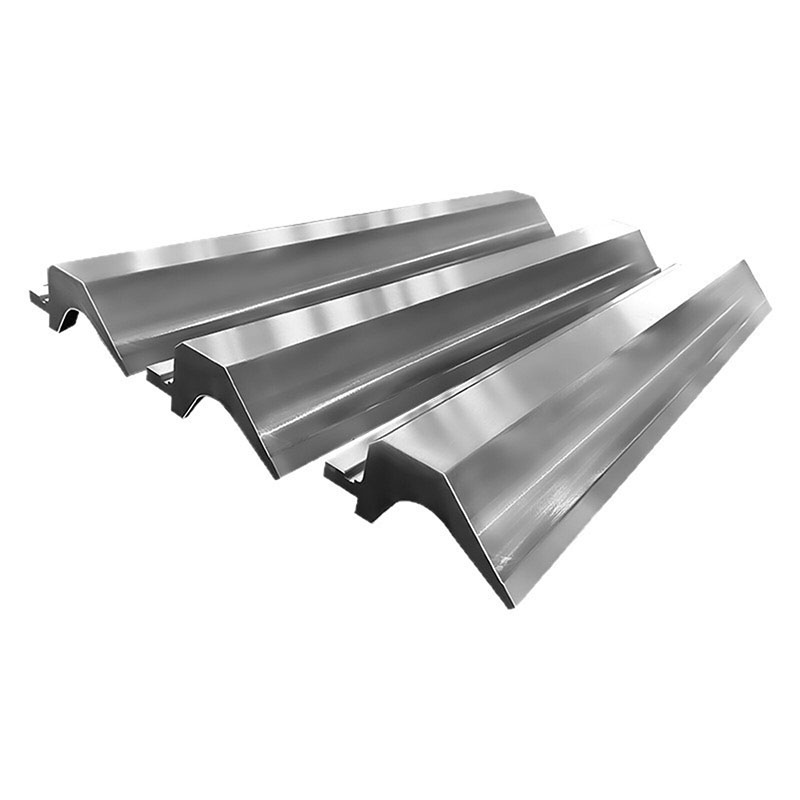

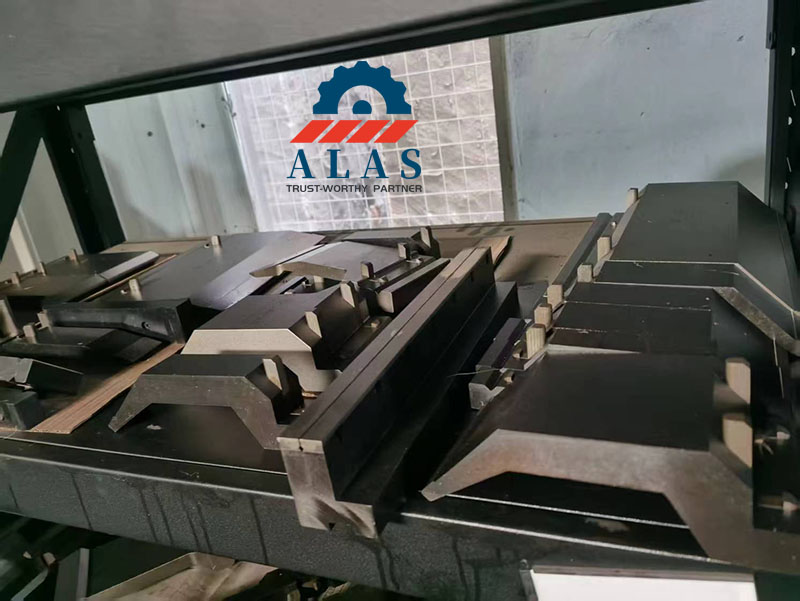

Euro Style Gooseneck Punch Top Tooling: The Definitive Solution for Deep Box Forming

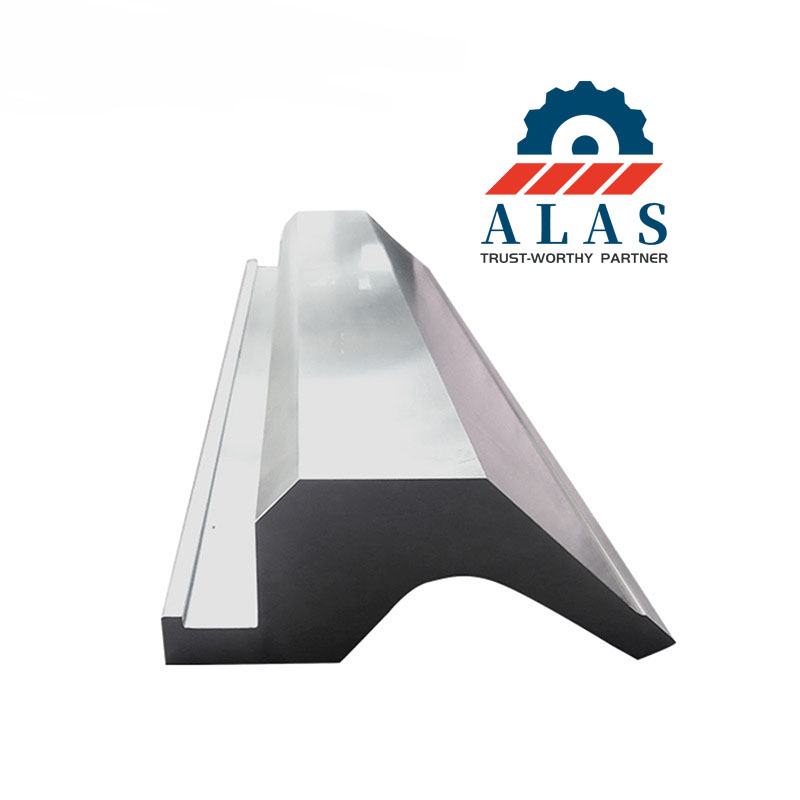

Eliminate costly tool collisions and workpiece damage during complex multi-bend cycles. The ALAS Euro Style Gooseneck Upper Punch is a premium top tooling solution engineered specifically for high-mix fabrication shops and advanced CNC press brakes. Featuring a signature curved, deep-offset neck profile, this tool provides the critical relief clearance that traditional straight-edge punches lack, ensuring seamless production of deep-drawn boxes, return channels, and high-sided flanges.

Collision-Free Bending Dynamics

When forming narrow U-channels or deep industrial enclosures, pre-formed vertical flanges often collide with standard tool bodies, forcing operators to interrupt cycles or reposition parts mid-bend. The ALAS gooseneck profile solves this bottleneck:

- Deep Throat Relief Pocket: Pre-formed vertical flanges tuck cleanly into the curved offset neck curve at full shut height, allowing return flanges to bypass the tool body entirely.

- Zero Defect Edge Surface: Prevents tool-rub scuffing and scratch marring on pre-finished, galvanized, or mirror stainless steel panels.

- Optimized Cycle Momentum: Smoothly handles continuous progressive sequences without requiring specialized material handling or secondary forming operations.

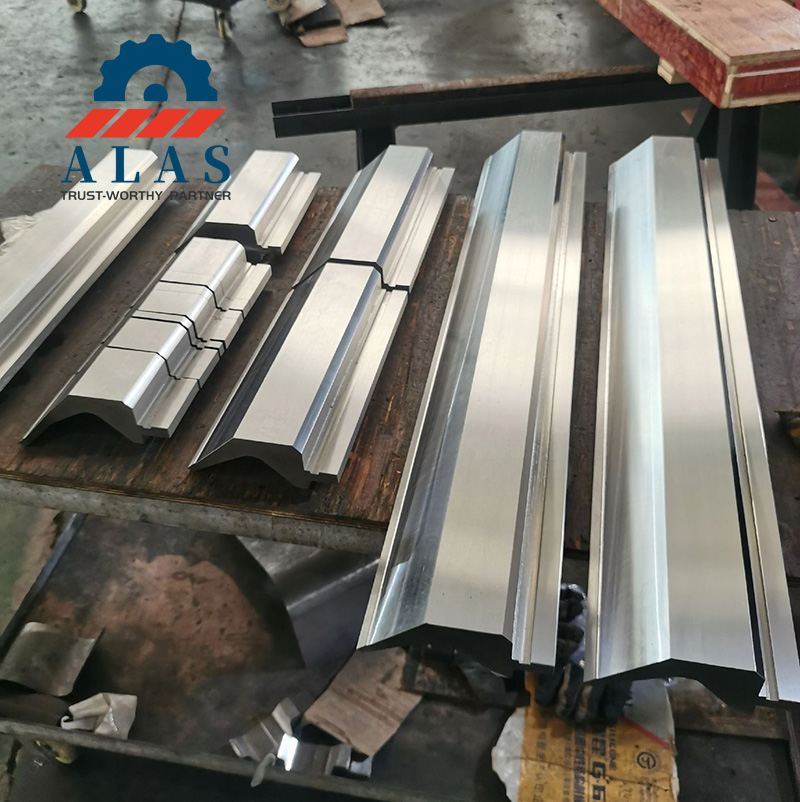

Authentic 42CrMo Metallurgy: Through-Hardened for Extreme Durability

To withstand intense compressive stress concentrations at the punch tip during air-bending, all ALAS Euro-style punches are forged from premium 42CrMo alloy steel (AISI 4140). Unlike cheap alternative tools that only feature thin, surface-layer hardening, our upper punches undergo full volumetric through-hardening and tempering (HRC 45–50). This uniform core strength completely eliminates the risk of progressive edge chipping, structural bending deformation, or sudden shock fracture under heavy production loads.

Cross-Border Material Equivalents Reference Index

Strategic Target Applications: When to Deploy the Gooseneck

Deploy the ALAS gooseneck punch whenever a traditional straight punch profile or acute 30° blade interferes with a pre-formed sheet profile during secondary bending stages:

- Industrial Enclosures: Deep electrical control boxes, server rack chassis, telecommunication cabinets, and heavy equipment housing.

- Extended Return Profiles: Deep U-channels, structural C-channels, and custom architectural facades featuring extra-long returning legs.

- Deep Tray and Pan Forming: High-sided culinary steel trays, fluid drain pans, and thick-gauge structural brackets.

- Complex Progressive Sequences: Multi-bend profiles where previously folded internal flanges block standard linear tooling travel paths.

Engineering Selection Matrix: 5 Critical Shop-Floor Factors

To maximize tool life and guarantee tight bending tolerances, evaluate these five boundary factors before loading the tool:

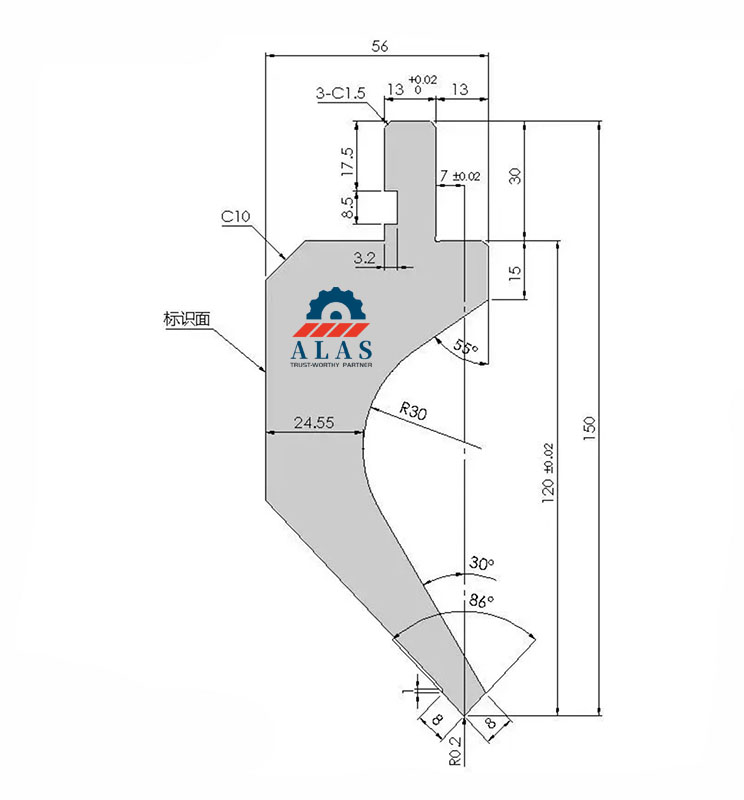

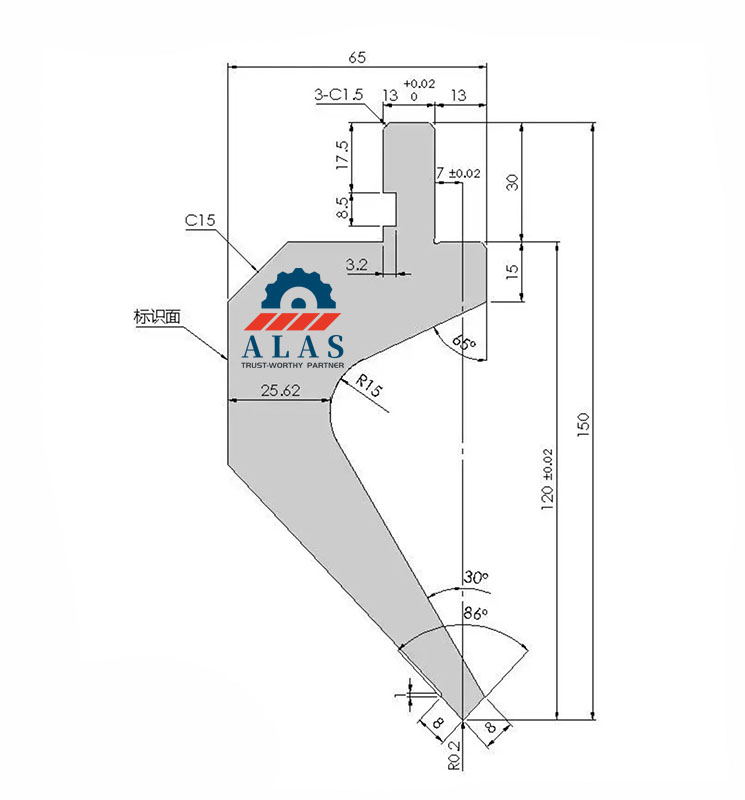

1. Match Curve Relief to Flange Height: Calculate the clearance profile to ensure your tallest pre-formed panel completely clears the internal gooseneck throat curvature at bottom dead center (BDC).

2. Compensate for Material Springback: Use our standard 86° or 88° precision tips for routine mild steel and thin galvanized sheet processing. Upgrade to an 85° acute tip configuration to offset heavy elastic springback when bending tough stainless steel alloys.

3. Verify Machine Tonnage Rating: Cross-check your required air-bending force against the specific structural load limits marked on each ALAS section block. Continuous overload operation will crack or deform the offset punch shoulders.

4. Daylight & Ram Stroke Calibration: Ensure the total vertical physical height of the gooseneck punch easily accommodates your press brake’s stroke limits and open daylight parameters to prevent violent bottoming-out.

5. Tip Radius Synchronization: Select a punch tip radius that matches your material thickness for everyday structural parts, or scale up to a larger radius for aluminum or pre-finished sheets to prevent interior surface scoring.

Seamless System Compatibility: Direct Plug-and-Play Fitment

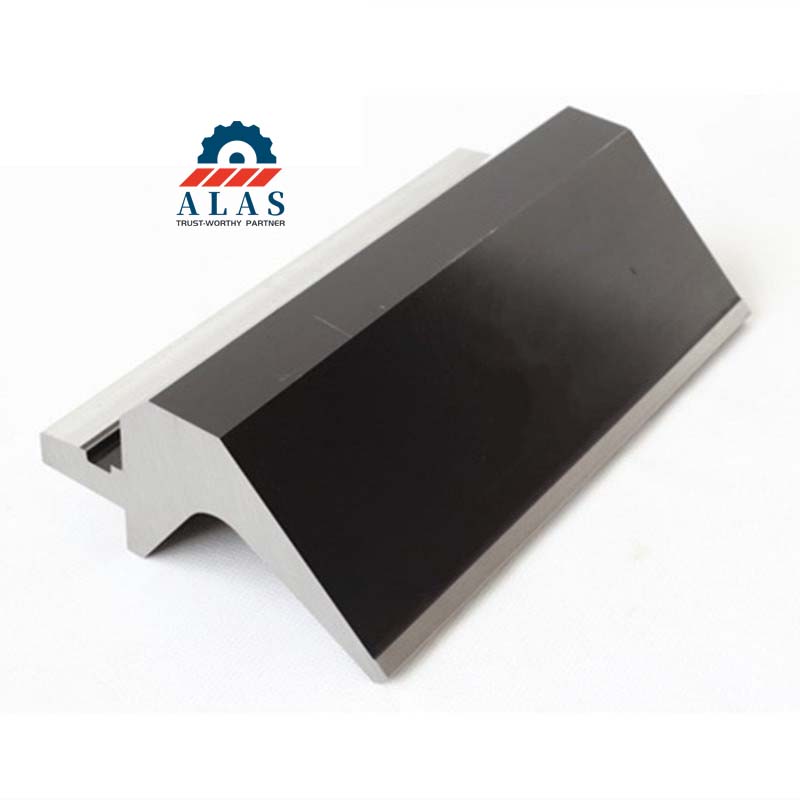

ALAS Euro-style punches are precision-machined to strict global standards, operating as authentic direct-fit replacements for world-class machinery. All critical mounting surfaces are ground to a strict ±0.02mm tolerance, ensuring immediate center alignment, perfectly repeatable bend angles, and zero setup adjustments during tool changeovers.

- 100% Native Compatibility: Drops directly into standard Amada (Euro), Promecam, Safan, Darley, LVD (Euro style), Baykal, and Durma upper quick-clamping tool holders.

- Structural System Restriction: These upper punches are designed specifically for standard Euro clamping rails; they are not directly compatible with proprietary Trumpf/Wila hydraulic clamping beds or traditional thick-slot American rail systems without utilizing a specialized conversion adapter.

Technical Procurement FAQ & Operational Boundaries

Q1: Why does a through-hardened gooseneck punch deliver better ROI than flame-hardened alternatives?

A: Flame or induction edge hardening only treats a thin skin (1-2mm deep), leaving a soft metal core that can sag or deform under continuous high-tonnage offset loads. ALAS through-hardened 42CrMo processes the entire metal core uniformly, allowing multiple precision edge regrinds over years of high-volume workshop use without losing tensile strength.

Q2: Does ALAS supply fractional segmented gooseneck kits for enclosed box cells?

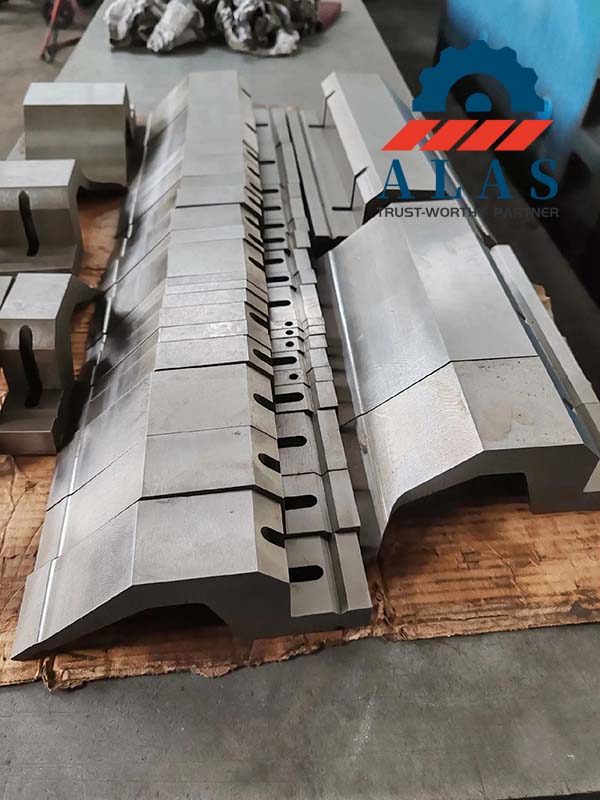

A: Yes. We stock standard full-length blocks (835mm, 1000mm) as well as pre-split fractional segmented kits (comprising segments like 10, 15, 20, 40, 50, 100, 200, 300 mm). This allows operators to easily assemble custom punch widths matching any enclosed box dimension without flange interference.

Q3: Can I order a gooseneck punch with a fully customized curve throat depth?

A: Absolutely. If your workflow involves unconventional part blueprints or deep return legs that standard tooling profiles cannot bypass, submit your CAD file, and our factory will precision-mill a custom throat relief and tip configuration tailored to your specific application.

Q4: What are the hard operational limits I must observe with offset gooseneck tooling?

A: Gooseneck punches suffer inherent structural weakness at the offset neck. Never exceed the rated tonnage per-segment; avoid coining / bottom-bending operations. Do not use for heavy-plate high-tonnage jobs intended for solid straight punches. Over-tonnage will result in neck cracking or catastrophic tool failure.

Critical Engineering Operational Limits & Safety Warning

Asymmetric Deflection Guard: Due to the offset, curved architecture of gooseneck tooling, severe off-center or unbalanced tonnage distribution along fractional sections will amplify lateral torque. Always center-align shorter segments properly to prevent clamping mechanism failure or tool distortion.

Strict Tonnage De-rating: When running heavy air-bending cycles near the structural limit of the punch neck, strictly maintain a 15% safety load buffer. Overloading will result in sudden brittle failure or punch shoulder cracking.

Interference Clearance Validation: Always run a manual, low-speed test stroke without material inside the machine bed whenever a new punch angle (e.g., shifting from an 88° to an 85° tip) is programmed into the CNC controller to ensure the moving punch body does not violently strike the lower die shoulder walls.
