High-frequency operation of portable electro-hydraulic cutters generates extreme mechanical friction and structural vibrations when using substandard shearing inserts. This concentrates stress, accelerating hydraulic cylinder seal failures and causing edge deformation. ALAS Machinery supplies fully forged, vacuum-heat-treated replacement D2 Steel Rebar Cutter Blades (58-60 HRC) engineered to maintain precise metric housing dimensions and eliminate mechanical blade play. These replacement tool components ensure clean, square cold-shearing across handheld reinforcement processing lines.
Tool Steel Grade Specifications & Hardness Locks
Alloy selection and specific structural heat-treatment profiles counter edge chipping, micro-fracturing, and excessive wear under continuous hydraulic stroke cycles:
AISI D2 / JIS SKD11 (Cr12MoV Cold-Work Steel): Hardened via multi-stage vacuum gas quenching to lock hardness strictly at 58–60 HRC (batch tolerance ±1.0 HRC). The high-carbon, high-chromium microstructure controls dense chromium carbides for continuous abrasive wear resistance. Engineered strictly for stable, aligned cold-rolled bar shearing. D2 exhibits limited impact toughness due to carbide networks; avoid deployment under loose blade clearances or heavy dynamic shock loads to prevent brittle fracture.
AISI H13 (Hot-Work Die Steel / 4Cr5MoSiV1): Vacuum-quenched and dual-tempered via a 3-time tempering process to relieve internal residual stresses, locking hardness strictly at 50–55 HRC. This vanadium-chromium matrix maximizes matrix fracture toughness and fatigue resistance to absorb cyclic shocks. Deployed as a high-toughness, shatter-proof alternative to D2 for Grade 60 (HRB500E) ribbed rebar shearing and mixed scrap processing.
Alloy Tool Steel 9CrSi: Heat-treated via controlled quenching cycles to lock hardness strictly at 55–58 HRC (standard tolerance ≤ 1.5 HRC). This tool steel specification is balanced exclusively for low-impact, standard mild steel round bars to prevent unexpected structural collapse.
Equipment Compatibility & Mechanical Dimensions

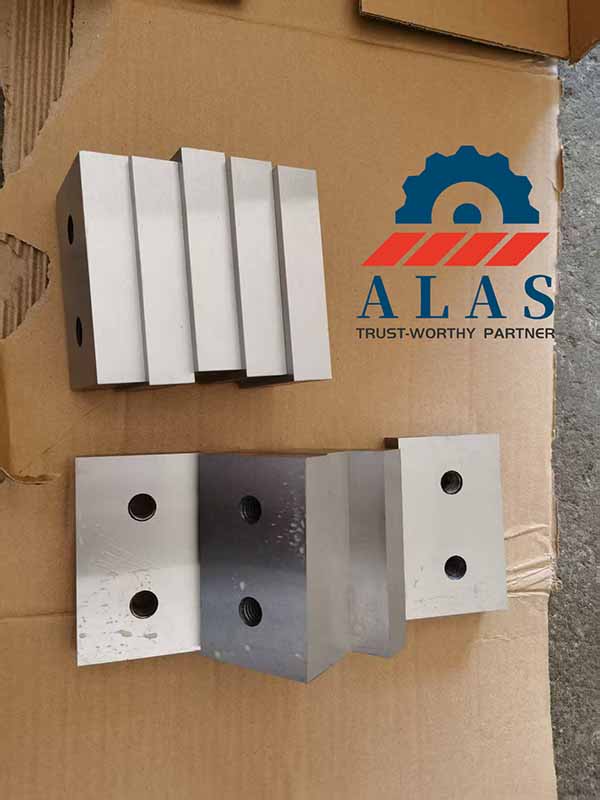

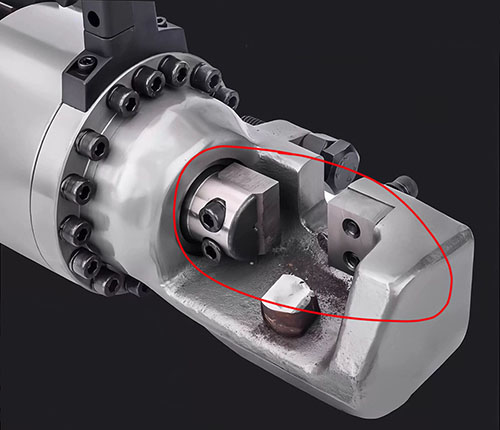

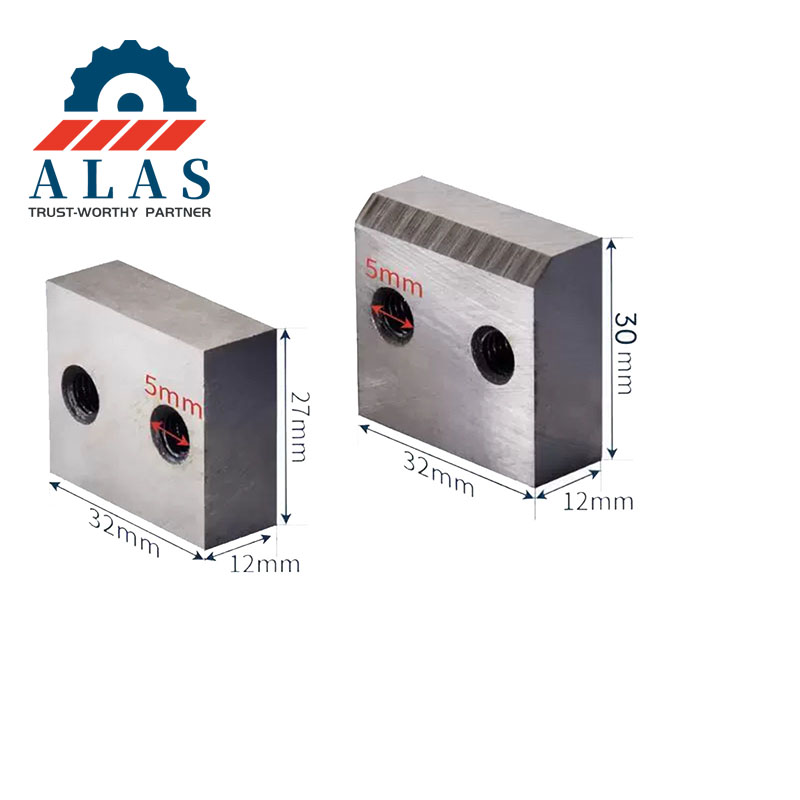

Machining tolerances are locked at a total dimensional deviation ≤ 0.05 mm to match original equipment cutter head counterbores, completely eliminating mechanical blade play and eccentric dynamic impact. Standard D2 Steel Rebar Cutter Blades feature centralized countersunk mounting bolt holes supporting field rotation to extend operational lifecycles. Square profiles provide a 4-way indexable edge layout (reversible 4 times), while rectangular profiles utilize a 2-way reversible design.

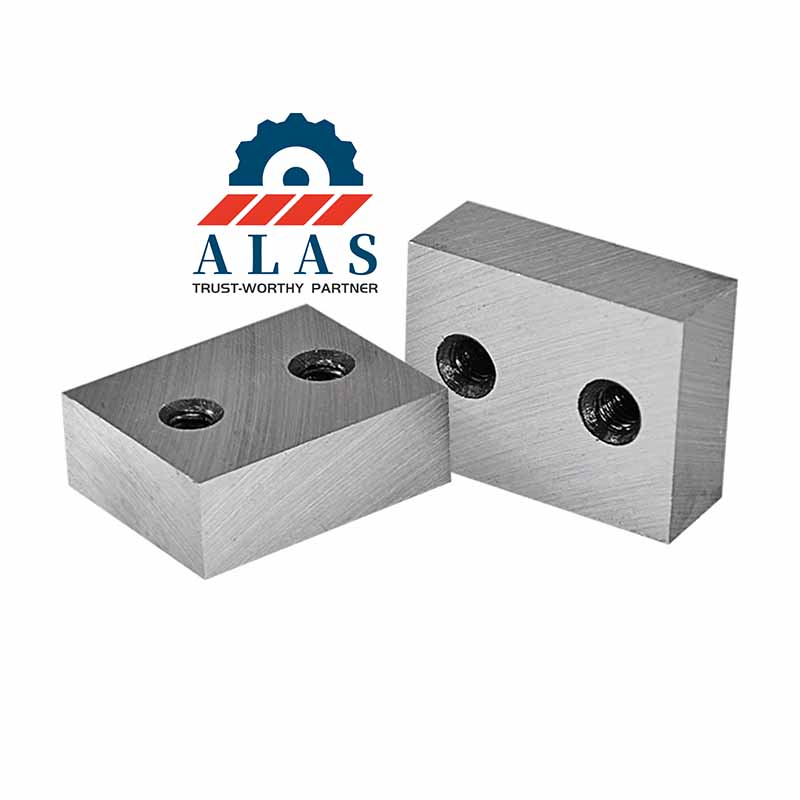

RC-20, RC-22, NRC-20, and standard 20mm–22mm cutters
RC-25 Series
36 × 28 × 14
RC-25, HBC-25N, HBC-225, and standard 25mm cutters
RC-25 Series
36 × 28 × 15
RC-25, HBC-25N, HBC-225, and standard 25mm cutters
RC-25 Series

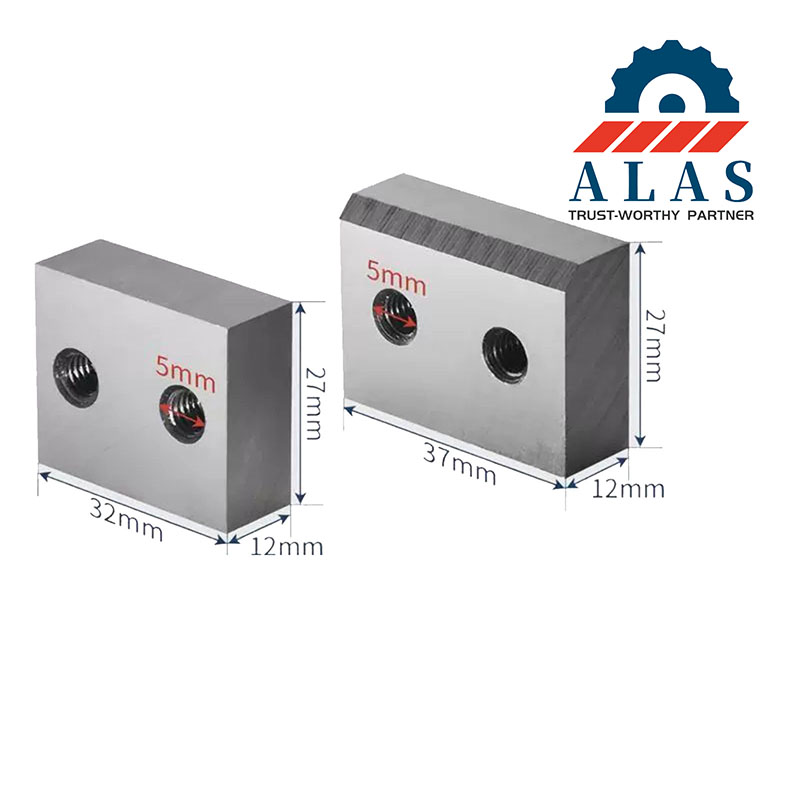

31.8 × 27 × 12
RC-25, HBC-25N, HBC-225, and standard 25mm cutters
RC-32 Series

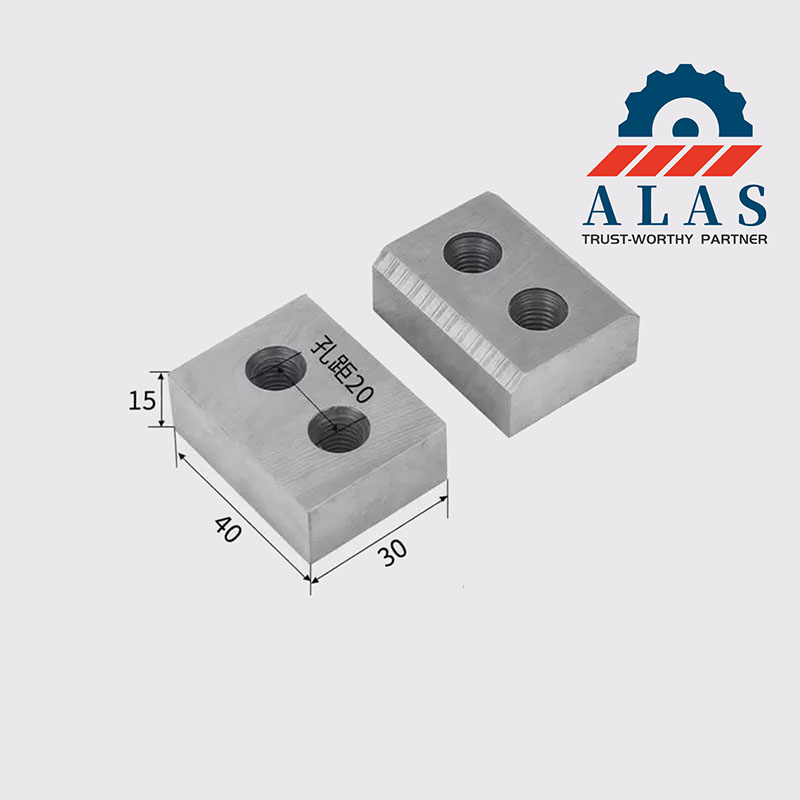

40 × 30 × 15
RC-32, HBC-232, and standard 32mm cutters
HBC Compact Series
26 × 20 × 10
HBC-19N, HBC-19R, HBC-22, and standard compact cutters
HBC Compact Series

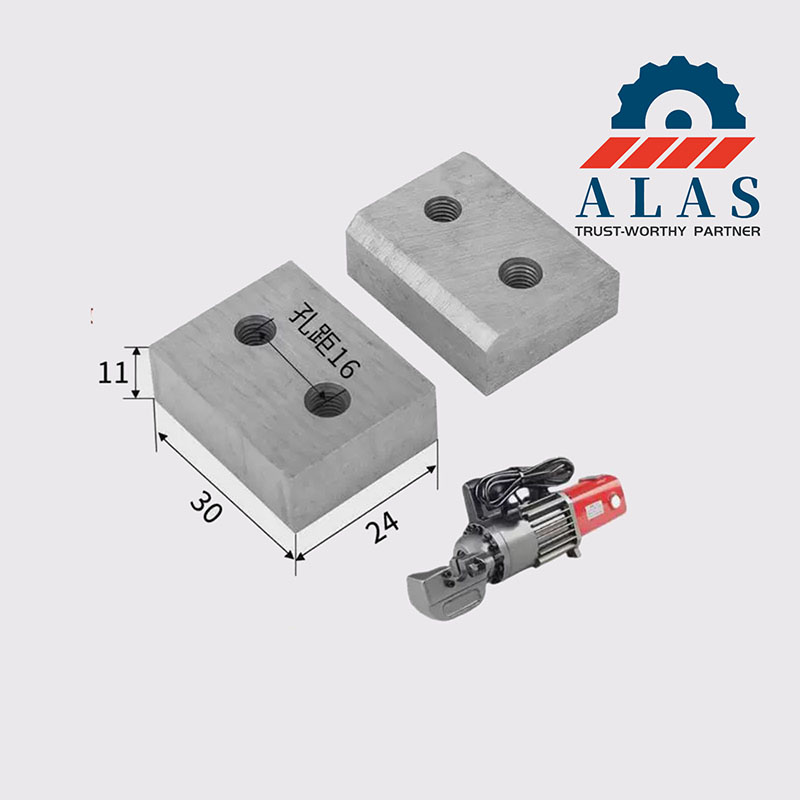

30 × 24 × 11
HBC-19N, HBC-19R, HBC-22, and standard compact cutters
HBC Compact Series
36 × 28 × 13
HBC-19N, HBC-19R, HBC-22, and standard compact cutters
(Note: Symmetrical modular square profiles utilize a 4-way indexable edge layout. Rectangular profiles utilize a 2-way reversible layout. Orders for non-standard thicknesses or unique bolt hole pitches require approved physical blueprint confirmation prior to production).
Quality Control & Vacuum Heat Treatment Processes

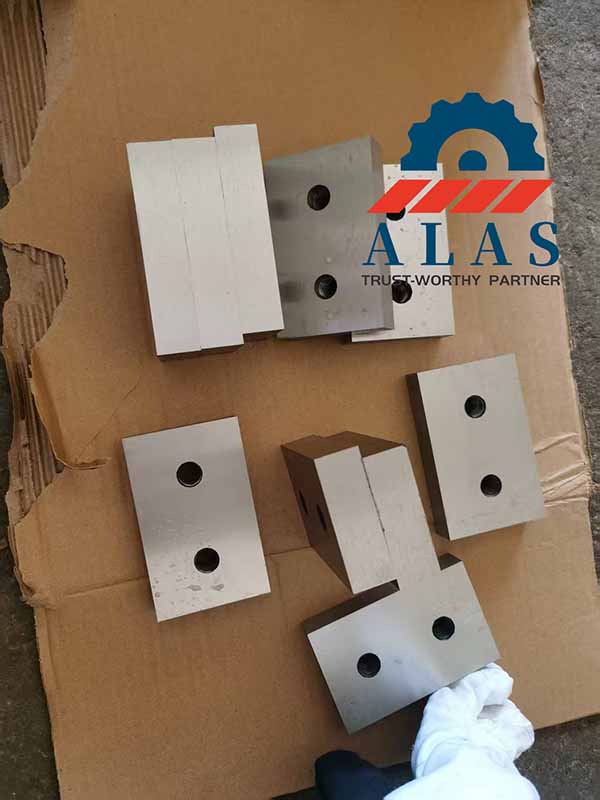

Metallurgical defects—including eutectic carbide segregation or improper vacuum heat treatment leaving high internal residual stresses—trigger premature structural collapse under high-frequency hydraulic stroke cycles. ALAS eliminates these risks via computer-controlled multi-stage vacuum gas quenching to thoroughly remove retained austenite and stabilize core microstructure.
Every production batch includes an authentic Material Test Certificate (MTC) verifying chemical compliance and Rockwell hardness consistency. Finished D2 Steel Rebar Cutter Blades receive anti-rust coatings, vapor corrosive inhibitor (VCI) paper wrapping, and sealed export plywood crate casing to prevent atmospheric oxidation during maritime transit or outdoor warehouse storage.
Maintenance Protocol & Operational Constraints
Field maintenance must align with standard mechanical constraints to avoid tooling failures and maximize consumable service life:
Clearance Calibration: Adjust the horizontal clearance gap between the moving and stationary blade strictly within a 0.2 mm to 0.5 mm reference boundary. Excessive horizontal clearance causes mechanical extrusion and localized edge distortion instead of a clean cold shear.
Material Strength Adherence: Never exceed the rated shearing capacity or tensile strength thresholds of the designated portable tool model. Processing oversized or high-tensile material outside specified nameplate limits distorts or cracks the blade microstructure instantly.
Disclaimer: All original equipment manufacturer (OEM) brand names, model numbers, and trademarks (Ogura, BN Products, IKK, Gocm, Makita) cited in this technical text serve exclusively as dimension and technical compatibility references. ALAS Machinery is an independent aftermarket components manufacturer; this content implies no official partnership, commercial affiliation, or contractual endorsement by these equipment brands.
Q: Which tool steel grade matches specific on-site shearing conditions?
A: Material selection scales directly with shearing load profiles and component failure modes. D2/Cr12MoV steel is locked strictly at 58–60 HRC (batch tolerance ±1.0 HRC) to maximize chromium alloy carbide wear resistance during continuous, high-frequency processing of abrasive cold-rolled bars. Hot-work H13 steel is locked strictly at 50–55 HRC via a mandatory 3-time tempering process to deliver toughness priority, preventing fatigue cracking under high-impact Grade 60 (HRB500E) ribbed rebar shearing. Low-alloy 9CrSi steel is locked strictly at 55–58 HRC exclusively for light trimming of standard mild carbon steel round bars.
Q: Is it necessary to change cutter blades for different rebar diameters?
A: No replacement is required if the workpiece diameter and tensile strength stay within the machine's rated capacity limit. Exceeding the maximum limit of portable electro-hydraulic cutters distorts, chips, or cracks the blade microstructure instantly. Verify your specific workpiece parameters against the official machine nameplate specifications prior to operations.
Q: What are the primary causes of premature blade chipping and structural breakage?
A: Structural component failure stems from assembly errors or substandard metallurgy. Loose mounting bolts create eccentric dynamic forces under hydraulic strokes, while out-of-spec horizontal clearance gaps cause mechanical extrusion instead of a clean cold shear. Metallurgical defects including eutectic carbide segregation or improper atmosphere quenching leaving high internal residual stresses also accelerate micro-crack propagation.
Q: How do buyers guarantee correct replacement dimensions for portable machinery?
A: Buyers must provide official factory nameplate data or precise physical dimensions (length, width, thickness, and mounting hole pitch) to ensure a direct 1:1 drop-in fit.
Q: Can worn portable hydraulic cutter blades be manually resharpened on-site?
A: No. Only minor surface wear permits automated profile grinding; manual touch-ups fail to eliminate subsurface fatigue cracks, risking structural failure under hydraulic impact.
Q: How does the indexable configuration optimize operational tool life?
A: ALAS square cutter profiles feature a 4-way indexable design. Rotating the blade 90 degrees to expose a fresh edge after wear multiplies single-blade utility by four and reduces costs.
Q: What field maintenance protocols prevent rust and oxidation on shear blades?
A: Remove abrasive debris daily and apply anti-rust lubricant to exposed surfaces, storing spares in dry cases.
Q: What are the structural differences between hydraulic, electric, and manual shearing blades?
A: Hydraulic blades handle heavy 20mm–32mm impacts, electric variants target 5mm–16mm high-frequency cuts, and manual blades optimize low-speed leverage under 12mm.
Q: Are ALAS replacement components compatible with standard RC series equipment?

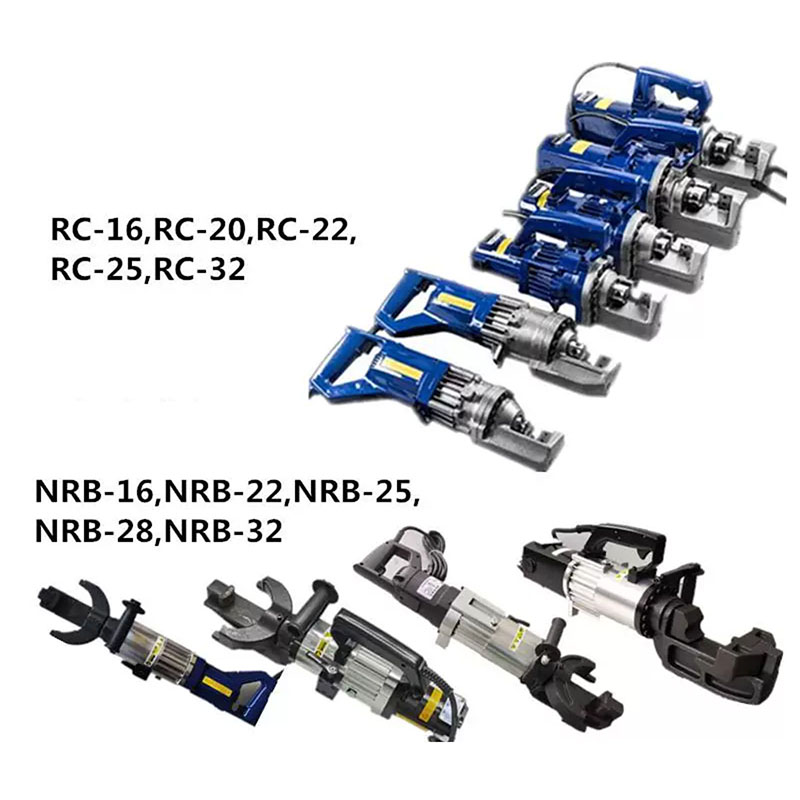

A: Yes, components are CNC-machined for direct compatibility with RC-16, RC-20, RC-22, and RC-25 handheld cutters.
Q: Does your factory support custom manufacturing for non-standard hydraulic tools?
A: Yes, ALAS manufactures custom D2 Steel Rebar Cutter Blades from blueprints or samples with a minimum order quantity of 10 pieces.
Eliminate Blade Play & Hydraulic Seal Wear Now!
Contact the ALAS engineering team today for a drop-in replacement audit or a factory-direct quote on portable hydraulic rebar cutter blocks!
D2 Steel Rebar Cutter Blades Under High-Frequency Hydraulic Shearing
Watch replacement D2 Steel Rebar Cutter Blades perform continuous cold-shearing on high-tensile deformed steel reinforcement bars. Engineered for portable electro-hydraulic cutters, these components provide direct drop-in fitment for standard RC-16, RC-20, and RC-25 handheld units, maintaining a total dimensional deviation ≤ 0.05 mm to eliminate tool holder play. Symmetrical machining geometries prevent bar slippage under heavy structural loads. Hardened via multi-stage vacuum gas quenching, the tool steel microstructure locks strictly at 58–60 HRC (batch tolerance ±1.0 HRC) to control dense chromium carbides and eliminate edge deformation under repetitive stress.
