Custom Swing Beam Shear Blades for Hydraulic Metal Shearing Machines

1. Mechanical Classifications & Swing Beam Layout

This category of mechanical shear blades is engineered exclusively for hydraulic swing beam shearing machinery, precisely matching the curved pivoting pathway of the upper cutting beam.

Rotational Curve Adaptation: Swing beam shearing operates on a radial arc movement. The blade layout is structurally optimized to handle the continuous angular transition, minimizing material friction and guarding against sheet deflection on conventional mid-gauge plates.

Asymmetric Thrust Mitigation: The dynamic structural anchoring counteracts cross-directional shearing strain, stabilizing the knife bed clearance across the full cutting length to eliminate uncalibrated hydraulic pump load spikes.

2. Material Selection Criteria & Metallurgical Properties

Every replacement knife undergoes computer-monitored vacuum thermal processing and CNC precision face grinding to ensure microstructural density and long-term edge retention.

6CrW2Si Tool Steel (Hardness Range: HRC 56–58): Refined with tungsten-silicon alloy elements to provide exceptional baseline mechanical toughness. It effectively absorbs repetitive vibrational impact along the swing arc, minimizing micro-chipping during long-term continuous production.

Cr12MoV / SKD11 Alloy Steel (Hardness Range: HRC 58–60): Formulated with premium carbon-chromium density for high wear resistance. It prevents material adhesion (galling) and secondary burr generation during mass cutting operations on mild steels and sticky alloys.

D2 Tool Steel (Hardness Range: HRC 58–62): High carbon-chromium Cold Work steel delivering superior abrasive wear resistance and anti-deformation capabilities under continuous medium-to-heavy load workshop runs.

Note: Specialized ultra-thick hot work die steels and high-hardness crushing matrices (H13, LD) are systematically excluded from this swing category to focus on regular workshop sheet processing requirements and avoid internal cross-page keyword cannibalization.

3. Core Chemical Composition Breakdown

The performance stability of swing beam blades is governed by the following certified tool steel chemical profiles:

6CrW2Si Matrix: C (0.55–0.65%), Si (0.80–1.10%), Cr (1.20–1.50%), W (2.00–2.50%).

Cr12MoV / SKD11 Matrix: C (1.45–1.70%), Cr (11.50–13.00%), Mo (0.40–0.60%), V (0.15–0.30%).

D2 Matrix: C (1.40–1.60%), Cr (11.00–13.00%), Mo (0.70–1.00%), V (0.50-1.10%).

4. Technical Specifications & Metric Dimensional Matrix

Every premium swing beam shear knife undergoes full-length vacuum hardening and precision CNC surface grinding to ensure microstructural uniformity.

5. Machined Tolerances & Operational Gap Configurations

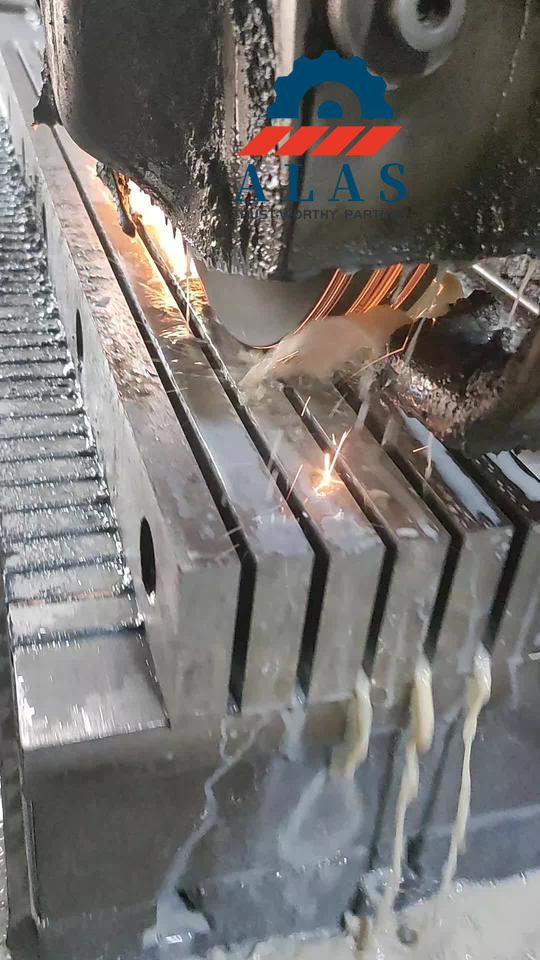

Straightness & Parallelism Alignment: Finished on long-bed surface grinding machine tools equipped with liquid cooling loops to eliminate thermal micro-cracks. Linear accuracy is maintained within per meter ≤ 0.02 mm across the total blade span, neutralizing lateral cutting thrust along the swing beam arc pathway.

Thickness Tolerances: Ground precisely to ±0.02 mm to ensure a flat, uniform mounting plane across multi-segmented blade combinations.

Mechanical Blade Clearance: For conventional carbon steel and non-ferrous sheets processed via swing shears, side clearance parameters must be calibrated between 7% to 10% of the material thickness. Incorrect gap configuration induces premature blade edge micro-chipping or heavy material draw.

6. Heat Treatment Specification & Industrial Logistics

Vacuum Hardening Sequence: Multi-stage computer-monitored vacuum tempering cycles achieve a uniform hardness tolerance of ±1 HRC throughout the blade profile. This eliminates surface decarburization and localized soft spots, establishing structural resistance against fatigue failure under continuous swinging impact loads.

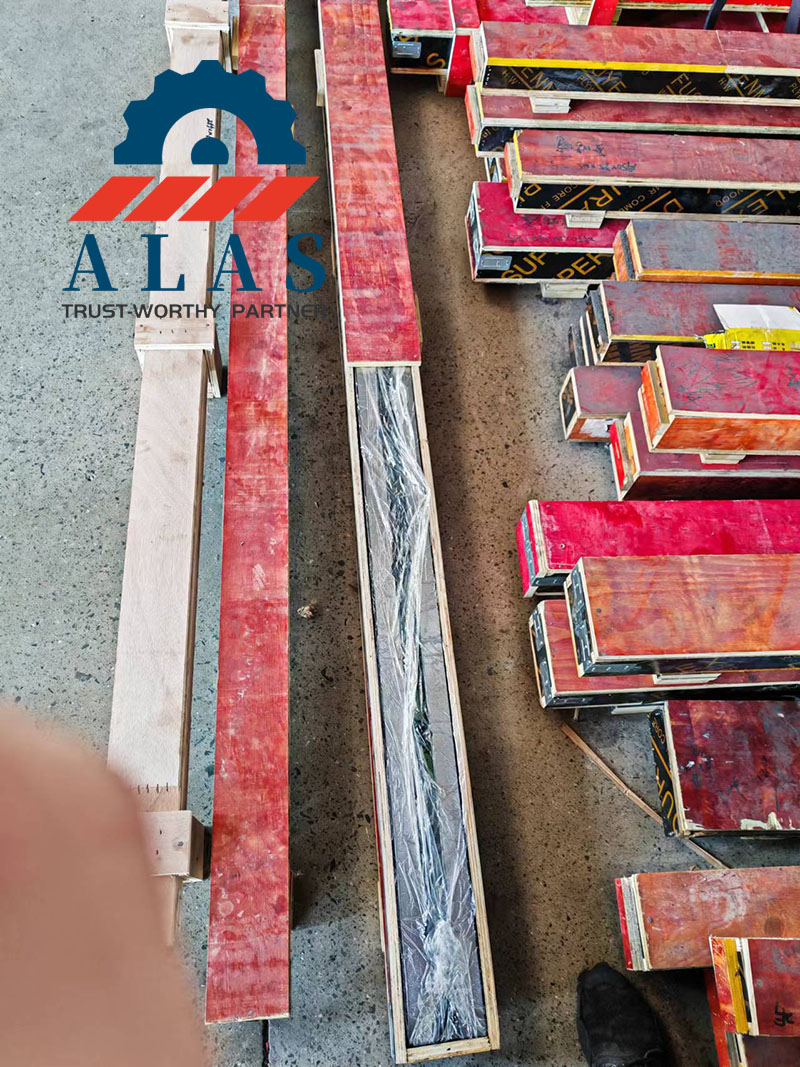

Chemical and Physical Preservation: All finished knives are coated with high-performance rust-preventative oil, hermetically sealed inside volatile corrosion inhibitor (VCI) moisture-barrier film, and packed into ISPM 15 compliant sea-worthy wooden crates with internal foam cushioning to prevent transit friction.

FAQ for Swing Beam Shear Blades

Q1: Why do rectangular shear blades require specific geometric parallelism when mounted on a swing beam shear versus a guillotine shear?

A: Swing beam shearing machinery operates on a radial pivoting arc pathway rather than a vertical linear stroke. As the upper beam swings down, the blade clearance changes dynamically along a curved path. If the blade parallelism and straightness variation exceed ≤ 0.02 mm per meter across the total blade span, this radial deviation will cause uneven side clearance, inducing localized sheet folding, rapid edge rolling, or catastrophic blade-on-blade collisions in the middle of the machine bed.

Q2: What are the optimal steel grades among 6CrW2Si, Cr12MoV, and D2 for processing different conventional metal sheets on swing shears?

A: Material selection must match your specific volume and sheet tensile properties. High-load work steels like H13 and LD are systematically excluded here to avoid rapid passivation on light-to-medium gauge sheets under 6mm:

6CrW2Si (HRC 56–58): Best suited for workshops processing mixed mild steel and medium-strength carbon plates. The tungsten-silicon alloy structure provides high structural toughness to absorb the constant vibrational shock generated along the swing arc.

Cr12MoV / SKD11 (HRC 58–60): Ideal for high-volume manufacturing lines cutting sticky non-ferrous metals (aluminum, brass, copper) or carbon steels, delivering high resistance against metal adhesion.

D2 (HRC 58–62): Recommended for long-run automated lines processing medium-hard carbon steel plates where maximum abrasive wear resistance is required.

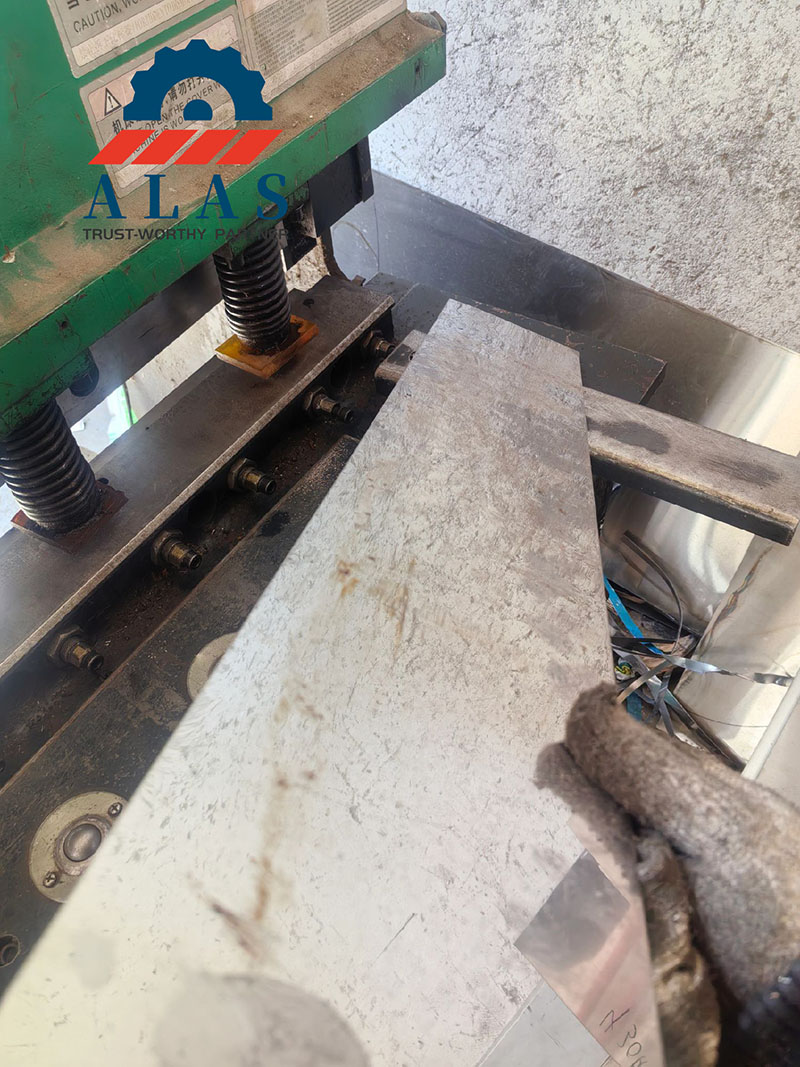

Q3: How should blade clearance (side gap) be calibrated correctly on hydraulic swing beam shears?

A: Check and calibrate blade clearance before starting each shift or when switching material thicknesses. For standard carbon steel and general metal fabrication sheets on swing shears, the industrial side clearance parameter must be set strictly between 7% to 10% of the material thickness. Ground thickness tolerances are held to ±0.02 mm to allow machine operators to achieve uniform clearance alignment across the entire machine holder bed. Incorrect gap configurations below 7% induce severe edge friction and thermal wear, while clearances above 10% yield heavy drawn burrs.

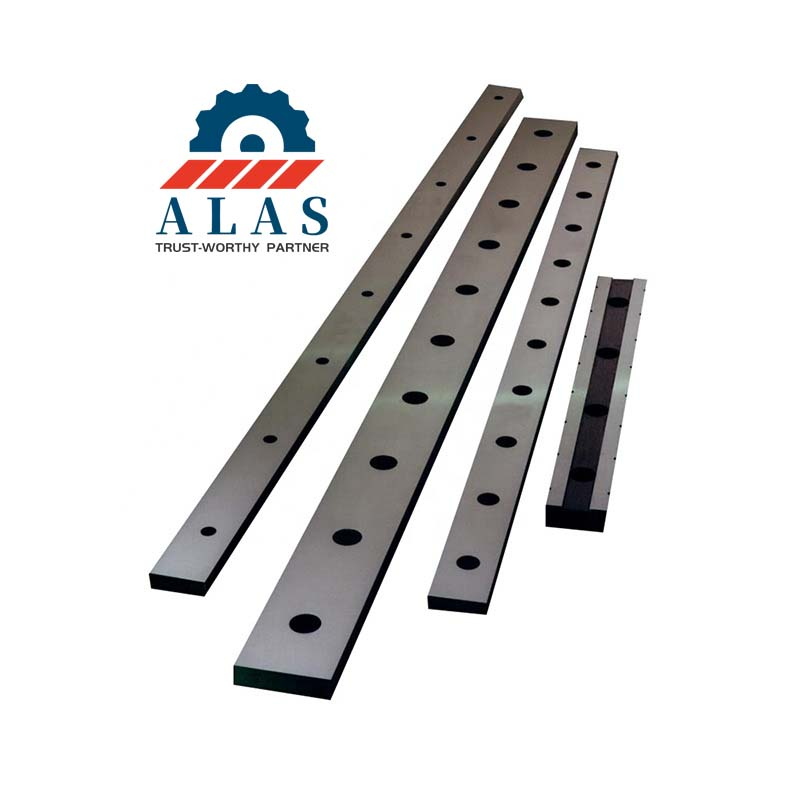

Q4: How do the cutting edge configurations differ between the upper and lower blades on a swing beam hydraulic shear?

Kinematic Edge Specifications:
Unlike guillotine shears that use 4-edged blades on both top and bottom, a hydraulic swing beam shear operates on a radial arc movement. This specific kinematic path dictates asymmetrical blade profiles to maintain correct cutting clearance throughout the stroke.

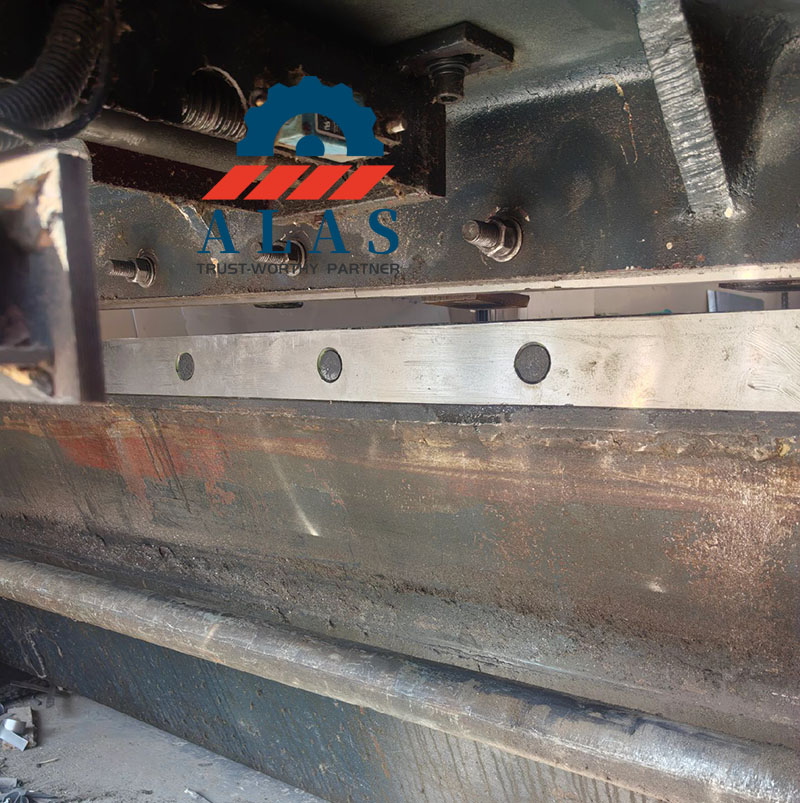

Upper Blade (Top): Manufactured exclusively as a specialized 2-edged blade (dual-cutting edge configuration). The blade face features a specific relief angle to clear the material without heel friction during the arc-down stroke.

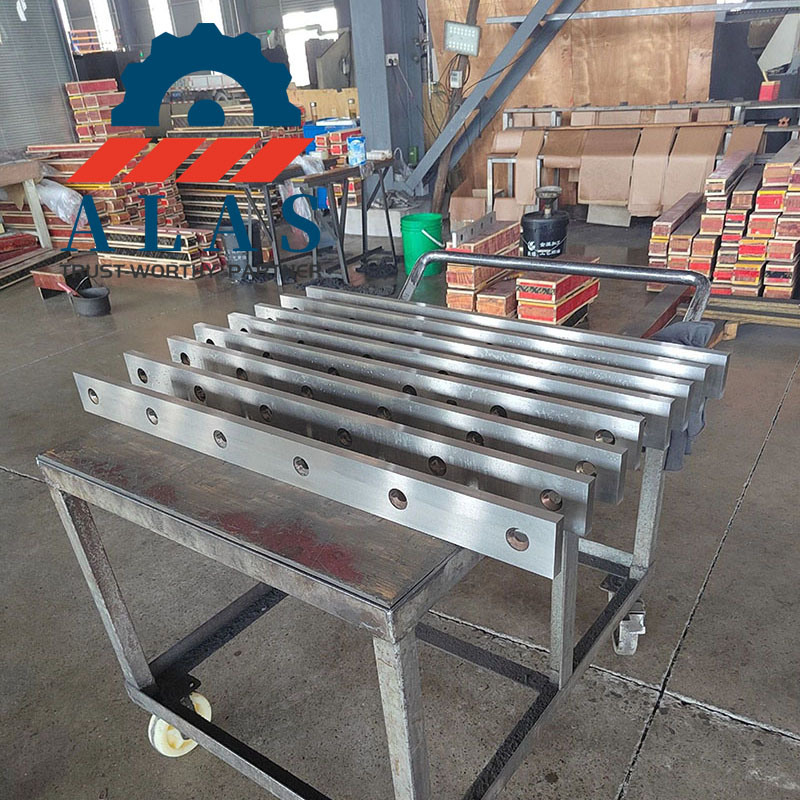

Lower Blade (Bottom): Manufactured as a standard 4-edged rectangular blade. Operators can utilize all four finely ground corners sequentially by rotating the blade 90° or flipping it along its linear axis during maintenance tracking.

Q5: Can replacement swing beam knives be precision manufactured for legacy or international brand machines?

A: Yes. Finished replacement knives are precisely machined to match the exact physical mounting layouts, bolt hole pitches, and countersink geometries of global mainstream shear machine brands, including Amada, LVD, Cincinnati, Pearson, Edwards, Gasparini, Bystronic, Haco, and Durma. Over 85% of our industrial knives are custom-engineered. Manufacturing requires engineering drawing verification (DWG, PDF, or STP formats) or physical sample dimension mapping. The Minimum Order Quantity (MOQ) is 1 piece.

Q6: How does computerized vacuum furnace hardening prevent microscopic distortion on long swing blades?

A: Long-span cutting blades are highly prone to warping or twisting during traditional heat treatment. Our facility implements multi-stage vacuum thermal tempering cycles to eliminate internal thermal stresses while preventing irregular grain boundary segregation. This traceable metallurgical process uniformly distributes carbide density and restricts overall mechanical distortion to under 0.02 mm per meter, achieving a uniform hardness tolerance of ±1 HRC throughout the blade profile.

Q7: What are the primary plant maintenance rules to prevent blades from chipping or cracking?

A: Operators must perform regular field-proven guidelines to extend operational lifespan:

Debris Clearance: Clean up metal scraps, rust, and structural mill scale off the metal sheets and blade bases before locking bolt setup to ensure even cutting pressure.

Thermal Lubrication: Apply high-temperature lubricants periodically to the active cutting edges to suppress micro-welding and frictional heat buildup.

Overload Prevention: Never exceed the blade’s rated mechanical capacity by shearing extra-hard foreign objects or plates thicker than the tool steel's engineered structural limits.

Q8: What specific industrial packaging standards and procurement lead times are provided for bulk orders?

A: Standard packaging utilizes VCI barrier film and seaworthy wooden crates. Stock items ship in 3–5 days, while custom designs require 15–20 days. Complete quotes are provided within 24 hours.
