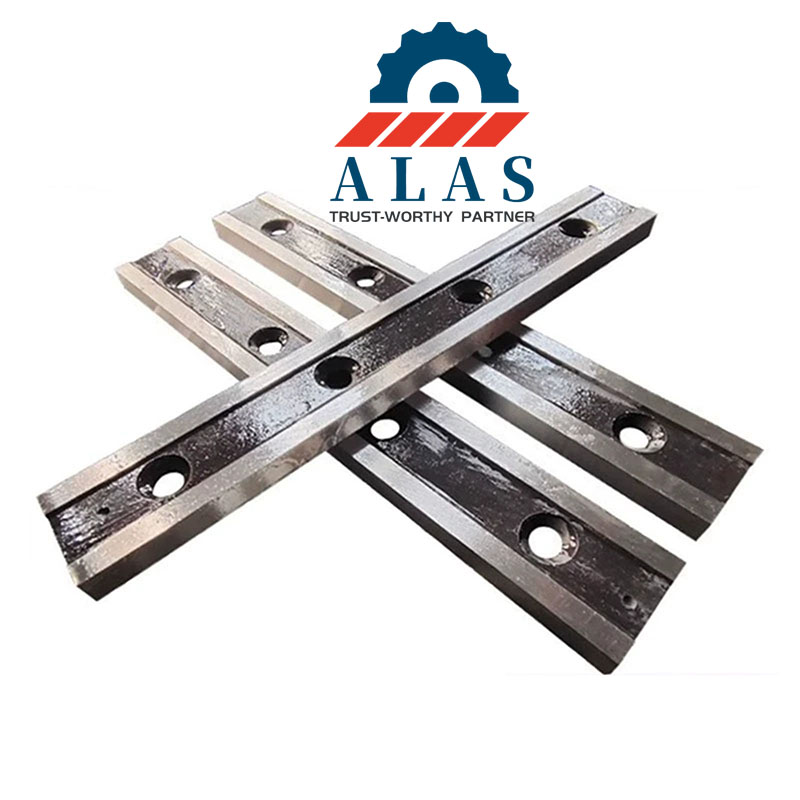

Custom High-Precision Thin Sheet Metal Shear Blades for Cold-Rolled Fabrication
Supplied direct-factory under an OEM/ODM wholesale business model for sheet metal blanking lines and hardware stampers, these silver-gray rectangular cutting knives are machined from Cr12MoV, SKD11, and 9CrSi cold-work tool steels.
Processed via vacuum nitrogen gas tempering to maintain a uniform hardness profile of HRC 58–60, these linear components feature a strict flatness standard of ≤ 0.02 mm per meter and a thickness tolerance of ±0.02 mm to ensure an exact blade gap alignment.
Every order supports customized laser-etched alignment markings and structural technical blueprint verification before mass production. Minimum order volume starts from 1 piece with global maritime logistics protection.
This category of precision guillotine shear blades is engineered exclusively for stationary machine beds specialized in high-frequency thin sheet metal cutting under 3mm.
Deformation Control Construction: Thin-gauge shearing relies on rigid blade alignment. The straight-line tool configuration suppresses sheet rolling, edge warping, and material bending during continuous, rapid down-strokes.
Asymmetric Wear Mitigation: The localized structural anchoring neutralizes lateral cutting thrust forces, maintaining a synchronized blade clearance across the entire bed length to prevent unexpected mechanical friction spikes.
2. Material Specifications & Metallurgical Properties

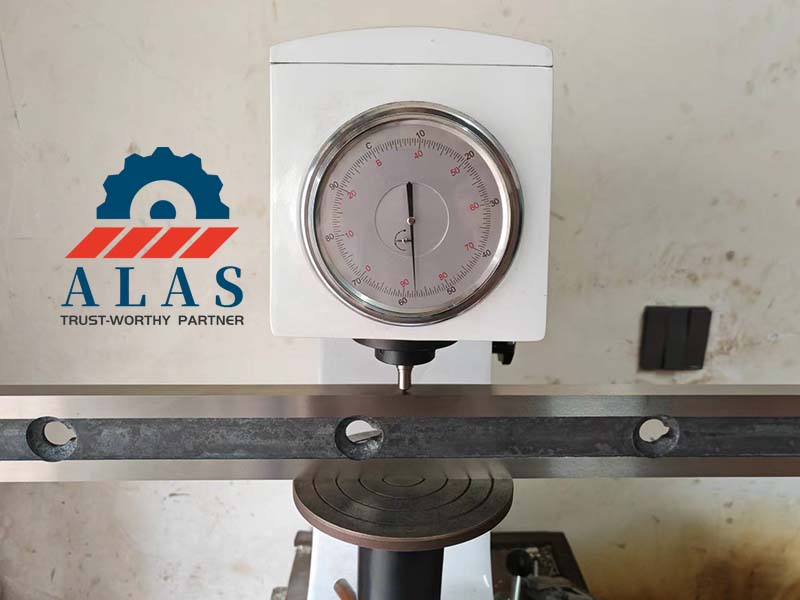

Every cutting tool component undergoes full-length vacuum gas hardening and multi-stage tempering to eliminate soft spots and structural internal stresses.
Cr12MoV / SKD11 Alloy Steel (Hardness: HRC 58–60): Formulated with premium carbon-chromium density for long-term edge retention. This tool steel prevents metal adhesion (galling) and secondary burr generation during mass production of sticky materials or silicon steel sheets.
9CrSi Tool Steel (Hardness: HRC 58–60): Features balanced abrasive wear resistance and ultra-low quenching deformation. A cost-effective metallurgical matrix optimized for regular low-volume cutting lines.
6CrW2Si Tool Steel (Hardness: HRC 56–58): Tungsten-alloyed composition engineered to provide baseline mechanical toughness, reducing structural micro-chipping during high-frequency cycles on light-gauge metals.
3. Machined Tolerances & Linear Alignment
Finishing processes are executed on long-bed CNC surface grinders under continuous liquid cooling cycles to eliminate thermal stress micro-cracks.
Straightness & Parallelism: Strict linear accuracy is maintained within per meter ≤ 0.02 mm over the entire blade span, ensuring clean steel plate separation without machine tool vibrations.

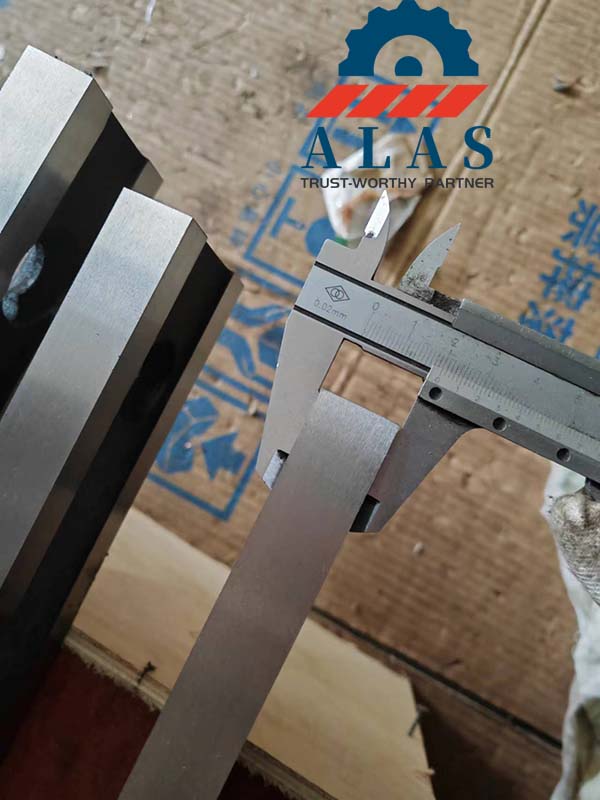

Thickness Tolerances: Ground precisely to ±0.02 mm to establish a perfectly flat, uniform assembly plane across segmented knife combinations.
4. Mechanical Blade Clearance Guidelines
Precise blade gap calibration is mandatory for thin sheet processing to prevent sheet jamming and heavy burrs. Floor settings are calibrated based on target thickness parameters:
Thin Gauge Cold-Rolled Sheets (< 2mm): Side clearance must be set strictly between 5% to 10% of the material thickness (Standard operational mechanical gap: 0.08 mm – 0.16 mm).
Operational Risk: Gaps exceeding 0.16 mm induce heavy material drawing, secondary burrs, and torn perpendicular edges; gaps below 0.08 mm accelerate cutting edge friction, causing rapid dulling and overheating.
Blade Thickness Stability: Linear cutting knives are optimized with thickness parameters tailored for thin-gauge metal sheet blanking lines. The uniform cross-section guarantees zero lateral deflection during continuous high-speed strokes.
Rake Angle Engineering: The cutting edge angle is precision ground between 1 to 2 degrees. This narrow angle minimises the required vertical cutting force while suppressing sheet-metal deformation, twist, and bowing on thin cold-rolled sheets.
Edge Geometry Configuration: Double-edged symmetrical grinding delivers a 2-way or 4-way reversible structural setup. When an operational edge reaches its wear boundary, rotating or flipping the component exposes a fresh razor edge, doubling machine uptime.
7. Quality Control, Maintenance & Export Packing Data
Surface and Flatness Calibration: Straightness is calibrated within per meter ≤ 0.02 mm to ensure uniform tight clearance across the entire bed length. Thickness tolerances are strictly held to ±0.02 mm to match high-frequency automated shearing parameters.
Preventative Plant Maintenance: Blade bases must be completely cleared of metal dust and structural scale before locking bolt setup. Specialized high-temperature lubricants must be applied periodically to the active cutting edges to suppress micro-welding and frictional heat buildup.

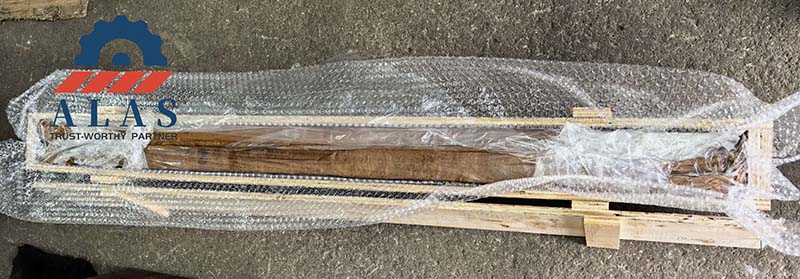

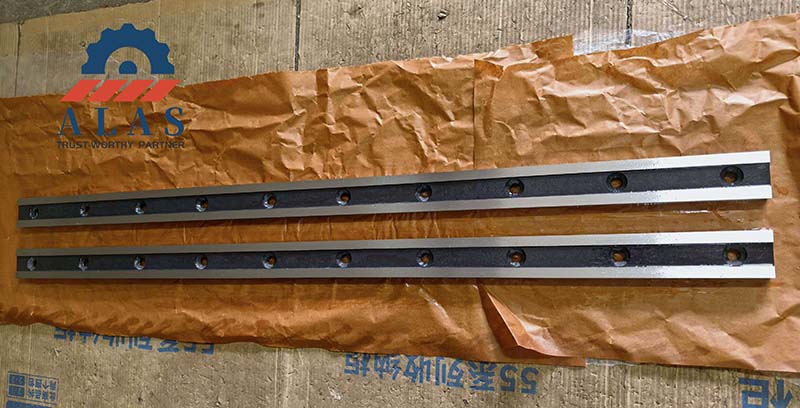

Export Packing Standards: Finished linear knives undergo intensive coating with rust-inhibiting fluid, hermetic sealing inside volatile corrosion inhibitor (VCI) vapor-barrier film, and packing inside ISPM 15 compliant sea-worthy wooden cases lined with high-density shock-absorbing foam.
FAQ Technical Questions & Verified Answers
Q1: What mechanical defects cause structural sheet warping and heavy burrs when shearing thin gauge metal sheets?
A: Burr residual and edge warping on sheets under 3mm primarily stem from poor blade parallelism, structural jaw deflection, or excessive mechanical clearance. Thin gauge shearing requires linear straightness to be held strictly within per meter ≤ 0.02 mm across the total bed span. This micro-precision ensures the blade gap remains perfectly uniform under high-frequency strokes, preventing the thin sheet metal from folding or dragging between the upper and lower cutting edges.
Q2: What is the recommended technical blade clearance (side gap) configuration for cold-rolled thin plates?
A: Thin gauge materials are highly sensitive to incorrect gaps. The verified industrial side clearance standard is 5% to 10% of the target sheet thickness. For sheets under 2 mm, operators must adjust the tool holder to set a tight mechanical gap between 0.08 mm – 0.16 mm. Gaps exceeding 0.16 mm force the thin metal to draw, causing prominent burrs and edge deformation, while gaps below 0.08 mm accelerate edge thermal wear and increase machine friction risks.
Q3: How do I pick the right tool steel material among Cr12MoV, SKD11, and 9CrSi for mass production of thin plates?
A: Material selection must match your continuous operational volume and sheet characteristics:
Cr12MoV / SKD11 (HRC 58–60): Recommended for automated long-run blanking lines, high-frequency continuous cutting, or processing sticky non-ferrous metals (aluminum, copper) and silicon steel. The high carbon-chromium matrix provides high edge retention and limits metal buildup.
9CrSi (HRC 58–60): The optimal cost-effective option for light-gauge general processing workshops with low-volume, intermittent production schedules.
Q4: Why are specialized high-load work steel grades like H13 and LD excluded from thin sheet cutting operations?
A: Tool steel selection requires balancing hardness with structural toughness based on impact loads. Heavy-duty steels like H13 or LD are engineered with a lower hardness ceiling (HRC 50–55 or HRC 52–58) to absorb massive shock loads on plates over 6mm. If applied to thin sheet blanking, these high-toughness, lower-hardness matrices passivate and dull rapidly, leading to frequent machine downtime. Thin sheet processing requires high-wear cold-work steels hardened to HRC 58–62 to keep linear edges razor-sharp.
Q5: Can replacement knives be precision manufactured for legacy or branded international guillotine shears?

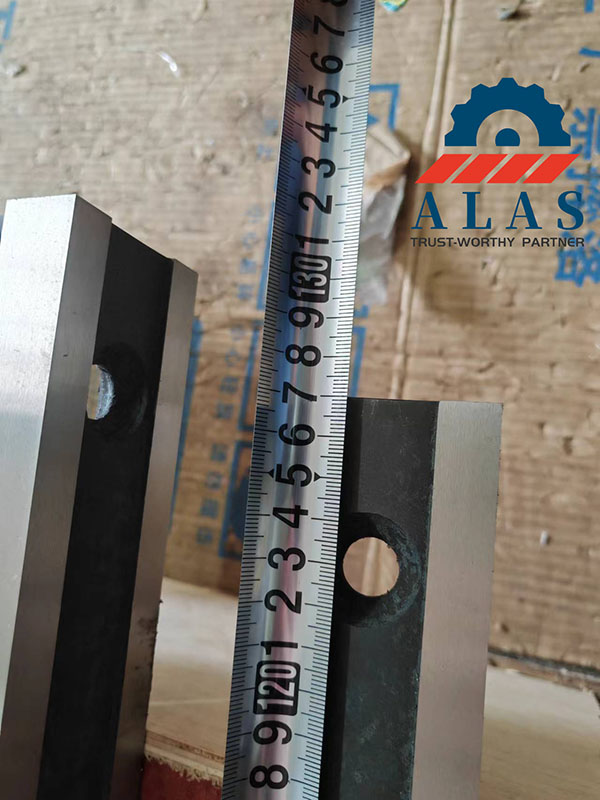

A: Yes. Finished cutting knives are machined to be 100% compatible with global mainstream shear machine brands, including Amada, LVD, Accurpress , Cincinnati, Pearson, Edwards, Gasparini, Bystronic, Haco, and Durma. Custom production requires engineering blueprint verification (DWG, PDF, or STP formats) confirming total segmented sections, total lengths, bolt hole pitch, and counterbore geometry to ensure a seamless alignment. Minimum order quantity (MOQ) is 1 piece.
Q6: How does computerized vacuum furnace hardening prevent microscopic distortion on long 3-meter or 4-meter linear cutting knives?
A: Long-span thin cutting blades are highly prone to warping or twisting during traditional heat treatment. Our factory implements multi-stage vacuum nitrogen gas quenching combined with dual tempering cycles. This traceable metallurgical process uniformly distributes carbide density and removes internal thermal stresses, restricting overall mechanical distortion to under 0.02 mm per meter. It ensures a flat, predictable mounting surface when locking the components into the shearing beam.
