High-frequency operation running thousands of cycles per hour causes structural deviations, wire deformation, and excessive burrs when using substandard shearing elements. This increases hydraulic or servo drive system load. ALAS Machinery supplies fully forged, vacuum-heat-treated CNC Wire Stirrup Bender Knives to maintain precise tolerances and eliminate tool misalignment inside moving cutter assemblies. This processing configuration ensures clean, square cold-shearing across automated reinforcement lines.
Tool Steel Grade Specifications & Hardness Locks
Alloy selection and specific hardness parameters counter edge chipping, thermal cracking, and abrasive wear under continuous automatic field conditions:

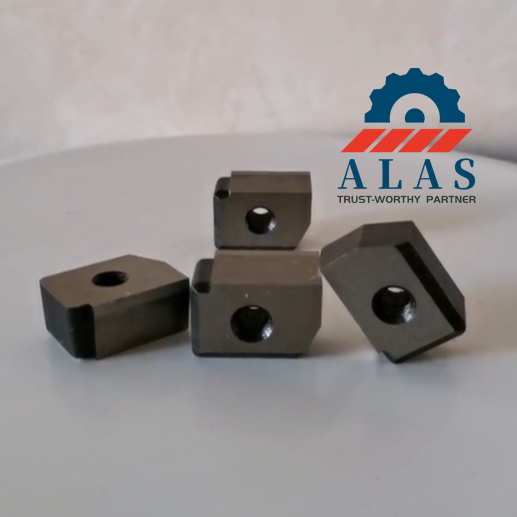

AISI D2 / JIS SKD11 (Cr12MoV Cold-Work Tool Steel): Hardened via multi-stage vacuum gas quenching to lock hardness strictly at 58–60 HRC (batch tolerance ±1.0 HRC). This matrix controls rich, dense chromium alloy carbides for abrasive wear resistance during high-frequency slicing. Engineered for 5mm to 12mm standard cold-rolled, carbon steel, and galvanized wire gauges.

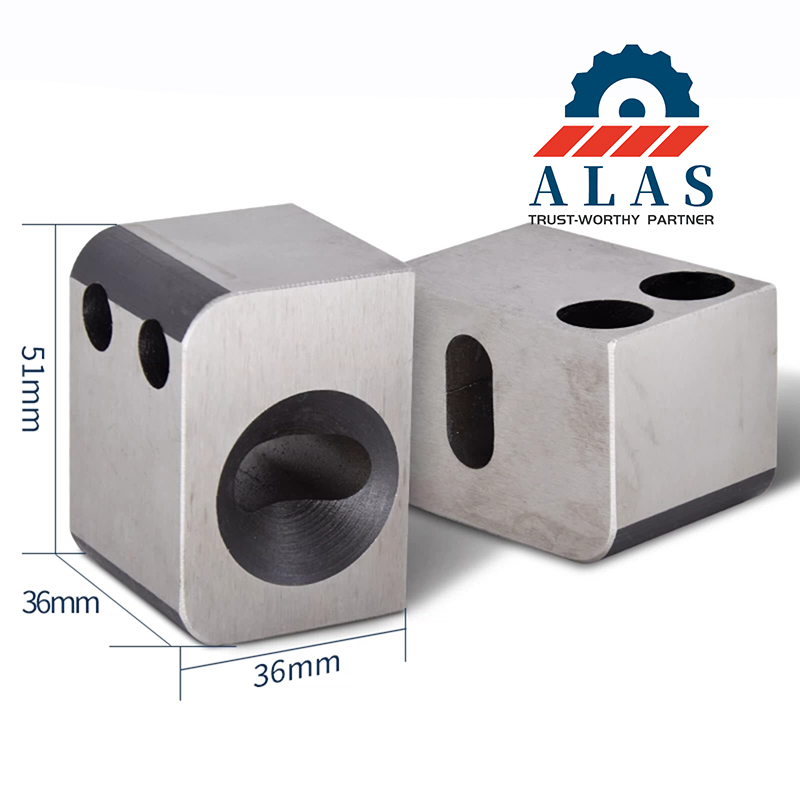

AISI H13 (Hot-Work Die Steel / 4Cr5MoSiV1): Vacuum-quenched and dual-tempered via a 3-time tempering process to relieve internal residual stresses, locking hardness strictly at 50–55 HRC. Engineered for automatic fly-shearing machinery processing high-tensile Grade 60 (HRB500E) rebar within the 5mm to 12mm diameter range. Heavy-duty 14mm to 16mm reinforcement shearing requires reinforced configuration upgrades.
ALAS standard and customized CNC Wire Stirrup Bender Knives deliver direct plug-and-play installation for mainstream automated equipment without on-site manual modification:
Automated System Fitness: Machined for high-capacity automatic wire stirrup bending machines, integrated straightening machinery, and automated rebar processing centers.

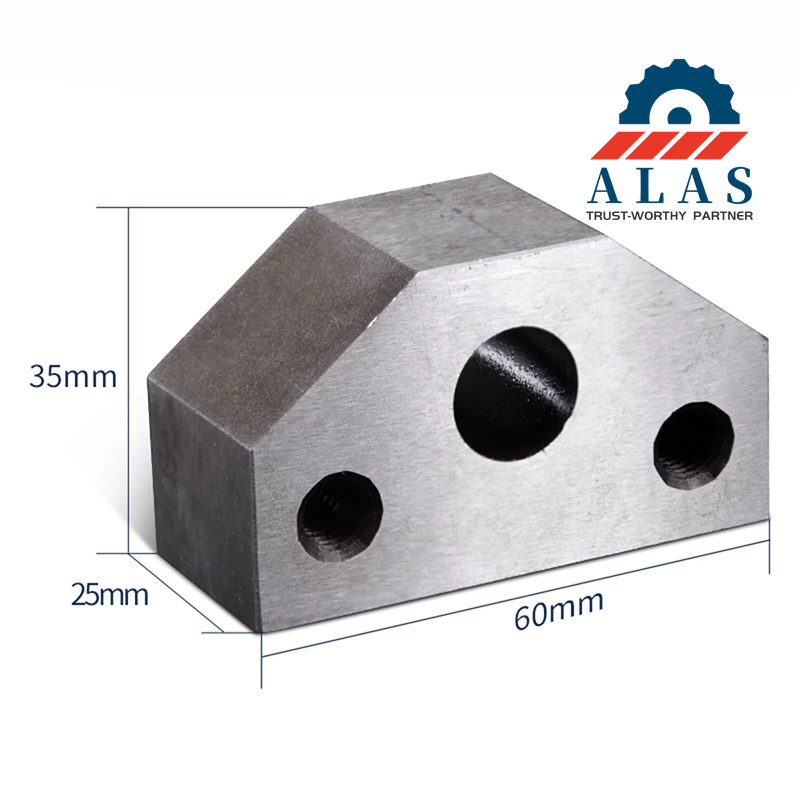

Symmetrical Modular Geometry: Features uniform center-to-center mounting bolt pitches and precise countersunk bolt hole depths. The square modular shapes leverage a multi-sided reversible design; rotating the tooling 90 degrees exposes fresh cutting faces to extend operational lifecycles.

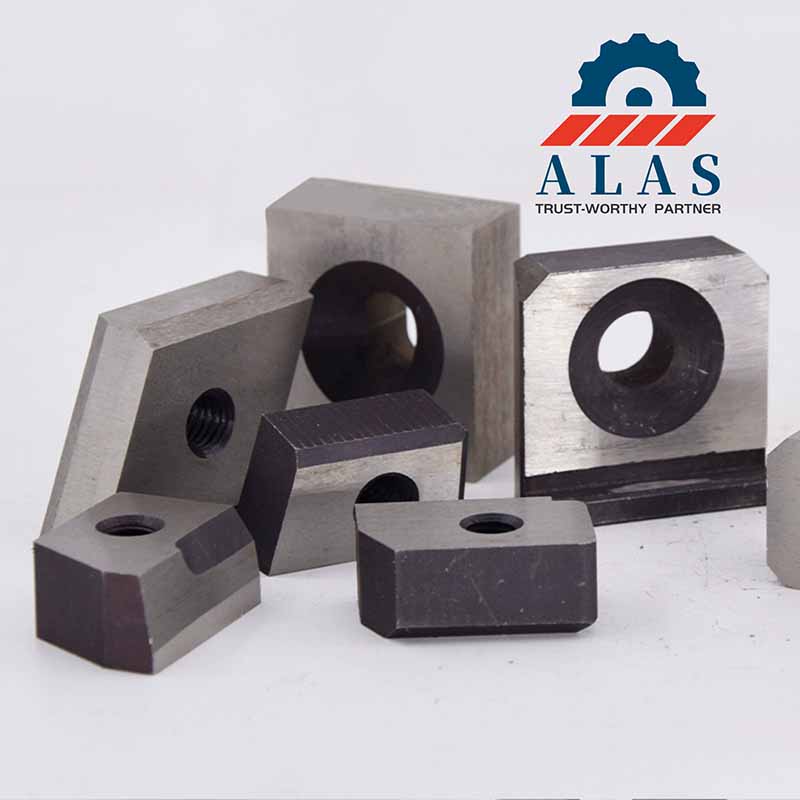

Processing Range: Tailored for burr-free cold-shearing on standard round steel bars, ribbed reinforcement steel, and structural wire gauge sizes spanning 5mm to 12mm diameters.
Hardness Verification & VCI Export Packaging
Every batch undergoes automated Rockwell hardness verification to ensure uniform structural integrity from the shearing boundary down to the steel core. To prevent surface oxidation during maritime transit or humid warehouse storage, components are treated with anti-rust oil, wrapped in vapor corrosive inhibitor (VCI) protective paper, and sealed within reinforced export wooden crates.
Field maintenance must align with standard mechanical constraints to avoid tooling failures and maximize consumable service life:
Rigid Horizontal Clearance: Verify the exact alignment gap between the moving knife and stationary counter-knife according to the original machinery technical manual. Excessive horizontal clearance causes mechanical extrusion and localized edge distortion instead of a clean cold shear.
Sharpening Boundaries: Regrinding minimal surface wear requires strict adherence to original factory cutting-edge geometry profiles and edge angles. Unguided manual grinding is invalid. Components exhibiting deep macroscopic chipping, structural cracks, or severe physical deformation must be discarded and replaced immediately.
International Brand Adaptation & Dimensional Verification Framework
CNC Wire Stirrup Bender Knives are manufactured to precise geometric specifications to replace high-frequency wearable components. Direct plug-and-play installation without on-site manual modification is guaranteed only after factory verification of customer-supplied physical blueprints or nameplate dimensions (Length × Width × Thickness, and center-to-center bolt pitch).

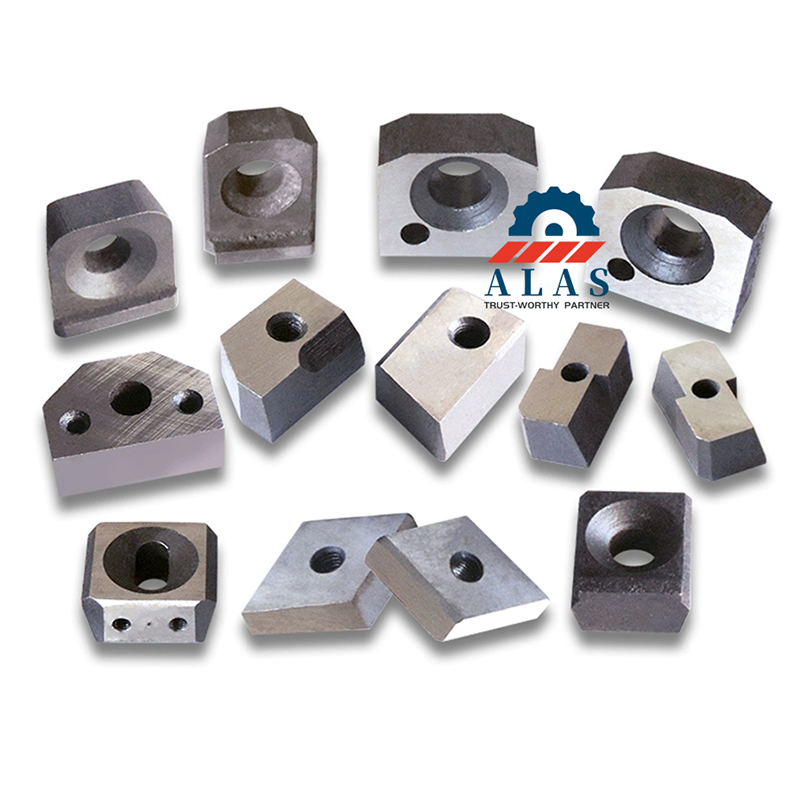

Technical adaptation frameworks cover key international machinery series, shifting from descriptive designations to explicit verification points:

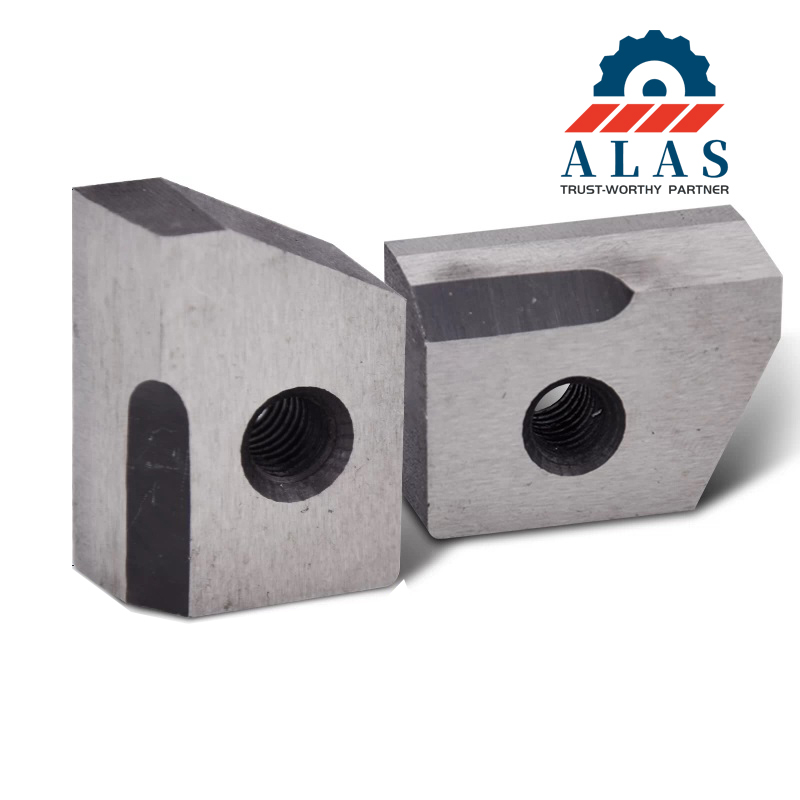

MEP Series: Calibrated for Format, Mini Syntax (including varying generational design revisions), and Focus automation lines. Custom verification of specific blade thicknesses is required to counter structural seat changes.
Schnell Series: Engineered for Coil 14, Coil 16 (including /C variants), Prima 12, Prima 13, and Prima 14 processing centers. Bolt hole pitches must be cross-checked to ensure exact counterbore alignment.
EVG Series: Formulated for EVG DBS, SBM, and PBX automatic bending lines. Due to varying tooling geometries across automated mesh and stirrup production modules, orders are executed strictly from confirmed physical blade technical drawings.
Pedax & Stema: Tailored for standard Twinmaster and high-frequency automated wire bending modules, requiring nameplate metric confirmation.
Disclaimer: All original equipment manufacturer (OEM) brand names, trademarks, and machinery model numbers (MEP, Schnell, EVG, Pedax, Stema) cited in this technical text serve exclusively as dimension and technical compatibility references. ALAS Machinery is an independent aftermarket parts manufacturer; this content implies no official partnership, commercial affiliation, or contractual endorsement by these equipment brands.
Q: Which tool steel grade matches specific high-speed CNC stirrup bending operations?
A: Material selection scales with operating speed and reinforcement tensile profiles. D2/Cr12MoV steel is locked strictly at 58–60 HRC (batch tolerance ±1.0 HRC) to maximize chromium alloy carbide wear resistance on standard 5mm–12mm cold-rolled wires. Hot-work H13 steel is locked strictly at 50–55 HRC via a mandatory 3-time tempering process to absorb cyclic dynamic impacts during high-tensile Grade 60 (HRB500E) rebar shearing within the same 5mm–12mm diameter range. (Note: For heavy-duty 14mm–16mm steel bar processing, reinforced configuration upgrades are required).
Q: Why do automatic stirrup shearing components experience rapid edge chipping or micro-cracking?
A: Structural failures stem from insufficient mounting bolt torque triggering eccentric vibration, loose moving-to-fixed blade clearance causing metal extrusion, or un-tempered microstructures. ALAS eliminates these structural risks via multi-stage computer-controlled vacuum gas quenching to thoroughly eliminate retained austenite.
Q: How do buyers guarantee correct replacement dimensions for international automatic benders?

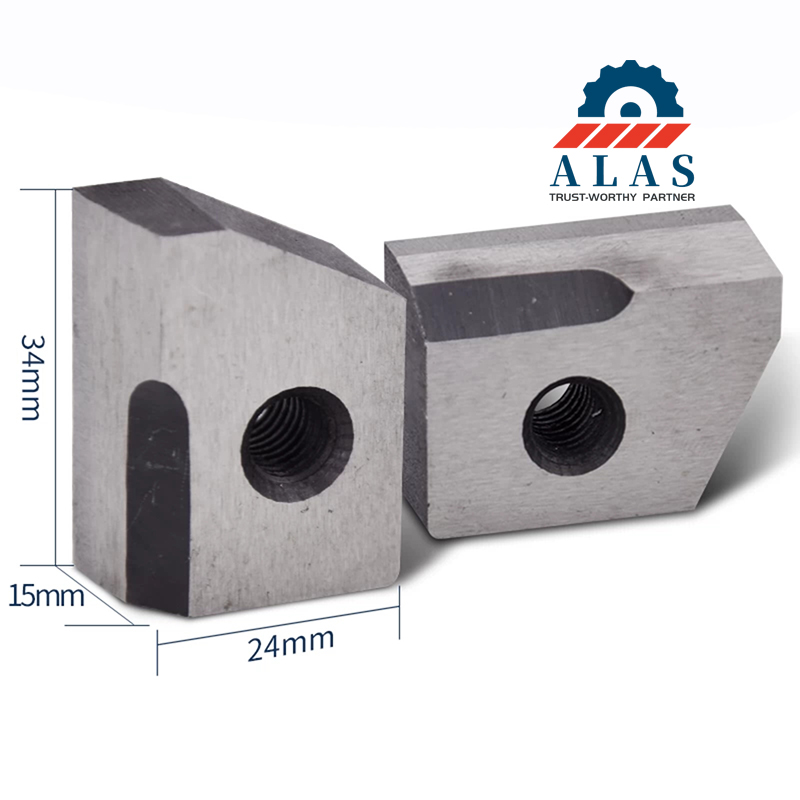

A: General series compatibility claims do not bypass generational tooling variances. To ensure a direct drop-in fit, buyers must provide official factory nameplate data or precise physical metrics—including Length × Width × Thickness and center-to-center mounting bolt pitch—to match factory cutter head counterbores prior to production.
Q: Can high-speed wire fly-shearing components be manually resharpened on-site?
A: No. Only minor surface wear allows automated profile grinding to replicate original factory edge angles. Guided manual touch-ups are invalid as subsurface fatigue cracks remain, which will trigger catastrophic structural failure under cyclic servo-driven impact loading.
Q: Does your factory support custom CNC tooling manufacturing for specialized wire machinery?
A: Yes. ALAS manufactures custom CNC Wire Stirrup Bender Knives directly from client CAD files, PDF blueprints, or physical samples, enforcing a strict factory Minimum Order Quantity (MOQ) of 10 pieces.
Eliminate Edge Chipping & Wire Extrusion Now!
Contact the ALAS engineering team today for a drop-in replacement audit or a factory-direct quote on CNC stirrup bender and fly-shearing knives!
