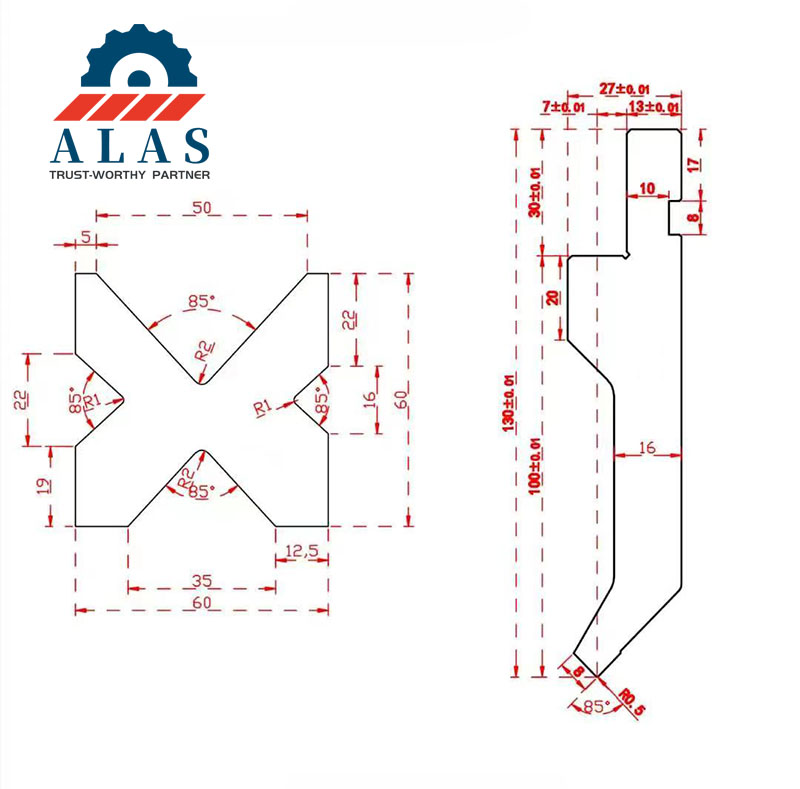

At ALAS Machinery, we specialize in high-end Custom Press Brake Tooling Manufacture, moving beyond simple metal fabrication to provide a comprehensive, turnkey engineering ecosystem for Tier-1 metal fabricators, industrial machine builders, and global tooling distributors. We understand that non-standard bending profiles demand specialized metallurgical solutions; hence, our full-cycle custom engineering pipeline guides your project seamlessly from initial 3D CAD draft design and structural Finite Element Method (FEM) validation to precision heavy-duty forging and localized precision grinding, ensuring first-stroke forming success for highly complex component runs.

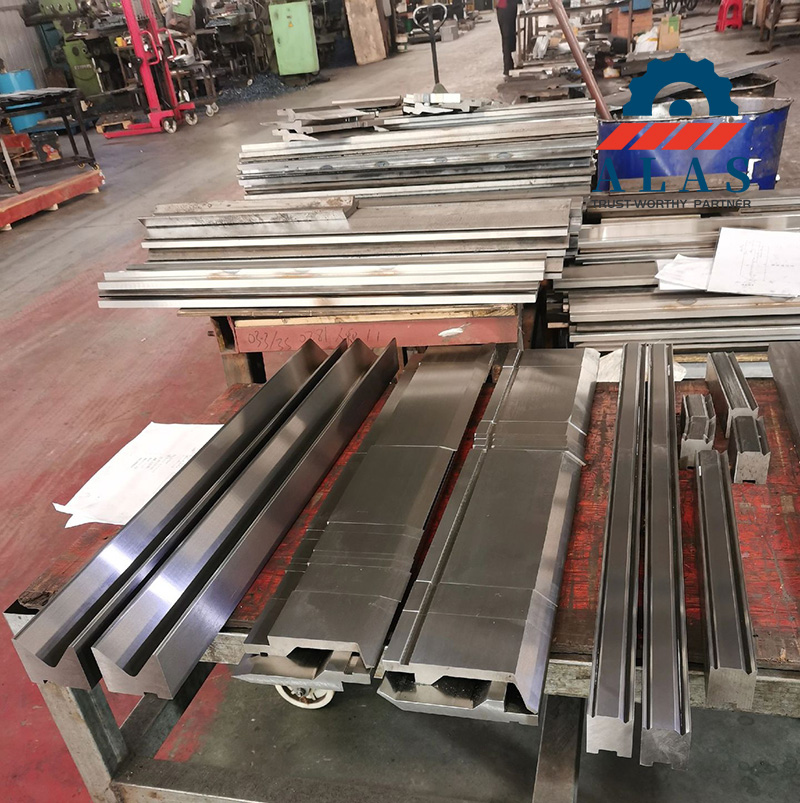

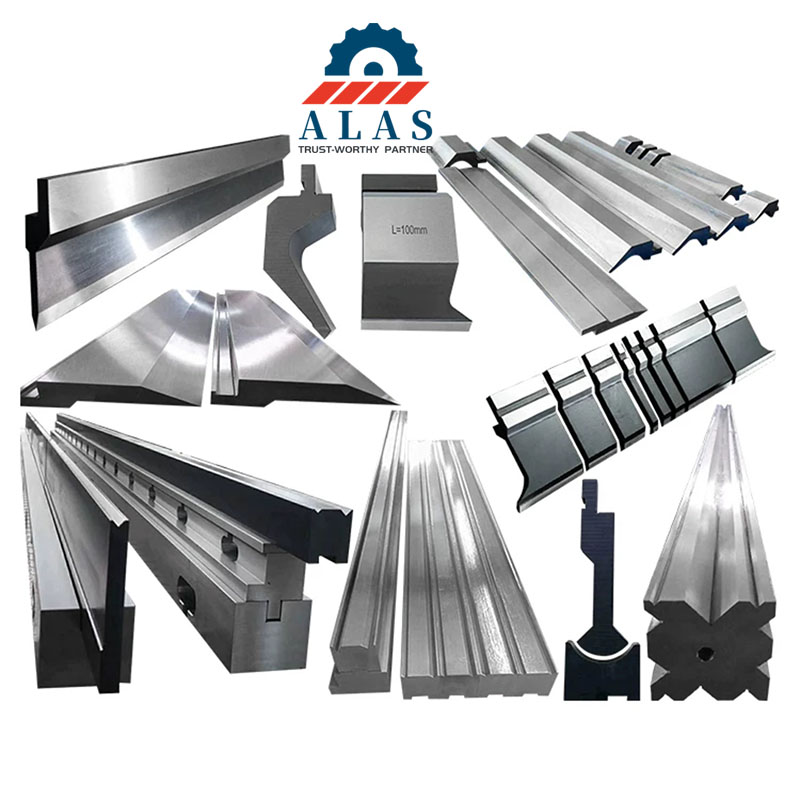

Whether you require a completely bespoke deep-throat gooseneck punch to bypass complicated returned flanges, custom-width single-V lower blocks with anti-marking nylon inserts, or massive high-tonnage heavy-plate forming dies, our engineering division crafts custom-tailored tooling solutions that map precisely to your unique machinery shut height, stroke limits, and specialized sheet metal production parameters.

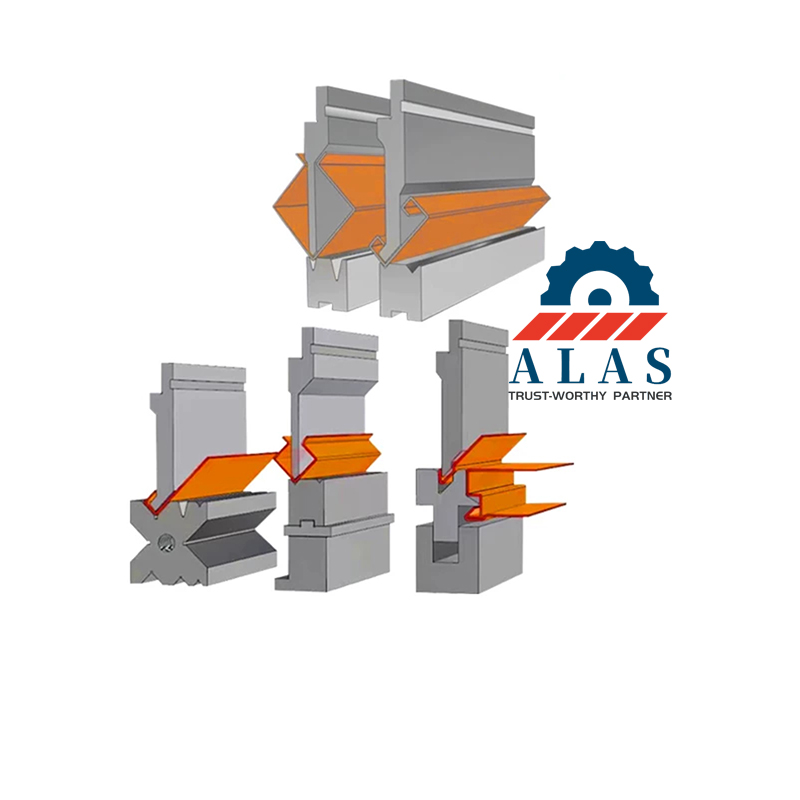

DFM (Design for Manufacturing) Validation & Advanced FEM Stress Simulation
To eliminate expensive material scrap and prevent premature structural failure on the shop floor, every custom blueprint undergoes strict Design for Manufacturing (DFM) analysis before a single steel billet is cut. Our manufacturing engineers leverage advanced computer-aided software to perform intense multi-axis simulations:
Finite Element Method (FEM) Modeling: We run high-fidelity numerical stress analysis across the irregular geometry of your custom tool design, predicting exactly how the 42CrMo core behaves under peak tonnage loads.
Stress Concentration Mitigation: By identifying potential high-stress risers, we automatically optimize critical tip radii, shoulder curves, and clearance throat depths to redistribute forming friction and prevent micro-cracking.
Springback & Interference Forecasting: Our virtual folding environment accurately calculates localized sheet elastic recovery and checks trailing flange travel paths, entirely removing the risk of tool-to-workpiece collision during late-stage automated cycles.

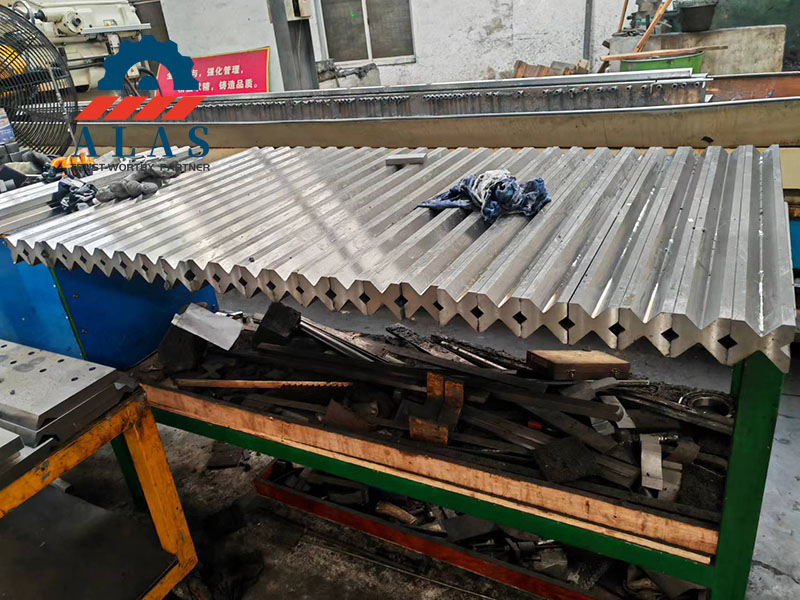

Bespoke industrial tooling demands flawless chemical composition and heat-treatment uniformity to guarantee reliable repeatable angular tracking. ALAS adheres to a rigorous quality benchmark for all non-standard processing contracts:

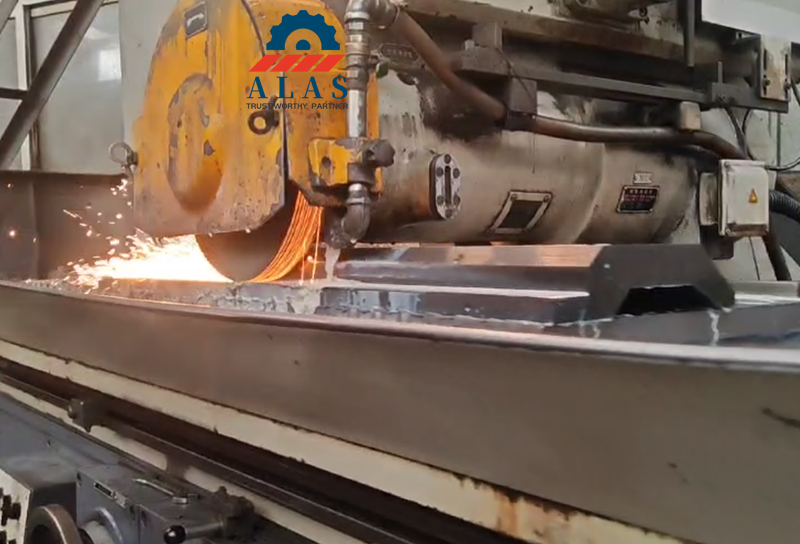

Engineering Parameter | Standard Custom Specification & Quality Value |
|---|
Base Raw Material | Certified High-Purity Forged 42CrMo Alloy Steel (AISI 4140 Equivalent) |
Core Heat Treatment | Deep Vacuum Liquid Quenching & Controlled High-Temperature Tempering |
Verified Working Hardness | HRC 47±3 (Strict volumetric uniform test tracking from core to surface working face) |
Precision Grinding Tolerance | ±0.02 mm Parallelism along the complete longitudinal tracking axis |
Surface Roughness Finish | Sub-micron CNC ground contact faces down to ≤ Ra 0.8 μm |
Non-Destructive Testing (NDT) | 100% Ultrasonic Flaw Detection to ensure zero subterranean stress risers |
To preserve the structural integrity of your tailored dies and prevent premature shoulder compression, procurement engineers must calculate estimated air-bending force profiles before initializing automated strokes. Utilize the standard industrial formula for mild steel:
Parameter Operational Definitions:
P: Calculated Hydraulic Tonnage Force Required (kN)
S: Active Sheet Metal Workpiece Thickness (mm, typically ranging from 0.8mm to 8.0mm+)
L: Effective Sheet Metal Bending Length (m)
V: Lower V-Die Opening Width (mm)
Tooling Longevity Rule:8× to 10× the material thickness (8-10S) For custom air-bending applications, ensure that your selected lower V-groove opening width maintains a ratio of at least . For high-tensile stainless steel alloys, multiply the final tonnage result P by a standard scaling coefficient of 1.5.

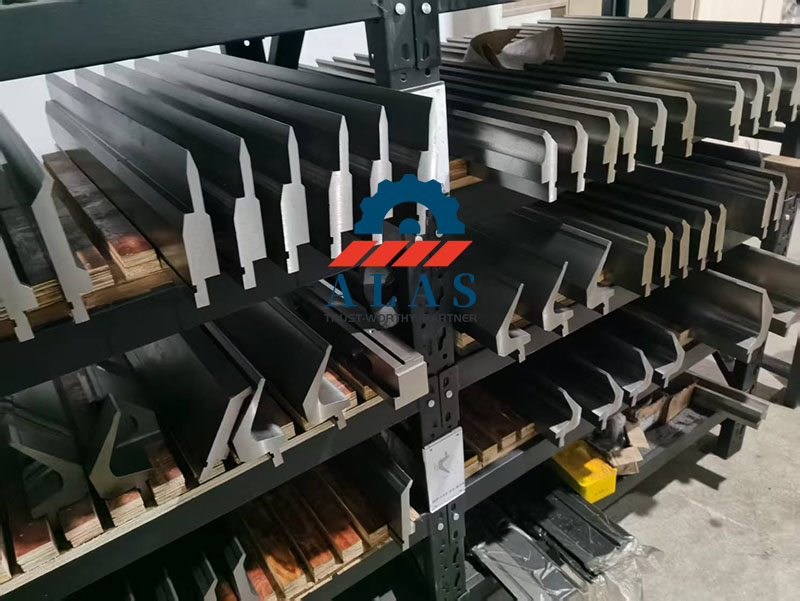

As a specialized global manufacturer, ALAS optimizes the industrial procurement pipeline for large-scale contract fabricators, machinery distributors, and machinery OEMs:
Tiered Factory-Direct Wholesale Rates: Streamlined corporate pricing models designed to significantly optimize the total cost of ownership (TCO) for bulk long-term contract buyers.
Turnkey OEM/ODM Support: Full private-label customization, including high-precision laser-engraved part numbers, technical load limits, brand logos, and tailored segmented section combinations per custom request.

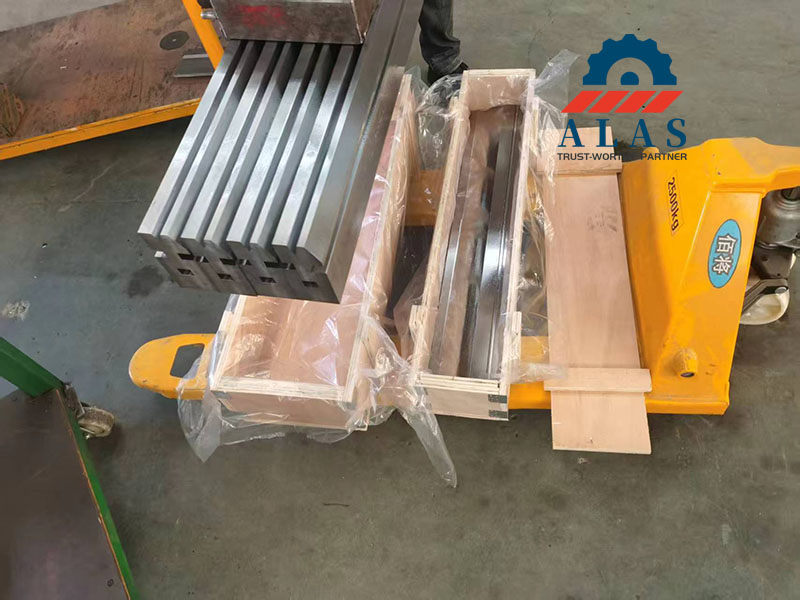

Heavy-Duty Export Logistics: Comprehensive anti-rust vacuum film wrapping secured inside robust, iron-banded export wooden crates, fully supported by flexible commercial terms including FOB, CIF, and DDP delivery.
A: For tailored designs requiring dedicated FEM engineering review and customized CNC tooling paths, standard prototyping requires 15 to 20 business days from final CAD print sign-off to factory grinding completion. Large-volume OEM bulk supply contracts are systematically scheduled based on ongoing shop-floor capacity availability to ensure punctual global delivery tracking.
A: Yes. We specialize in precision-milling mounting shanks, keyways, and locating configurations to flawlessly match all global equipment standards. We provide native adaptations for 13mm European Standard / Amada style rails, North American mechanical drawbars, Trumpf / Wila New Standard quick-change hydraulic holders, and Bystronic specialized clamping mechanisms.
Q3: Do you provide a certified material and hardness report with custom manufacturing orders?
A: Absolutely. Every bespoke tooling shipment is dispatched with a complete quality traceability file. This comprehensive documentation includes authentic raw material chemical composition mill certificates, mechanical testing summaries, and digital Rockwell hardness validation logs verifying our uniform HRC 47±3 body tempering standard.
A: Asymmetrical profiles (such as deep return-bend channels or custom multi-stage offset offsets) naturally induce volatile lateral torque and severe off-center bending deflection. To counteract this, our engineering team uses Finite Element Method (FEM) software to dynamically model localized shear loading. We typically widen the tool's horizontal seating shoulders and integrate heavy-duty locating keyways to absorb horizontal splitting forces, ensuring the upper punch centerline perfectly tracks the machine ram axis under continuous peak load cycles.
Q5: Can you manufacture custom oversized radius punches with internal structural damping?
A: Yes. For high-tonnage heavy-plate air bending involving thick structural steels, standard solid large-radius punches (such as R50mm to R100mm+ blocks) add excessive structural weight and risk eccentric failure. ALAS engineers custom-tailor hollow-body or cross-bolted radius inserts equipped with internal high-tensile rib stabilization. This specialized engineering reduces total dead weight by up to 35% while fully preserving the required compressive yield limits and stabilizing long-term linear straightness tolerances.
⚠️ Critical Engineering Operational Limits & Safety Warning for Non-Standard Blueprints
Strict Tonnage Load Buffer Limits: For all customized profiles featuring highly concentrated thin noses (angles ≤ 30° or tip radius ≤ 0.6mm), the mechanical load threshold must be automatically de-rated in the CNC controller by a mandatory 20% structural margin. Forcing heavy structural high-yield alloys past this calculated limit will cause immediate surface flattening, rolling, or catastrophic tip collapse.
Interface Axis Centering Validation: Never load a custom-milled mounting tang (whether American traditional drawbar style or Wila hydraulic New Standard format) without deep-cleaning the rail slots. A trace contaminant particle as thin as 0.05mm will alter the horizontal parallel baseline, amplifying asymmetric bending moments and potentially damaging your hydraulic quick-clamp assemblies.
Mandatory Dry-Run Stroke Testing: Before running automated shift production on newly prototyped deep-throat or large-offset custom tools, operators must execute a low-speed manual stroke validation with zero sheet metal inside the bed. This is essential to cross-verify the dynamic throat clearance parameters and eliminate any potential collision risks with the lower bolster table.
